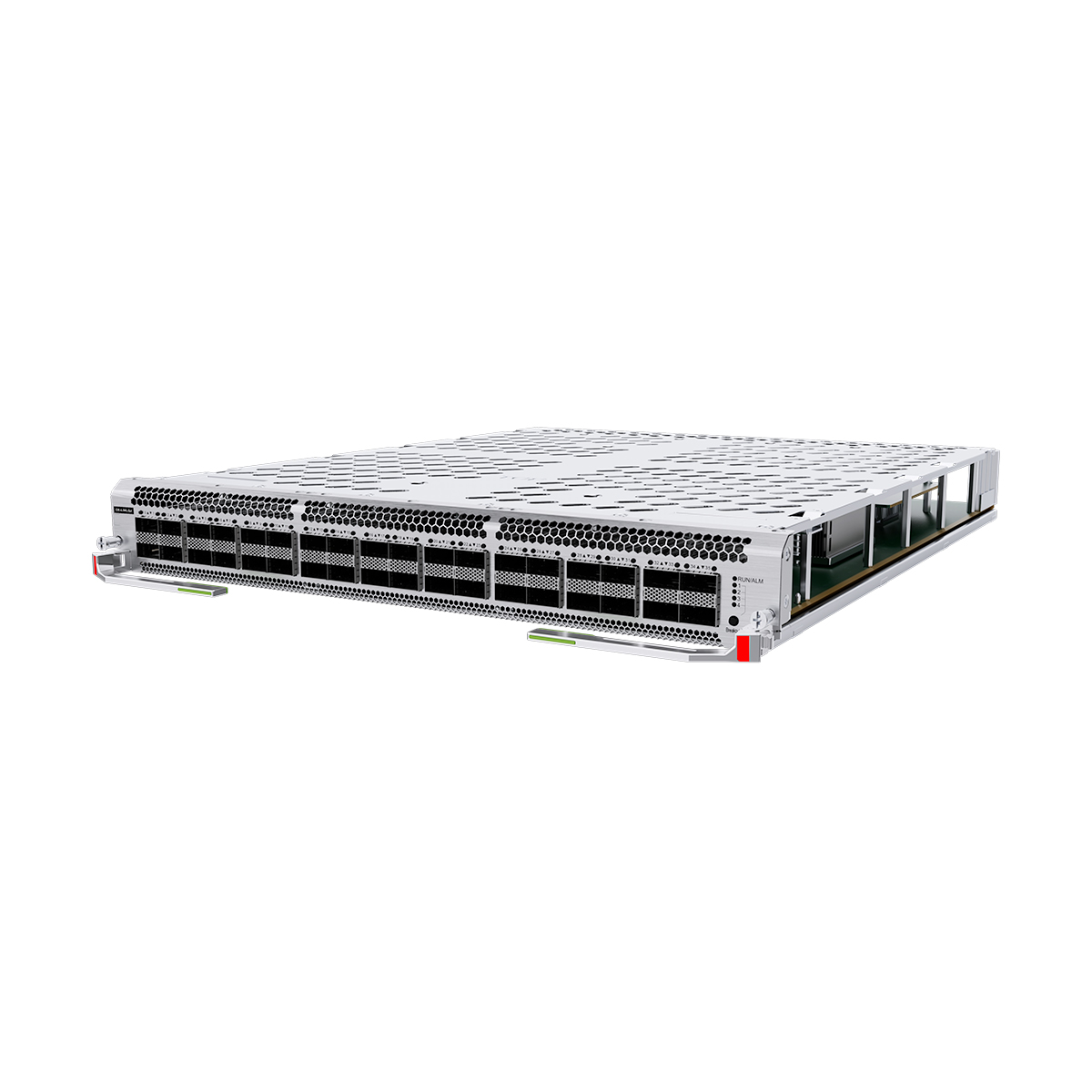

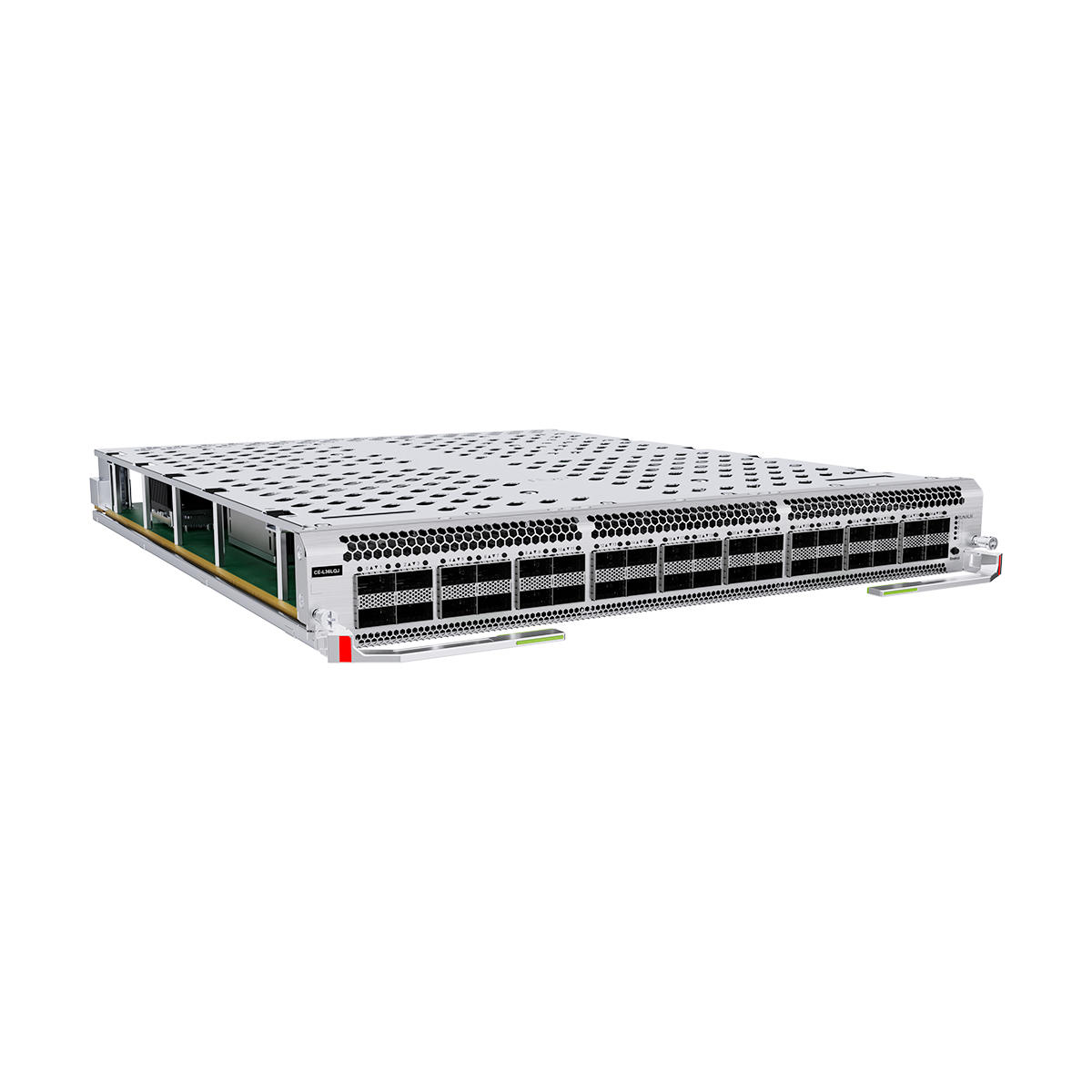

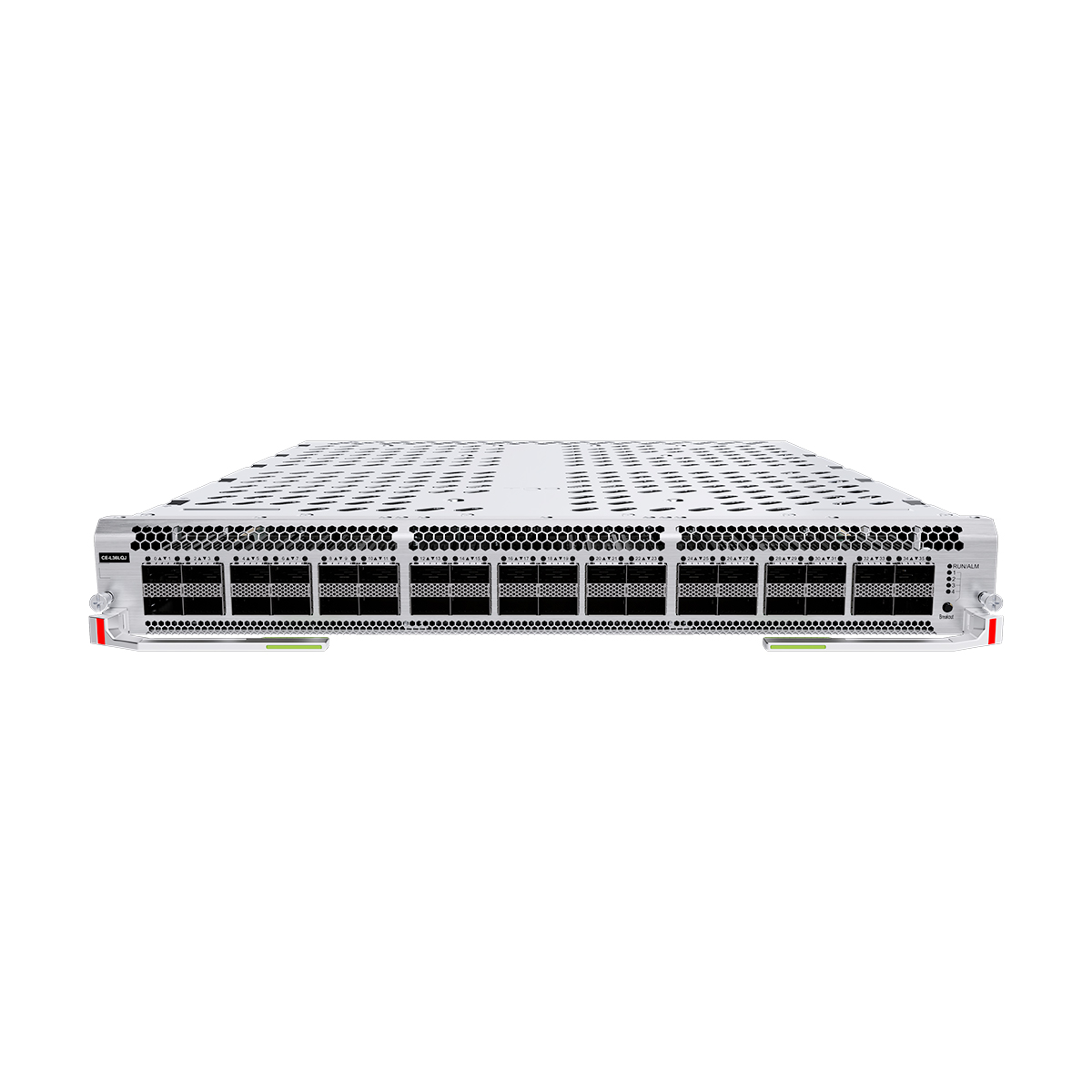

Huawei 16800series Switch Card CE-L36LQJ 36-port 40GE interface card (L-J, QSFP+)
| Description | 36-port 40GE interface card (L-J, QSFP+) |
| Part Number | 03050LEW |
| Model | CE-L36LQJ |
| Silkscreen | CE-L36LQJ |
| Card Type | Interface Card |

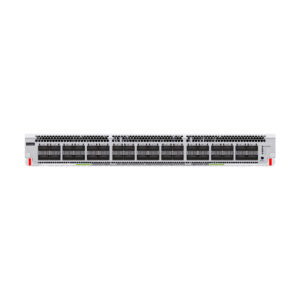

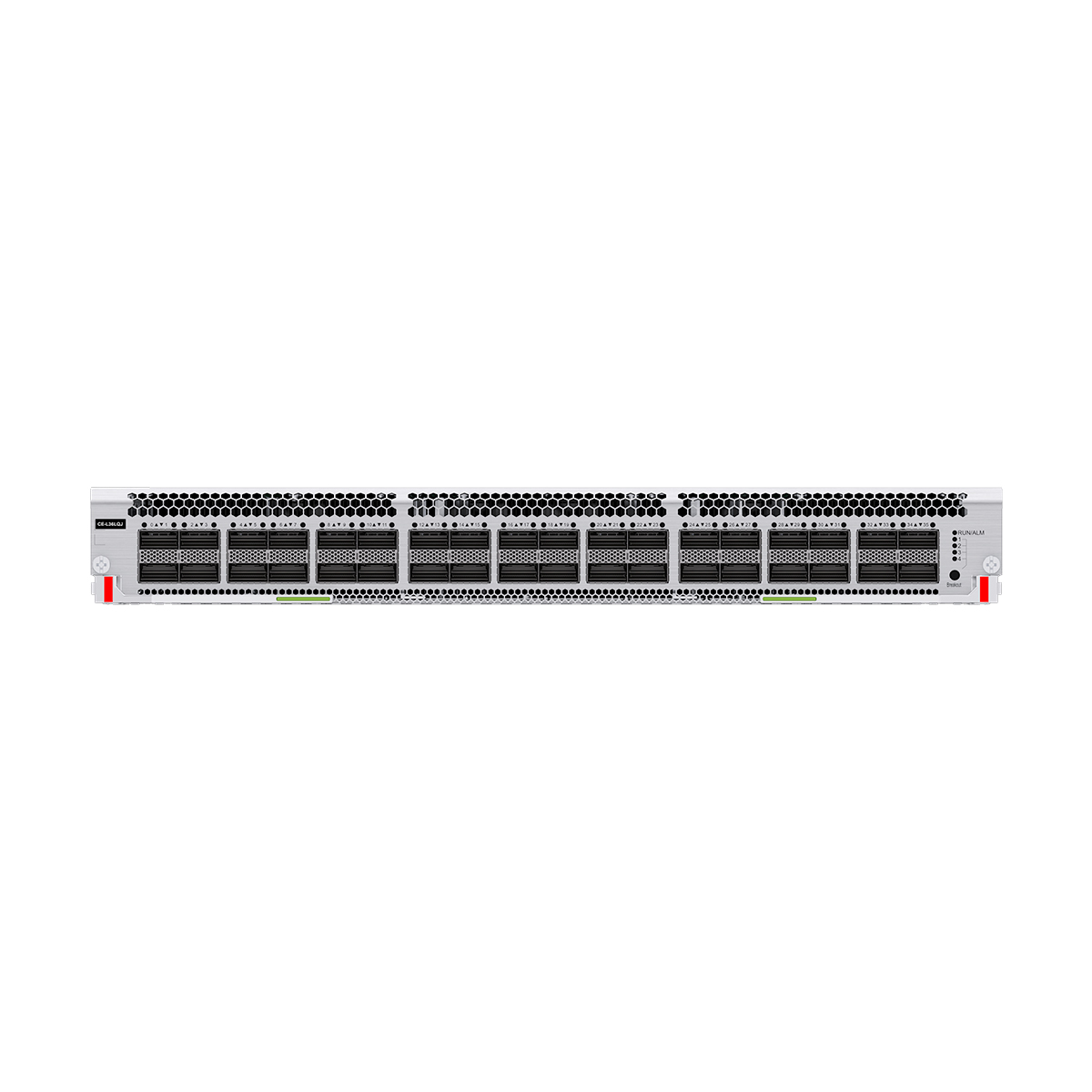

Panel on the CloudEngine CE-L36LQJ
| 1. Thirty-six 40GE optical ports |
Ports on the CE-L36LQJ
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 36 x 40GE optical ports | QSFP+ | Port for inputting and outputting 40GE optical signals |
|
| Item | CE-L36LQJ |
|---|---|
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 7.32 kg (16.14 lb) |
| Weight with packaging [kg (lb)] | 11.70 kg (25.79 lb) |
| Typical power consumption [W] | 295 W |
| Typical heat dissipation [BTU/hour] | 1006 BTU/hour |
| Static power consumption [W] | 266 W |
| Static heat dissipation [BTU/hour] | 907 BTU/hour |
| Maximum power consumption [W] | 443 W |
| Maximum heat dissipation [BTU/hour] | 1511 BTU/hour |
| CPU | 4-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
| Brand | Huawei |
|---|
| Item | CE-L36LQJ |
|---|---|
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 7.32 kg (16.14 lb) |
| Weight with packaging [kg (lb)] | 11.70 kg (25.79 lb) |
| Typical power consumption [W] | 295 W |
| Typical heat dissipation [BTU/hour] | 1006 BTU/hour |
| Static power consumption [W] | 266 W |
| Static heat dissipation [BTU/hour] | 907 BTU/hour |
| Maximum power consumption [W] | 443 W |
| Maximum heat dissipation [BTU/hour] | 1511 BTU/hour |
| CPU | 4-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
