Huawei CE16800 Series CE-L36CQJ 36-port 100GE interface card (L-J, QSFP28)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE-L36CQJ overview

Item	CE-L36CQJ
Description	36-port 100GE interface card (L-J, QSFP28)
Part Number	03050LEU
Model	CE-L36CQJ
Silkscreen	CE-L36CQJ
Card Type	Interface Card

CE-L36CQJ Appearance

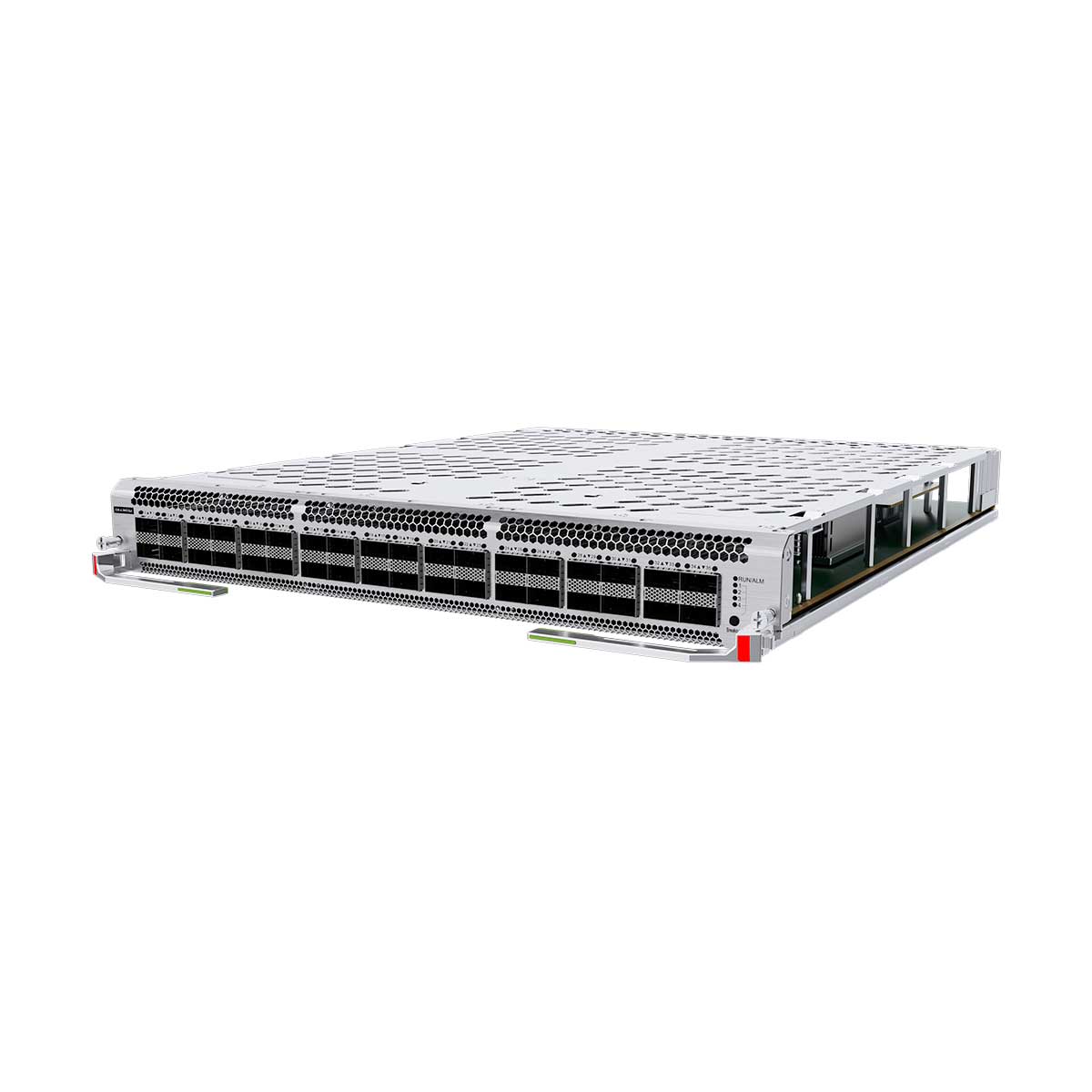

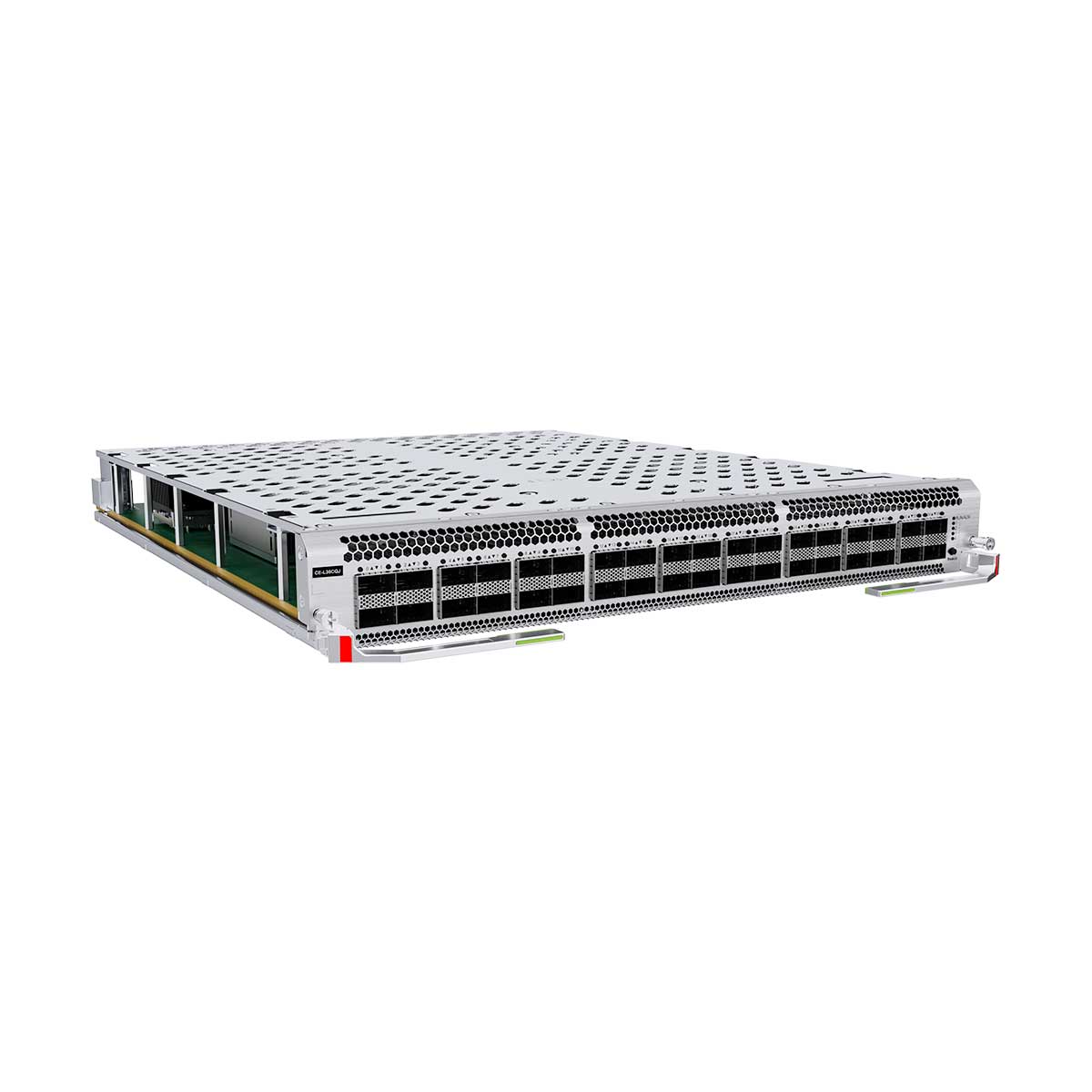

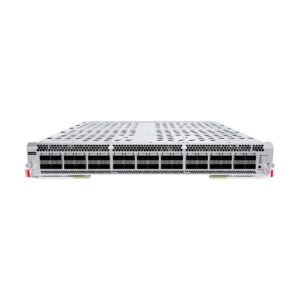

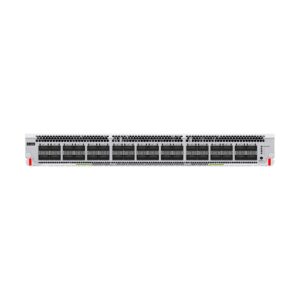

Panel on the CloudEngine CE-L36CQJ

1. Thirty-six 100GE optical ports

Ports on the CE-L36CQJ

Port	Connector Type	Description	Available Components
100GE optical port	QSFP56 (24 ports)/QSFP28/QSFP+	Port for inputting and outputting 200GE (24 ports)/100GE/40GE optical signals	100GE QSFP28 optical modules 40GE QSFP+ optical modules QSFP28 to QSFP28 AOC cable QSFP+ to QSFP+ AOC cable QSFP+ to 4SFP+ AOC cable QSFP28 to QSFP28 high-speed cable QSFP28 to 2QSFP28 high-speed cable QSFP+ to QSFP+ high-speed cable QSFP+ to 4SFP+ high-speed cable When 100GE ports 0-1, 2-3, 4-5, 6-7, 12-13, 14-15, 16-17, 18-19, 24-25, 26-27, 28-29, or 30-31 on the card work as 200GE ports, the following optical module and cables are supported: 200GE QSFP56 optical modules QSFP56 to QSFP56 AOC cable QSFP56 to 2QSFP56 AOC cable

Port

Connector Type

Description

Available Components

100GE optical port

QSFP56 (24 ports)/QSFP28/QSFP+

Port for inputting and outputting 200GE (24 ports)/100GE/40GE optical signals

100GE QSFP28 optical modules
40GE QSFP+ optical modules
QSFP28 to QSFP28 AOC cable
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 high-speed cable
QSFP28 to 2*QSFP28 high-speed cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable

When 100GE ports 0-1, 2-3, 4-5, 6-7, 12-13, 14-15, 16-17, 18-19, 24-25, 26-27, 28-29, or 30-31 on the card work as 200GE ports, the following optical module and cables are supported:

200GE QSFP56 optical modules
QSFP56 to QSFP56 AOC cable
QSFP56 to 2*QSFP56 AOC cable

Item	CE-L36CQJ
Basic function	The card provides data packet processing and traffic management on 36 100GE optical ports or 24 200GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density	If all LPUs are these cards: The CloudEngine 16804 chassis provides a maximum of 144 100GE ports or 96 200GE ports. The CloudEngine 16808 chassis provides a maximum of 288 100GE ports or 192 200GE ports. The CloudEngine 16816 chassis provides a maximum of 576 100GE ports or 384 200GE ports.
100GE port	100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into 4 x 25GE or 4 x 10GE ports. The card can provide a maximum port density of 36 x 40GE, 144 x 25GE, or 144 x 10GE. Each 100GE port can be used as a 40GE port through auto-sensing. Every two ports (0-1, 2-3, 4-5, 6-7, 8-9, 10-11, 12-13, 14-15, 16-17, 18-19, 20-21, 22-23, 24-25, 26-27, 28-29, 30-31, 32-33, and 34-35) form a group. The two ports in a group need to be split together, and each port can be split into 4 x 25GE or 4 x 10GE ports.
200GE port	24 ports can work at the rate of 200 Gbit/s and are divided into 12 groups (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, 18 and 19, 24 and 25, 26 and 27, 28 and 29, and 30 and 31). Such a port works at the rate of 100 Gbit/s by default. You can run the port mode 200GE command to change the port rate to 200 Gbit/s. After the port rate is changed, the port supports QSFP56 optical modules and can work as a 100GE or 40GE port through auto-sensing. The port can be split into two 100GE ports. When the rate is changed for either port in a port group, the other port in the group automatically switches to the same rate. For example, when port 0 is configured to work at the rate of 200 Gbit/s, port 1 is automatically configured to work at the rate of 200 Gbit/s.
Hot swapping	Supported
Restrictions and remarks	Every 12 ports form a group, and three groups (ports 0 to 11, 12 to 23, and 24 to 31) are involved. Each group has a bandwidth limit. Only the first eight ports in each group can be configured to work at the rate of 200 Gbit/s. In 3+1 SFU mode, the maximum bandwidth of each group cannot exceed 1.2 Tbit/s (for example, 6 x 200 Gbit/s or 12 x 100 Gbit/s). In 4+0 SFU mode, the maximum bandwidth of each group cannot exceed 1.6 Tbit/s (for example, 8 x 200 Gbit/s or 8 x 100 Gbit/s + 4 x 200 Gbit/s).
MACsec	Ports 0 to 7, 12 to 19, and 24 to 31 support MACsec. When these ports are configured to work at 40 Gbit/s or are split, MACsec is still supported. Other ports do not support MACsec.
Typical power consumption [W]	352 W
Typical heat dissipation [BTU/hour]	1200 BTU/hour
Static power consumption [W]	299 W
Static heat dissipation [BTU/hour]	1020 BTU/hour
Maximum power consumption [W]	590 W
Maximum heat dissipation [BTU/hour]	2012 BTU/hour
CPU	4-core, 1.4 GHz clock speed
Memory	Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]	7.32 kg (16.14 lb)
Weight with packaging [kg (lb)]	11.70 kg (25.79 lb)

Brand	Huawei

Item	CE-L36CQJ
Basic function	The card provides data packet processing and traffic management on 36 100GE optical ports or 24 200GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density	If all LPUs are these cards: The CloudEngine 16804 chassis provides a maximum of 144 100GE ports or 96 200GE ports. The CloudEngine 16808 chassis provides a maximum of 288 100GE ports or 192 200GE ports. The CloudEngine 16816 chassis provides a maximum of 576 100GE ports or 384 200GE ports.
100GE port	100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into 4 x 25GE or 4 x 10GE ports. The card can provide a maximum port density of 36 x 40GE, 144 x 25GE, or 144 x 10GE. Each 100GE port can be used as a 40GE port through auto-sensing. Every two ports (0-1, 2-3, 4-5, 6-7, 8-9, 10-11, 12-13, 14-15, 16-17, 18-19, 20-21, 22-23, 24-25, 26-27, 28-29, 30-31, 32-33, and 34-35) form a group. The two ports in a group need to be split together, and each port can be split into 4 x 25GE or 4 x 10GE ports.
200GE port	24 ports can work at the rate of 200 Gbit/s and are divided into 12 groups (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, 18 and 19, 24 and 25, 26 and 27, 28 and 29, and 30 and 31). Such a port works at the rate of 100 Gbit/s by default. You can run the port mode 200GE command to change the port rate to 200 Gbit/s. After the port rate is changed, the port supports QSFP56 optical modules and can work as a 100GE or 40GE port through auto-sensing. The port can be split into two 100GE ports. When the rate is changed for either port in a port group, the other port in the group automatically switches to the same rate. For example, when port 0 is configured to work at the rate of 200 Gbit/s, port 1 is automatically configured to work at the rate of 200 Gbit/s.
Hot swapping	Supported
Restrictions and remarks	Every 12 ports form a group, and three groups (ports 0 to 11, 12 to 23, and 24 to 31) are involved. Each group has a bandwidth limit. Only the first eight ports in each group can be configured to work at the rate of 200 Gbit/s. In 3+1 SFU mode, the maximum bandwidth of each group cannot exceed 1.2 Tbit/s (for example, 6 x 200 Gbit/s or 12 x 100 Gbit/s). In 4+0 SFU mode, the maximum bandwidth of each group cannot exceed 1.6 Tbit/s (for example, 8 x 200 Gbit/s or 8 x 100 Gbit/s + 4 x 200 Gbit/s).
MACsec	Ports 0 to 7, 12 to 19, and 24 to 31 support MACsec. When these ports are configured to work at 40 Gbit/s or are split, MACsec is still supported. Other ports do not support MACsec.
Typical power consumption [W]	352 W
Typical heat dissipation [BTU/hour]	1200 BTU/hour
Static power consumption [W]	299 W
Static heat dissipation [BTU/hour]	1020 BTU/hour
Maximum power consumption [W]	590 W
Maximum heat dissipation [BTU/hour]	2012 BTU/hour
CPU	4-core, 1.4 GHz clock speed
Memory	Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]	7.32 kg (16.14 lb)
Weight with packaging [kg (lb)]	11.70 kg (25.79 lb)
