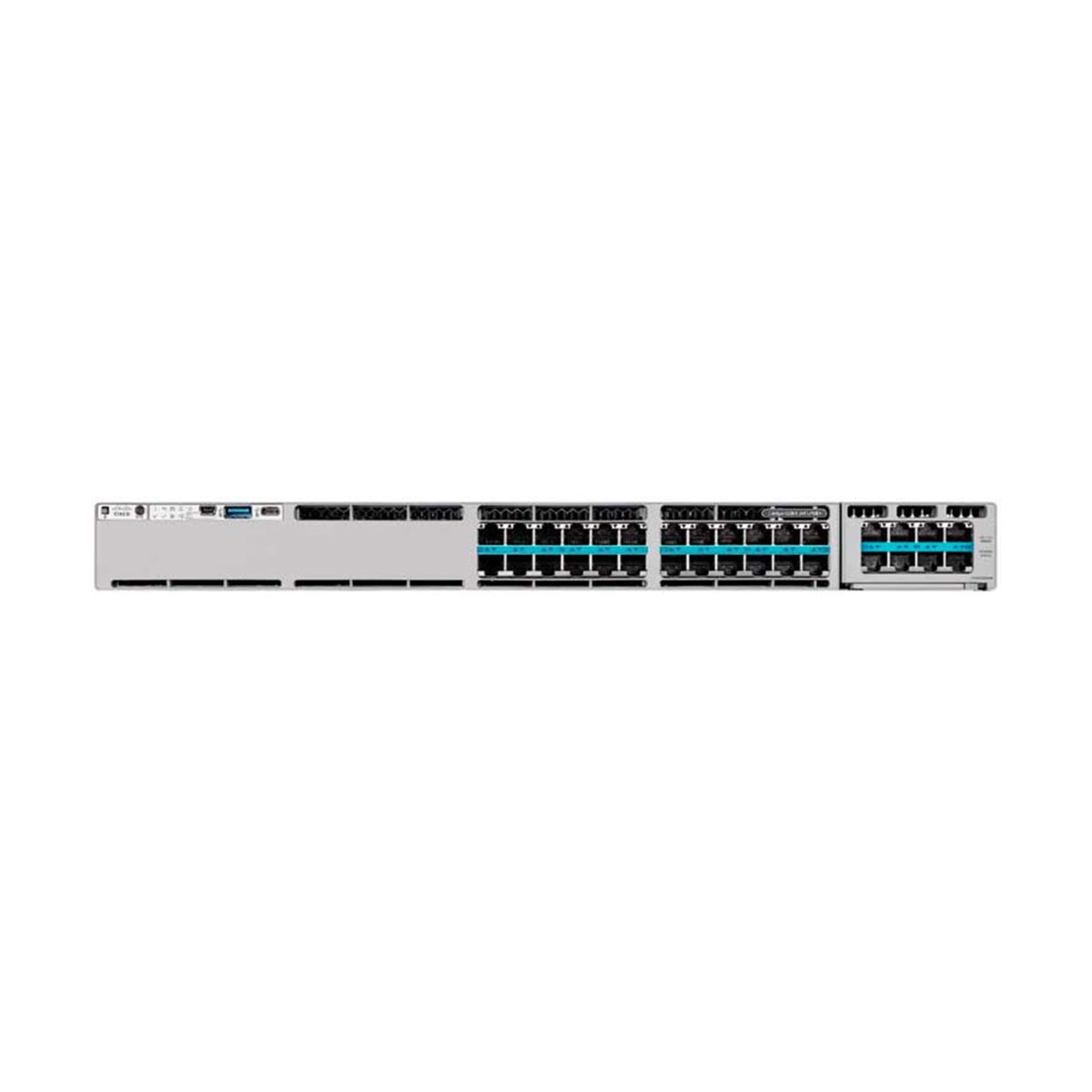

C9300X-24HX
Categories:

C9300X-24HX

0 Reviews Write a review
SKU2011176
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Cisco C9300X-24HX switch supports 24 10G/5G/2.5G/1G/100M multigigabit port UPOE+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

C9300X-24HX overview

Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

The many industry’s first include:

  •  Up to 1TB of stacking bandwidth
  •  Up to 1TB of stacking bandwidth
  •  Mixed Stacking with Backward Compatibility
  • Highest Multigigabit Ports
  • Highest 90W UPOE+ Density
  • StackPower with Backward Compatibility
  • 100G IPsec in hardware
  • Secure Tunnel connectivity
  • Enhanced Application Hosting
  • ThousandEyes Enabled
  • ThousandEyes Enabled

Cisco Catalyst 9300 Series switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three field-replaceable fans. Power Supplies are common across the Catalyst 9300 Series.

Cisco Catalyst 9300 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.

C9300X-24HX quick spec

24 multigigabit ports

PoE supported

Switching capacity: 880 Gbps

Forwarding rate: 327.38 Mpps





Description Catalyst 9300X modular uplink models Catalyst 9300 modular uplink models Catalyst 9300 higher scale models Catalyst 9300L/LM fixed uplink models
Total number of MAC addresses 32,000 32,000 64,000 32,000
Total number of IPv4 routes (ARP plus learned routes) 39,000 (24,000 direct routes and 15,000 indirect routes) 32,000 (24,000 direct routes and 8000 indirect routes) 112,000 (48,000 direct routes and 64,000 indirect routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 routing entries 19,500 16,000 56,000 16,000
Multicast routing scale 8,000 8,000 16,000 8,000
QoS scale entries 4,000 5,120 18,000 5,120
ACL scale entries 8,000 5,120 18,000 5,120
Packet buffer per SKU 16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber 32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber 16 MB buffer for 24- or 48-port Gigabit Ethernet models 32 MB buffer for 24 and 48-port Multigigabit 32 MB buffer for 24- and 48-port Gigabit Ethernet models 64 MB buffer for 24-port Multigigabit model (24UXB) 16 MB buffer for 24 and 48 port Gigabit Ethernet models
FNF entries 64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber 64,000 flow on 24- and 48-port Gigabit Ethernet models 128,000 flows on 24-port Multigigabit 128,000 flow on 24- and 48-port Gigabit Ethernet models 256,000 flows on 24-port Multigigabit 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 16 GB 8 GB 8 GB 8 GB
Flash 16 GB 16 GB 16 GB 16 GB
VLAN IDs 4094 4094 4094 4094
Total Switched Virtual Interfaces (SVIs) 1000 1000 1000 1000
Jumbo frames 9198 bytes 9198 bytes 9198 bytes 9198 bytes
Total routed ports per Catalyst 9300 Series stack 448 448 448 416

Additional information

Brand

Cisco
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Description Catalyst 9300X modular uplink models Catalyst 9300 modular uplink models Catalyst 9300 higher scale models Catalyst 9300L/LM fixed uplink models
Total number of MAC addresses 32,000 32,000 64,000 32,000
Total number of IPv4 routes (ARP plus learned routes) 39,000 (24,000 direct routes and 15,000 indirect routes) 32,000 (24,000 direct routes and 8000 indirect routes) 112,000 (48,000 direct routes and 64,000 indirect routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 routing entries 19,500 16,000 56,000 16,000
Multicast routing scale 8,000 8,000 16,000 8,000
QoS scale entries 4,000 5,120 18,000 5,120
ACL scale entries 8,000 5,120 18,000 5,120
Packet buffer per SKU 16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber 32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber 16 MB buffer for 24- or 48-port Gigabit Ethernet models 32 MB buffer for 24 and 48-port Multigigabit 32 MB buffer for 24- and 48-port Gigabit Ethernet models 64 MB buffer for 24-port Multigigabit model (24UXB) 16 MB buffer for 24 and 48 port Gigabit Ethernet models
FNF entries 64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber 64,000 flow on 24- and 48-port Gigabit Ethernet models 128,000 flows on 24-port Multigigabit 128,000 flow on 24- and 48-port Gigabit Ethernet models 256,000 flows on 24-port Multigigabit 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 16 GB 8 GB 8 GB 8 GB
Flash 16 GB 16 GB 16 GB 16 GB
VLAN IDs 4094 4094 4094 4094
Total Switched Virtual Interfaces (SVIs) 1000 1000 1000 1000
Jumbo frames 9198 bytes 9198 bytes 9198 bytes 9198 bytes
Total routed ports per Catalyst 9300 Series stack 448 448 448 416
