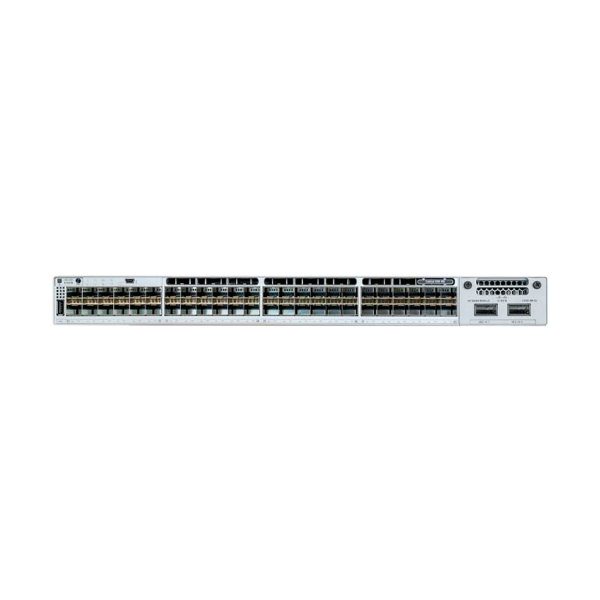

C9300L-48UXG-2Q

C9300L-48UXG-2Q overview

Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

The many industry’s first include:

•  Up to 1TB of stacking bandwidth
•  Up to 1TB of stacking bandwidth
•  Mixed Stacking with Backward Compatibility
• Highest Multigigabit Ports
• Highest 90W UPOE+ Density
• Stack Power with Backward Compatibility
• 100G IPsec in hardware
• Secure Tunnel connectivity
• Enhanced Application Hosting
• Thousand Eyes Enabled
• Thousand Eyes Enabled

Cisco Catalyst 9300 Series switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three field-replaceable fans. Power Supplies are common across the Catalyst 9300 Series.

Cisco Catalyst 9300 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.

C9300L-48UXG-2Q quick spec

48 1G/100M/10M

12 10G/5G/2.5G/1G/100M

2 40G fixed uplinks ports

PoE supported

Switching capacity: 472 Gbps

Forwarding rate: 351.19 Mpps
