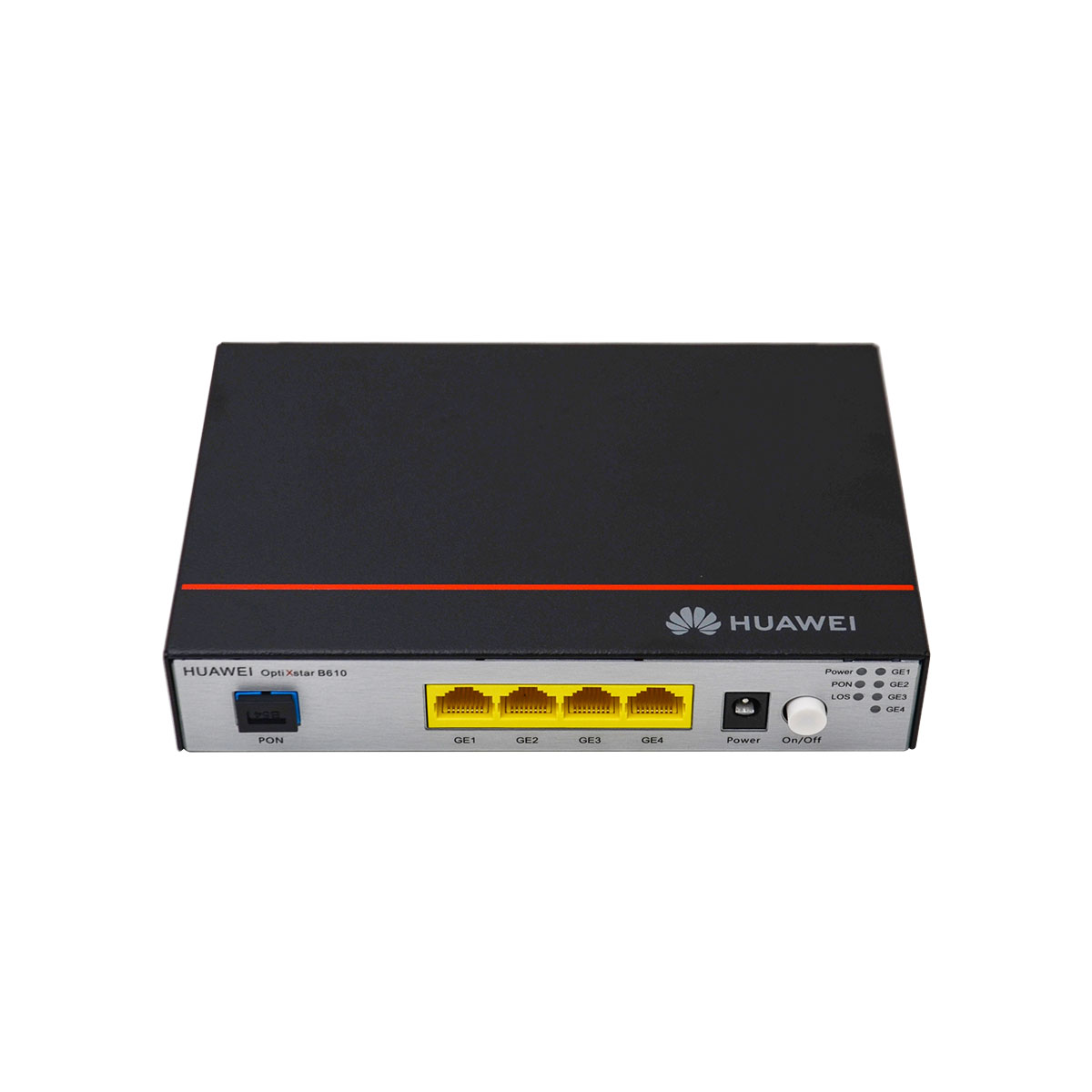

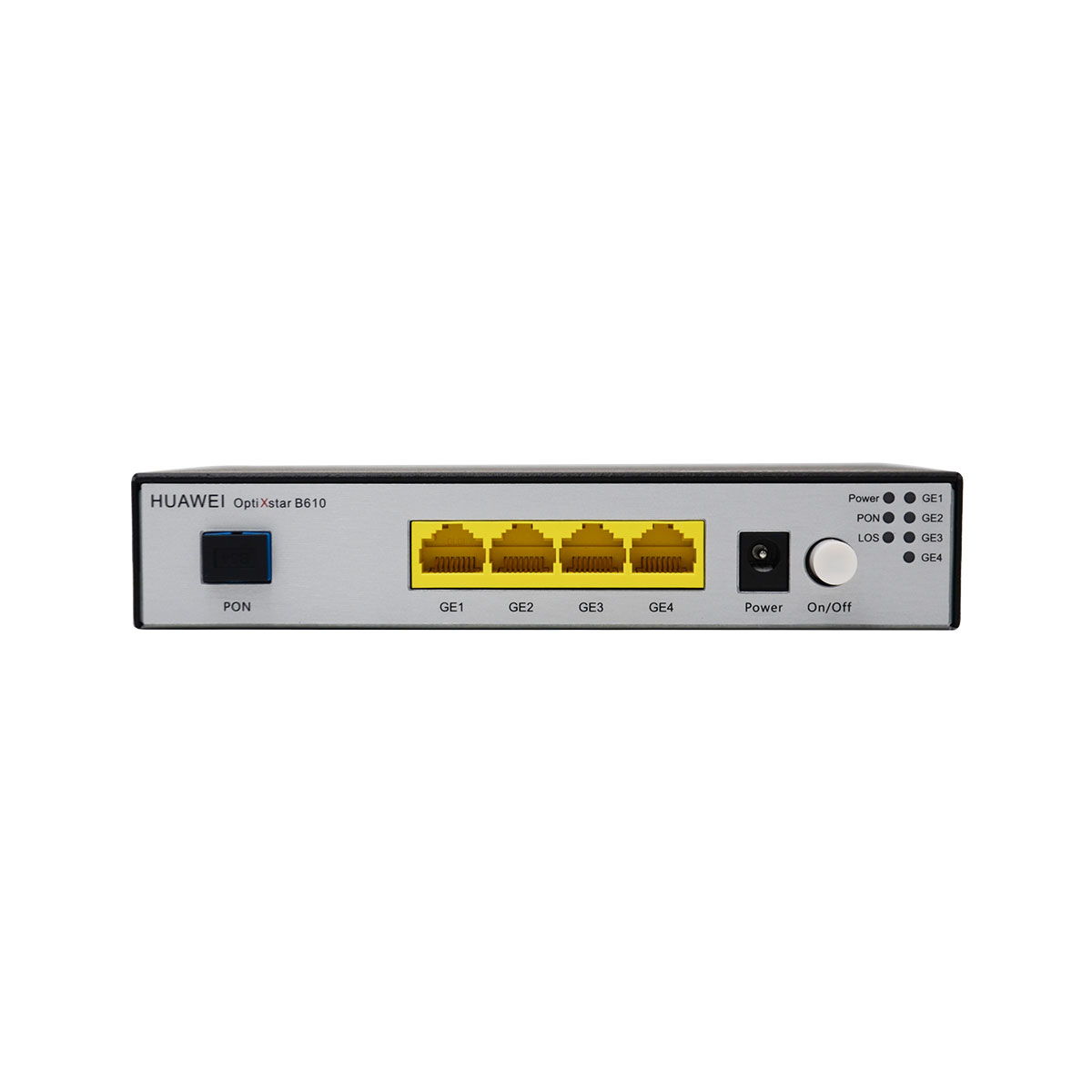

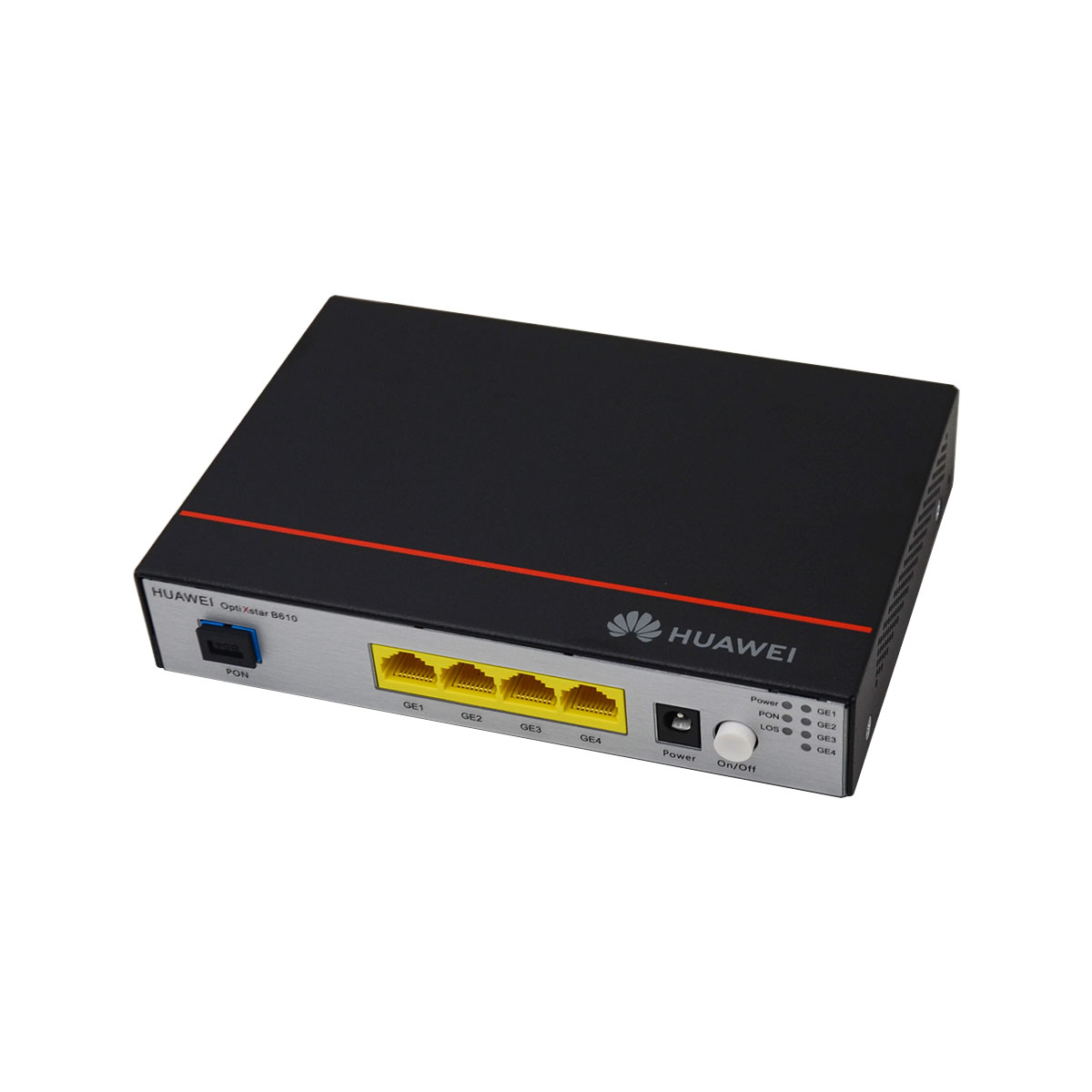

Huawei OptiXstar B610-4E GPON ONU with 4*GE ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

The OptiXstar B610 is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4 GE ports to provide high-quality voice, data, and HD video services.

  • Huawei OptiXstar B610-4E 4GE GPON ONU
  • Authentication exemption XML/OMCI/TR069
  • XML/Web UI Rogue ONT detection and self-regulation Ring network detection/PPPoE/DHCP simulation testing
  • GE: common mode 6 kV; differential mode 1.5 kV; AC power: common mode 6 kV; differential mode 6 kV
  • Port type:RJ-45
  • Auto ports speed(10/100/1000 Mbit/s)
  • Auto-MDI/MDIX
  • Configuration of the number of MAC addresses learned
  • VLAN transparent transmission/VLAN filtering
Item Huawei OptiXstar B610-4E
NNI GPON
UNI 4 x GE
Static Power Consumption 3.5 W
Maximum Power Consumption 5 W
Maximum frame length 2000 bytes
Surge Protection Specifications GE: common mode 6 kV; differential mode 1.5 kV. AC power : common mode 6 kV; differential mode 6 kV
Installation Mode Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.
PON • Port type: SC/UPC
• Class B+
• Receiver sensitivity: -27 dBm;
• Overload optical power: -8 dBm;
• Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s
• Type B single-homing
• Type B dual-homing (supported in Layer 2 forwarding)
GE • Port type: RJ-45
• Auto ports speed (10/100/1000 Mbit/s)
• Auto-MDI/MDIX
• Configuration of the number of MAC addresses learned
• VLAN transparent transmission/VLAN filtering
Dimensions (H x W x D) 30 mm x 160 mm x 110 mm (without floor mat)
Weight Approximately 480 g
Operating Temperature -40°C to +55°C
Operating Humidity 5%RH to 95%RH (non-condensing)
Power Adapter Input 100 V to 240 V AC, 50/60 Hz
System Power Supply 11V to 14V(typical 12 V), 1A

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item Huawei OptiXstar B610-4E
NNI GPON
UNI 4 x GE
Static Power Consumption 3.5 W
Maximum Power Consumption 5 W
Maximum frame length 2000 bytes
Surge Protection Specifications GE: common mode 6 kV; differential mode 1.5 kV. AC power : common mode 6 kV; differential mode 6 kV
Installation Mode Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.
PON • Port type: SC/UPC
• Class B+
• Receiver sensitivity: -27 dBm;
• Overload optical power: -8 dBm;
• Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s
• Type B single-homing
• Type B dual-homing (supported in Layer 2 forwarding)
GE • Port type: RJ-45
• Auto ports speed (10/100/1000 Mbit/s)
• Auto-MDI/MDIX
• Configuration of the number of MAC addresses learned
• VLAN transparent transmission/VLAN filtering
Dimensions (H x W x D) 30 mm x 160 mm x 110 mm (without floor mat)
Weight Approximately 480 g
Operating Temperature -40°C to +55°C
Operating Humidity 5%RH to 95%RH (non-condensing)
Power Adapter Input 100 V to 240 V AC, 50/60 Hz
System Power Supply 11V to 14V(typical 12 V), 1A
