ZXDSL 9806H ASTGC 32-channel ADSL2/2+ over POTS Card
ZXDSL 9806H ASTGC 32-channel ADSL2/2+ over POTS Card.
Provide 32channels of ADSL2/2+ user interface and POTS/ISDN interface, complete ADSL2/ADSL2+ service access and voice separation.
ZXDSL 9806H supports multiple standard splitters such as national standard and European standard, and supports two types of user access, over POTS and over ISDN.
Provides the function of converting ATM cells to IP packets.

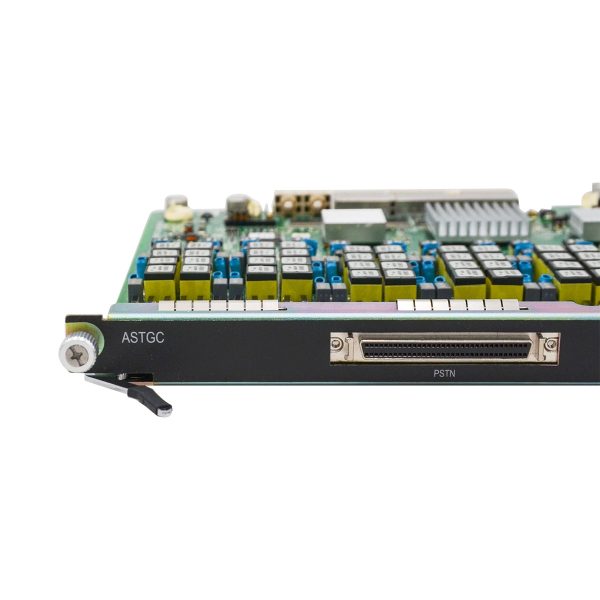

ASTGC Front Panel
| Item | ASTGC |
| Typical power consumption (W) | 19.80 |
| Interface PIN | 32 |
| Maximum transmission distance | 6.5km |
|
Interface rate
|
Uplink rate: Up to 1 Mbps Downlink rate: up to 26 Mbps |
|
Modulation technique
|
DMT |
|
IP packet transmission delay
|
The maximum frame delay<10 ms, the minimum frame delay<1 ms |
| Occupied bandwidth | Downlink band: 138 kHz ~ 2.208 MHz Uplink band: 30 kHz ~ 138 kHz |
| Standardization | ITU-T G.992.3, G.992.5 and ANSI T1.413 standards |
| Hot Swappable | Supported |
| Dimensions(mm) | 20.5*274*231.2 |
| Weight | 3.0000 kg |
|---|---|
| Dimensions | 27.0000 × 23.0000 × 2.0000 cm |
| Item | ASTGC |
| Typical power consumption (W) | 19.80 |
| Interface PIN | 32 |
| Maximum transmission distance | 6.5km |
|
Interface rate
|
Uplink rate: Up to 1 Mbps Downlink rate: up to 26 Mbps |
|
Modulation technique
|
DMT |
|
IP packet transmission delay
|
The maximum frame delay<10 ms, the minimum frame delay<1 ms |
| Occupied bandwidth | Downlink band: 138 kHz ~ 2.208 MHz Uplink band: 30 kHz ~ 138 kHz |
| Standardization | ITU-T G.992.3, G.992.5 and ANSI T1.413 standards |
| Hot Swappable | Supported |
| Dimensions(mm) | 20.5*274*231.2 |
