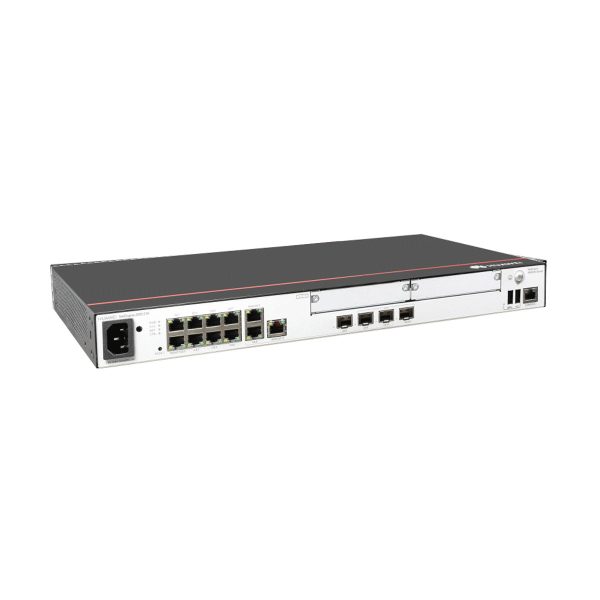

AR6121K

Name: AR6121K
SKU: 2014036
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

SKU2014036

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AR6121K (02353NTK) 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Overview

Huawei AR6121K (02353NTK) 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC

The alternative version is AR6121K (02353NTK-001).

Item	Details
Description	AR6121K, 2GE combo WAN, 110GE(SFP+) WAN, 8GE LAN, 1GE combo LAN, 2USB, 2SIC
Part Number	02353NTK
Model	AR6121K
First supported version	V300R021C00
Remarks	When configuring cards, ensure that the total power of the configured cards does not exceed 29 W or contact technical support engineers to obtain more suggestions.

Item	AR6121K
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	4.6 kg (10.12 lb)
Weight without packaging [kg(lb)]	3.2 kg (7.04 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	33 W
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	2 A
Maximum output power [W]	70 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	2 x SIC
Number of service board slots	2
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	49.6 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	30.05 year
MTTR [hour]	2 hour
Availability	0.9999924012

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	AR6121K
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	4.6 kg (10.12 lb)
Weight without packaging [kg(lb)]	3.2 kg (7.04 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	33 W
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	2 A
Maximum output power [W]	70 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	2 x SIC
Number of service board slots	2
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	49.6 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	30.05 year
MTTR [hour]	2 hour
Availability	0.9999924012
