AR550C-2C6GE

Rated 5.00 out of 5 based on 4 customer ratings

4 Reviews Write a review

PN50010301

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AR550 Series IoT Gateway AR550C-2C6GE include 2 2.5G SFP(compatible with GE), 2 GE combo, 6 GE RJ45, 1 RS485, 1 USB2.0, 1 DI, 1 DO

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

AR550C-2C6GE Overview

Huawei AR550 Series IoT Gateway AR550C-4GE include 2 2.5G SFP(compatible with GE), 2 GE combo, 6 GE RJ45, 1 RS485, 1 USB2.0, 1 DI, 1 DO.

Huawei AR550 series IoT gateways can be applied to power (distribution automation, substation automation access), transportation (highway road monitoring access), video surveillance backhaul, and industrial Ethernet control scenarios.Huawei AR550 series IoT gateways can be applied to power (distribution automation, substation automation access), transportation (highway road monitoring access), video surveillance backhaul, and industrial Ethernet control scenarios.
Huawei AR550 series products adopt industrial-grade design and have excellent qualities such as high/low temperature resistance, dust resistance, earthquake resistance, and strong electromagnetic interference resistance. They meet the strict industry standards of the power industry and can work for a long time without failure to ensure stable and reliable business.

Appearance and Structure

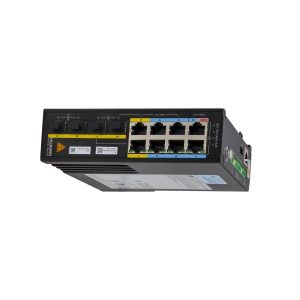

Figure 1 AR550C-2C6GE appearance

1	LAN interfaces: six GE electrical interfaces	2	LAN interfaces: two GE combo interface
3	LAN interface: two 2.5GE optical interfaces	4	DO interface and DI interface
5	Two DC power sockets	6	RS485 interface
7	PoE power socket	8	Ground point
9	Console interface	10	USB interface

Item	AR550C-2C6GE
Processor	Dual-core, 700 MHz
Fixed Ethernet interfaces	2 x 2.5G SFP(Compatible with GE), 2 x GE combo,6 x GE RJ45
Alarm Relay interface	1 DI 1 DO (terminal block, support Normal Open and Normal Closed
Layer 2 forwarding performance	Up to 13.5 Mpps
Switching capacity	Up to 128Gbps
DRAM memory	256 MB
Flash memory	512 MB
LAN functions	IEEE 802.1P, IEEE 802.1Q, and IEEE 802.3 VLAN Static MAC address, dynamic MAC address, MAC address learning restriction, MAC address flapping prevention Port aggregation and LACP LLDP
IP Applications	ARP, DHCP, DNS IPv6 ND NQA
Ring network protocol	SEP STP, RSTP, and MSTP
Unicast	Static routing RIP, BGP RIPng, BGP4+
Multicast	IGMP Snooping MLD Snooping
VPN	IPSec VPN, IKEv1, and IKEv2 GRE VPN
Quality of Service (QoS)	DiffServ mode, priority mapping, CAR, traffic shaping, congestion avoidance and congestion management, and HQoS Modular QoS (traffic class, traffic behavior, and traffic policy)
Security	Access Control List (ACL) 802.1X authentication, MAC address authentication AAA and RADIUS authentication and HWTACACS authentication ARP security and ICMP attack defense URPF, CPCAR, blacklist, and attack source tracing PKI
Reliability	BFD, Ethernet OAM
Management and maintenance	CLI, web NMS, SNMP (v1/v2c/v3), NTP, and USB-based deployment
DC power input	Rated voltage: 12 V to 48 V Maximum voltage range: 9.6 V to 60 V
Typical power consumption(W)	14
Operating temperature	–40°C to +70°C The device is tested for 2 hours at temperatures in the range of +70°C to +85°C.
Operating humidity	5% to 95% (non-condensing)
Operating altitude	≤ 5000 m (16404 ft.)
Dimensions(mm)	150 (W) x 133 (D) x 44 (H)
Weight(kg)	1.1
Rack height(U)	1

Weight	3.0000 kg
Dimensions	20.0000 × 18.0000 × 5.0000 cm

Item	AR550C-2C6GE
Processor	Dual-core, 700 MHz
Fixed Ethernet interfaces	2 x 2.5G SFP(Compatible with GE), 2 x GE combo,6 x GE RJ45
Alarm Relay interface	1 DI 1 DO (terminal block, support Normal Open and Normal Closed
Layer 2 forwarding performance	Up to 13.5 Mpps
Switching capacity	Up to 128Gbps
DRAM memory	256 MB
Flash memory	512 MB
LAN functions	IEEE 802.1P, IEEE 802.1Q, and IEEE 802.3 VLAN Static MAC address, dynamic MAC address, MAC address learning restriction, MAC address flapping prevention Port aggregation and LACP LLDP
IP Applications	ARP, DHCP, DNS IPv6 ND NQA
Ring network protocol	SEP STP, RSTP, and MSTP
Unicast	Static routing RIP, BGP RIPng, BGP4+
Multicast	IGMP Snooping MLD Snooping
VPN	IPSec VPN, IKEv1, and IKEv2 GRE VPN
Quality of Service (QoS)	DiffServ mode, priority mapping, CAR, traffic shaping, congestion avoidance and congestion management, and HQoS Modular QoS (traffic class, traffic behavior, and traffic policy)
Security	Access Control List (ACL) 802.1X authentication, MAC address authentication AAA and RADIUS authentication and HWTACACS authentication ARP security and ICMP attack defense URPF, CPCAR, blacklist, and attack source tracing PKI
Reliability	BFD, Ethernet OAM
Management and maintenance	CLI, web NMS, SNMP (v1/v2c/v3), NTP, and USB-based deployment
DC power input	Rated voltage: 12 V to 48 V Maximum voltage range: 9.6 V to 60 V
Typical power consumption(W)	14
Operating temperature	–40°C to +70°C The device is tested for 2 hours at temperatures in the range of +70°C to +85°C.
Operating humidity	5% to 95% (non-condensing)
Operating altitude	≤ 5000 m (16404 ft.)
Dimensions(mm)	150 (W) x 133 (D) x 44 (H)
Weight(kg)	1.1
Rack height(U)	1
