AN6000-7

3 Reviews Write a review
SKU2009567
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

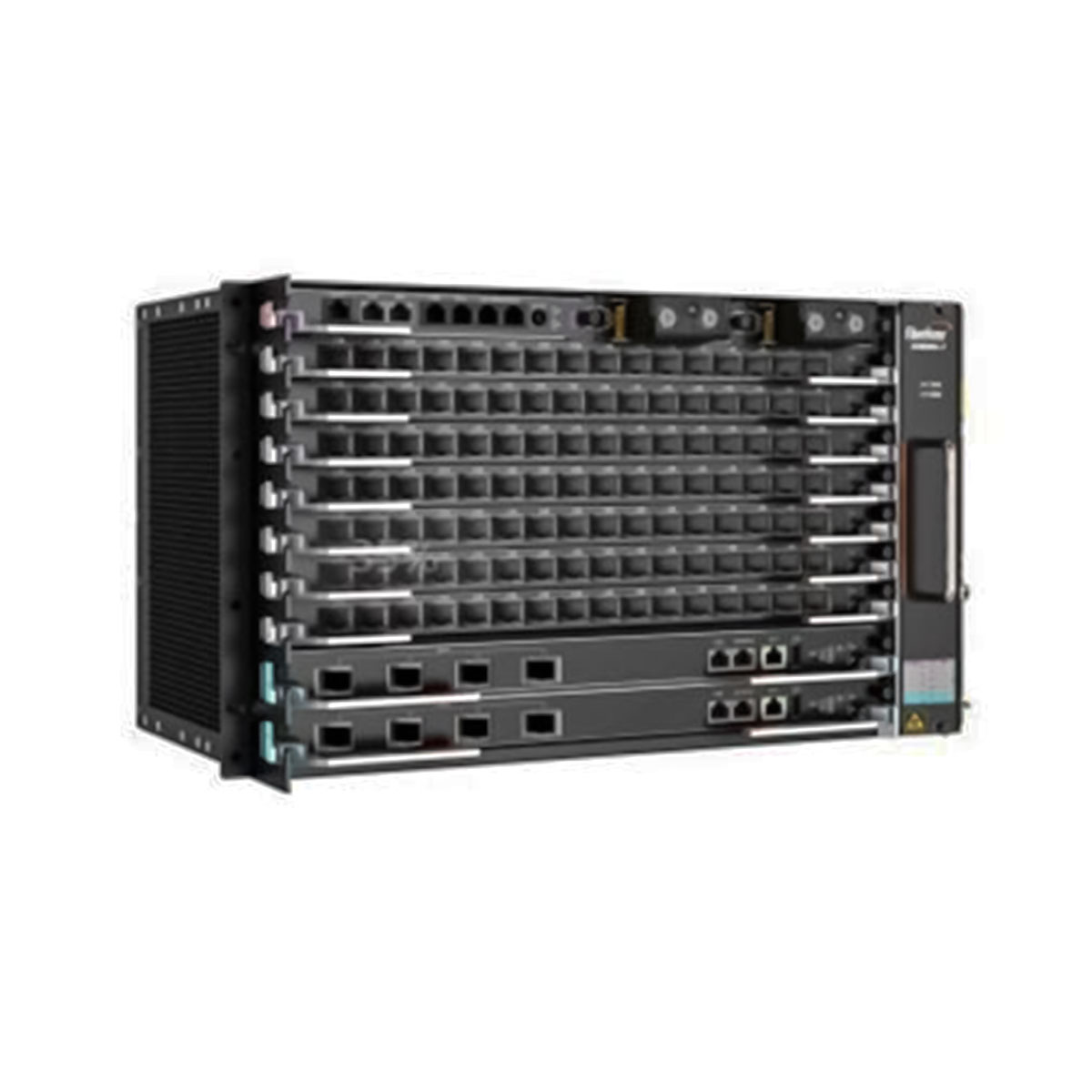

Fiberhome AN6000-7 OLT supports 7 service slots,  with 2* HSCA core switch cards and 2* PIBA DC power cards

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AN6000-7 overview

Providing seven service slots, the AN6000-7 is a medium-sized optical line terminal deployed in a central office. It can be applied to moderately populated areas to help save the deployment cost of users. AN6000-7 is the next-generation OLT platform with ultra-broadband access capability for PON smooth evolution. It is carrier-class optical line equipment that can be applied to access scenarios for moderate subscription density. Its distributed architecture design can support high-density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON, and P2P card, it will bring about higher bandwidth and Medium capacity for the access network. This can help save the telecom operator’s deployment cost and bring them more profit.

Alternative models:

The AN6000-07 comes with 2 PIBA DC power cards, If you do not have a DC power supply environment, then you need a power converter to power it, such as Huawei ETP48100 and ZTE ZXDU468 B600

AN6000-7 appearance and structure

AN6000-7 appearance and structure

No. Name Function
1 Vertical card slot Houses a fan unit.
2 Horizontal card slot Accommodates cards to implement various functions of the equipment.
3 ESD protection earth ground fastener Connects with an ESD protection unit.
 4 Mounting ears Secure the subrack in a cabinet
5 Fiber puller hanger Holds a fiber puller.
6 Subrack earth ground point Connects with the subrack protection earth ground cable.
7 Fiber passage unit Facilitates routing and arranging of fibers and cables.



AN6000-7  slot distribution

The AN6000-7 subrack provides 12 horizontal slots and one vertical slot.

AN6000-7  slot distribution

AN6000-7 card supported

The slots can be classified as follows according to the cards they house:

Type Slot Card Supported
Service card slot 1-7 GPOA, EX8A, EXOA, GX8A, GM8A, GM8B, GMOA, GNOA, GFOA and PXNA
Uplink card slot 6-7 HU8A, KU1B
Core switch card slot 8-9 HSCA
Fan unit slot 23 FAN
Power card slot 24-25 PIBA
Common interface card slot 26 CIOA

PON service card supported:

Card Name Mode Port nomber Port rate
GPOA GPON 16 64 kbit/s
EX8A 10G-EPON 8 640 kbit/s
EXOA 10G-EPON 16 640 kbit/s
GX8A 10G-GPON 8 256 kbit/s
GM8A 10G-GPON&GPON Comb0 8 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GM8B 10G-GPON&GPON Comb0 8 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GMOA 10G-GPON&GPON Comb0 16 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GNOA 10GS-GPON&GPON Comb0 16 640 kbit/s (XGS-PON) / 64 kbit/s (GPON)
GFOA 10G(S)-GPON&GPON Flexible 16 640 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s   (GPON)
Item Fiberhome AN6000-7
Slot configuration Two slots for core switch cards (slots 8 and 9) Seven slots for service cards (slots 1 to 7) Two slots for uplink cards (slots 6 and 7) Two slots for power cards (slots 24 and 25) One slot for the common interface card (slot 26) One slot for the fan unit (slot 23)
Dimensions (H × W × D) of a subrack with mounting ears for 19-inch cabinetsNote 1 266 mm × 480 mm × 253.8 mm (excluding the fiber passage   unit)
Dimensions (H × W × D) of a subrack with mounting ears for 21-inch cabinets 266 mm × 530 mm × 253.8 mm (excluding the fiber passage   unit)
Weight of an empty subrack (excluding the fan   unit) 8.5 kg
Weight of an empty subrack (including the fan   unit) 10.7 kg
Maximum input current 37.5 A
Power supply mode DC (two channels of power supplies forming redundancy   protection)
Working voltage range -38.4 V to -57.6 V
Rated voltage -48 V
Operating temperature -40℃ to 65℃
Operating relative humidity 5% to 95% (non-condensing)
Storage temperature -40℃ to 70℃
Relative humidity for storage 5% to 95% (non-condensing)
Atmospheric pressure 70 kPa to 106 kPa
Slot bandwidth 200 Gbit/s
Switch capacity of the backplane bus 5.6 Tbit/s
Core switch card capacity (in the load sharing mode) 6.8 Tbit/s
Maximum number of MAC addresses in the   system 262144
Maximum number of IPv4 routing tables in the   system 16384
Maximum number of IPv6 routing tables in the   system 8192
Maximum number of ARP tables in the system 18432
Maximum number of ND tables in the system 9216
Maximum number of multicast groups in the   system 4096
Full-load bit error rate ＜ 10 e-7
System reliability specifications System availability with typical configuration:  ＞ 99.999% Mean time between failures (MTBF) of the system: approx. 45   years Note: The mean time to repair (MTtr) for the entire system is 2   hours.
Maximum number of GPON ports in the system 112
Maximum number of 10G EPON ports in the   system 112
Maximum number of XG-PON ports in the system 112
Maximum number of GPON & XG-PON Combo   ports in the system 112
Maximum number of GPON & XGS-PON Combo   ports in the system 112
Maximum number of Agile-PON ports in the   system 112
Maximum number of uplink ports in the system 8 × 10GE / GE uplink ports (HSCA) (Only core switch cards are   used to provide uplink ports.)
16 × 10GE / GE uplink ports (HU8A) + 8 × 10GE / GE uplink   ports (HSCA) (Both core switch cards and uplink cards are used   to provide uplink ports.)
8 × 10GE / GE uplink ports (KU1B) + 2 × 100GE uplink ports   (KU1B) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch   cards and uplink cards are used to provide uplink ports.)
Maximum number of Ethernet ports in the system 168
Maximum number of ONUs connected to the   system 8192
Maximum number of multicast users in the system 8192
Maximum transmission distance (PON port) 60 km
Maximum uplink transmission distance 80 km
Time for active-standby switching of core switch cards/uplink cards ≤ 50 ms
Time for optical path protection switching (Type B /   Type C) ≤ 50 ms
Bandwidth allocation granularity of DBA GPOA: 64 kbit/s
EX8A: 640 kbit/s
EXOA: 640 kbit/s
GX8A: 256 kbit/s
GM8A: 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GM8B: 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GMOA: 256 kbit/s (XG-PON) / 64 kbit/s (GPON)
GNOA: 64 kbit/s (XGS-PON) / 64 kbit/s (GPON)
GFOA: 64 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s   (GPON)
Minimum configurable bandwidth of DBA GPOA: 1024 kbit/s
EX8A: 2560 kbit/s
EXOA: 2560 kbit/s
GX8A: 1024 kbit/s
GM8A: 1024 kbit/s
GM8B: 1024 kbit/s
GMOA: 1024 kbit/s
GNOA: 1024 kbit/s
GFOA: 1024 kbit/s
DBA accuracy Better than ±5%
Long-term packet loss rate When the traffic accounts for 90% of the throughput, the 24-hour   packet loss rate is 0.
Overall power consumption Typical configuration: 2 × HSCA + 7 × GNOA + 2 × PIBA + FAN   + CIOA Static power consumption: 614 W Typical power consumption: 996 W Maximum power consumption: 1301 W The equipment can be used together with a PDP with a rated current of 63 A / 32 A. For details of matching PDPs, see PDPs. Note:   For other card configurations, calculate the overall power consumption according to this formula: overall power consumption = power consumption of 2 core switch cards   + power consumption of 7 service cards + power consumption of 2 power cards + power consumption of the fan unit + power consumption of the common interface card. For power consumption of each card, refer to AN6000   Series Optical Line Terminal Equipment Hardware Description.
The overall power consumption is measured under the following conditions: u Working voltage: -53.5 V DC. u Room temperature: 25℃ (static power consumption and typical power consumption) or 55℃ (maximum power consumption) u Static power consumption: All the broadband ports are deactivated. u Typical power consumption: 50% of the broadband ports are concurrently activated. u Maximum power consumption: 100% of the broadband ports are concurrently activated.
Note 1: The AN6000-7 subrack is equipped with mounting ears for 19-inch cabinets by default.
