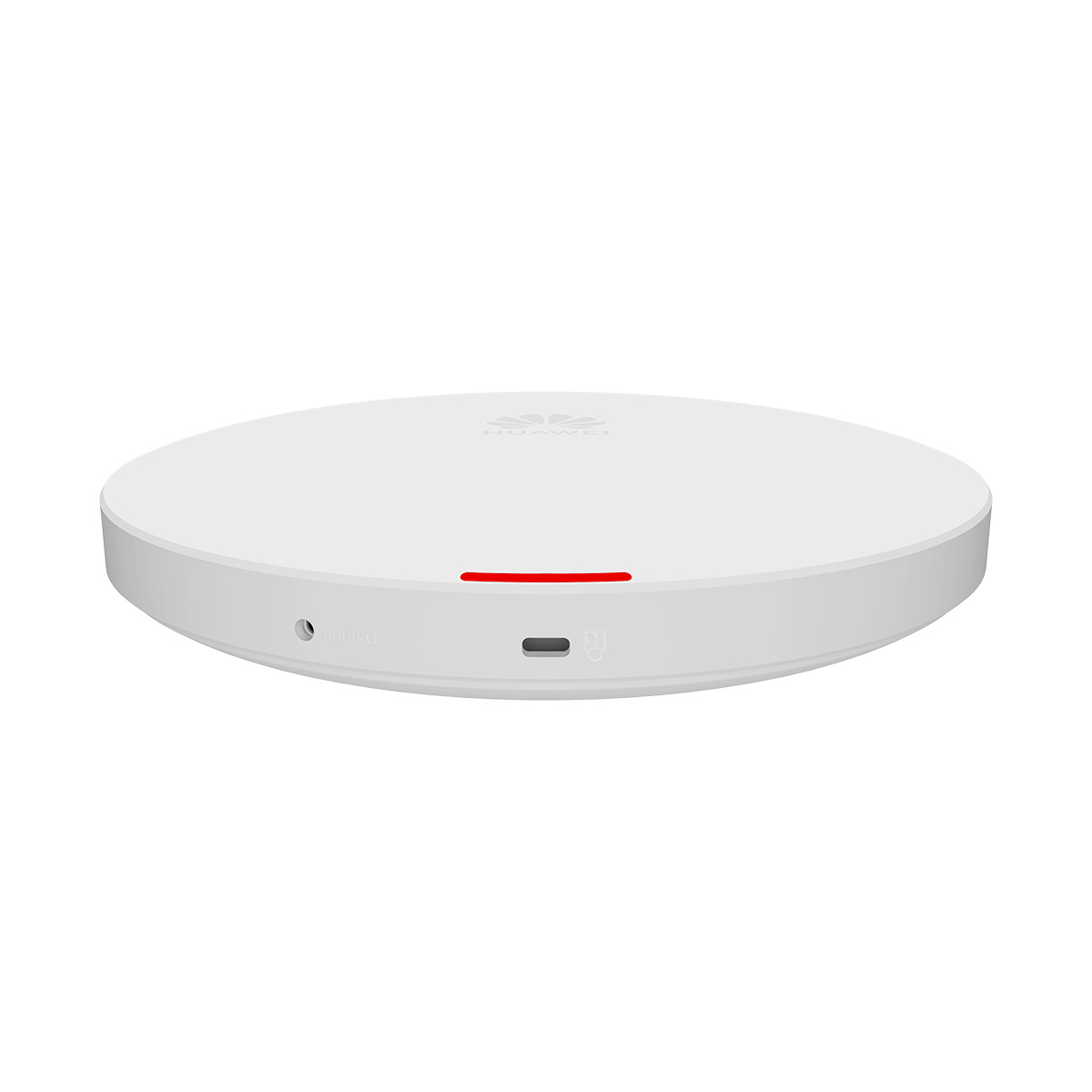

AirEngine-5762-10-7

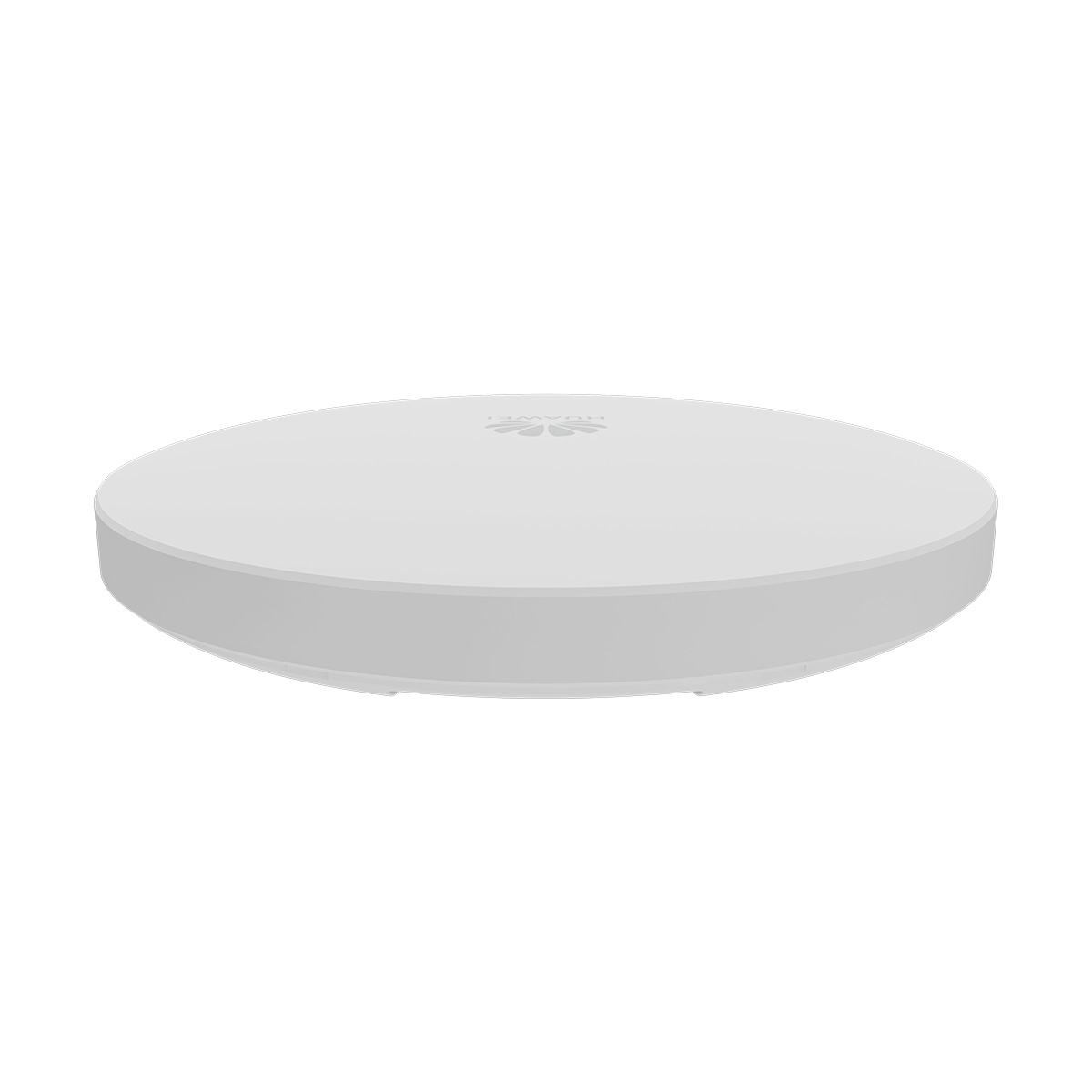

AirEngine-5762-10-2

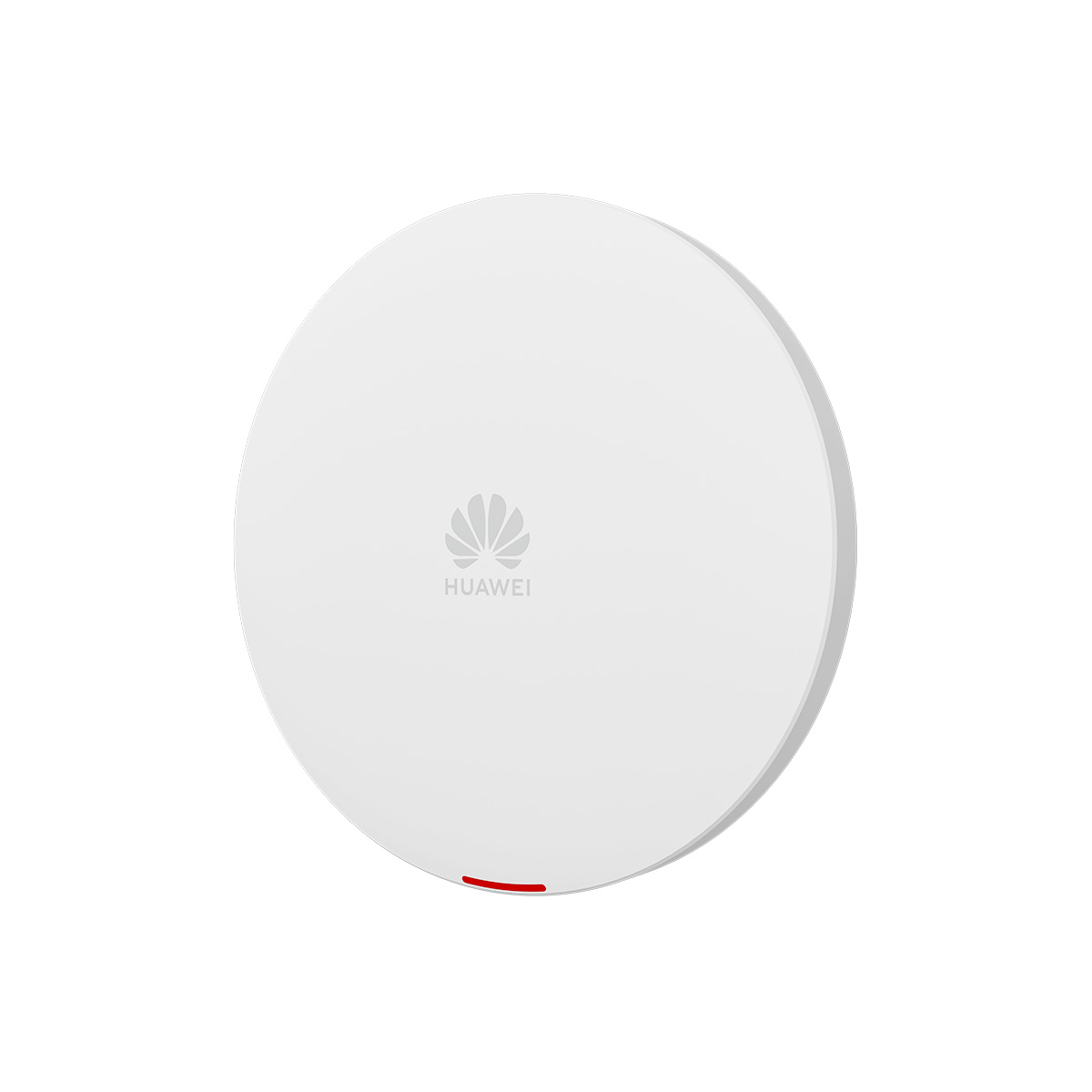

AirEngine-5762-10-3

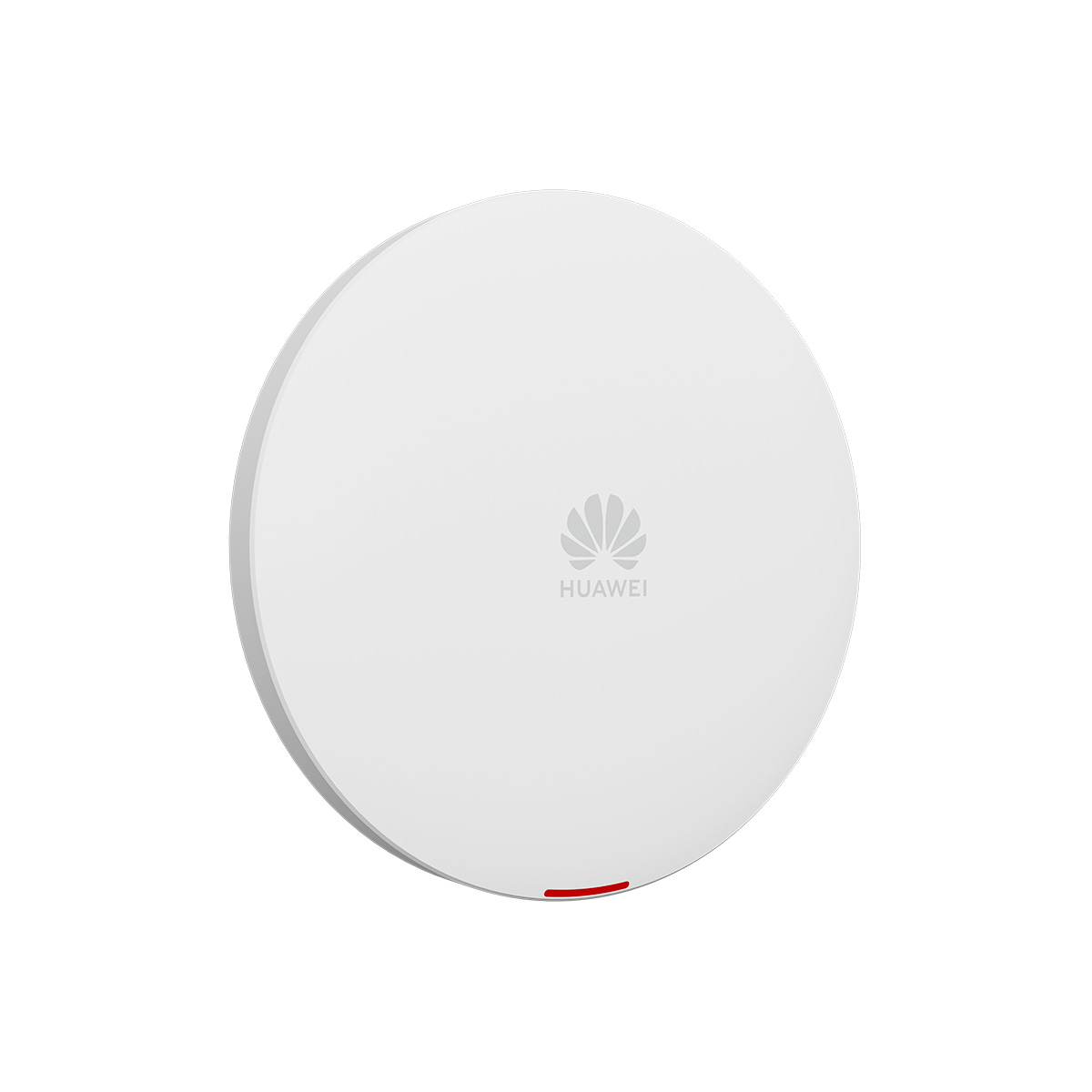

AirEngine-5762-10-4

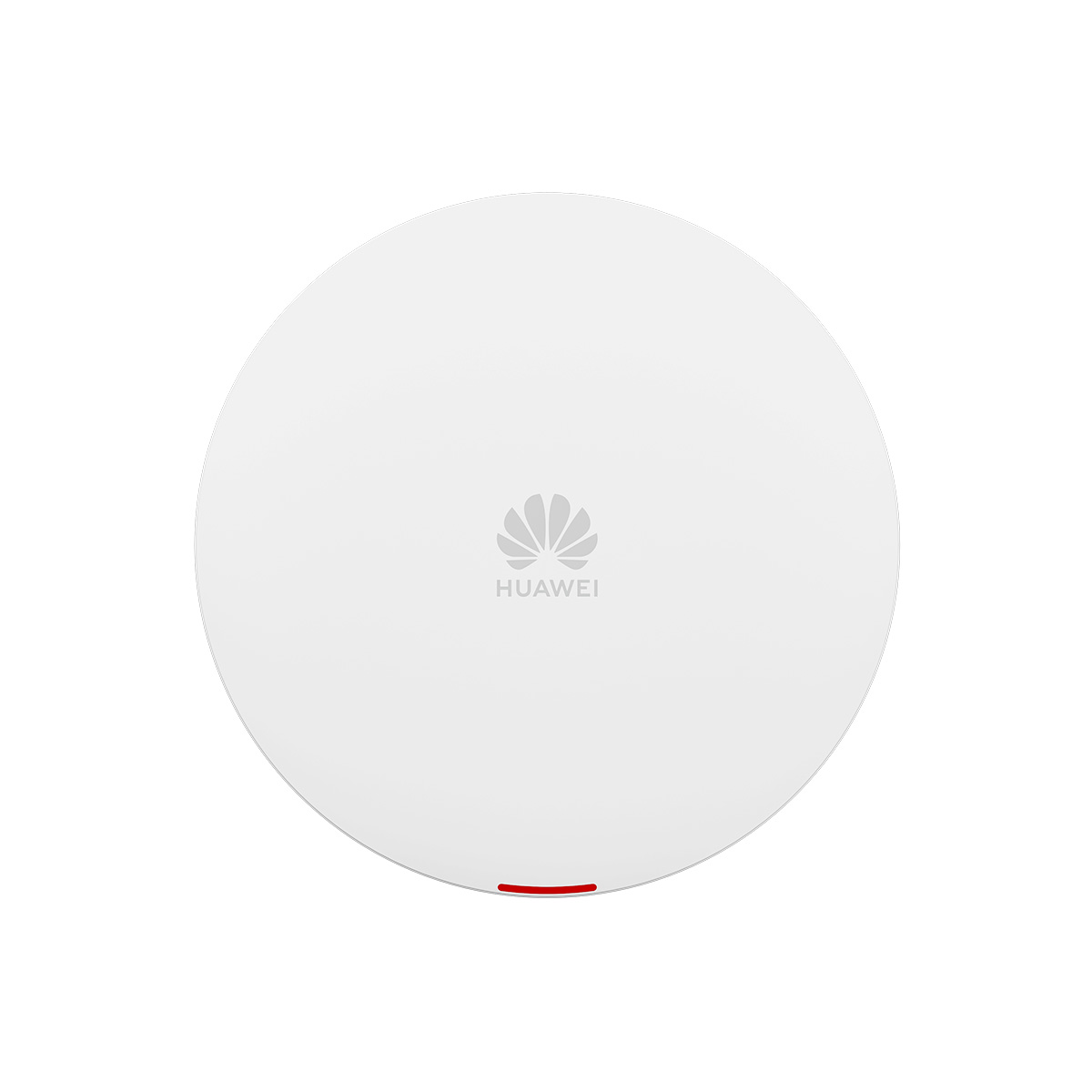

AirEngine-5762-10-5
Categories:

AirEngine 5762-10

0 Reviews Write a review
PN50086104
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 5762-10 is a indoor access point (AP) provide services on 2.4 GHz(2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 5762-10 overview

Huawei AirEngine 5762-10 is a indoor access point (AP). It can simultaneously provide services on 2.4 GHz(2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.

This AP features highbandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers’ investment. These strengths make the APs apply to indoor scenarios such as SOHO enterprise offices, small- and medium-sized hospitals,commercial real estate, economic chain hotels, and schools.

  • Provides services simultaneously on both the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.
  • 1 x GE electrical port.
  • Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
  • Supports the Fit, Fat, and Cloud three working modes.

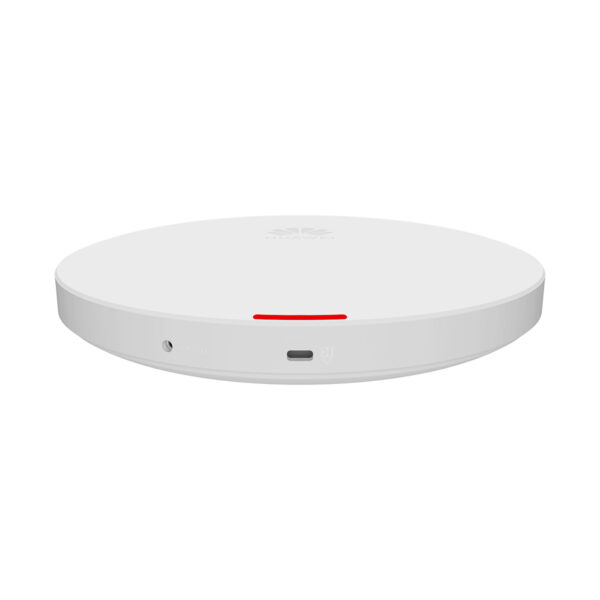

Front panel of the AirEngine 5762-10 board

AirEngine 5762 10 1 C

Front panel of the AirEngine 5762-10 board



Ports on the AirEngine 5762-10

1

DC12V

2

GE0/PoE_IN

3

Security slot

–

–



Item AirEngine 5762-10
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 231mm x 200mm x 52mm
Weight without packaging [kg(lb)] 0.46 kg (1.01 lb)
Weight with packaging [kg(lb)] 0.80 kg (1.76 lb)
Storage NAND Flash 256 MB
Console port None
Maximum power consumption [W] 11.2 W
Maximum heat dissipation [BTU/hour] 36.3 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3af
Service port surge protection

PoE port:

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE Not supported
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 205.07 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description No function is limited.
DC power supply description No function is limited.

Additional information

Brand

Huawei
Item AirEngine 5762-10
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 231mm x 200mm x 52mm
Weight without packaging [kg(lb)] 0.46 kg (1.01 lb)
Weight with packaging [kg(lb)] 0.80 kg (1.76 lb)
Storage NAND Flash 256 MB
Console port None
Maximum power consumption [W] 11.2 W
Maximum heat dissipation [BTU/hour] 36.3 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3af
Service port surge protection

PoE port:

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE Not supported
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 205.07 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description No function is limited.
DC power supply description No function is limited.
