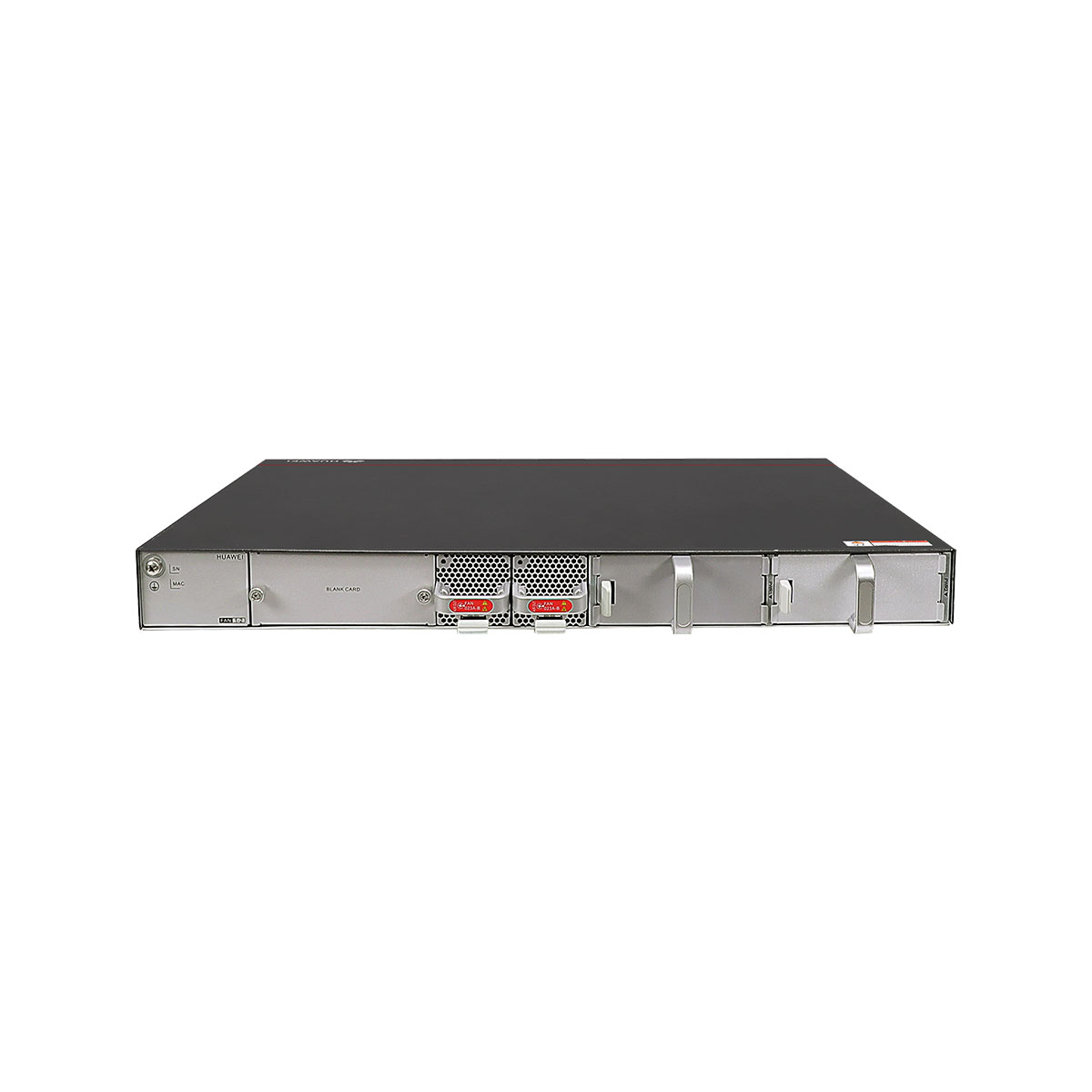

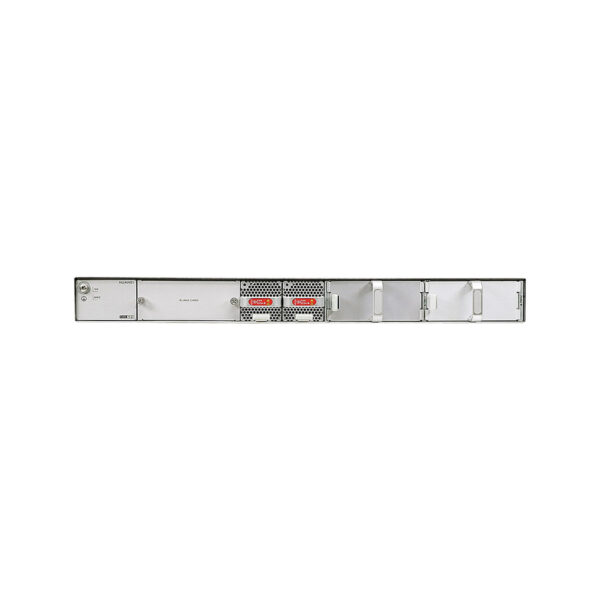

AirEngine 9700D-M overview

The AirEngine 9700D-M is a central access point (AP) launched by Huawei, and has four 10GE uplink ports and twenty-four GE downlink ports. The AirEngine 9700D-M can connect to Wi-Fi 6 remote units (RUs) through Ethernet cables to centrally process and forward services. Such a WLAN formed by the central AP and RUs can fully utilize the RU throughput. Additionally, only one AP license is required, reducing customer investment. The AirEngine 9700D-M can be deployed in an equipment room, weak-current well, or corridor, and RUs are deployed in rooms. This architecture is recommended for environments with high-density rooms and complex wall structures, such as schools, hotels, hospitals, and office meeting rooms.

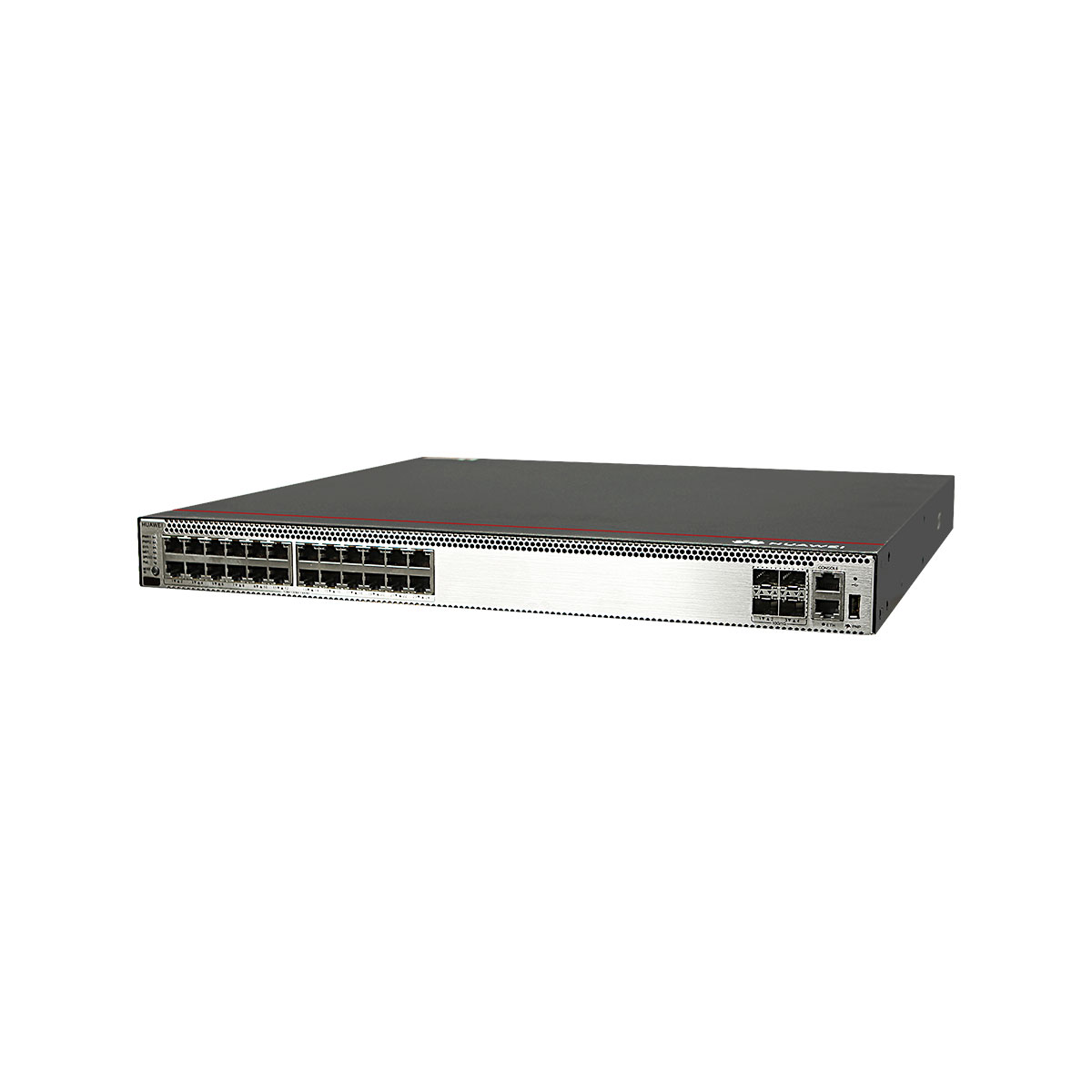

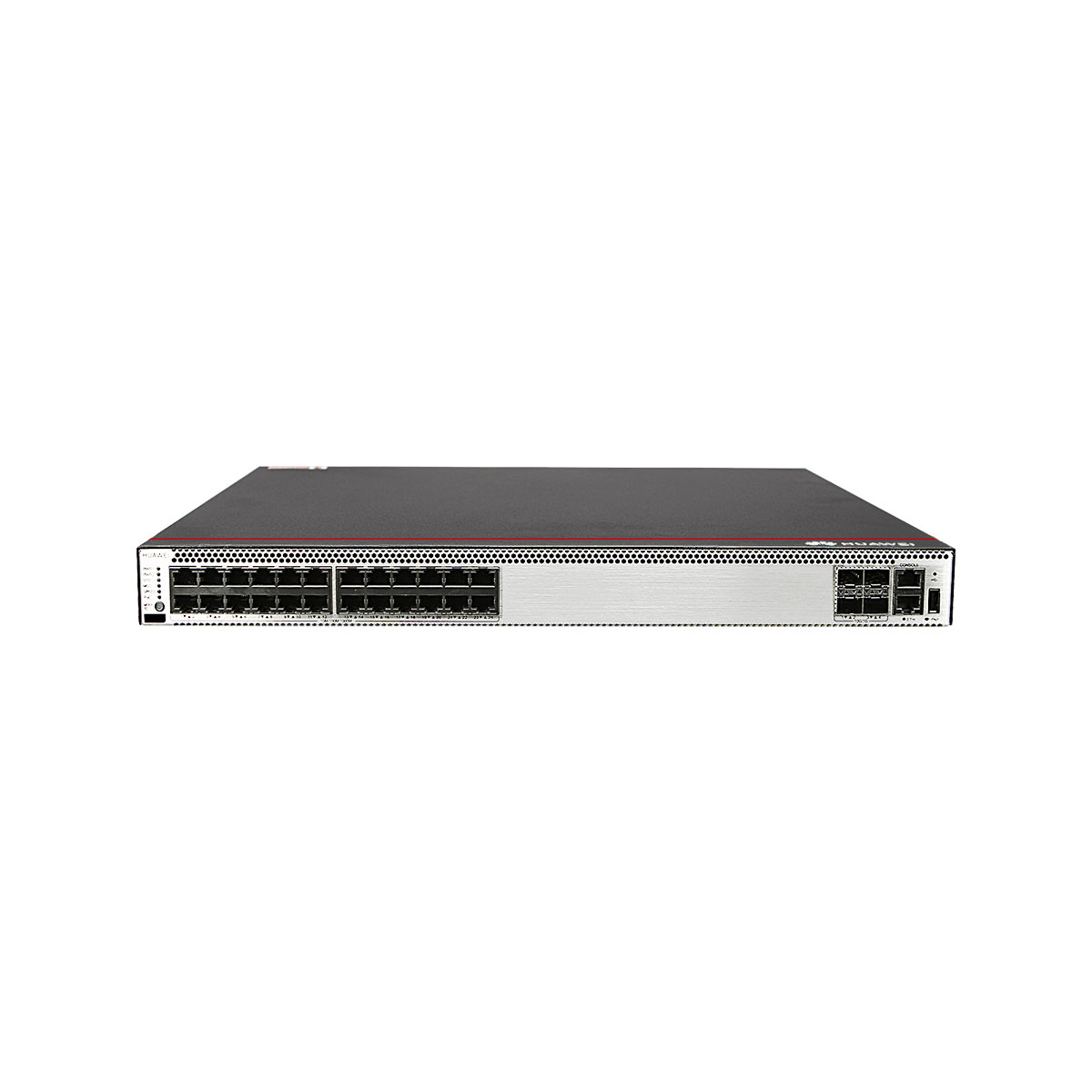

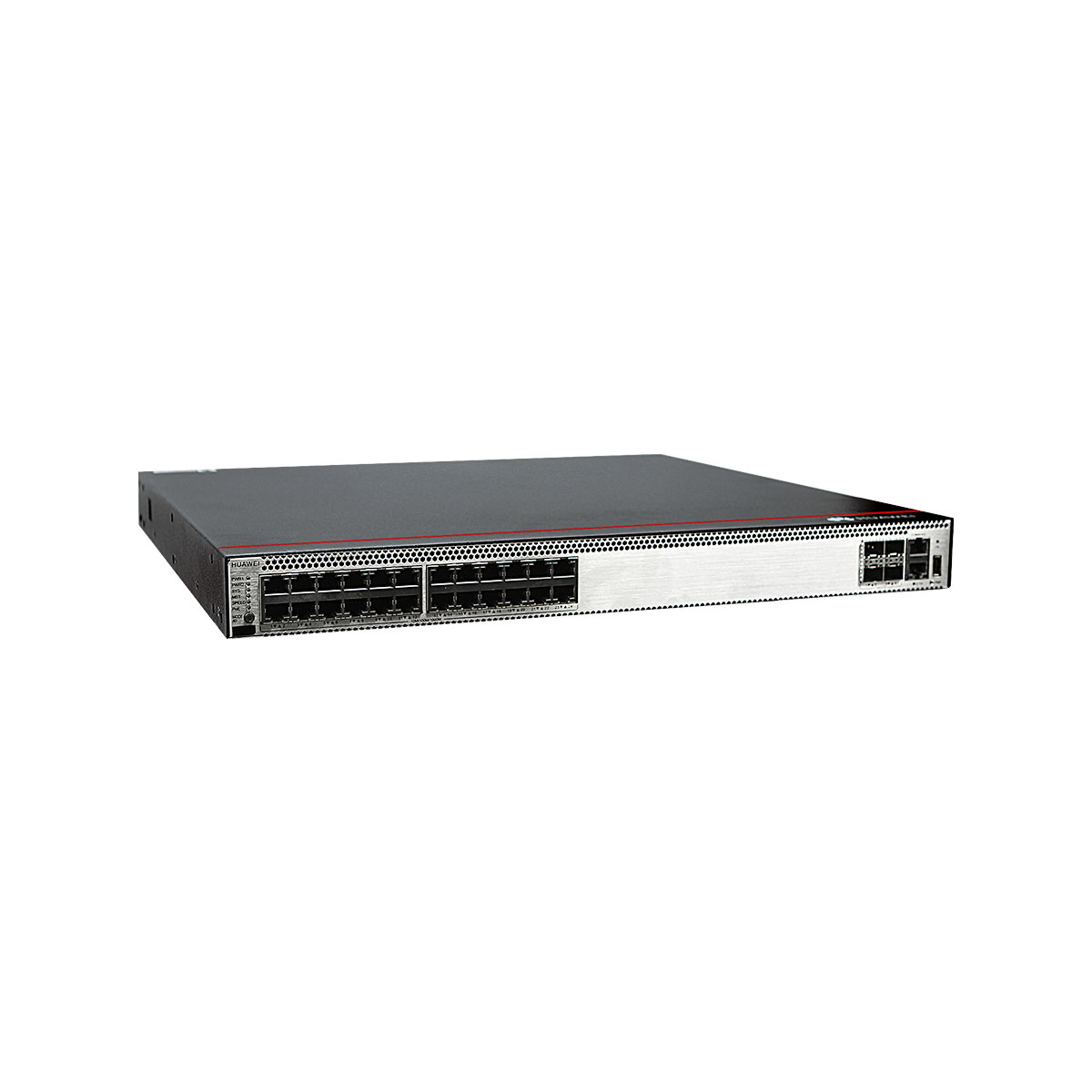

Front panel of the AirEngine 9700D-M

AirEngine 9700D M

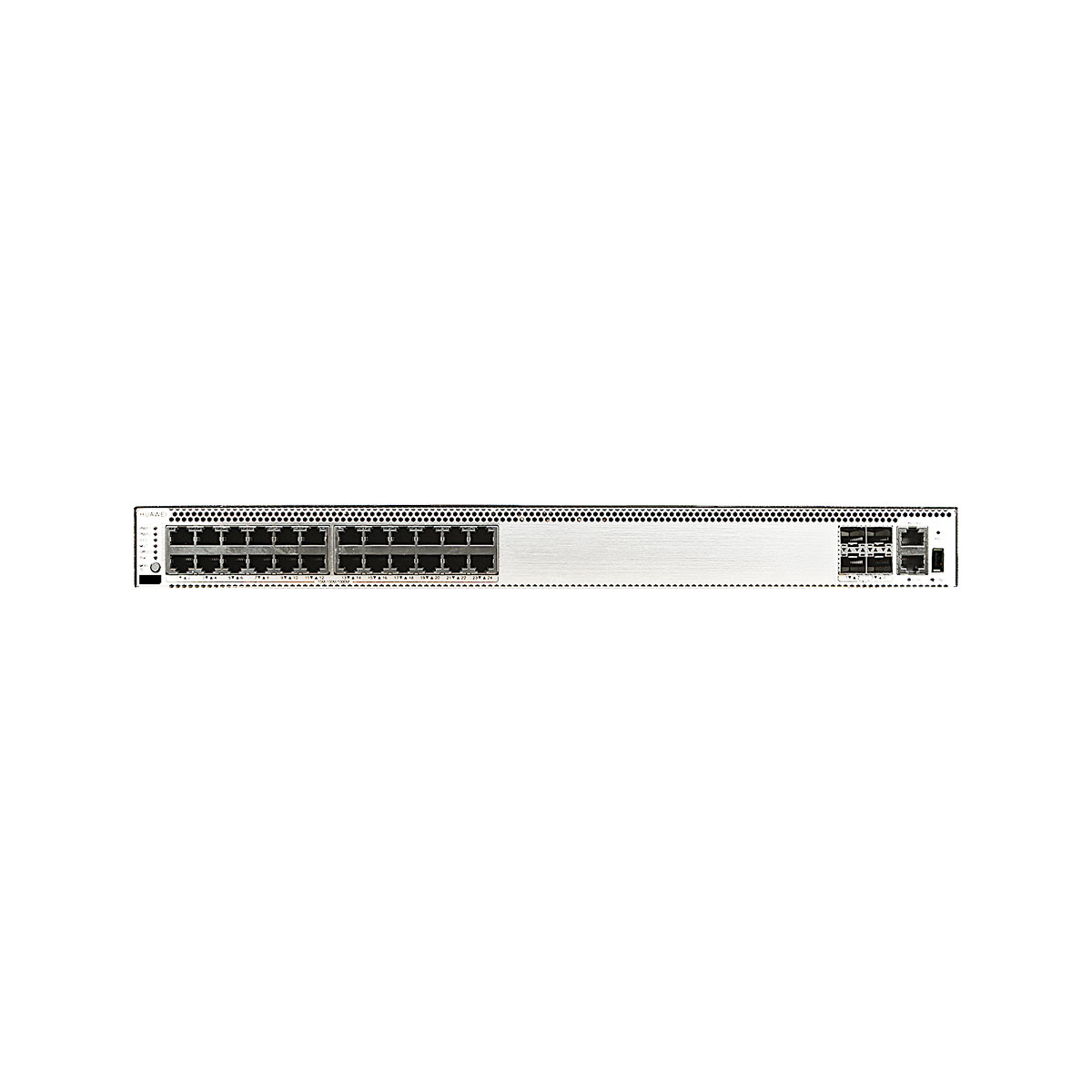

Front panel of the AirEngine 9700D-M



Ports on the AirEngine 9700D-M

1

GE

2

10G/1G

3

CONSOLE

4

ETH

5

USB

–

–



Item AirEngine 9700D-M
Storage NAND Flash 1 GB; NOR Flash 64 MB
Console port RJ45
Maximum power consumption [W] 880 W (110 V AC power supply, device power consumption 130 W + PoE output 750 W); 970 W (220 V AC power supply, device power consumption 130 W + PoE output 840 W)
Maximum heat dissipation [BTU/hour] 3002.4 (110 V AC power supply, including PoE output); 3309.5 (220 V AC power supply, including PoE output)
Power supply mode Pluggable power supply
Rated input voltage [V] 100 V to 240 V
Input voltage range [V] 90 V to 290 V
Service port surge protection

GE(PoE):

Differential mode (48 V-RTN), ±0.5 kV

Common mode: ±6 kV
PoE Supported
Relationship between PoE and system power modules [W]

Pluggable AC power module

Rated voltage range: 100–240 V AC; 50/60 Hz

Maximum voltage range: 90–290 V AC; 45–65 Hz
Maximum PoE output power [W]

110 V AC power supply, PoE out: 750 W

220 V AC power supply, PoE out: 840 W
Types of fans Pluggable
Number of fan modules 2
Maximum number of physical ports on the entire device 10/100/1000BASE-T (PoE out) x 24 + SFP+ (10GE) x 4
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
MTBF [year] 64 year
MTTR [hour] 2 hour
Installation Type
  • Rack
  • Desk
Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 17.4 in.)

Maximum: 43.6 mm x 442 mm x 448 mm (1.72 in. x 17.4 in. x 17.64 in.)

The depth is the distance from ports on the front panel to the parts protruding from the rear panel.
Weight without packaging [kg(lb)] 6.36 kg (14.02 lb)
Weight with packaging [kg(lb)]

7.5 kg (16.5 lb) (single power module, including packaging materials)

8.6 kg (19.0 lb) (dual power modules, including packaging materials)

Additional information

Brand

Huawei
Item AirEngine 9700D-M
Storage NAND Flash 1 GB; NOR Flash 64 MB
Console port RJ45
Maximum power consumption [W] 880 W (110 V AC power supply, device power consumption 130 W + PoE output 750 W); 970 W (220 V AC power supply, device power consumption 130 W + PoE output 840 W)
Maximum heat dissipation [BTU/hour] 3002.4 (110 V AC power supply, including PoE output); 3309.5 (220 V AC power supply, including PoE output)
Power supply mode Pluggable power supply
Rated input voltage [V] 100 V to 240 V
Input voltage range [V] 90 V to 290 V
Service port surge protection

GE(PoE):

Differential mode (48 V-RTN), ±0.5 kV

Common mode: ±6 kV
PoE Supported
Relationship between PoE and system power modules [W]

Pluggable AC power module

Rated voltage range: 100–240 V AC; 50/60 Hz

Maximum voltage range: 90–290 V AC; 45–65 Hz
Maximum PoE output power [W]

110 V AC power supply, PoE out: 750 W

220 V AC power supply, PoE out: 840 W
Types of fans Pluggable
Number of fan modules 2
Maximum number of physical ports on the entire device 10/100/1000BASE-T (PoE out) x 24 + SFP+ (10GE) x 4
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
MTBF [year] 64 year
MTTR [hour] 2 hour
Installation Type
  • Rack
  • Desk
Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 17.4 in.)

Maximum: 43.6 mm x 442 mm x 448 mm (1.72 in. x 17.4 in. x 17.64 in.)

The depth is the distance from ports on the front panel to the parts protruding from the rear panel.
Weight without packaging [kg(lb)] 6.36 kg (14.02 lb)
Weight with packaging [kg(lb)]

7.5 kg (16.5 lb) (single power module, including packaging materials)

8.6 kg (19.0 lb) (dual power modules, including packaging materials)
