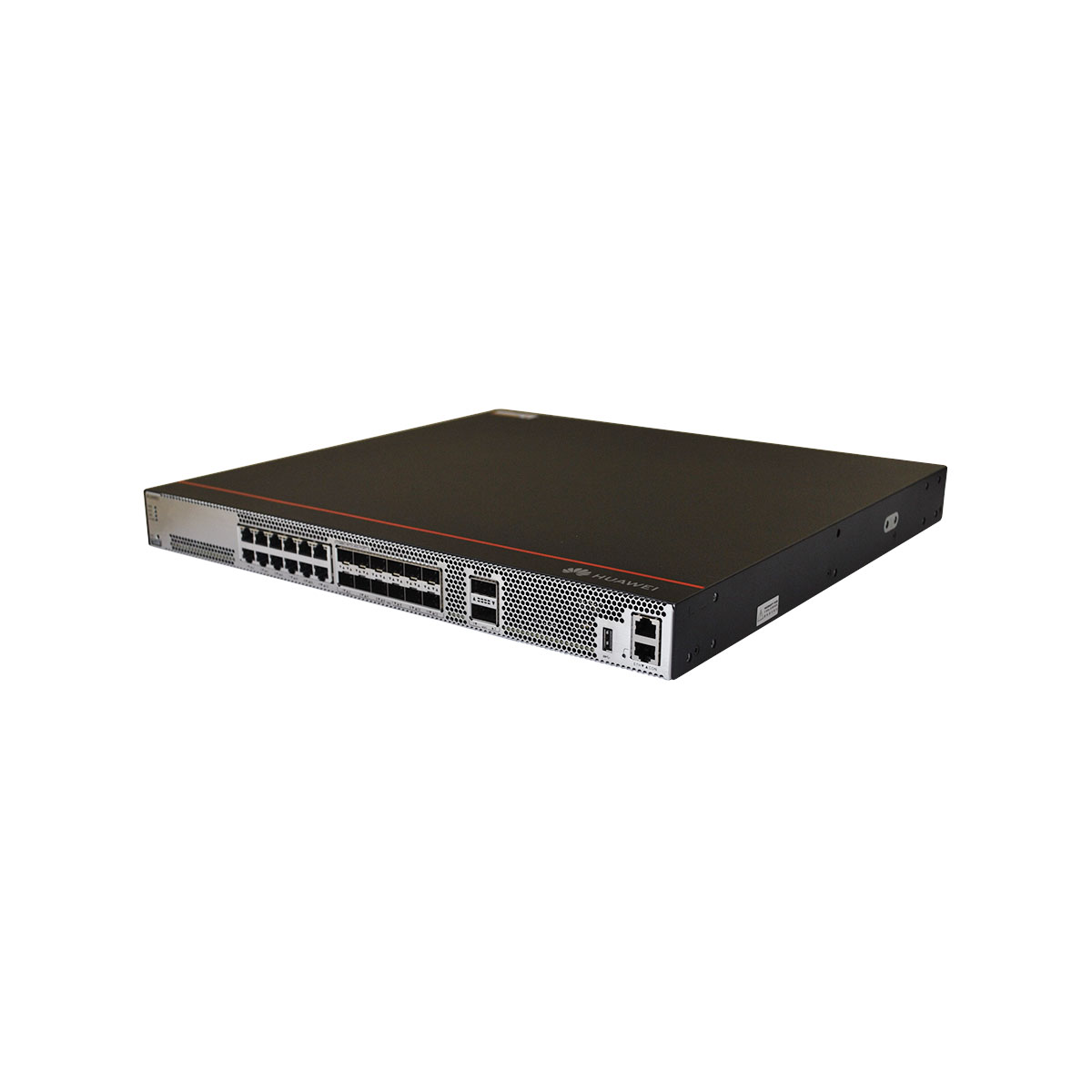

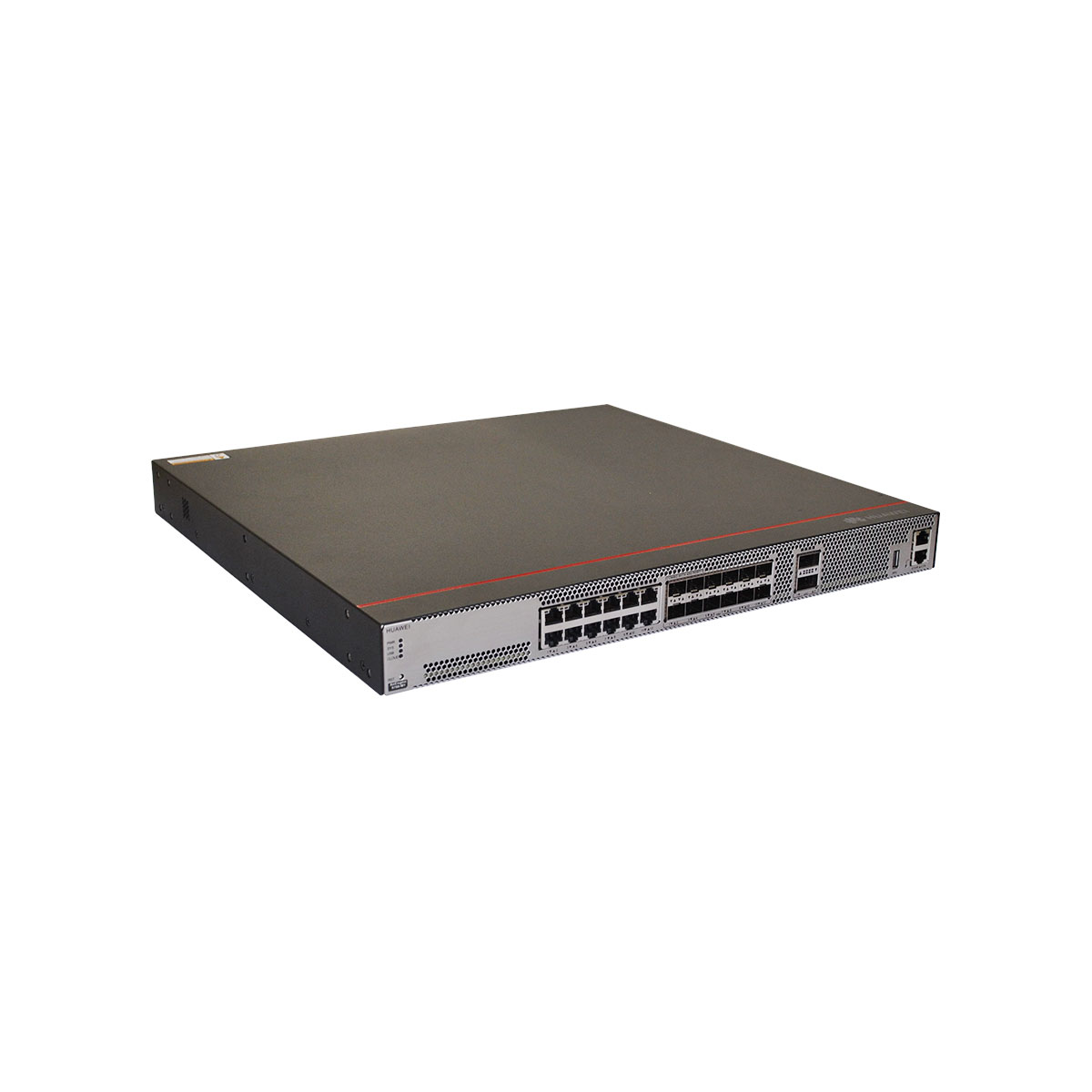

AirEngine 9700-M1 overview

The AirEngine 9700-M1 is a high-performance wireless access controller (AC) for large- and medium-sized enterprise campuses, enterprise branches, and school campuses. When used with Huawei’s access points (APs), the AirEngine 9700-M1 can be used to construct large- and medium-sized networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot coverage.

The AirEngine 9700-M1 has the following characteristics:

  • Large capacity and high performance: The AirEngine 9700-M1 provides 12 x GE electrical ports, 12 x 10GE optical ports, and 2 x 40GE optical ports. The AirEngine 9700-M1 provides up to 120 Gbit/s forwarding performance and can manage a maximum of 2048 APs. From V200R022C10, the AirEngine 9700-M1 can manage a maximum of 3072 APs.
  • High flexibility: flexible data forwarding modes, including direct forwarding and tunnel forwarding and fine-grained user rights management with user- and role-based access control.
  • Abundant O&M methods: various network O&M methods, including eSight, web system, and Command Line Interface (CLI).

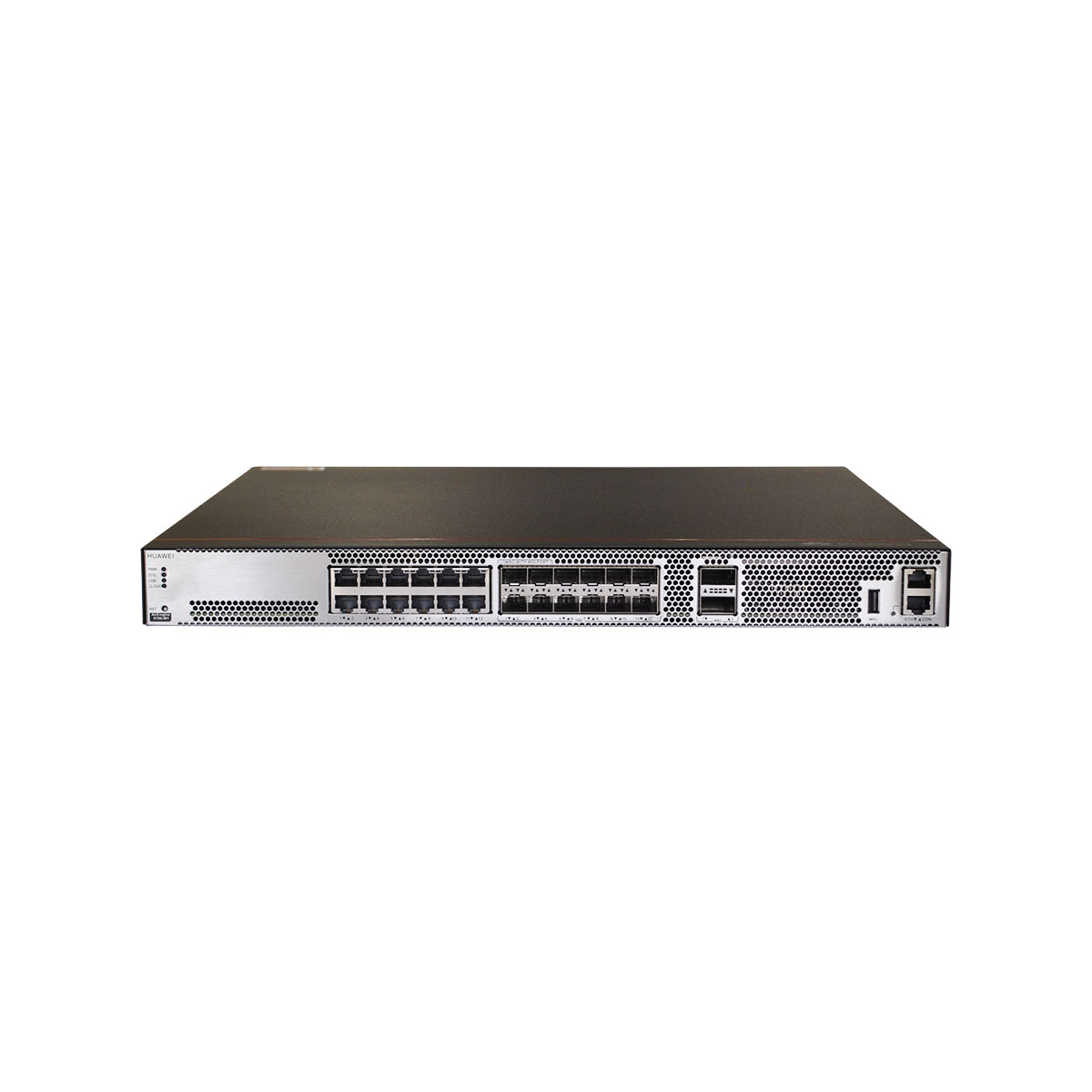

Front panel of the AirEngine 9700-M1

AirEngine 9700 M1

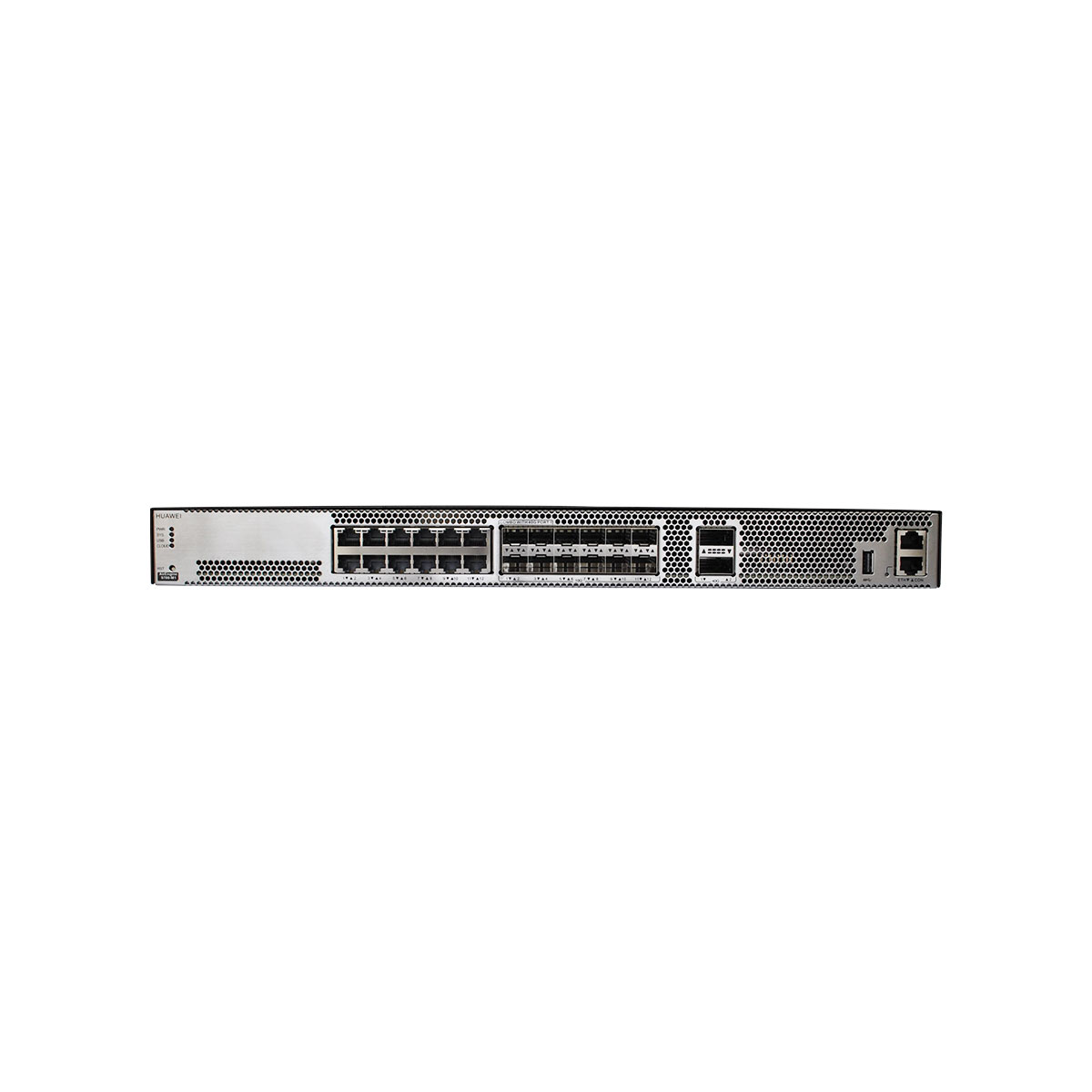

Front panel of the AirEngine 9700-M1



Ports on the AirEngine 9700-M1

1

GE

2

SFP+

3

QSFP+

4

USB

5

CON

6

ETH



Item AirEngine 9700-M1
Storage M.2 memory card 32 GB
Console port RJ45
Eth Management port RJ45
Maximum power consumption [W] 163.4 W
Maximum heat dissipation [BTU/hour] 557.49 BTU/hour

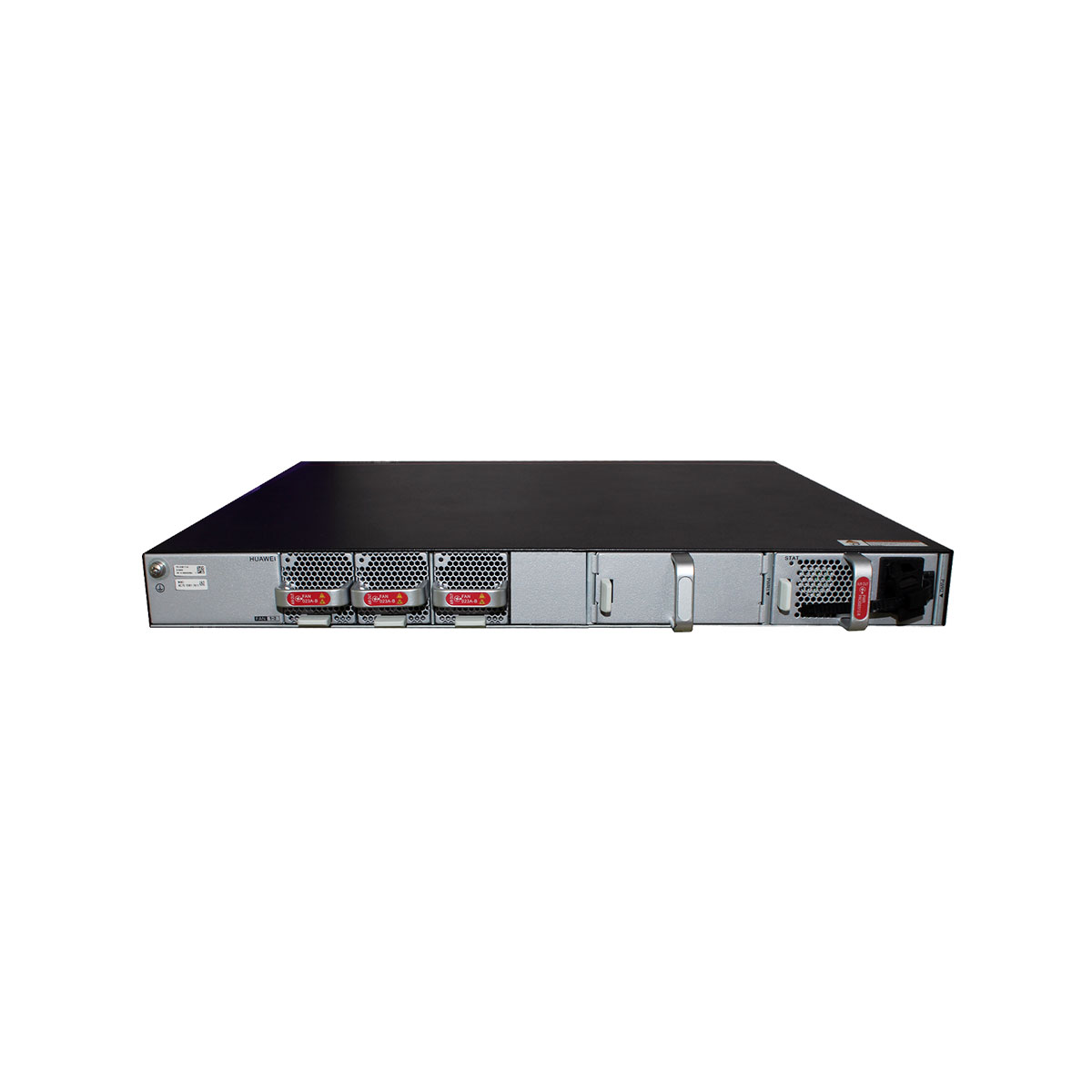

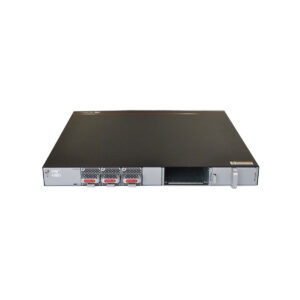

Power supply mode Pluggable power supply
Number of power modules 2
Service port surge protection 6 kV in common mode
Types of fans Pluggable
Number of fan modules 3
Maximum number of physical ports on the entire device

2*40G (QSFP+)+12*10GE (SFP+)+12*GE

One 40G interface and four 10G interfaces are mutually exclusive.
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)] ≤ 55 dBA
Ground Ground
USB Standard USB 3.0 port (host type A) x 1
MTBF [year] 28 year
MTTR [hour] 2 hour
Installation Type Rack
Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Weight without packaging [kg(lb)] 6.25 kg (13.78 lb)
Weight with packaging [kg(lb)] 8.5kg (18.74 lb)
