AirEngine 8761-X1

0 Reviews Write a review

PN02355JRG

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

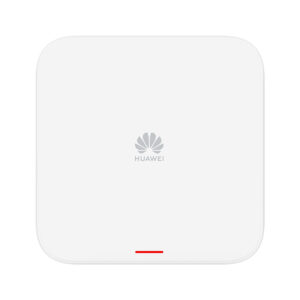

Huawei AirEngine 8761-X1 next-generation Wi-Fi 6 (802.11ax) access point (AP) with 11ax, indoor, 2.4G 4×4 + 5G 8×8 dual bands, smart antenna, 10GE+GE, USB, BLE

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

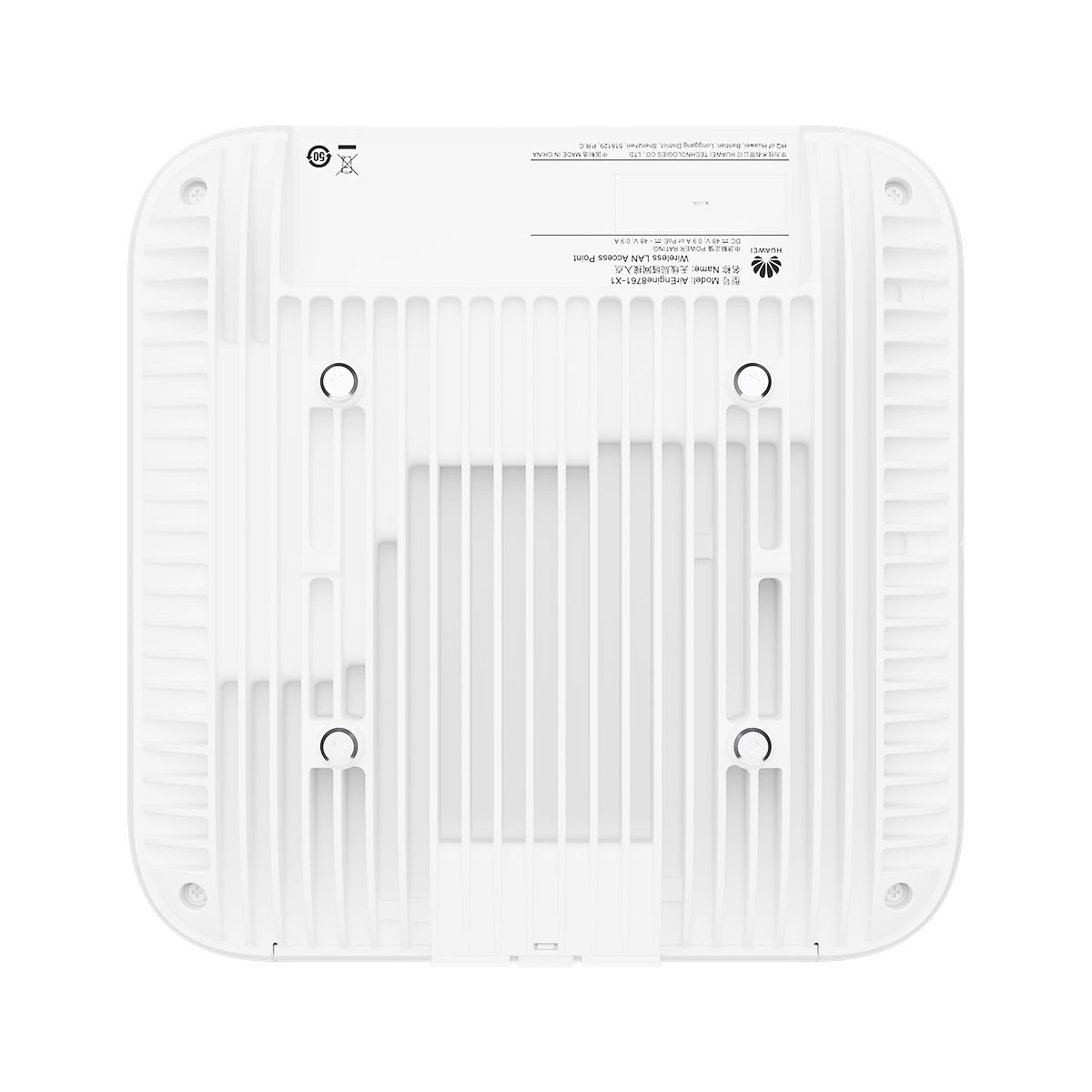

AirEngine 8761-X1 overview

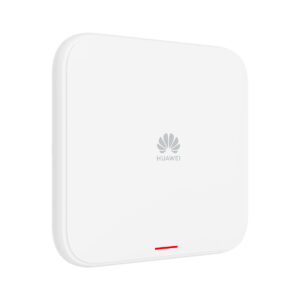

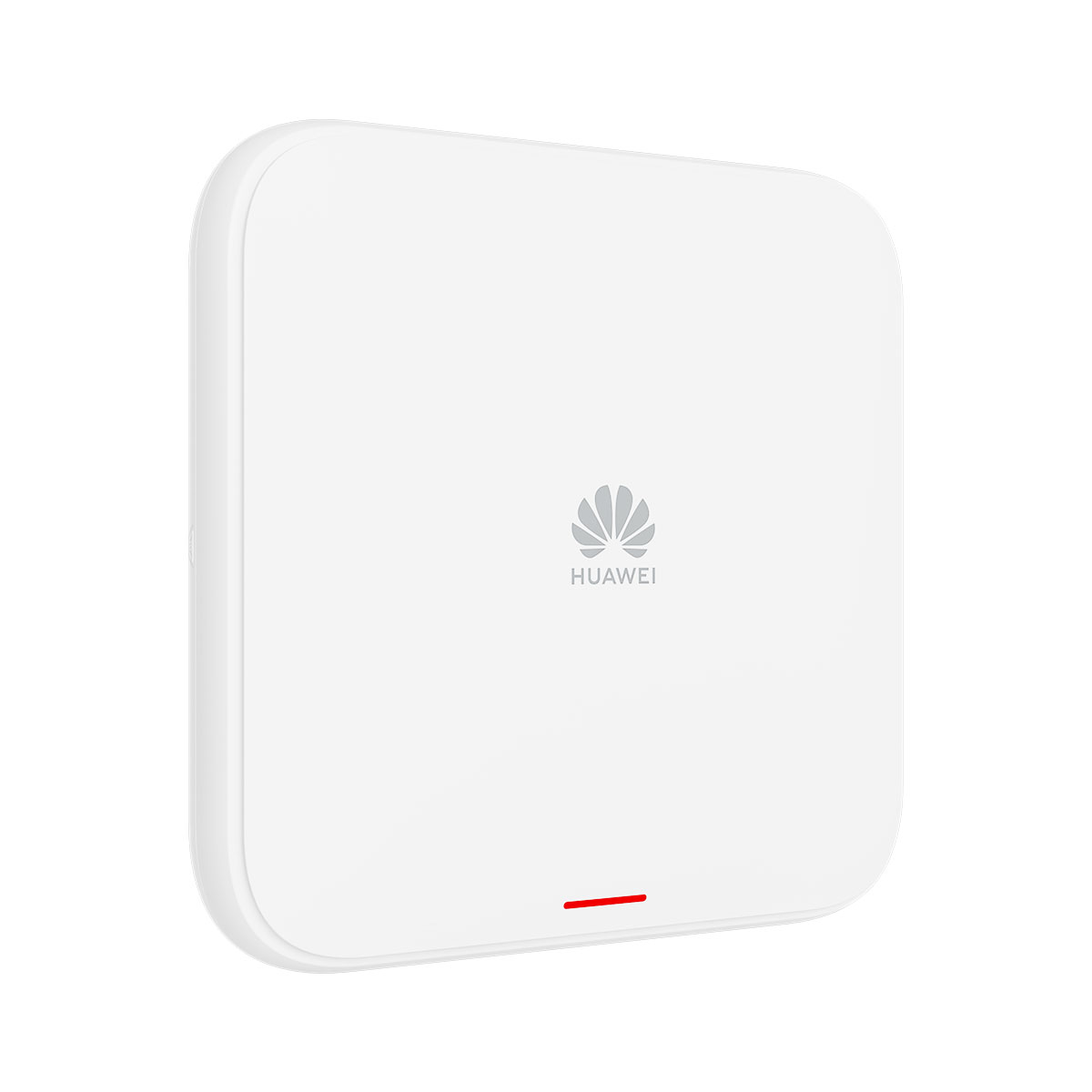

AirEngine 8761-X1 is a next-generation Wi-Fi 6 (802.11ax) access point (AP). It has built-in smart antennas and supports a maximum of 12 spatial streams: 4 at 2.4 GHz (4×4 MIMO) and 8 at 5 GHz (8×8 MIMO). This AP supports 10 Gbit/s Ethernet ports, which eliminates the bottleneck of upstream bandwidth and enables enterprise users to enjoy high-quality wireless services. These strengths make the AP applicable to high-bandwidth services such as HD video streaming, multimedia, and desktop cloud applications.

Provides services simultaneously on both the 2.4 GHz and 5 GHz bands.
Provides a 10GE uplink interface that supports 100M/1000M/2.5G/5G auto-sensing.
Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP.
USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
Working modes: Fit, Fat, and cloud management (In cloud management mode, Huawei’s cloud management platform simplifies the management of APs and services, reducing network O&M costs.)

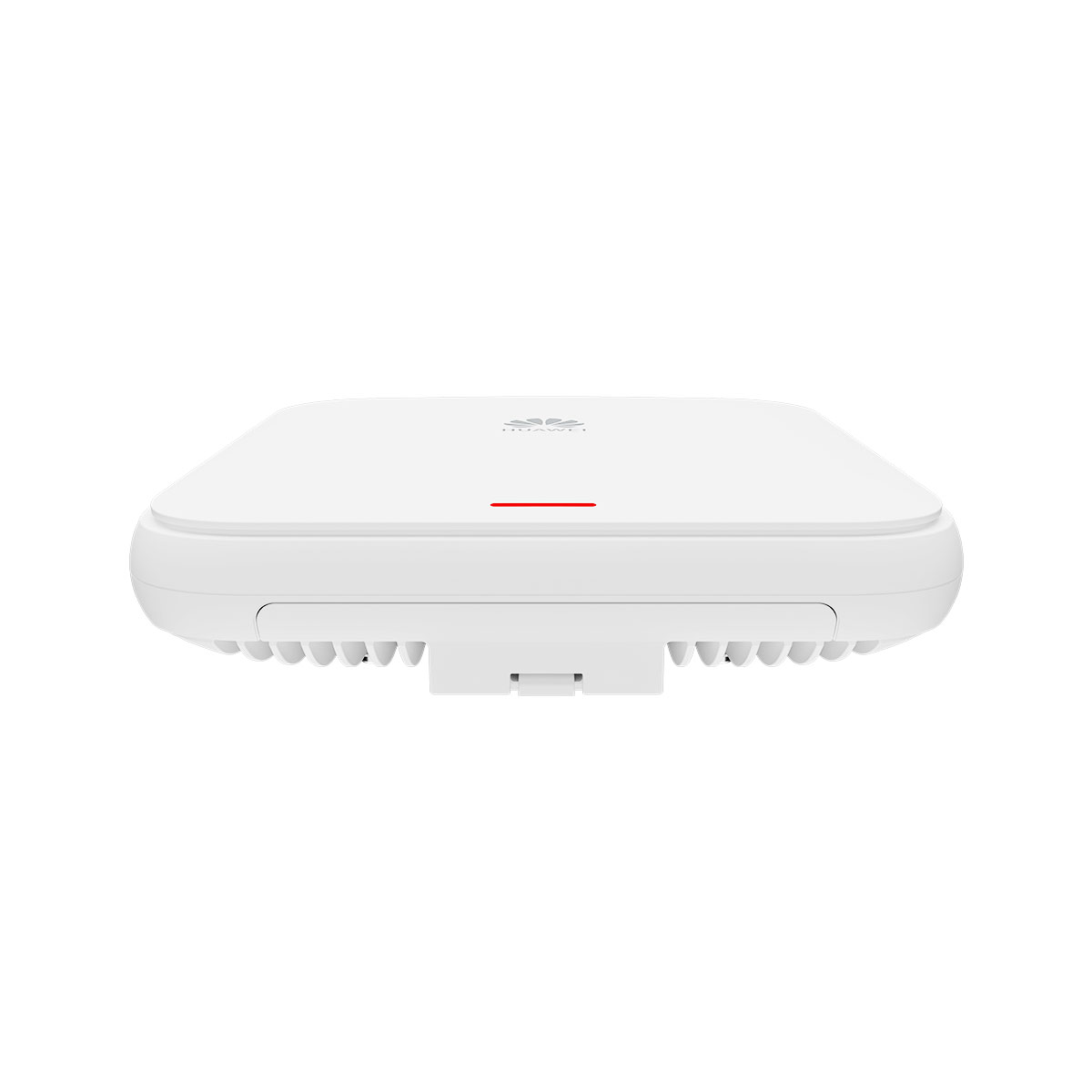

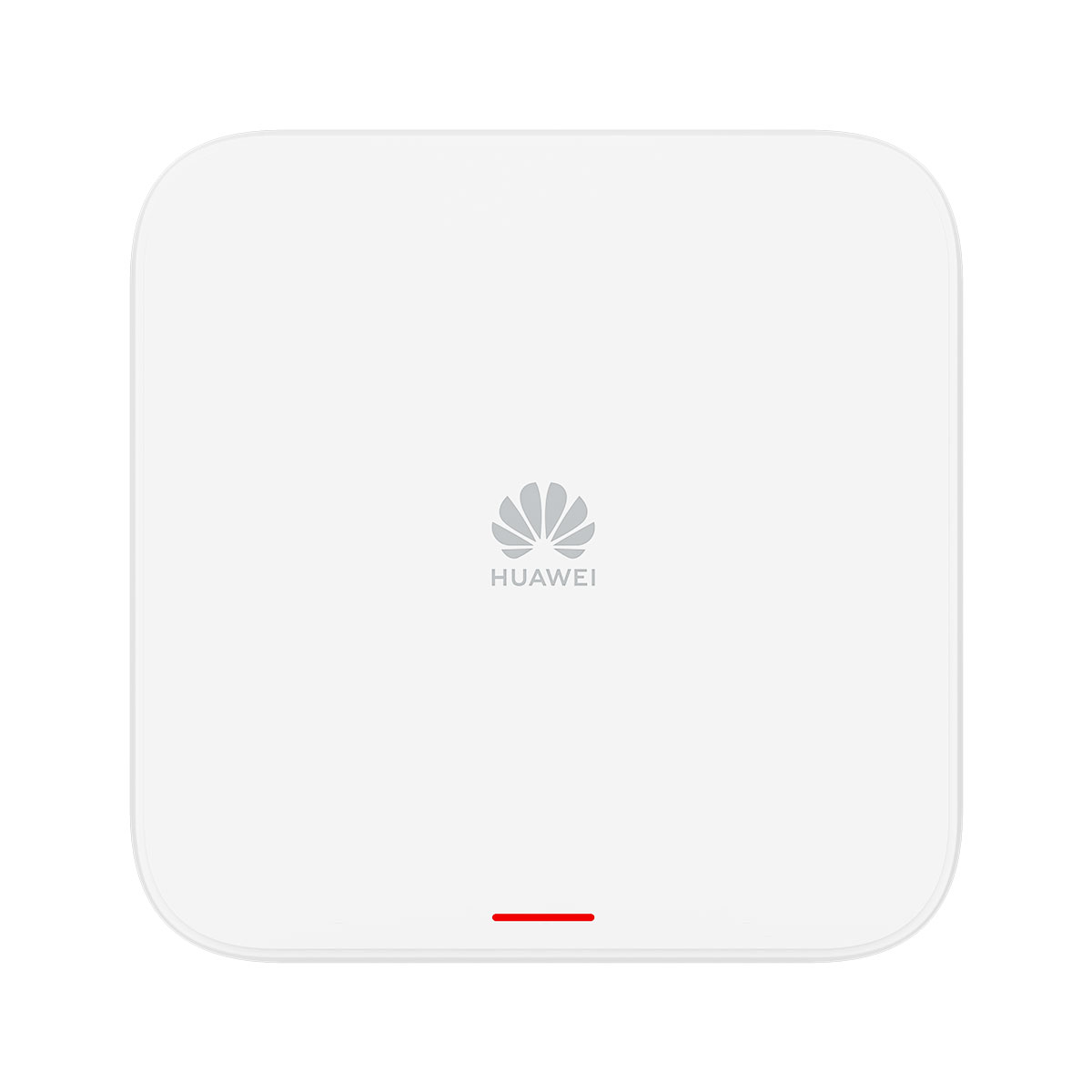

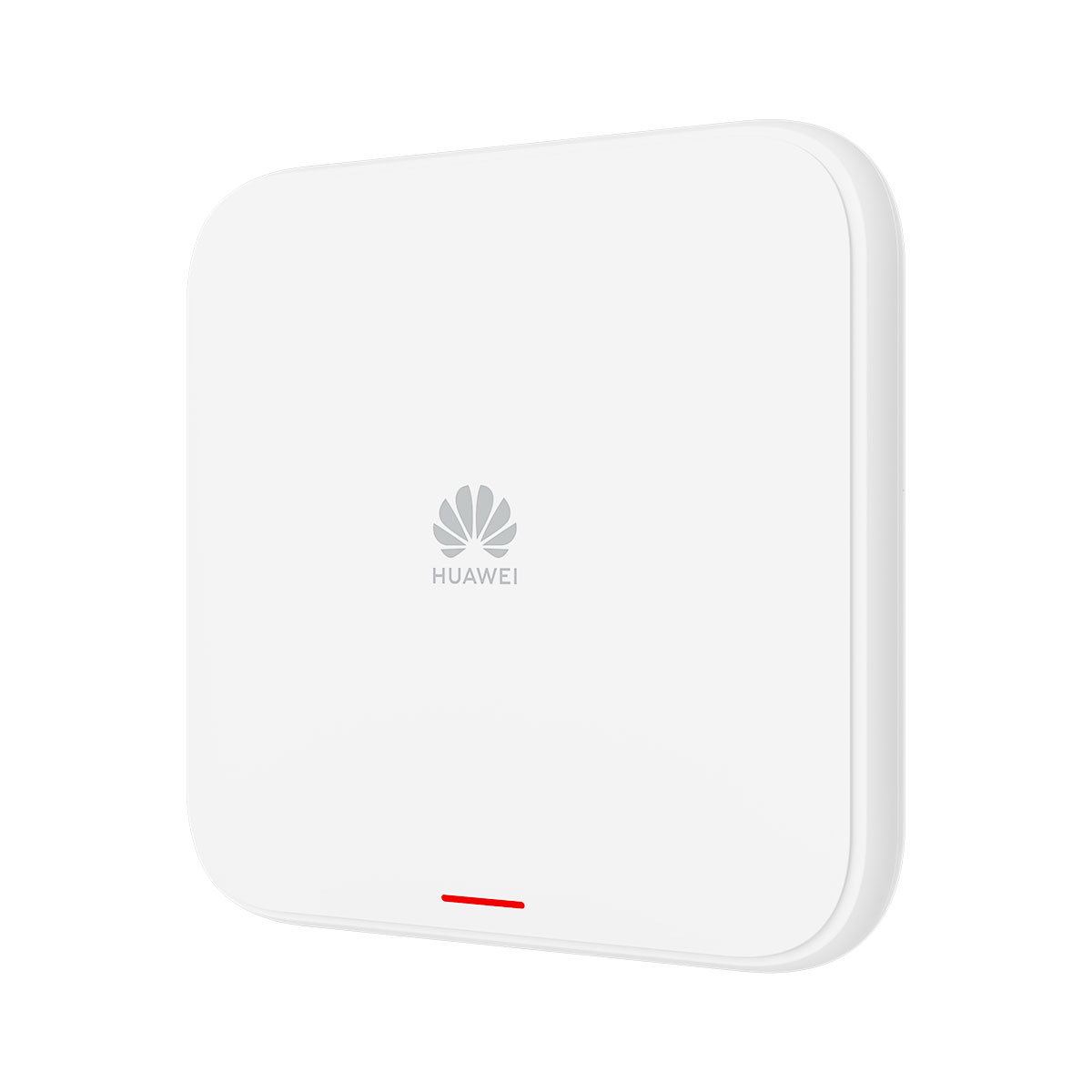

Front panel of the AirEngine 8761-X1

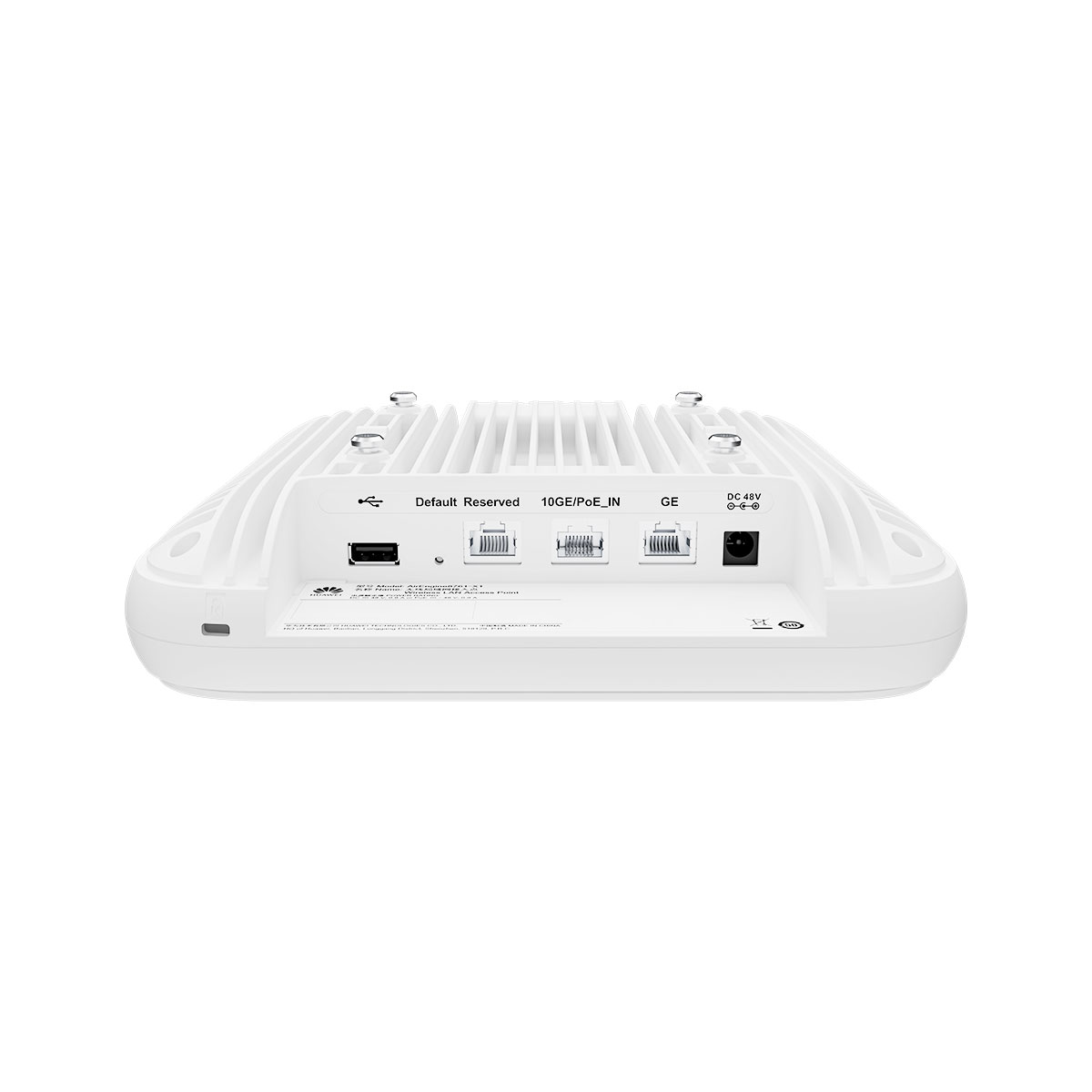

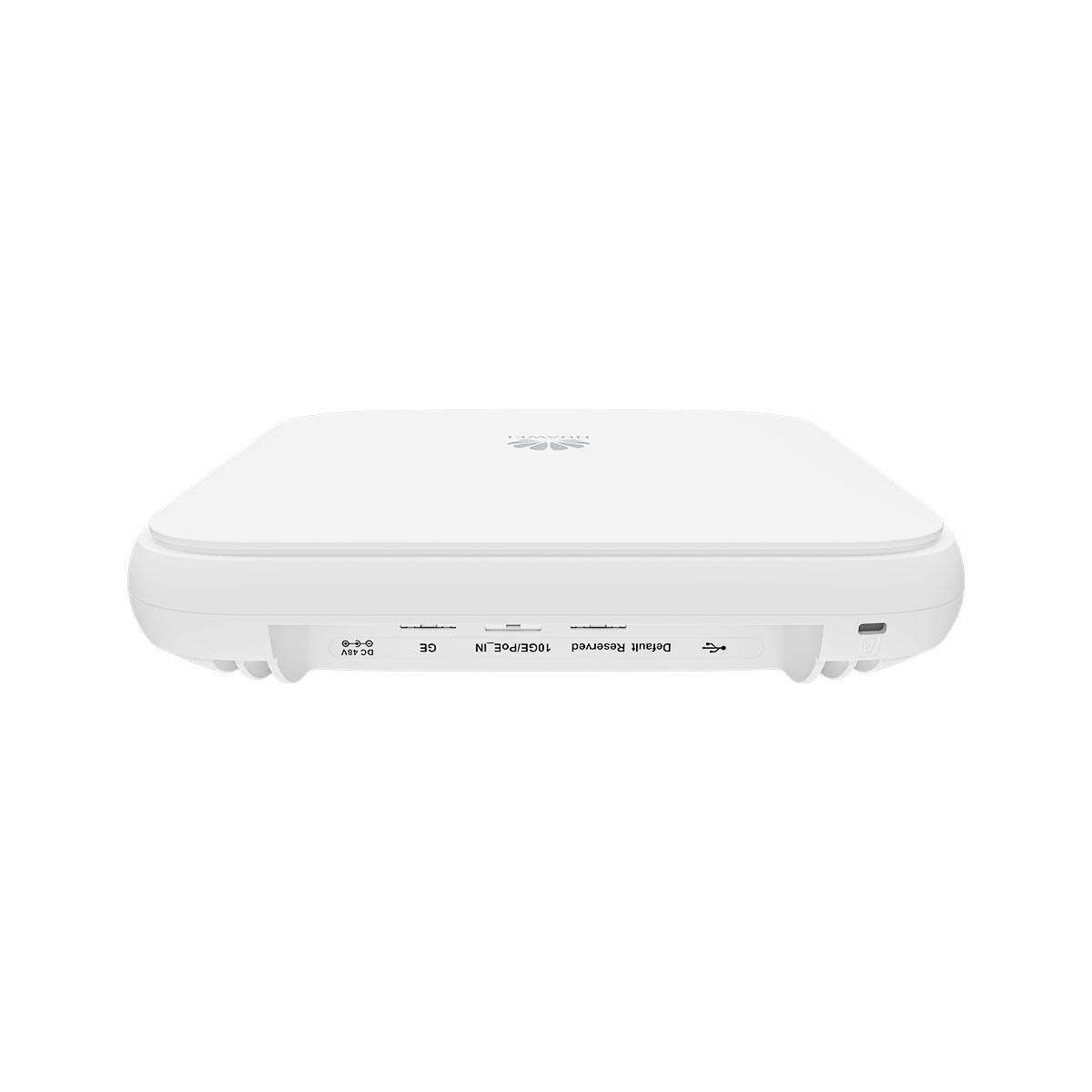

Ports on the AirEngine 8761-X1

Indicator

Default

Item	AirEngine 8761-X1
Storage	NAND Flash 512 MB
Console port	BLE console
Maximum power consumption [W]	23.5 W (excluding USB)
Maximum heat dissipation [BTU/hour]	80 BTU/hour
Power supply mode	PoE DC power adapter
Rated input voltage [V]	48 V
Input voltage range [V]	DC: 43.2–57.6 V PoE: 802.3at
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	10GE (RJ45) x 1, 100M/1000M/2.5GE/5GE/10GE auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Ground
USB	USB 2.0
IoT slot	Not supported
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 4x4 Radio 1 (5 GHz): 8x8
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	Maximum gain: 2.4 GHz: 4 dBi 5 GHz: 6 dBi BLE: 5 dBi Combined gain: 2.4 GHz: 2 dBi 5 GHz: 3 dBi
Beamwidth of the built-in antenna [degrees]	N/A
Maximum transmit power	2.4 GHz: 24 dBm 5 GHz: 27 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 18 dBm/chain 5 GHz: 18 dBm/chain) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 18 dBm/chain 5G: -10 dBm to 18 dBm/chain
MTBF [year]	74 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
802.3at power supply description	The maximum output power of the USB port is 2.5 W. The USB port does not support 5 W output. When the USB port is not used, other functions are not affected. When the USB port provides 2.5 W output power, the maximum transmit power of the 2.4 GHz and 5 GHz radios decreases by 1 dBm, and other functions are not affected.
DC power supply description	The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	57 mm x 220 mm x 220 mm (2.24 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)]	1.8 kg(lb)

Brand	Huawei

Item	AirEngine 8761-X1
Storage	NAND Flash 512 MB
Console port	BLE console
Maximum power consumption [W]	23.5 W (excluding USB)
Maximum heat dissipation [BTU/hour]	80 BTU/hour
Power supply mode	PoE DC power adapter
Rated input voltage [V]	48 V
Input voltage range [V]	DC: 43.2–57.6 V PoE: 802.3at
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	10GE (RJ45) x 1, 100M/1000M/2.5GE/5GE/10GE auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Ground
USB	USB 2.0
IoT slot	Not supported
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 4x4 Radio 1 (5 GHz): 8x8
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	Maximum gain: 2.4 GHz: 4 dBi 5 GHz: 6 dBi BLE: 5 dBi Combined gain: 2.4 GHz: 2 dBi 5 GHz: 3 dBi
Beamwidth of the built-in antenna [degrees]	N/A
Maximum transmit power	2.4 GHz: 24 dBm 5 GHz: 27 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 18 dBm/chain 5 GHz: 18 dBm/chain) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 18 dBm/chain 5G: -10 dBm to 18 dBm/chain
MTBF [year]	74 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
802.3at power supply description	The maximum output power of the USB port is 2.5 W. The USB port does not support 5 W output. When the USB port is not used, other functions are not affected. When the USB port provides 2.5 W output power, the maximum transmit power of the 2.4 GHz and 5 GHz radios decreases by 1 dBm, and other functions are not affected.
DC power supply description	The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	57 mm x 220 mm x 220 mm (2.24 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)]	1.8 kg(lb)
