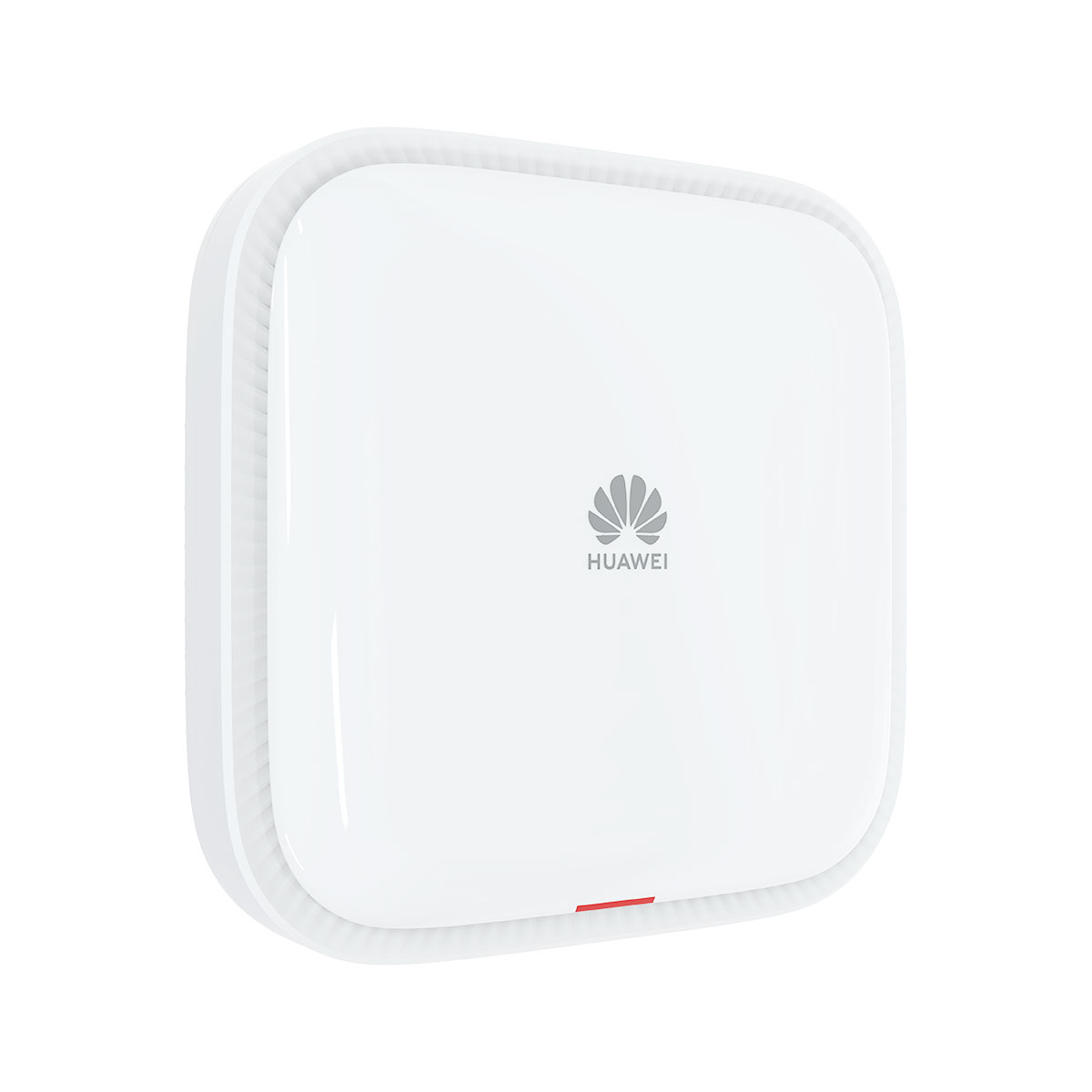

AirEngine 8760-X1-PRO overview

Huawei AirEngine 8760-X1-PRO is a next-generation flagship indoor access point (AP) in compliance with the Wi-Fi 6 standard. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It provides uplink optical and electrical ports, allowing customers to select different deployment modes based on scenarios. These strengths make the AP ideal for scenarios such as enterprise office, government, higher education, and primary/secondary education.

  • Working simultaneously on the 2.4 GHz and 5 GHz frequency bands
    • Dual-radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (12×12:8 MIMO)
    • Triple-radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (8×8:8 MIMO) + 5 GHz (4×4:4 MIMO)
    • Dual-radio + independent scanning radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (8×8:8 MIMO)
  • 2 x 10GE electrical ports + 1 x 10GE SFP+ port
  • USB port for IoT expansion
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • Built-in IoT slots, supporting IoT expansion such as BLE 5.0, ZigBee, RFID, and Thread
  • Built-in independent radio scanning module, achieving real-time detection for interference and rogue devices and timely network optimization
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

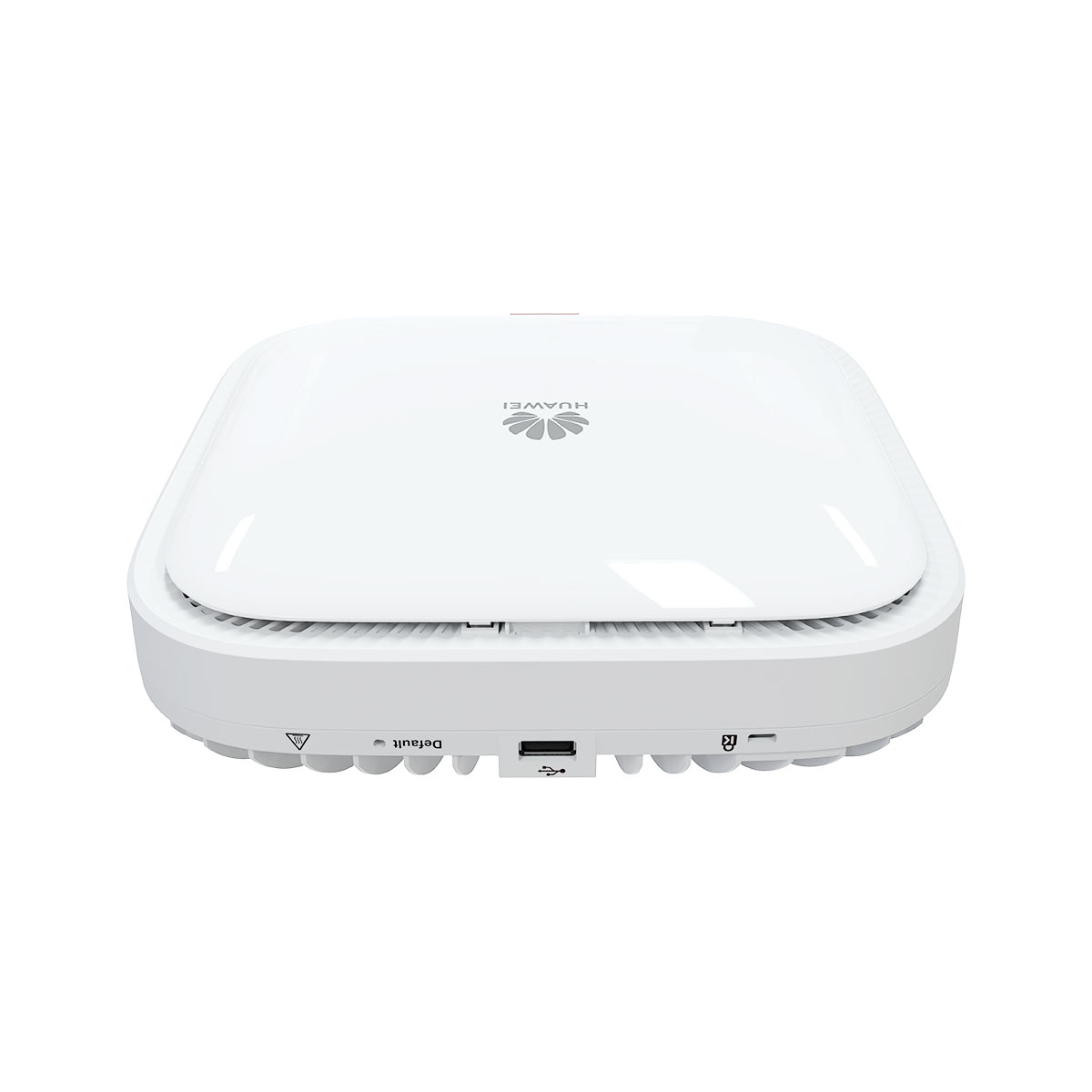

Front panel of the AirEngine 8760-X1-PRO

AirEngine 8760 X1 PRO

Front panel of the AirEngine 8760-X1-PRO

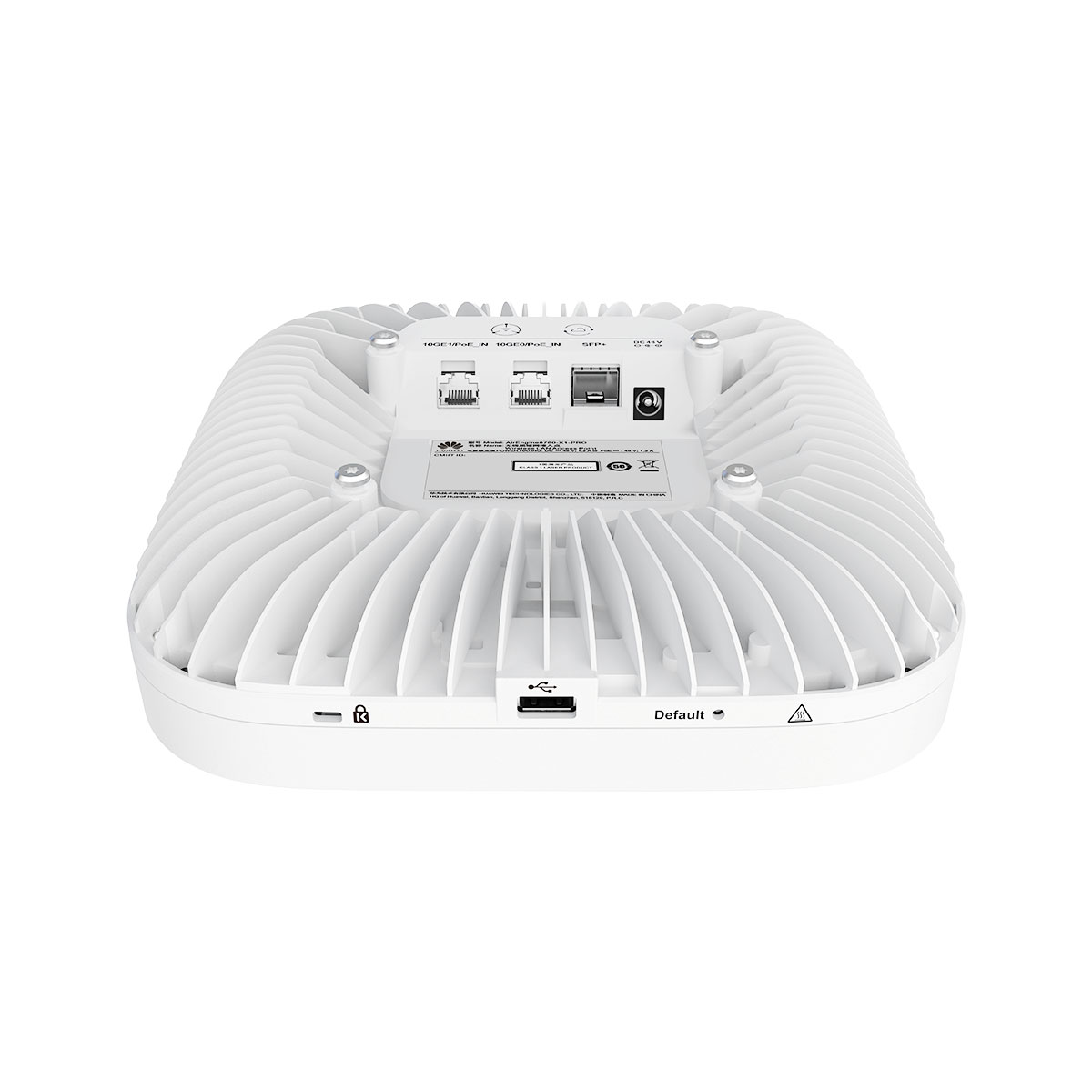

Ports on the AirEngine 8760-X1-PRO

1

Security slot

2

10GE1/PoE_IN

3

10GE0/PoE_IN

4

USB

5

SFP+

6

DC 48V

7

IoT slot

8

Built-in radio port connecting to an IoT card



Item AirEngine 8760-X1-PRO
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 55.0 (excluding USB and IoT cards)
Maximum heat dissipation [BTU/hour] 187.6 (without USB or IoT card)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at x 2 (When PoE power supply is used: If the power supply types of the two ports are different, the power supply in compliance with a later standard is used; if the power supply types of the two ports are the same, power supply backup is achieved.)
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

10GE (RJ45) x 2, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
IoT slot IoT card
BLE BLE5.2
Radio number 2/3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Triple-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 4x4 (high frequency band: 5490–5850 MHz), maximum bandwidth of 80 MHz
  • Radio 2 (5 GHz): 8x8 (low frequency band: 5150–5330 MHz), maximum bandwidth of 80 MHz

Dual-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): In 12x12 configuration, the maximum bandwidth is 80 MHz; in the 8x8 configuration, the maximum bandwidth is 160 MHz.
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5.5 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 31 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 59.4 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

When the AP is powered by 802.3bt class 8, no function is restricted.

If dual 802.3bt class 6 power supplies are used,

Wi-Fi:

  • If no USB port or IoT card slot is used, the number of spatial streams and transmit power are not affected.
  • If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired network port: No function is restricted.

Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

If single 802.3bt class 6 power supplies are used,

Wi-Fi:

  • If no USB port or IoT card slot is used, the number of spatial streams and transmit power are not affected.
  • If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired network port: Two 10GE electrical ports and the SFP+ optical port work as combo ports. When one of them is working, the other two are unavailable.

Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.
802.3at power supply description

If dual 802.3at power supplies are used,

Wi-Fi:

If no USB port or IoT card slot is used, the radio power is self-adapted.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent scanning radio

If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired ports: The rate of both 10GE electrical ports is reduced to GE or lower, and the SFP+ optical port is unavailable.

Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

If single 802.3at power supply is used,

Wi-Fi:

If no USB port or IoT card slot is used, the radio power is self-adapted.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent scanning radio

If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired ports: The rate of both 10GE electrical ports is reduced to 1 Gbit/s or lower, and work with the SFP+ optical port as combo ports. When one of them is working, the other two are unavailable.

Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact your product manager.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] 61 mm x 220 mm x 220 mm (2.40 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)] 1.85 kg (4.08 lb)

Additional information

Brand

Huawei
Item AirEngine 8760-X1-PRO
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 55.0 (excluding USB and IoT cards)
Maximum heat dissipation [BTU/hour] 187.6 (without USB or IoT card)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at x 2 (When PoE power supply is used: If the power supply types of the two ports are different, the power supply in compliance with a later standard is used; if the power supply types of the two ports are the same, power supply backup is achieved.)
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

10GE (RJ45) x 2, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
IoT slot IoT card
BLE BLE5.2
Radio number 2/3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Triple-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 4x4 (high frequency band: 5490–5850 MHz), maximum bandwidth of 80 MHz
  • Radio 2 (5 GHz): 8x8 (low frequency band: 5150–5330 MHz), maximum bandwidth of 80 MHz

Dual-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): In 12x12 configuration, the maximum bandwidth is 80 MHz; in the 8x8 configuration, the maximum bandwidth is 160 MHz.
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5.5 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 31 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 59.4 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

When the AP is powered by 802.3bt class 8, no function is restricted.

If dual 802.3bt class 6 power supplies are used,

Wi-Fi:

  • If no USB port or IoT card slot is used, the number of spatial streams and transmit power are not affected.
  • If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired network port: No function is restricted.

Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

If single 802.3bt class 6 power supplies are used,

Wi-Fi:

  • If no USB port or IoT card slot is used, the number of spatial streams and transmit power are not affected.
  • If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired network port: Two 10GE electrical ports and the SFP+ optical port work as combo ports. When one of them is working, the other two are unavailable.

Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.
802.3at power supply description

If dual 802.3at power supplies are used,

Wi-Fi:

If no USB port or IoT card slot is used, the radio power is self-adapted.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent scanning radio

If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired ports: The rate of both 10GE electrical ports is reduced to GE or lower, and the SFP+ optical port is unavailable.

Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

If single 802.3at power supply is used,

Wi-Fi:

If no USB port or IoT card slot is used, the radio power is self-adapted.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent scanning radio

If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager.

Wired ports: The rate of both 10GE electrical ports is reduced to 1 Gbit/s or lower, and work with the SFP+ optical port as combo ports. When one of them is working, the other two are unavailable.

Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact your product manager.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] 61 mm x 220 mm x 220 mm (2.40 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)] 1.85 kg (4.08 lb)
