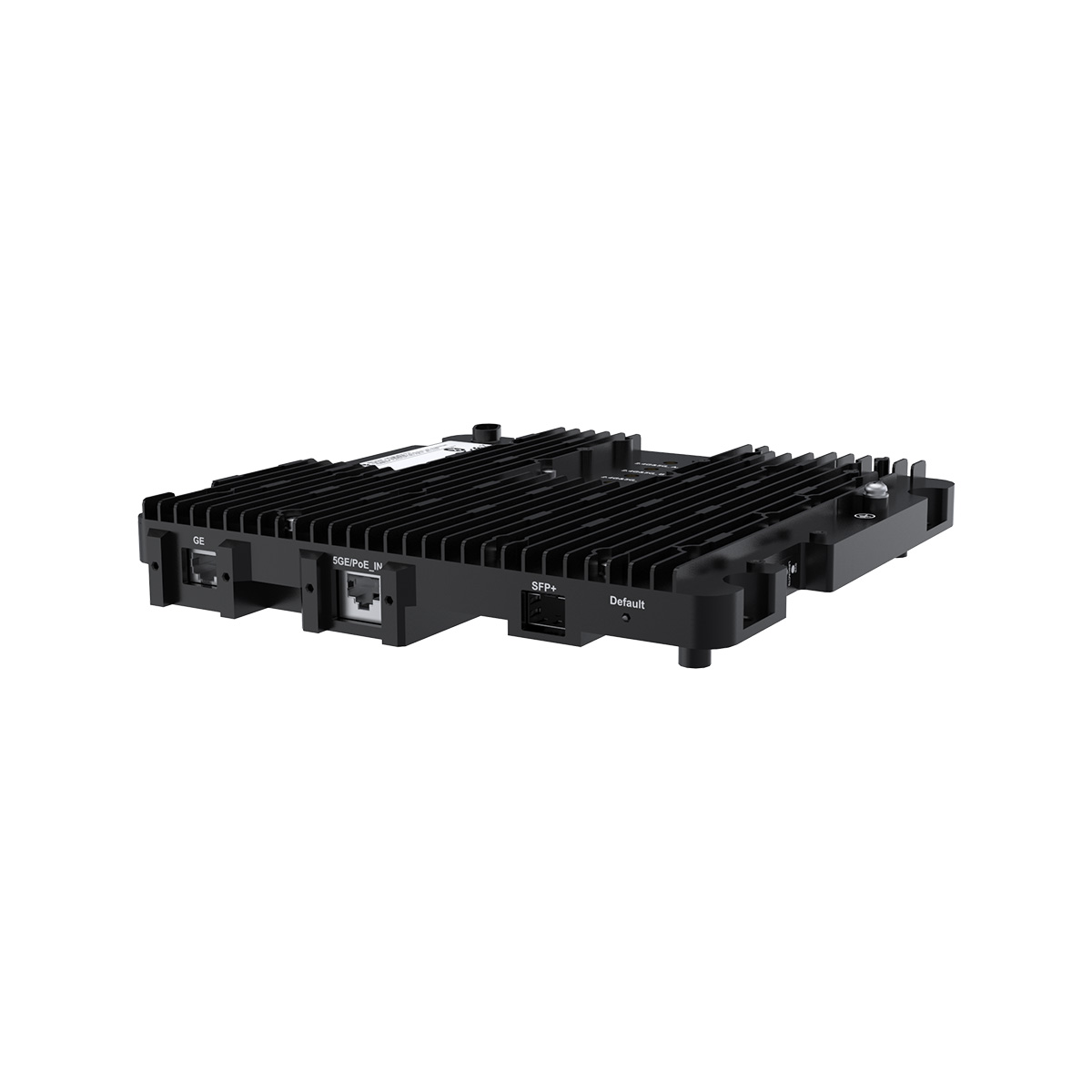

AirEngine-6760-51EI-1

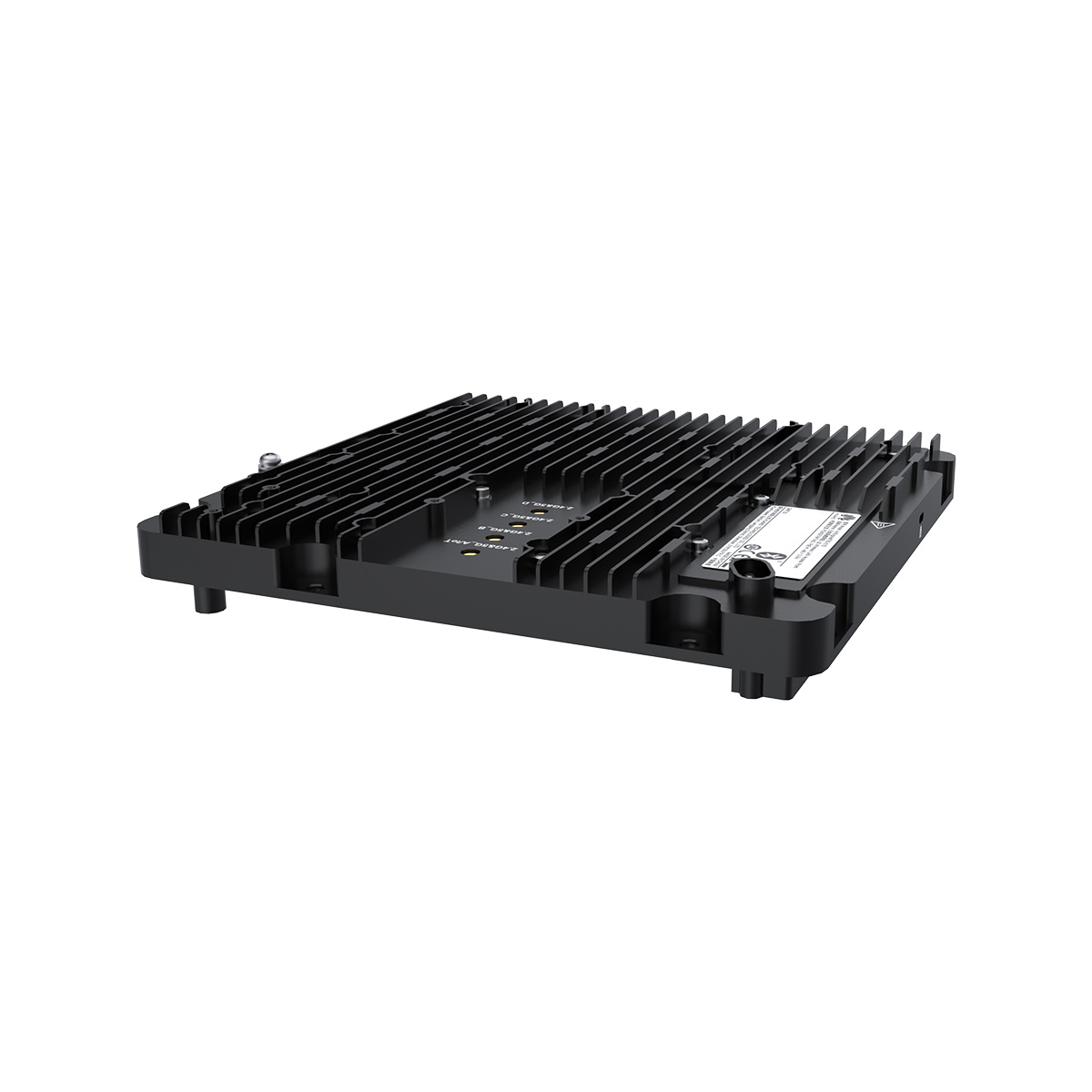

AirEngine-6760-51EI-2

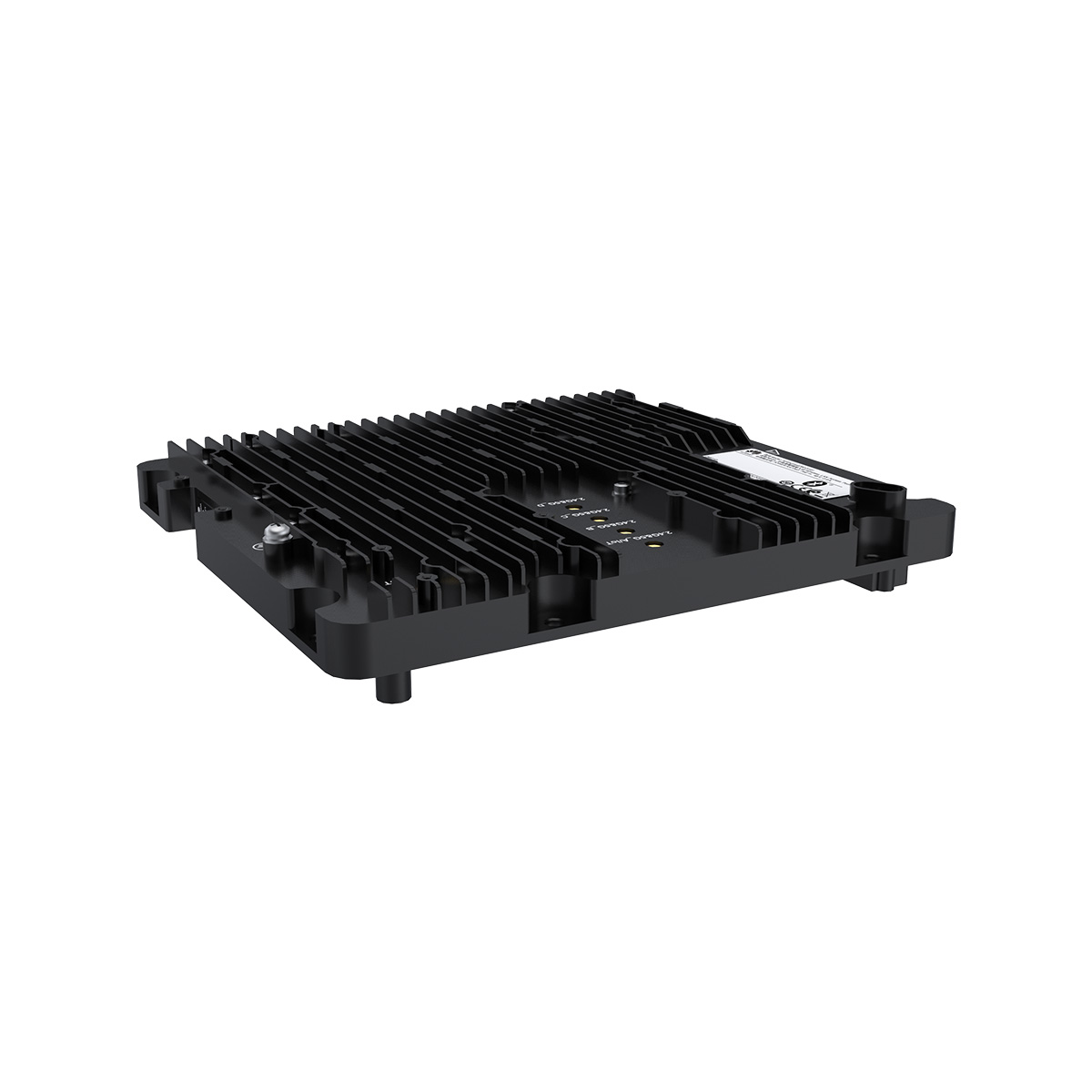

AirEngine-6760-51EI-3
AirEngine-6760-51EI-4

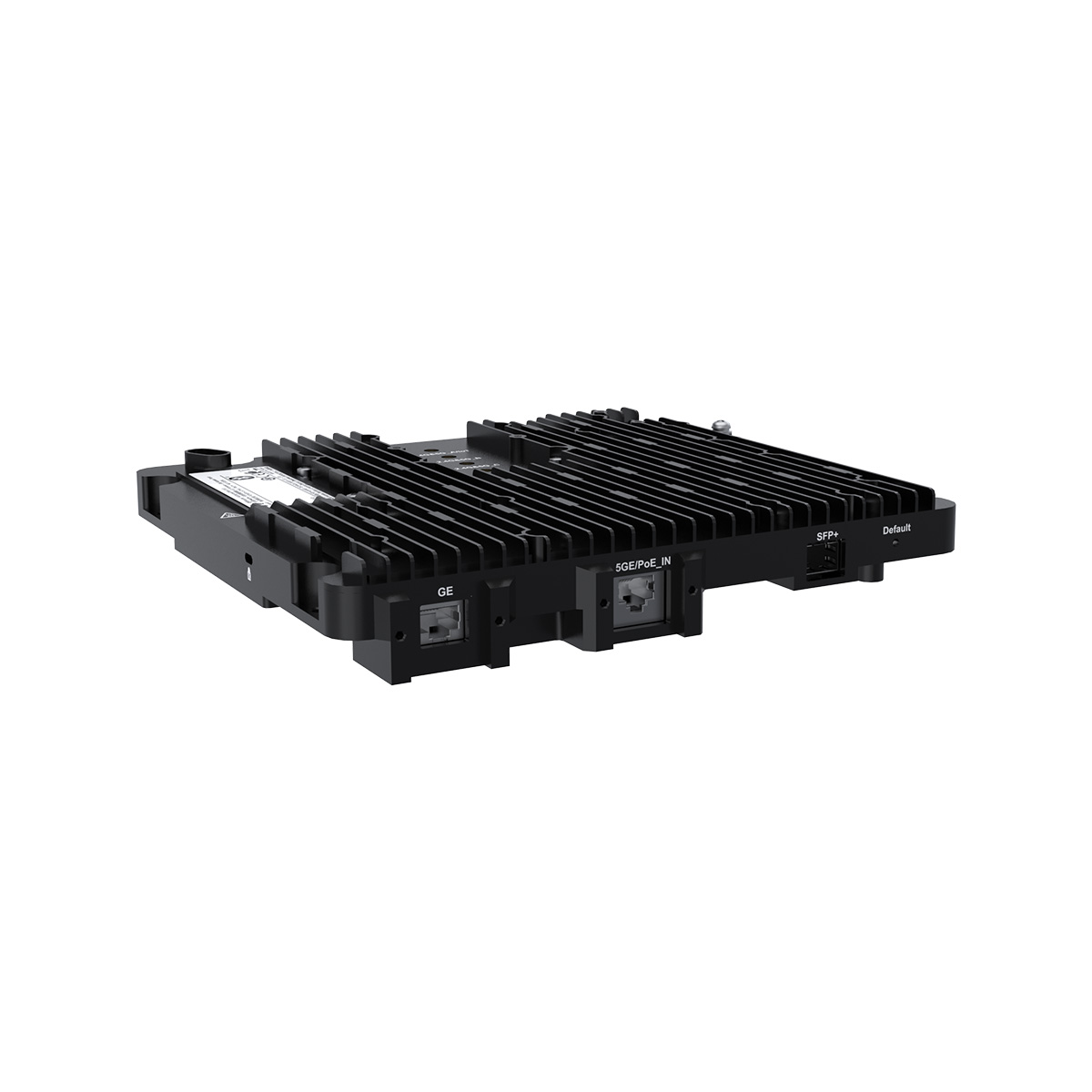

AirEngine 6760 51EI 5
Categories:

AirEngine 6760-51EI

0 Reviews Write a review
SKU2026807
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 6760-51EI is a next-generation access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard specially designed for use in rail transportation scenarios.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 6760-51EI overview

Huawei AirEngine 6760-51EI is a next-generation access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard specially designed for use in rail transportation scenarios. It is compatible with IEEE 802.11a/b/g/n/ac standards and supports up to four spatial streams. This AP complies with EN50155 and applies to vehicle-ground backhaul in the transportation industry.

  • Working simultaneously on the 2.4 GHz and 5 GHz frequency bands
    • Dual-radio mode: 2.4 GHz (2×2) + 5 GHz (2×2)
    • 2G enhanced mode: 2.4 GHz (4×4)
    • 5G enhanced mode: 5 GHz (4×4)
  • Four ports for external dual-band antennas (2.4 GHz and 5 GHz) with flexible, adjustable antenna directions to ensure coverage.
  • Soft handover technology to achieve vehicle-ground fast link handover through the make before break mechanism, minimizing packet loss during the handover.
  • Ruggedized through high-grade die-casting aluminum material, meeting shockproof, waterproof, and fireproof standards as well as professional vehicle-mounted deployment requirements in the rail transportation industry.

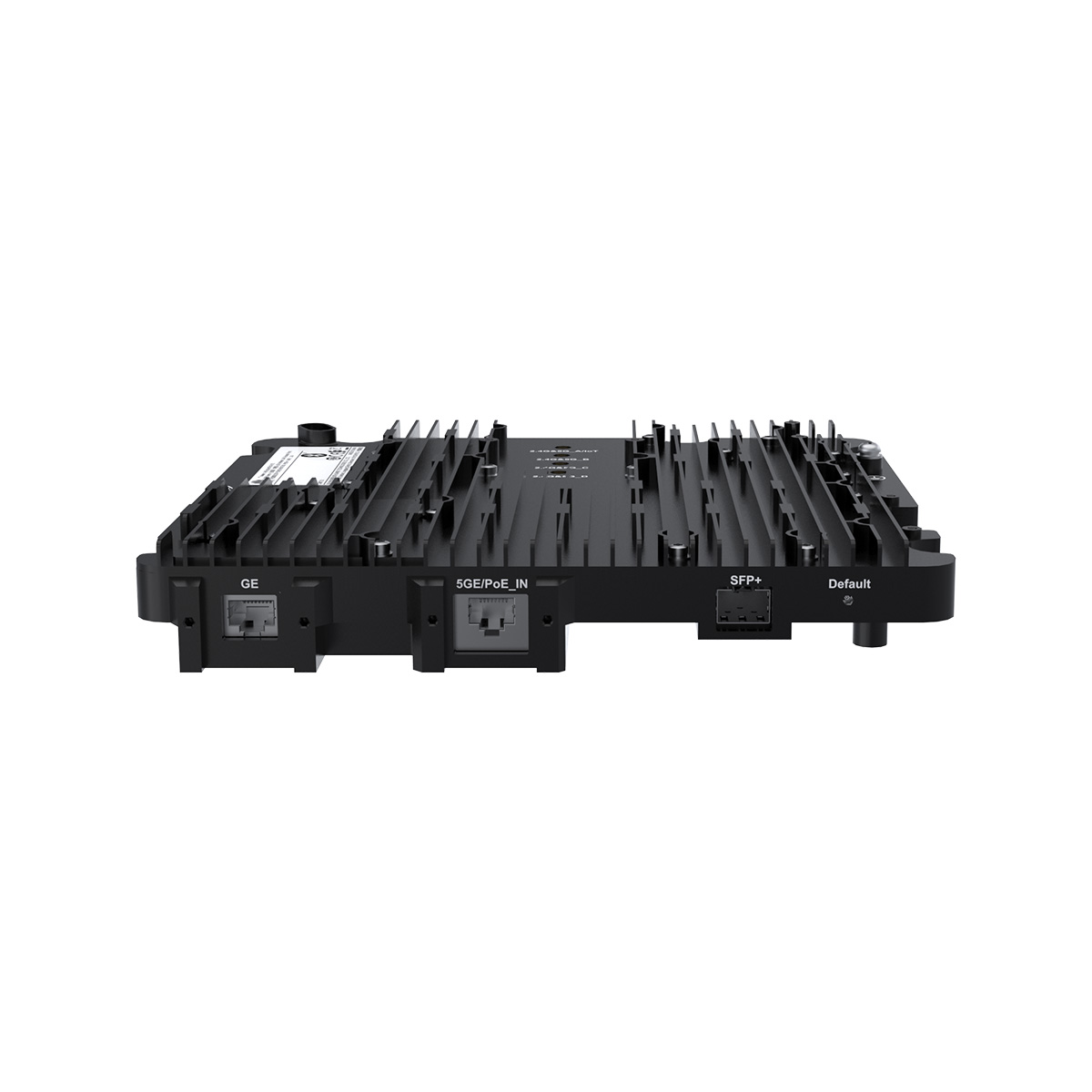

Front panel of the AirEngine 6760-51EI

AirEngine 6760-51EI

Front panel of the AirEngine 6760-51EI



Ports on the AirEngine 6760-51EI

1

Security slot

2

GE

3

5GE/PoE_IN

4

SFP+

5

Antenna port

6

BLE antenna port



Item AirEngine 6760-51EI
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 23.8 W
Maximum heat dissipation [BTU/hour] 87 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3at
Service port surge protection 6 kA in common mode
Maximum number of physical ports on the entire device

5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)]

–40°C to +65°C (–40°F to +149°F) (horizontal, without optical modules)

–40°C to +60°C (–40°F to +140°F) (horizontal, with optical modules)

From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Dual-radio standard mode:

  • Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 2x2, maximum bandwidth of 160 MHz

2G enhanced radio mode:

Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz

5G enhanced radio mode:

Radio 1 (5 GHz): 4x4, maximum bandwidth of 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface External antenna
Maximum transmit power

2.4 GHz:

24 dBm/chain

30 dBm (combined power)

5 GHz:

24 dBm/chain

30 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 24 dBm /chain

5G: -10 dBm to 24 dBm /chain
MTBF [year] 122 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
Dimensions without packaging (H x W x D) [mm(in.)] 35 mm x 225 mm x 208 mm (1.38 in. x 8.86 in. x 8.19 in.)
Weight without packaging [kg(lb)] 1.40 kg (3.09 lb)
