Huawei AirEngine 5762-15HW is an indoor Wi-Fi 6 (802.11ax) access point (AP)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 5762-15HW overview

Huawei AirEngine 5762-15HW is an indoor Wi-Fi 6 (802.11ax) access point (AP). It supports high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is applicable to indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.

  • Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
  • Uplink: 1 x GE optical port (optical/electrical port, supporting hybrid cables) for the AP with the part number 50084984
  • Downlink: 4 x GE electrical ports
  • Built-in smart antennas
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
  • Working modes: Fit, Fat, and cloud management

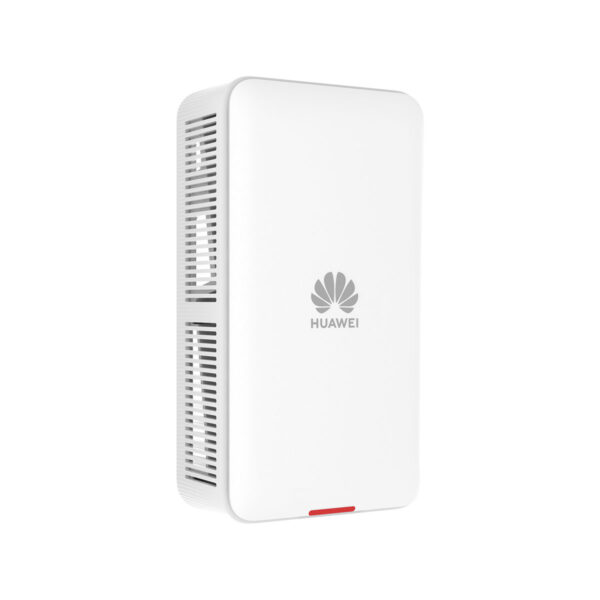

Front panel of the AirEngine 5762-15HW

AirEngine 5762 15HW 2 CAirEngine 5762 15HW 1 C

Front panel of the AirEngine 5762-15HW

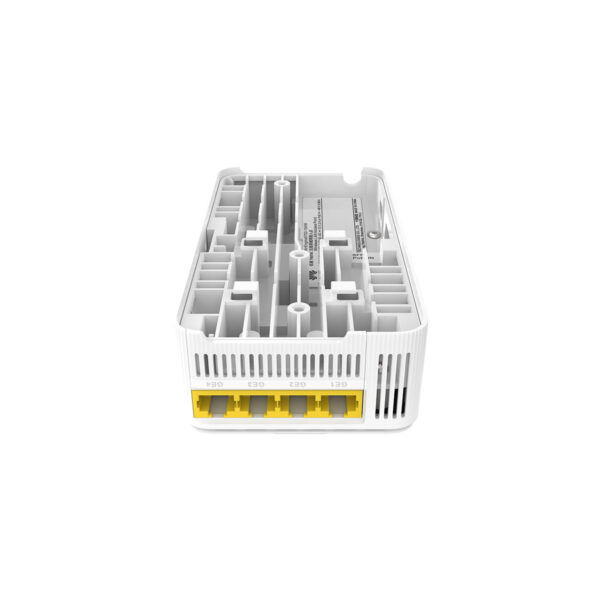

Ports on the AirEngine 5762-15HW

1

Indicator

2

Default



Item AirEngine 5762-15WH
Installation Type
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 45 mm (6.30 in. x 3.39 in. x 1.77 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.480 kg (1.058 lb)
Weight with packaging [kg(lb)] 0.680 kg (1.488 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 15.0 W
Maximum heat dissipation [BTU/hour] 51.2 BTU/hour
Power supply mode
  • DC adapter
  • PoE (hybrid cable)
Rated input voltage [V] 12 V
Input voltage range [V]

12 V ± 10%

PoE: 802.3af/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 4, 10M/100M/1000M auto-sensing, SFP x 1
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 156 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB and downlink ports are limited.
DC power supply description No function is limited.

Additional information

Brand

Huawei
Item AirEngine 5762-15WH
Installation Type
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 45 mm (6.30 in. x 3.39 in. x 1.77 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.480 kg (1.058 lb)
Weight with packaging [kg(lb)] 0.680 kg (1.488 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 15.0 W
Maximum heat dissipation [BTU/hour] 51.2 BTU/hour
Power supply mode
  • DC adapter
  • PoE (hybrid cable)
Rated input voltage [V] 12 V
Input voltage range [V]

12 V ± 10%

PoE: 802.3af/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 4, 10M/100M/1000M auto-sensing, SFP x 1
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 156 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB and downlink ports are limited.
DC power supply description No function is limited.
