Huawei AirEngine 5762-13W is a wall plate access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

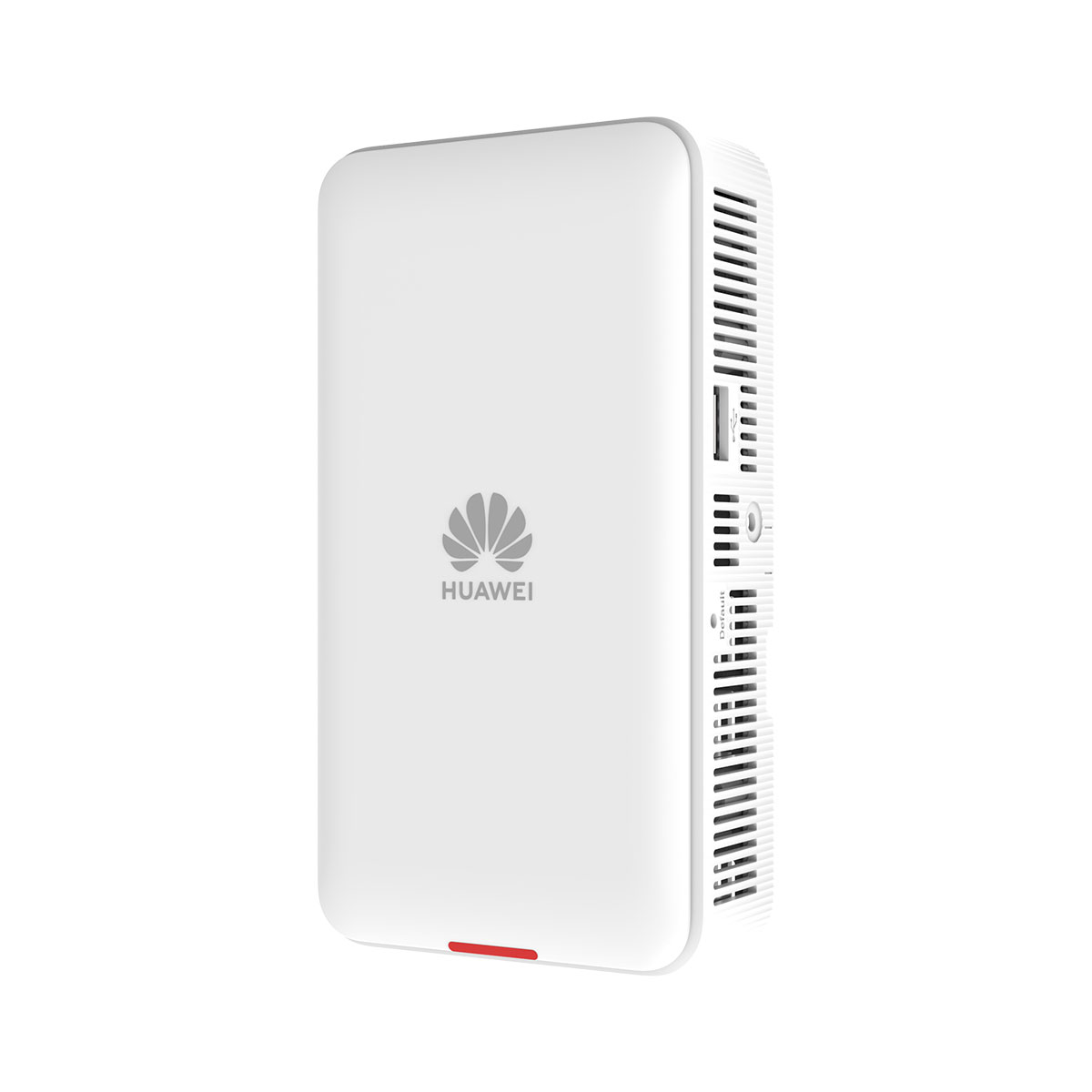

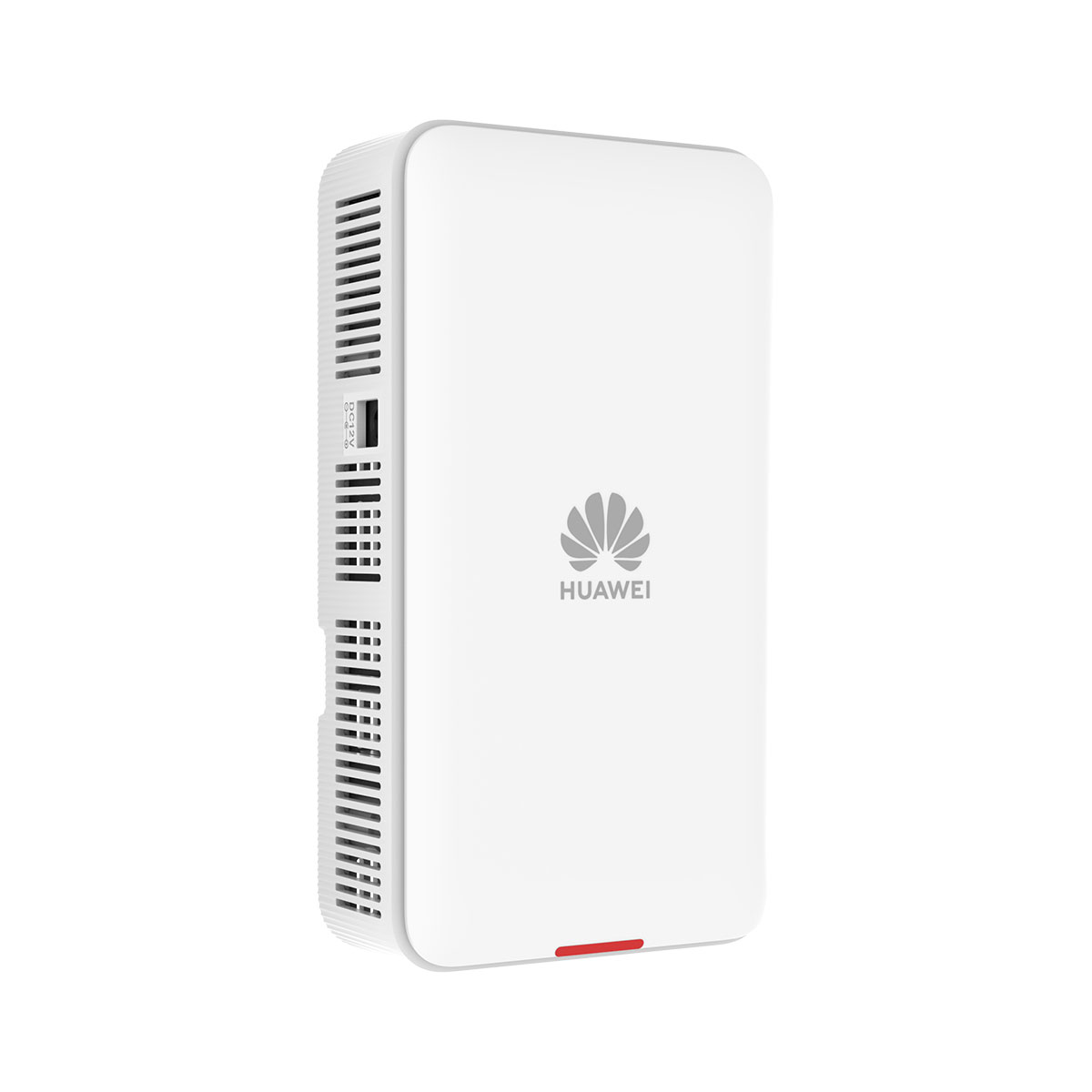

AirEngine 5762-13W overview

Huawei AirEngine 5762-13W is a wall plate access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It supports high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is applicable to indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.

  • Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
  • Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
  • Built-in smart antennas
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
  • Working modes: Fit, Fat, and cloud management

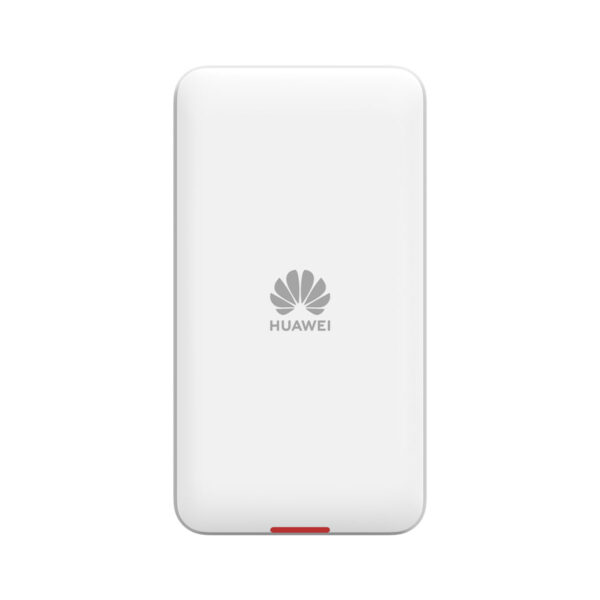

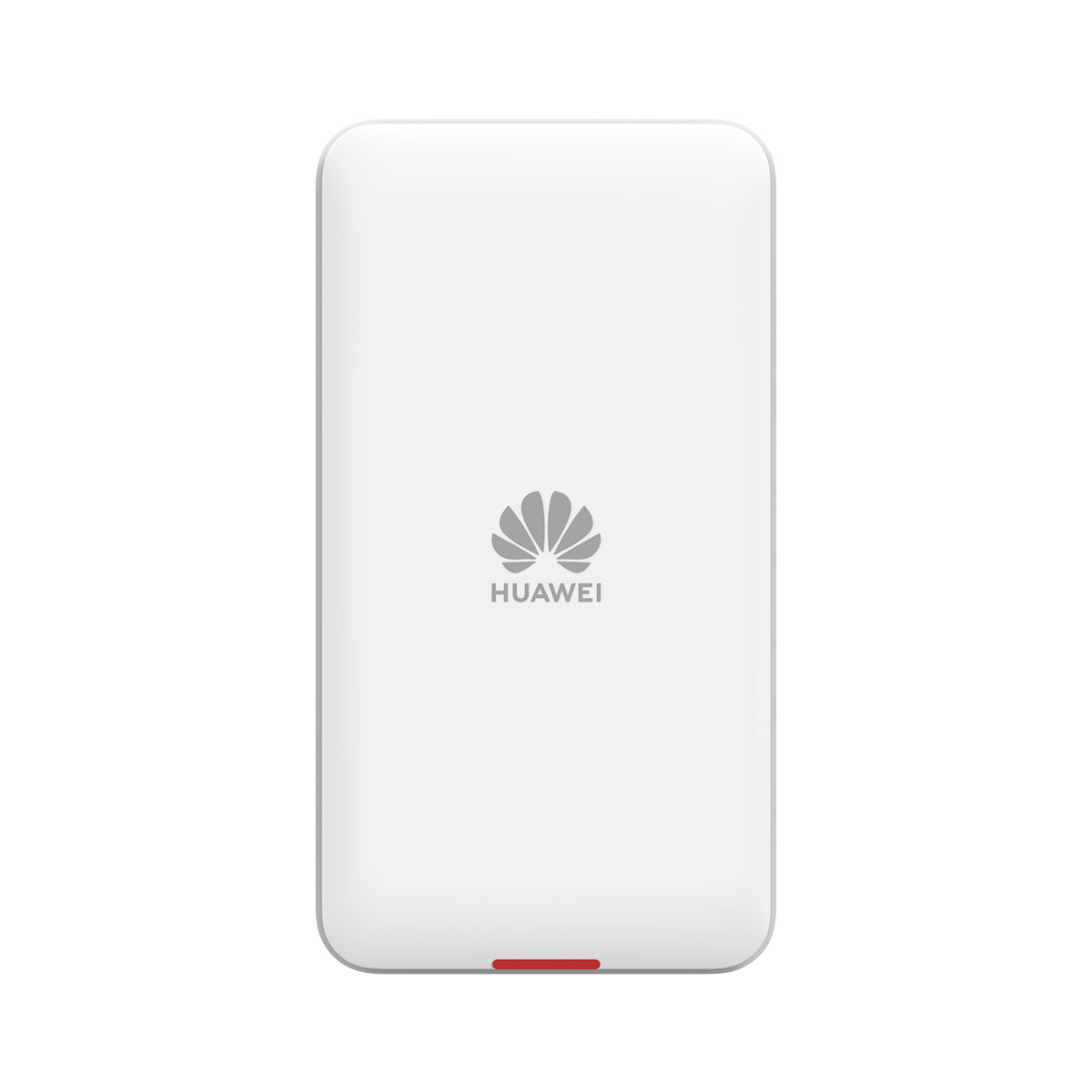

Front panel of the AirEngine 5762-13W

AirEngine 5762-13W

Front panel of the AirEngine 5762-13W

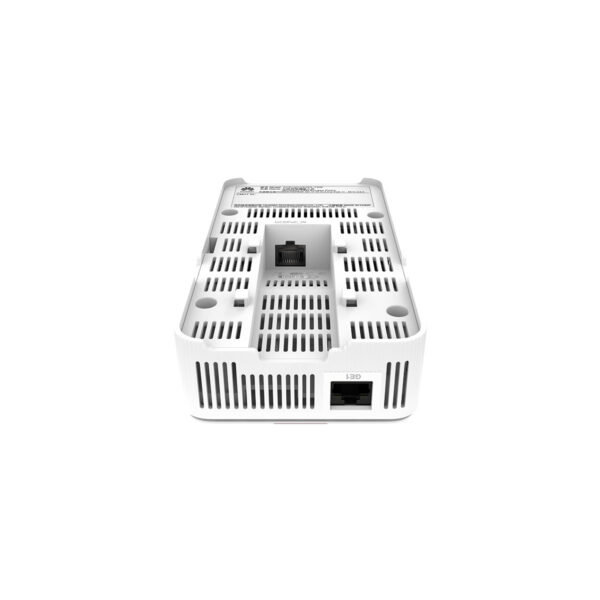

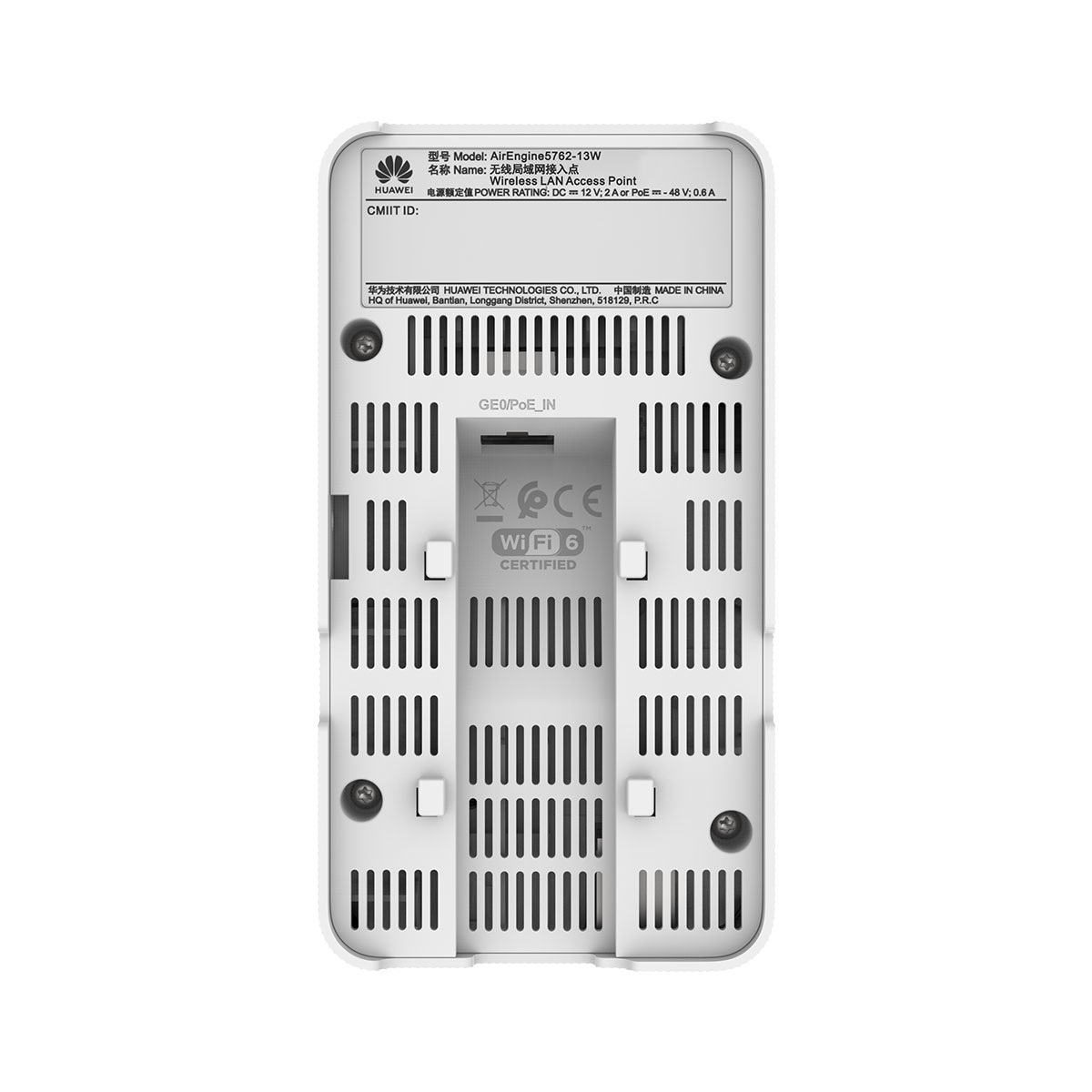

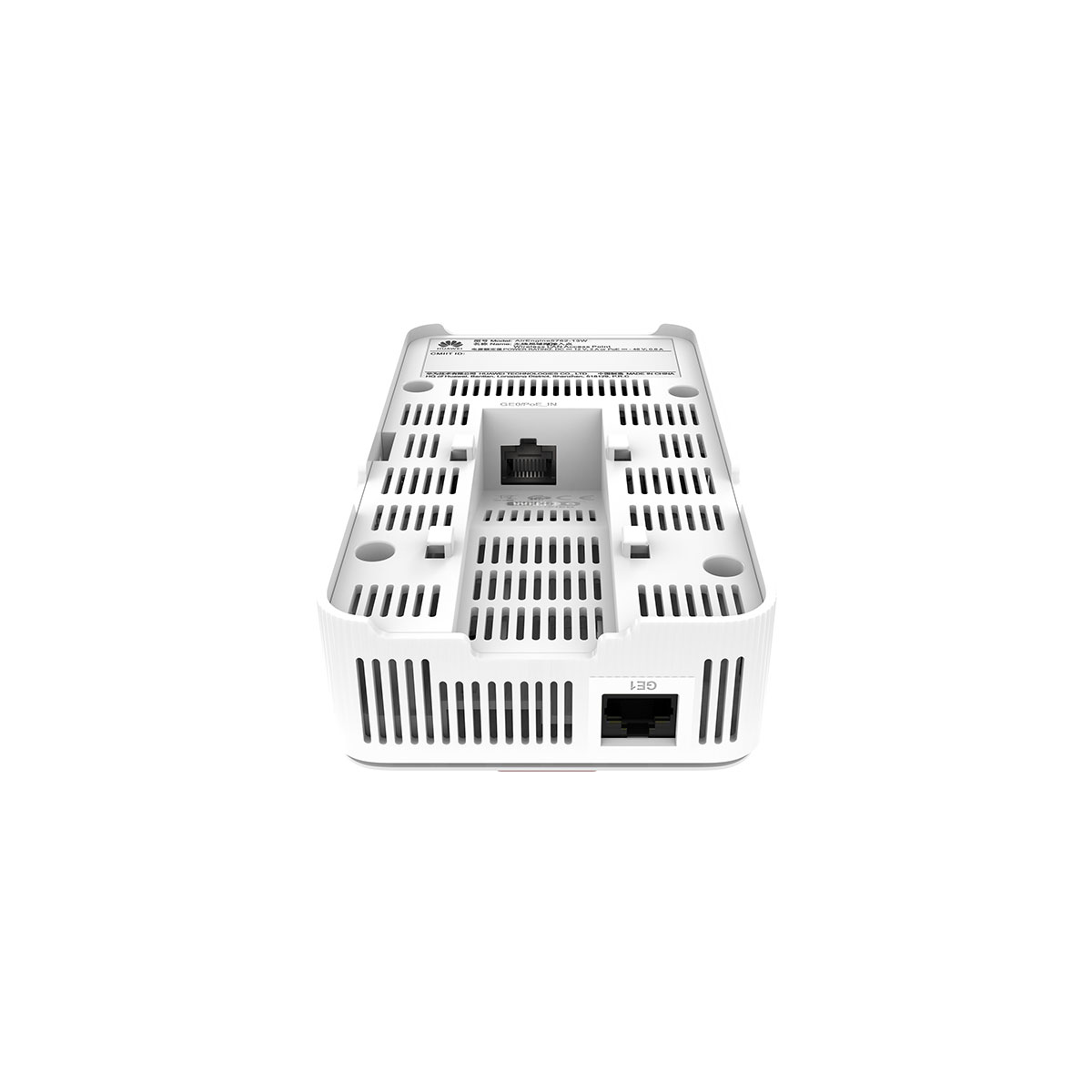

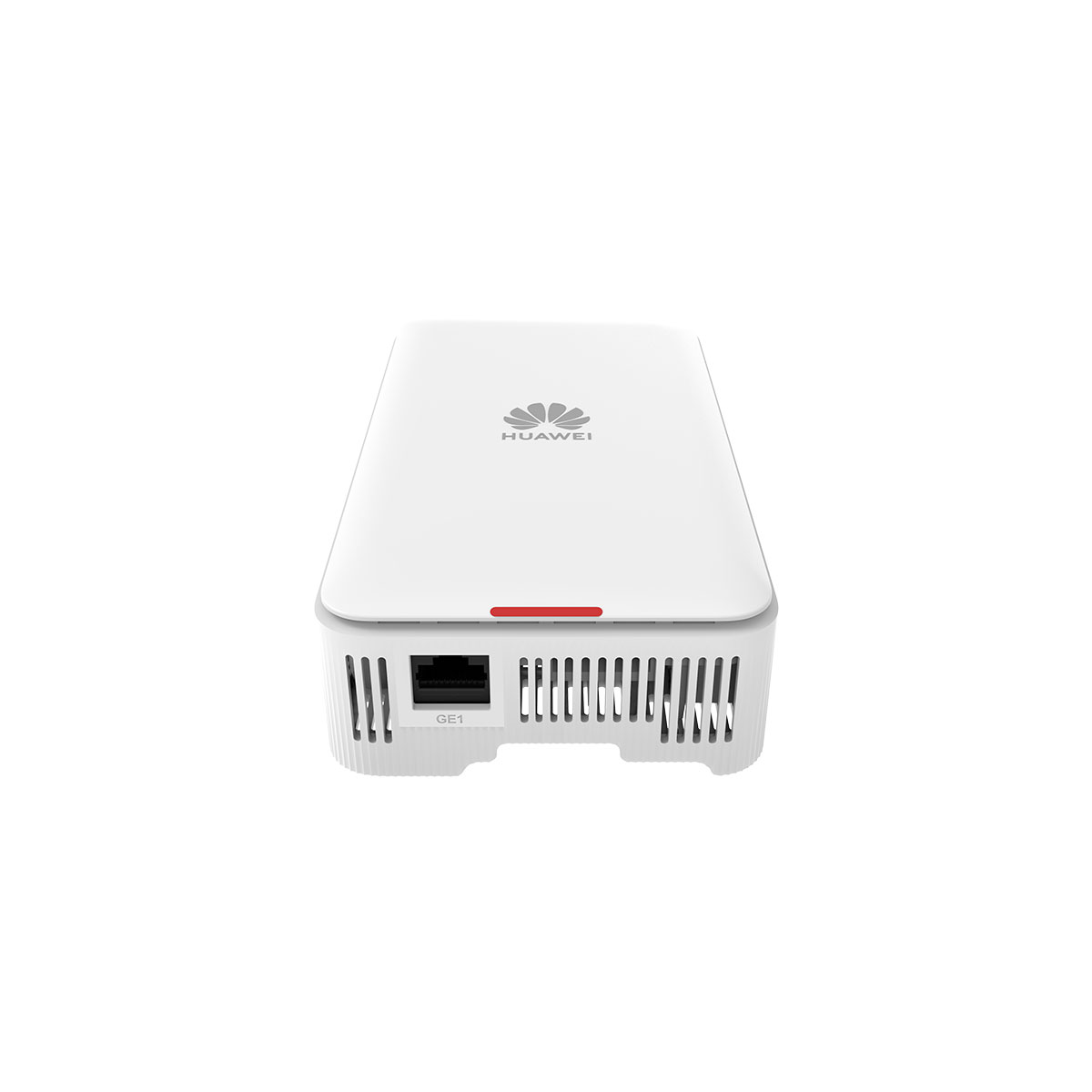

Ports on the AirEngine 5762-13W

1

GE0/PoE_IN

2

GE1

3

USB

4

DC 12V



Item AirEngine 5762-13W
Installation Type
  • Desk
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Weight with packaging [kg(lb)] 0.542 kg (1.195 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0 (supporting 5 W power supply)
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 185 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB function is limited.
DC power supply description No function is limited.

Additional information

Brand

Huawei
Item AirEngine 5762-13W
Installation Type
  • Desk
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Weight with packaging [kg(lb)] 0.542 kg (1.195 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0 (supporting 5 W power supply)
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 185 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB function is limited.
DC power supply description No function is limited.
