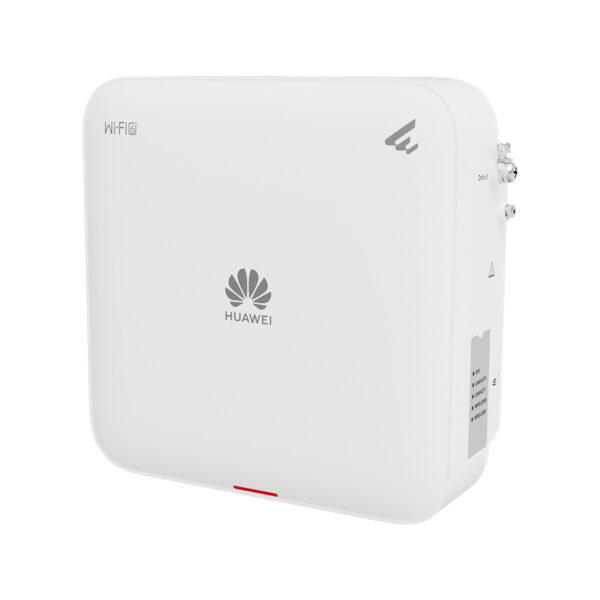

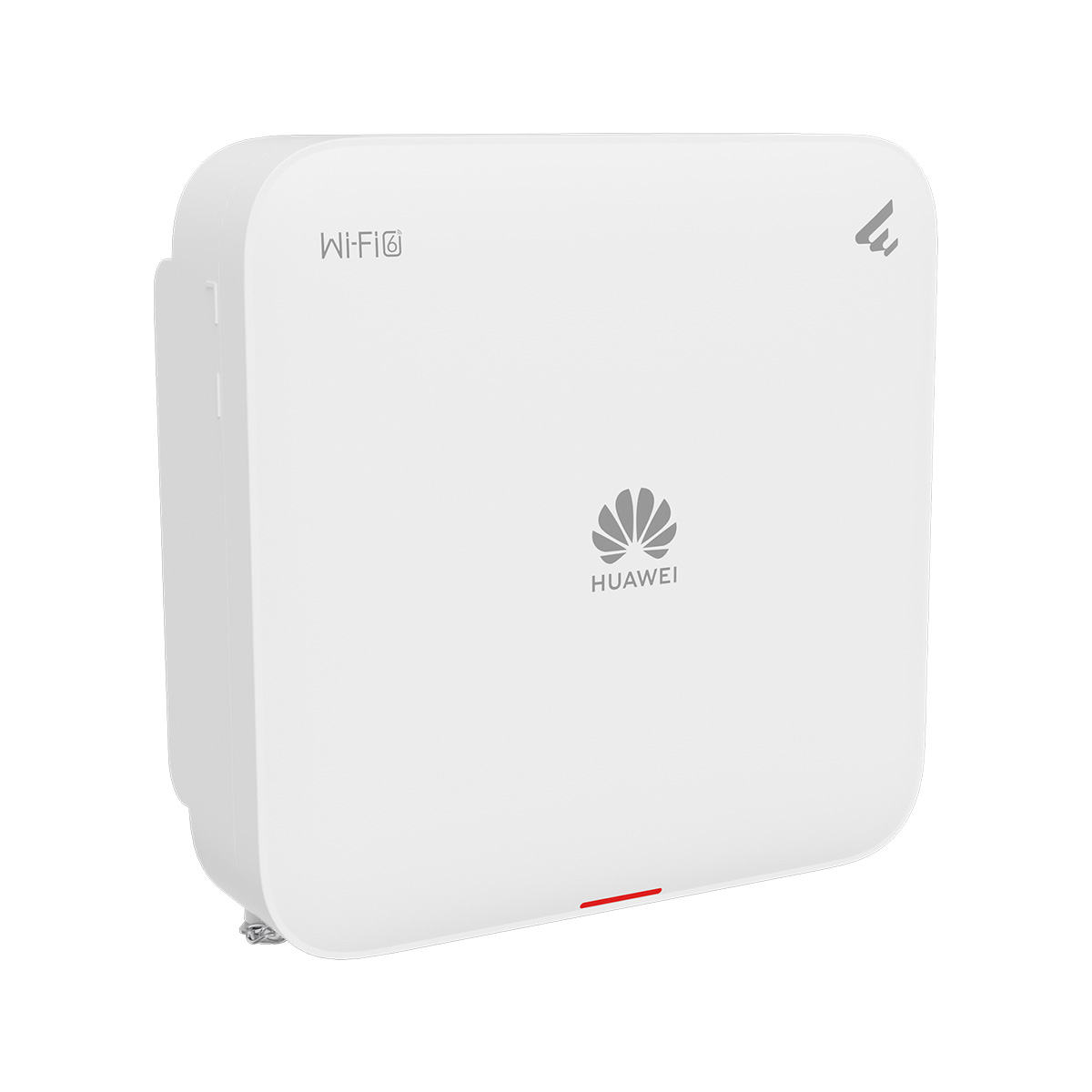

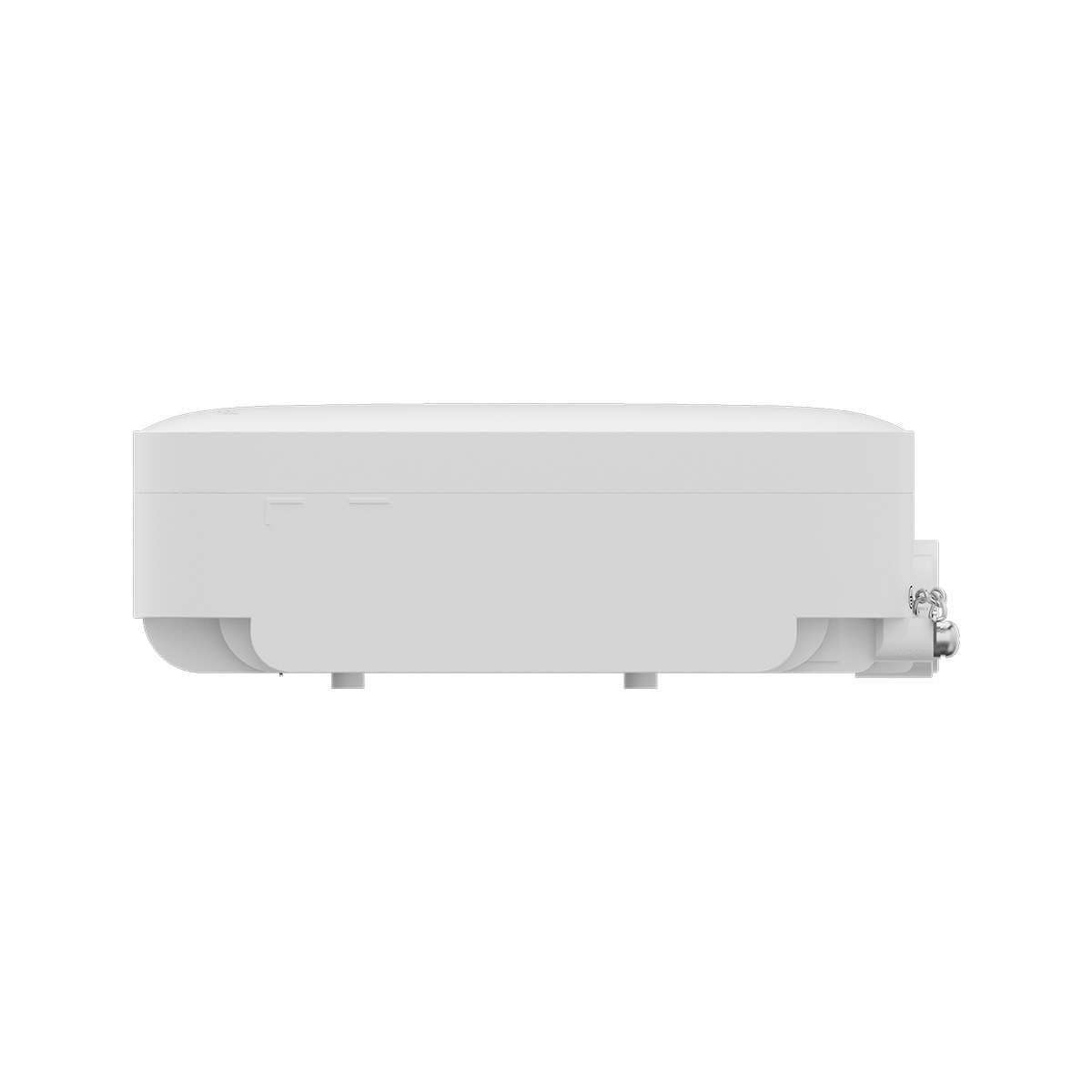

AirEngine-5761RS-11-1
AirEngine-5761RS-11-2
AirEngine-5761RS-11-3
AirEngine-5761RS-11-4
Categories:

AirEngine 5761RS-11

1 Review Write a review
SKU2026802
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 5761RS-11 is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 5761RS-11 overview

Huawei AirEngine 5761RS-11 is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax). It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make AirEngine 5761RS-11 ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

  • Built-in directional antennas, providing services simultaneously on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands
  • 1 x GE electrical port + 1 x SFP optical port
  • 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating temperature range of –40°C to +65°C, meeting industrial-grade requirements
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

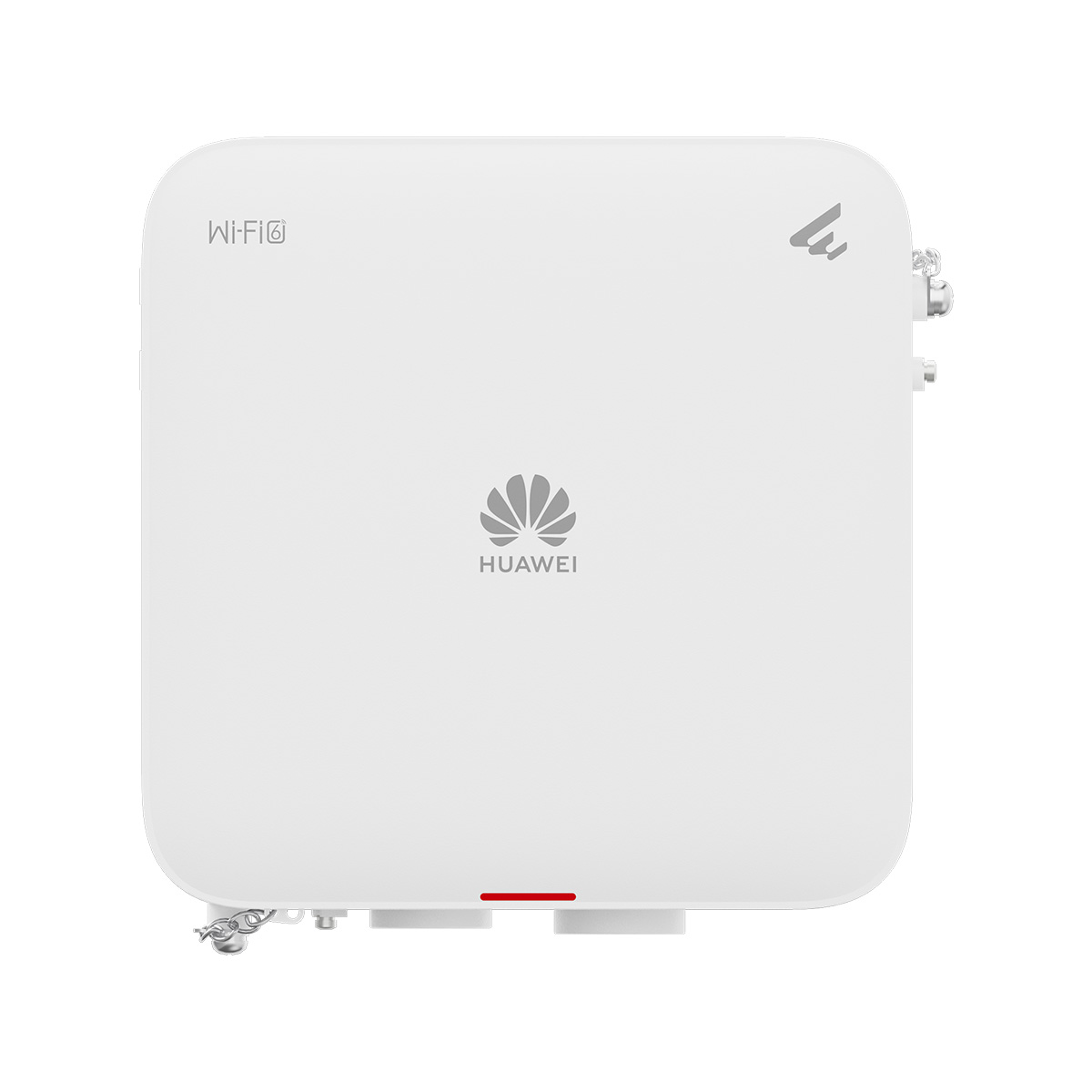

Front panel of the AirEngine 5761RS-11

AirEngine 5761RS-11

Front panel of the AirEngine 5761RS-11



Ports on the AirEngine 5761RS-11

1

Ground screw

2

GE/PoE_IN

3

SFP

4

Security slot



Item AirEngine 5761RS-11
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 17.7 W
Maximum heat dissipation [BTU/hour] 60.4 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3at/af
Service port surge protection 6 kA in common mode
Maximum number of physical ports on the entire device

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

GE optical port (SFP)
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +85°C (–40°F to +185°F)
Long-term operating relative humidity [RH] 0% RH to 100% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ingress protection level (dustproof/waterproof) IP68
Ground Ground
Antenna port surge protection [kA] N/A
Wind resistance 67 m/s
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4G: 802.11b/g/n/ax

5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in directional antennas
Antenna gain

2.4G: 10 dBi

5G: 11 dBi

BLE: 5 dBi
Beamwidth of the built-in antenna [degrees]

2.4 GHz:

  • Horizontal plane: 65°
  • Vertical plane: 40°

5 GHz:

  • Horizontal plane: 65°
  • Vertical plane: 20°
Maximum transmit power

2.4G: 28 dBm (Max)

5G: 27 dBm (Max)

NOTE:

This is the total MIMO radio power, which is the same as:

2.4G: 25 dBm/chain (Max)

5G: 24 dBm/chain (Max)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 25 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 123 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz).

Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially.
Installation Type
  • Wall
  • Pole
Dimensions without packaging (H x W x D) [mm(in.)] 69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.)
Weight without packaging [kg(lb)] 1.91 kg (4.21 lb)
Weight with packaging [kg(lb)] 3.73 kg (8.22 lb)

Additional information

Brand

Huawei
Item AirEngine 5761RS-11
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 17.7 W
Maximum heat dissipation [BTU/hour] 60.4 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3at/af
Service port surge protection 6 kA in common mode
Maximum number of physical ports on the entire device

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

GE optical port (SFP)
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +85°C (–40°F to +185°F)
Long-term operating relative humidity [RH] 0% RH to 100% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ingress protection level (dustproof/waterproof) IP68
Ground Ground
Antenna port surge protection [kA] N/A
Wind resistance 67 m/s
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4G: 802.11b/g/n/ax

5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in directional antennas
Antenna gain

2.4G: 10 dBi

5G: 11 dBi

BLE: 5 dBi
Beamwidth of the built-in antenna [degrees]

2.4 GHz:

  • Horizontal plane: 65°
  • Vertical plane: 40°

5 GHz:

  • Horizontal plane: 65°
  • Vertical plane: 20°
Maximum transmit power

2.4G: 28 dBm (Max)

5G: 27 dBm (Max)

NOTE:

This is the total MIMO radio power, which is the same as:

2.4G: 25 dBm/chain (Max)

5G: 24 dBm/chain (Max)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 25 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 123 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz).

Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially.
Installation Type
  • Wall
  • Pole
Dimensions without packaging (H x W x D) [mm(in.)] 69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.)
Weight without packaging [kg(lb)] 1.91 kg (4.21 lb)
Weight with packaging [kg(lb)] 3.73 kg (8.22 lb)

Reviews

  1. Nellie –

    Telecomate.com can help us with firmware updates to ensure the devices operate at optimal performance, significantly enhancing network security.

Add a review

Your email address will not be published. Required fields are marked *

Related products

AirEngine-5762-16W-1AirEngine-5762-16W-2
Quick view
Categories:

AirEngine 5762-16W

R.F.Q
PN50085388
AirEngine-6760R-51E-2
Quick view
Categories:

AirEngine 6760R-51E

R.F.Q
PN02353KCN
Quick view
Categories:

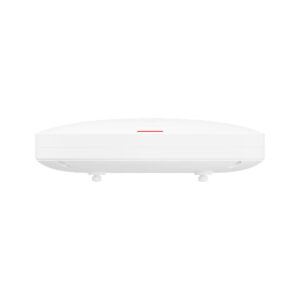

AirEngine 6761S-21

R.F.Q
PN02354JQH
Quick view
Categories:

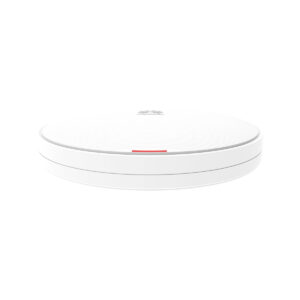

AirEngine 6761-21T
