AirEngine 5761R-11E

AirEngine 5761R-11E overview

Huawei AirEngine 5761R-11E is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax). It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make AirEngine 5761RS-11 ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

• Built-in directional antennas, providing services simultaneously on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands
• 1 x GE electrical port + 1 x SFP optical port
• 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating temperature range of –40°C to +65°C, meeting industrial-grade requirements
• Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
• Working modes: Fit, Fat, and cloud management

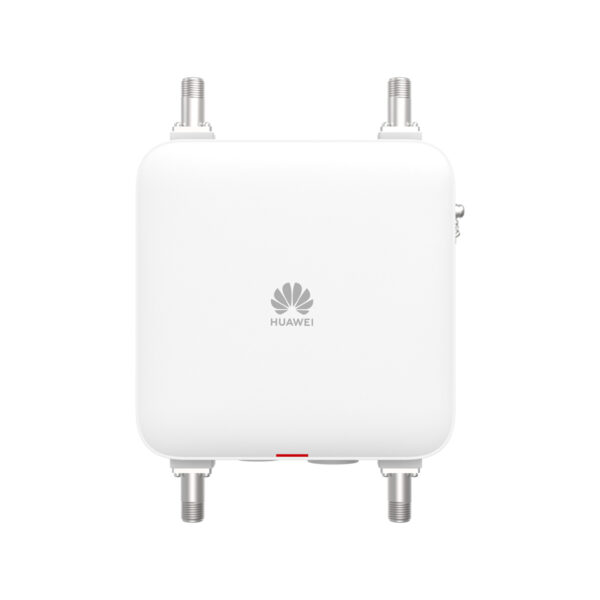

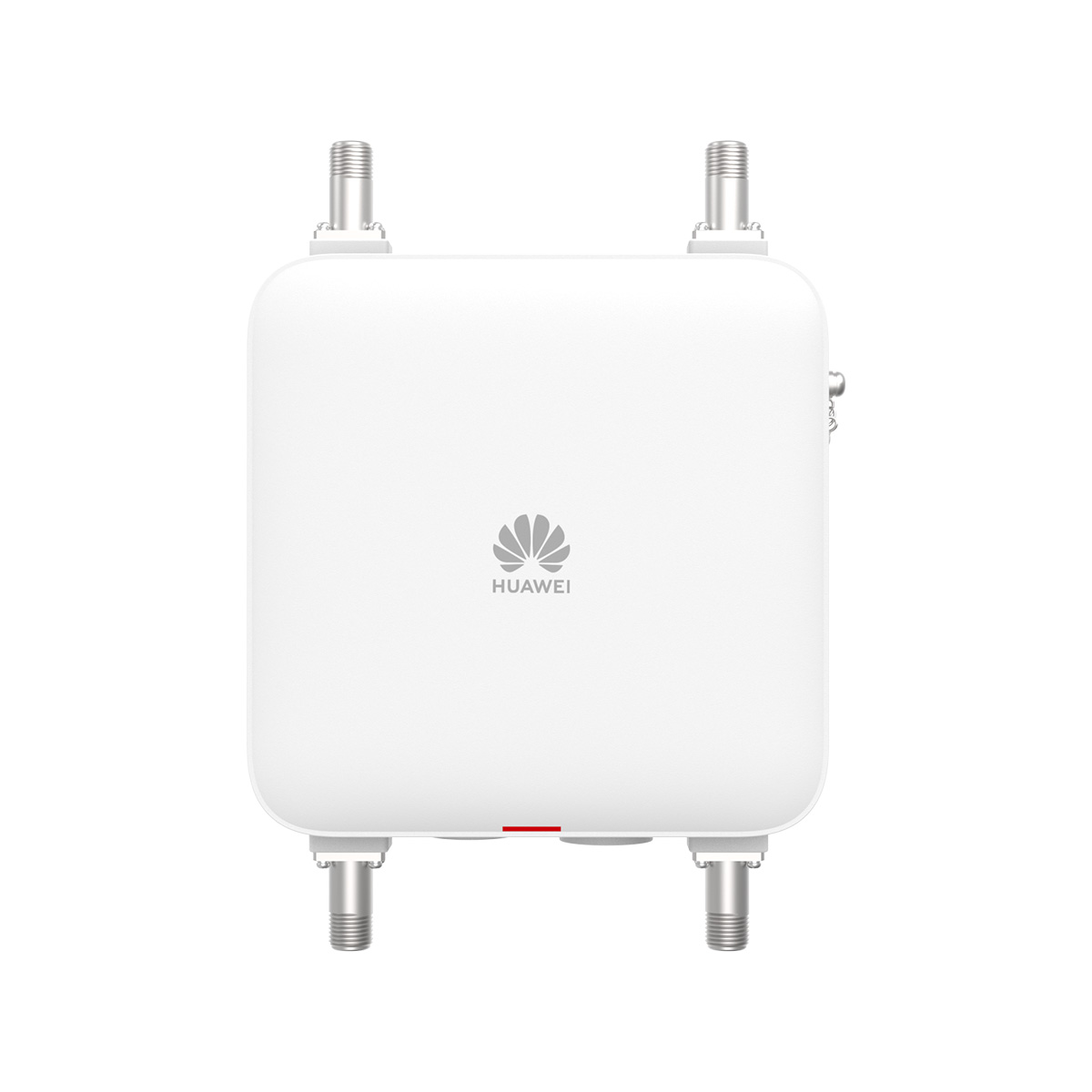

Front panel of the AirEngine 5761R-11E

Front panel of the AirEngine 5761R-11E

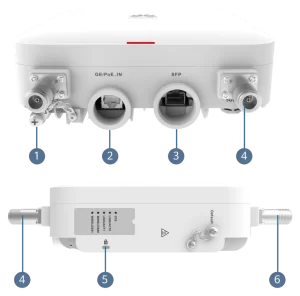

Ports on the AirEngine 5761R-11E
