AirEngine 5761-21

AirEngine 5761-21 overview

Huawei AirEngine 5761-21 is an access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (4×4 MIMO) frequency bands. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for high-density indoor coverage scenarios, such as small- and medium-sized enterprise offices, retail, and education.

• 02354VQK: 1 x 2.5GE electrical port + 1 x GE electrical port; 02353VUT: 2 x GE electrical ports
• Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
• USB port for IoT expansion (such as ZigBee and RFID)
• Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
• Working modes: Fit, Fat, and cloud management

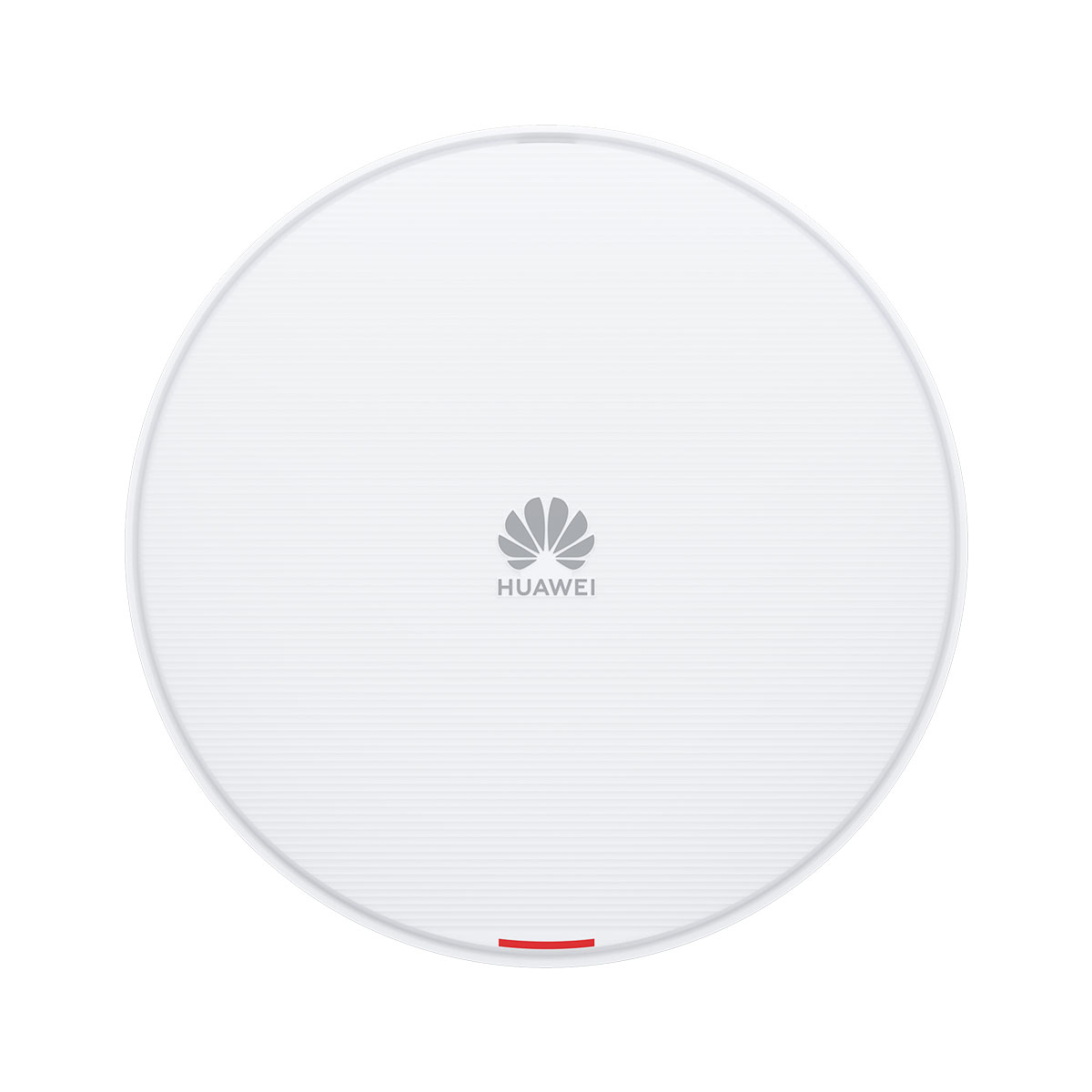

Front panel of the AirEngine 5761-21

Front panel of the AirEngine 5761-21

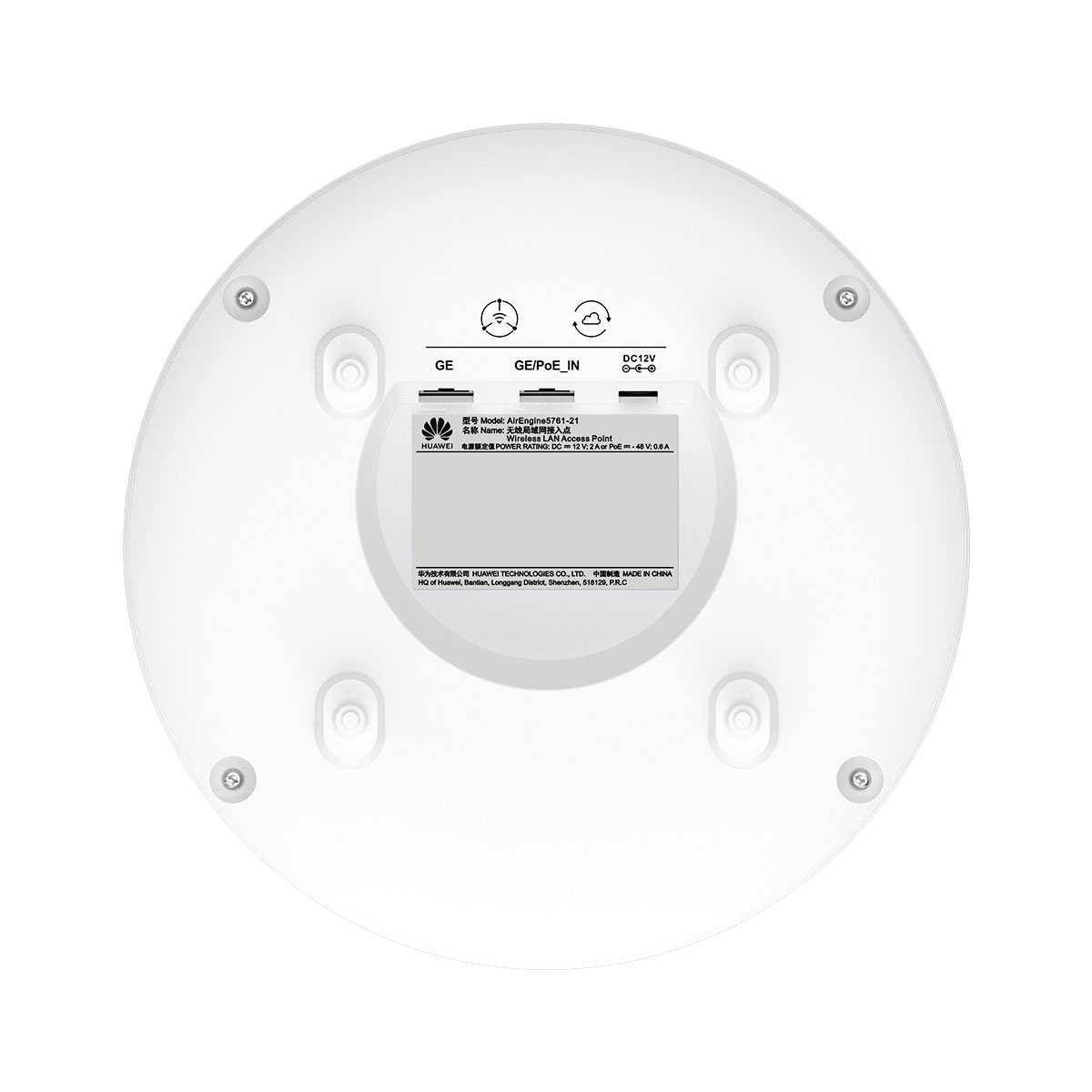

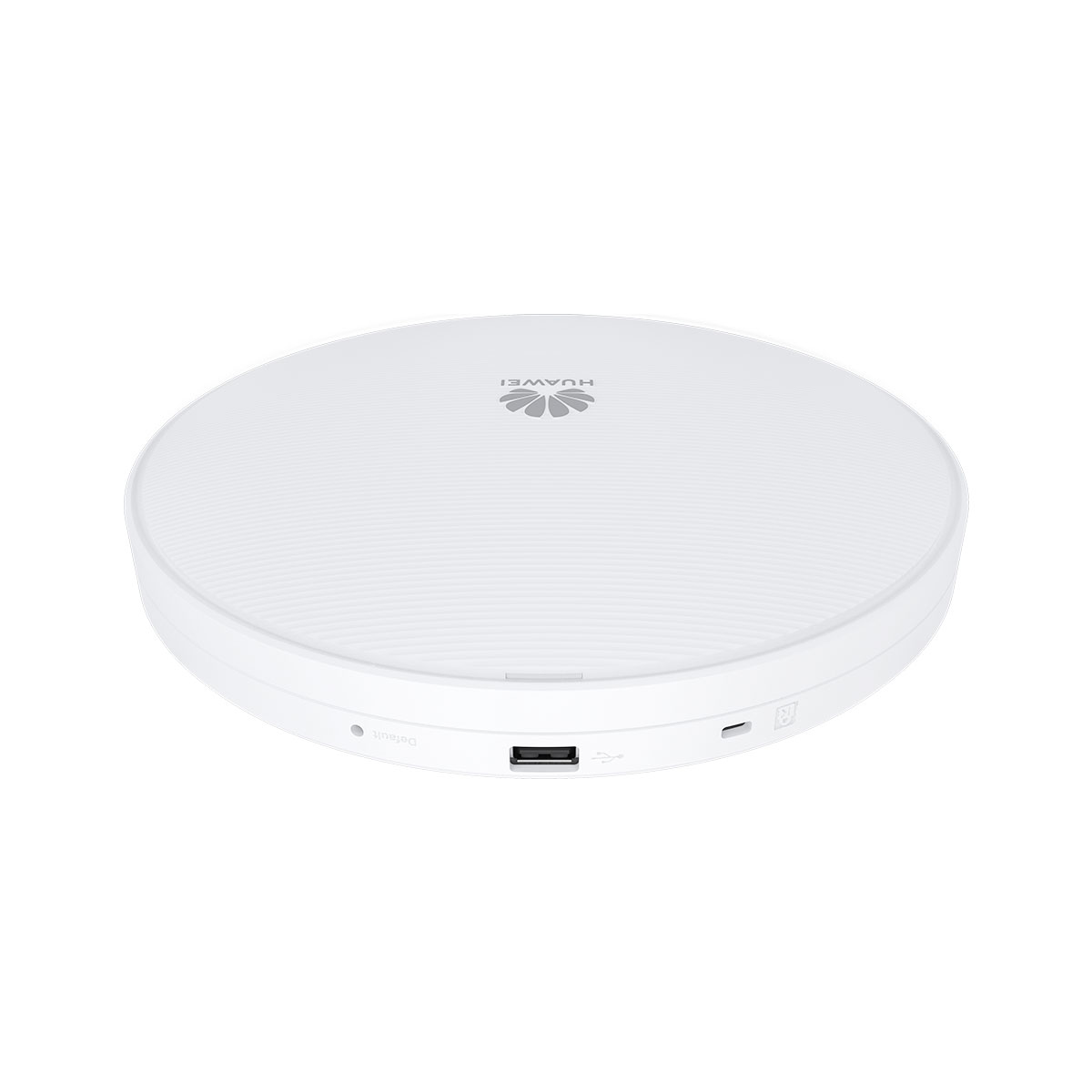

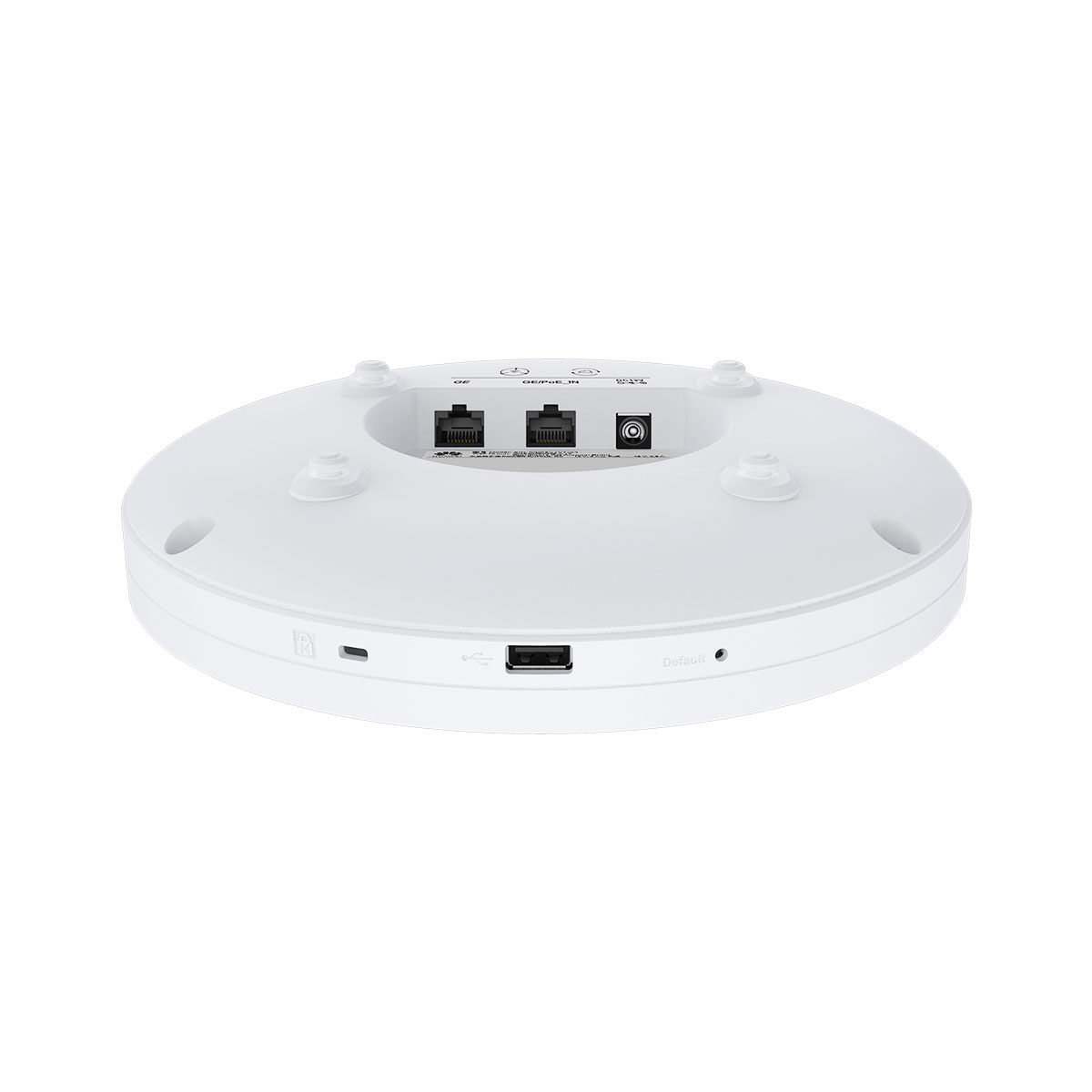

Ports on the AirEngine 5761-21
