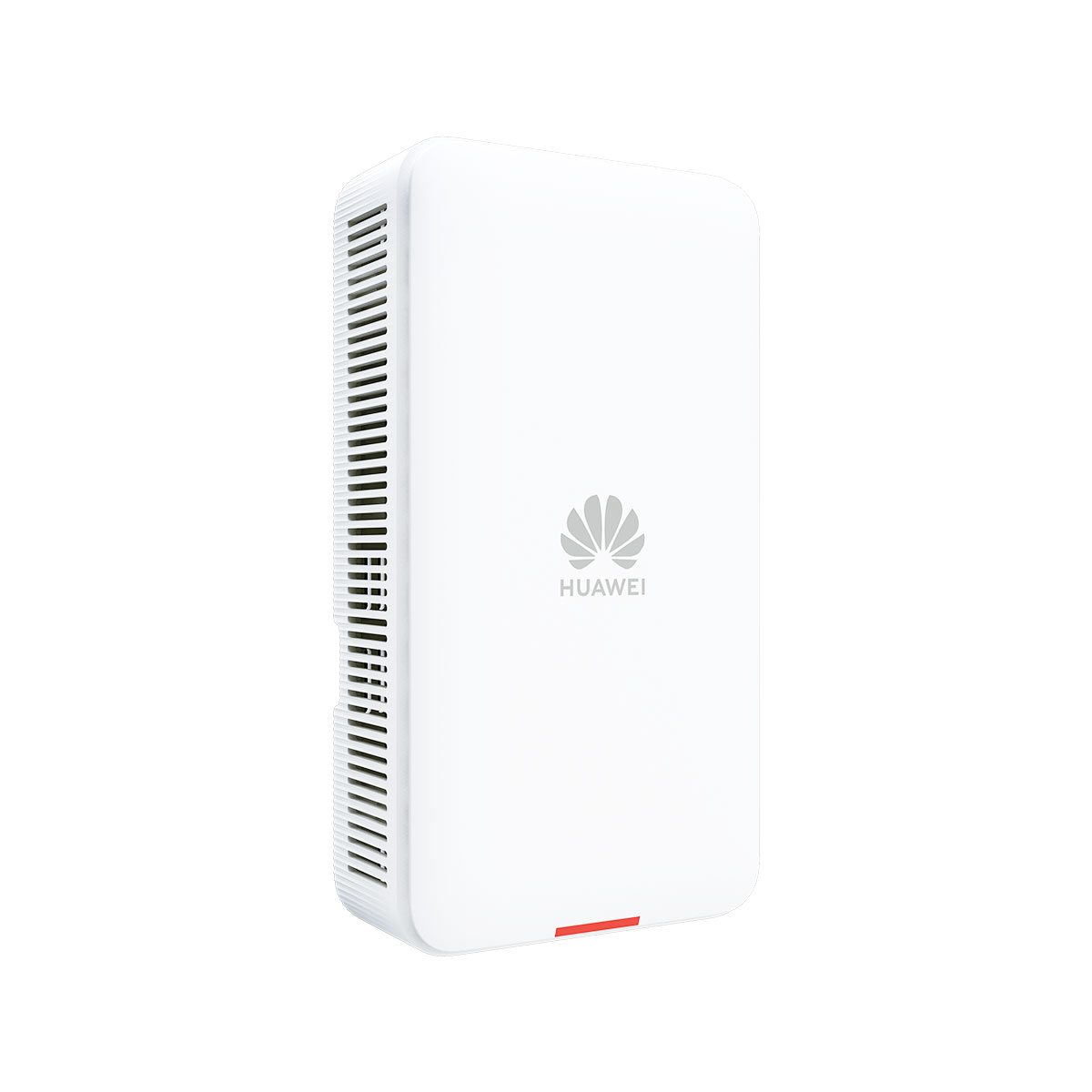

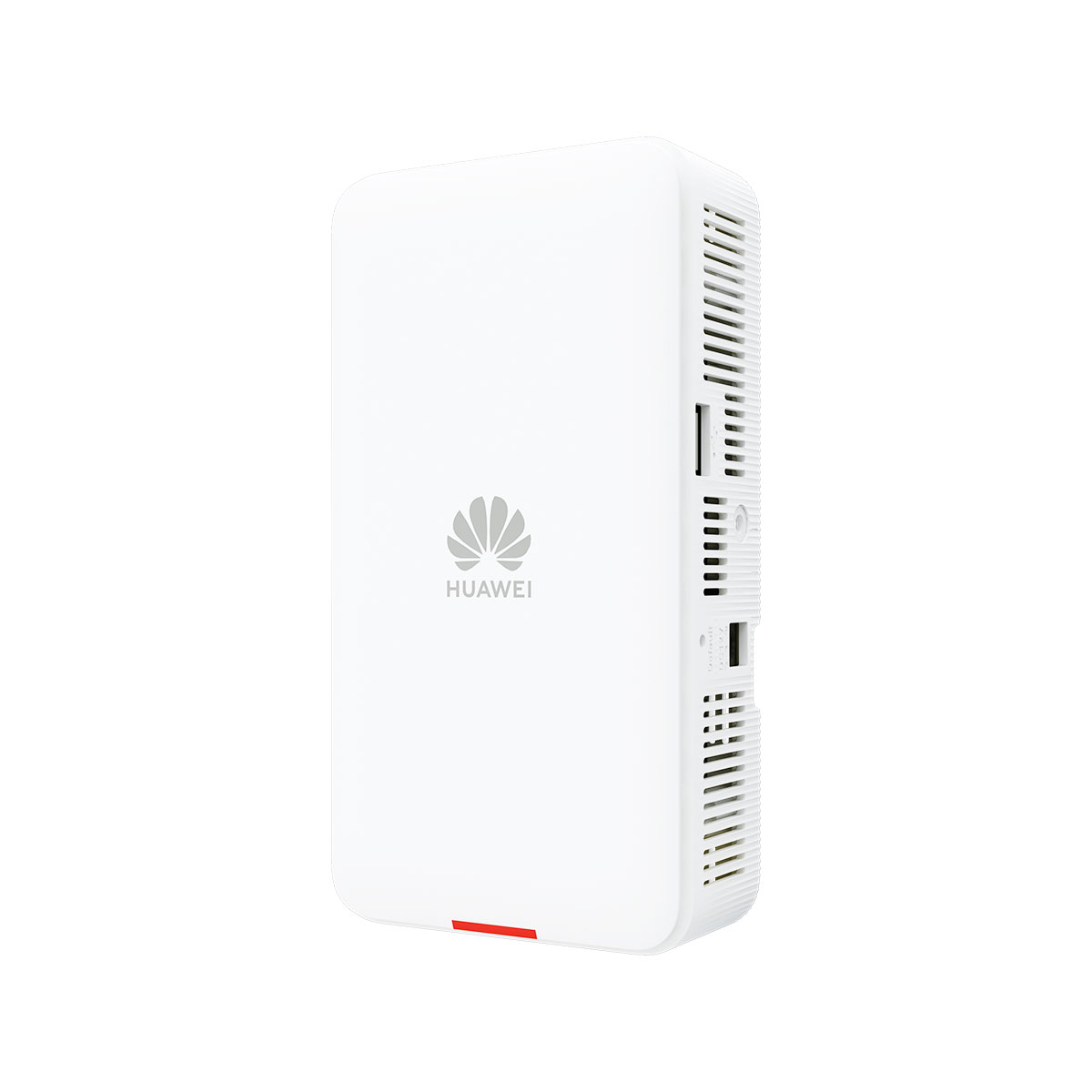

AirEngine 5761-11WD

AirEngine 5761-11WD overview

• Huawei AirEngine 5761-11WD is a remote unit (RU) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands. The RU uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
  • Uplink: 1 x GE electrical port; downlink: 4 x GE electrical ports + 2 x RJ45 passthrough ports
  • Mounting on a junction box or wall, facilitating deployment
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion (such as ZigBee and RFID)
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags

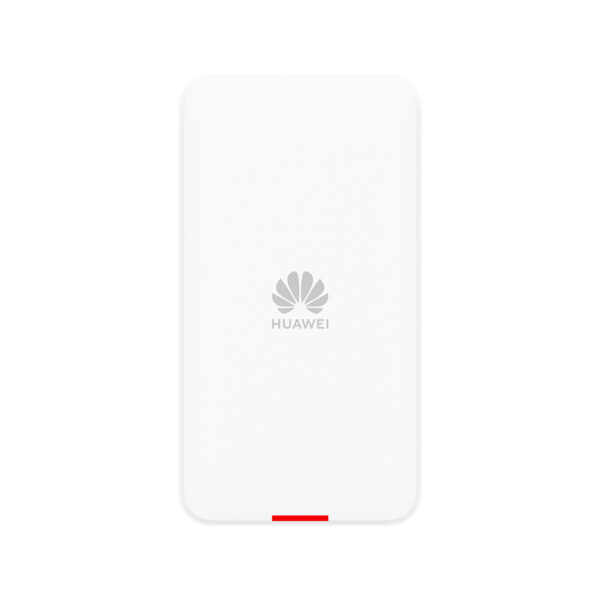

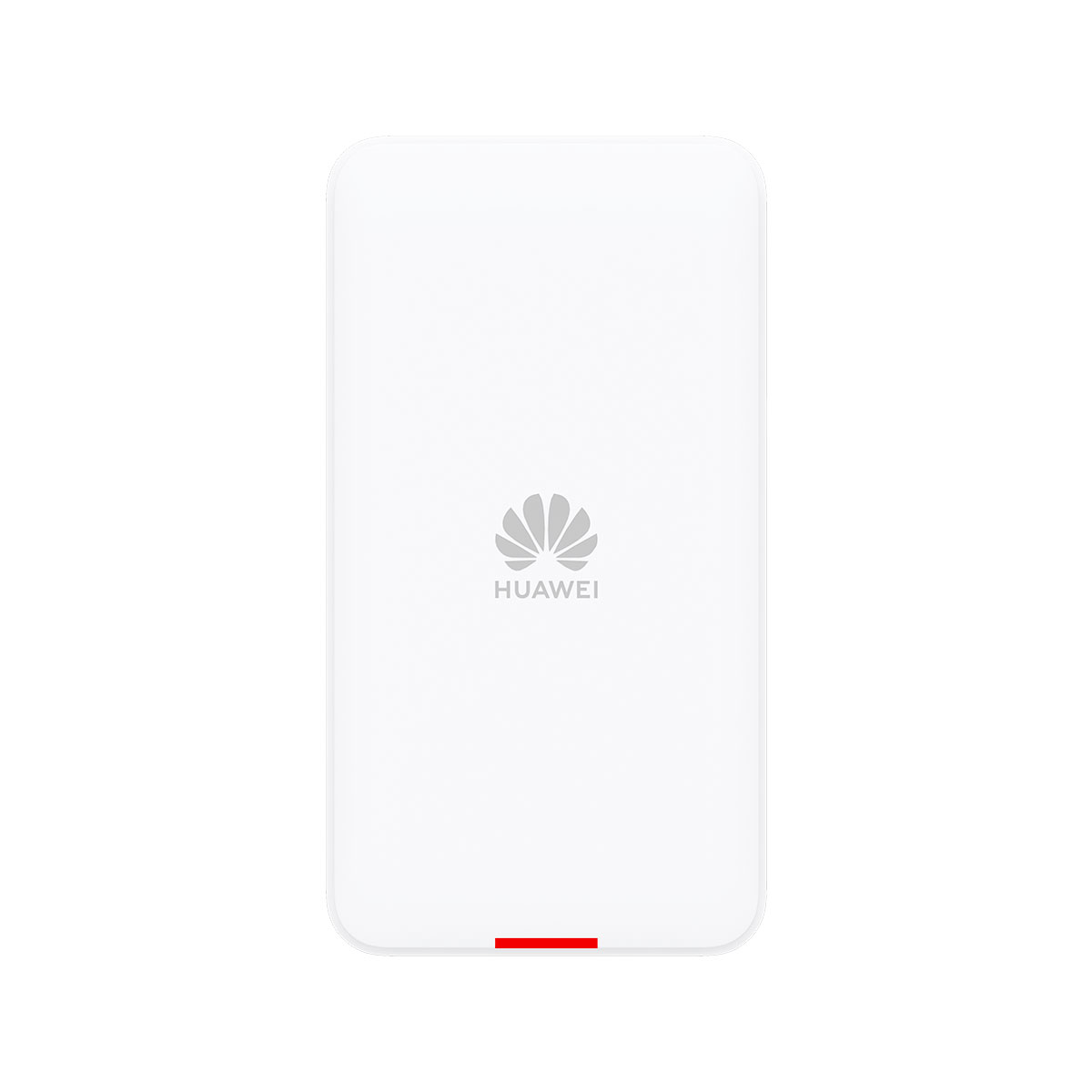

Front panel of the AirEngine 5761-11WD

Front panel of the AirEngine 5761-11WD

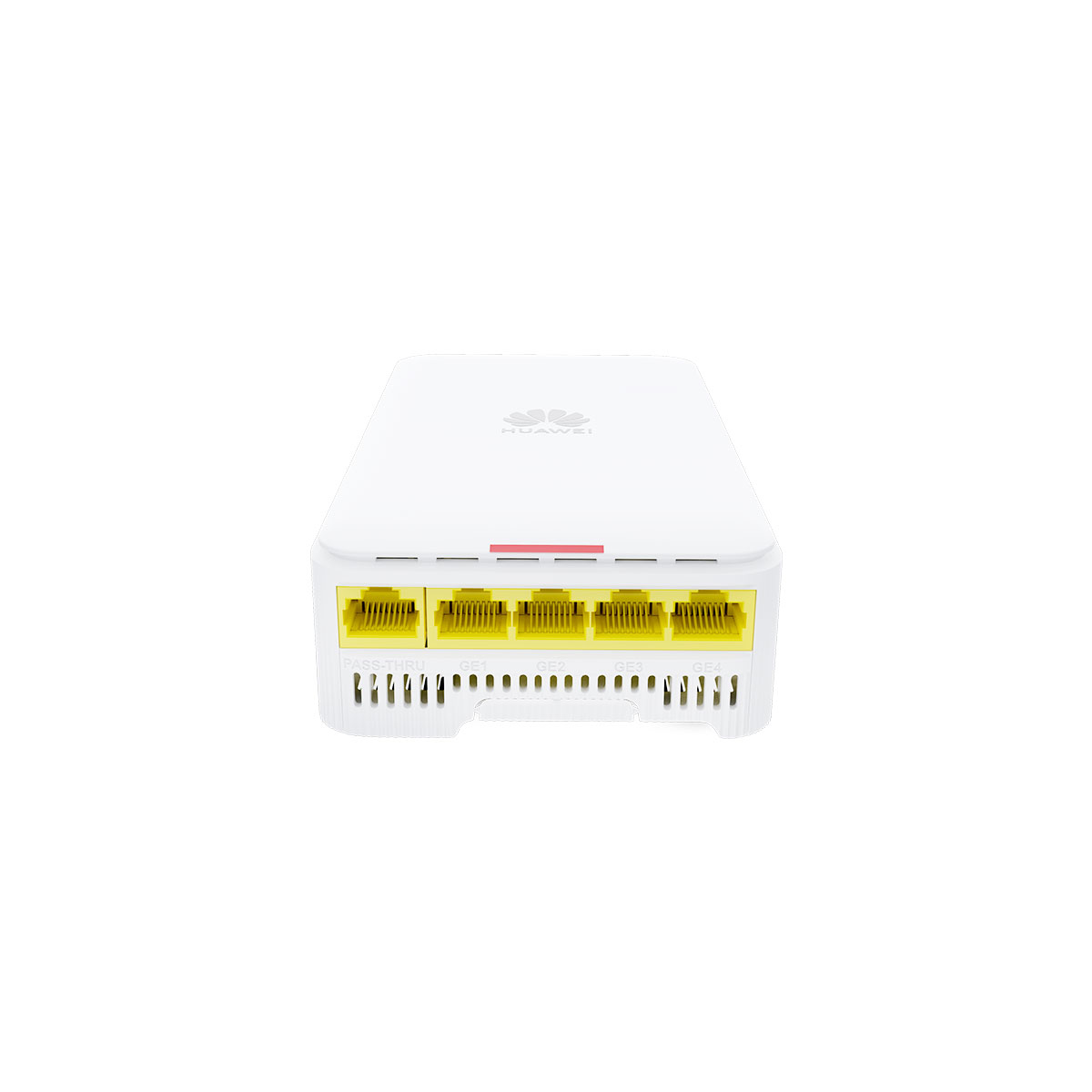

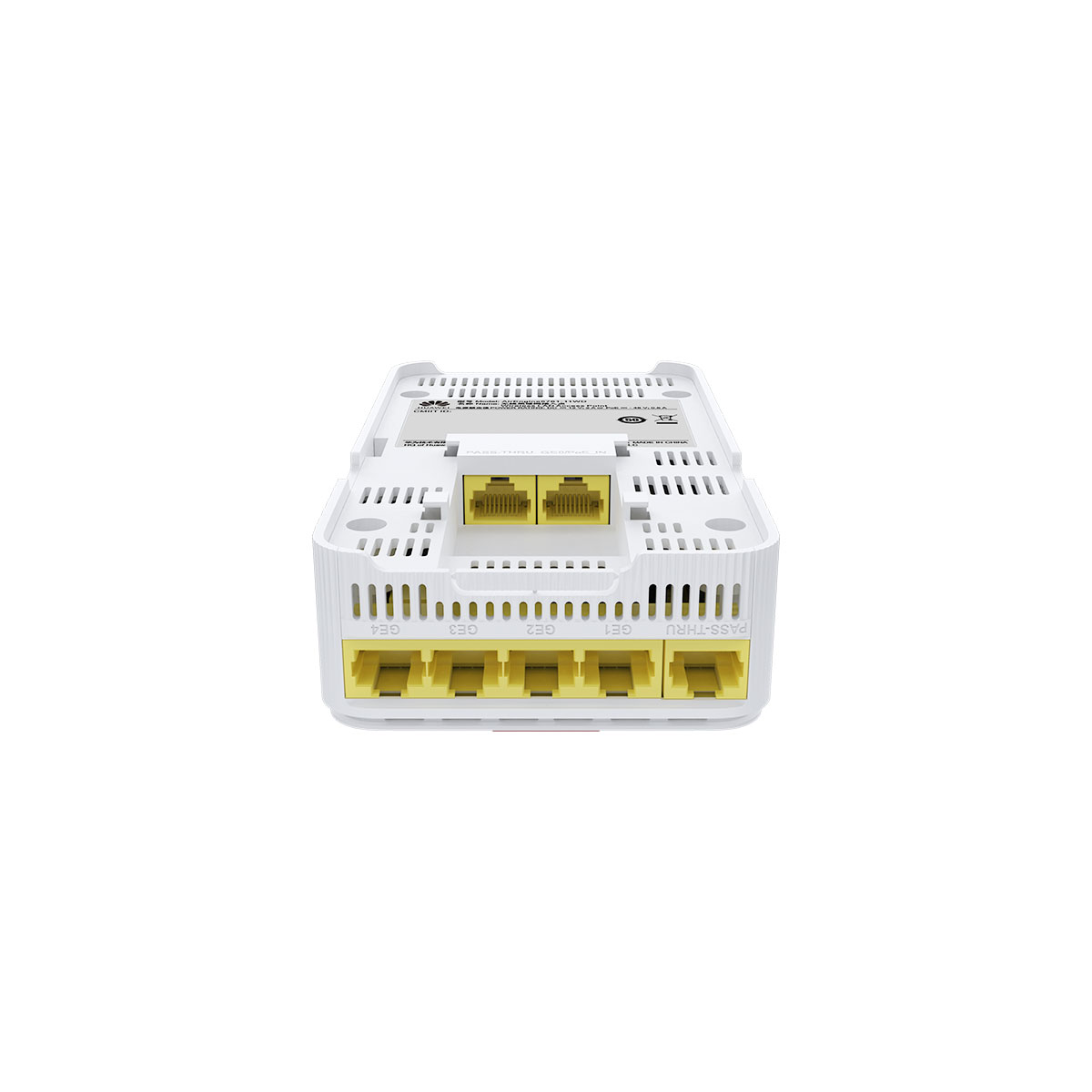

Ports on the AirEngine 5761-11WD
