Categories:Huawei WLAN

AirEngine 5761-11EI

0 Reviews Write a review

SKU2026810

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AirEngine 5761-11EI is a wireless access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

AirEngine 5761-11EI overview

Huawei AirEngine 5761-11EI is a wireless access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It provides services simultaneously on the 2.4 GHz and 5 GHz frequency bands, and applies to scenarios such as coal mines, mines, and oil fields.

2 x GE electrical ports + 2 x GE optical ports
Working modes: Fit, Fat, and cloud management
It can be used only after being covered with a customized intrinsically safe box

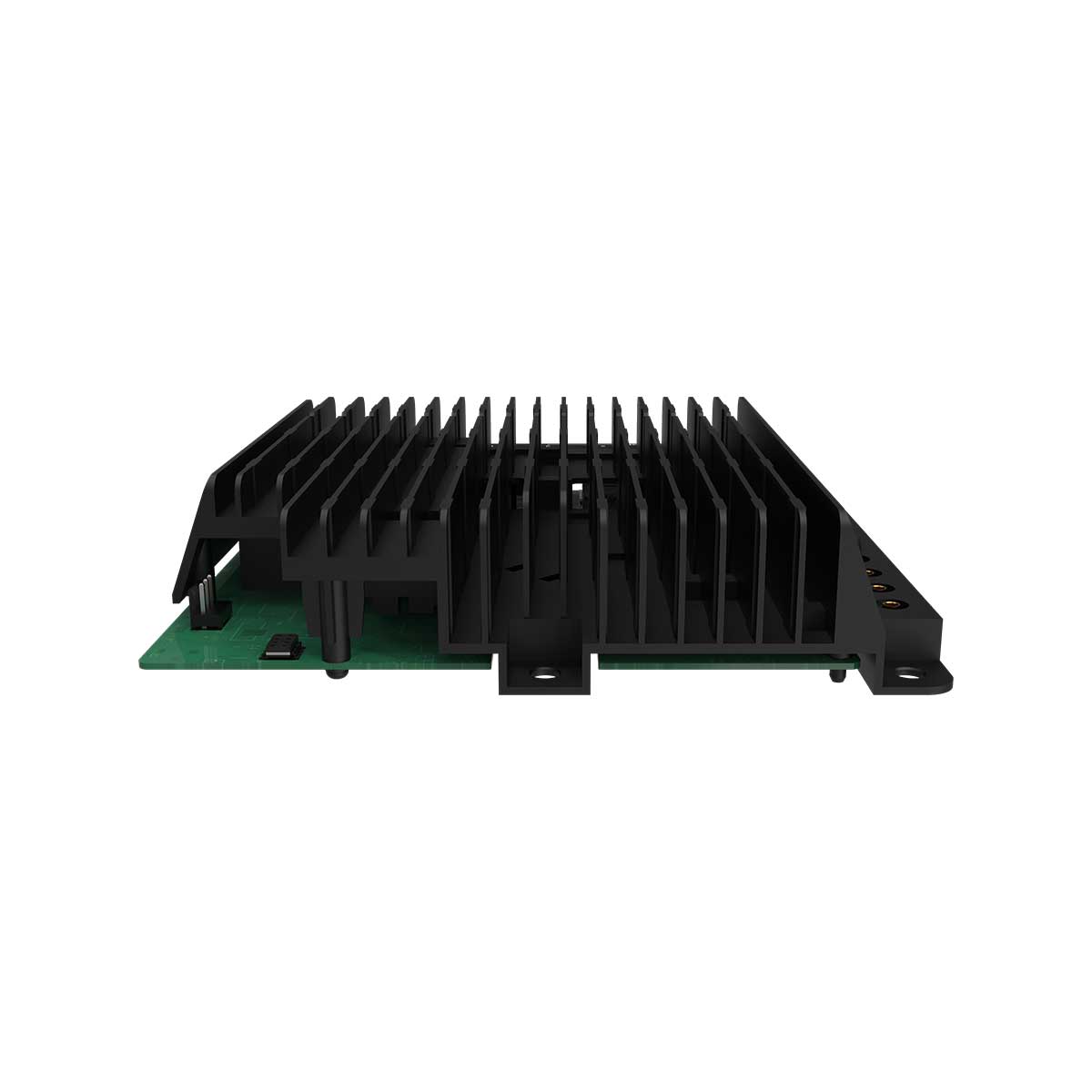

Front panel of the AirEngine 5761-11EI

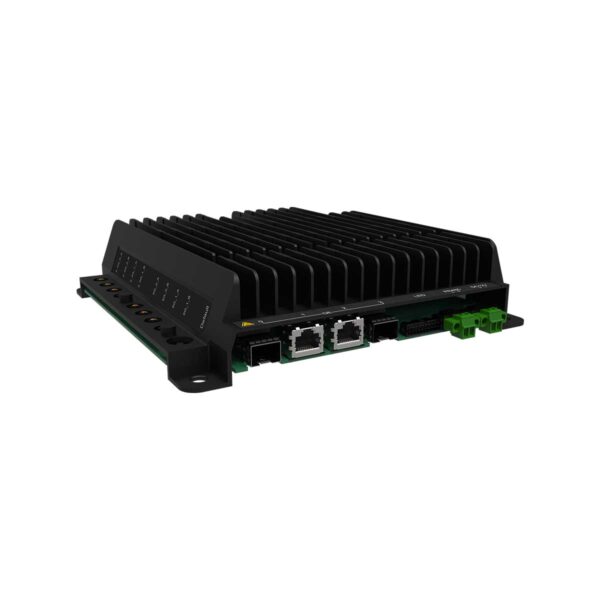

Ports on the AirEngine 5761-11EI

1	Antenna port	2	GE (optical ports)
3	GE (electrical ports)	4	RS485
5	DC 12V	–	–

Item	AirEngine 5761-11EI
Storage	NAND Flash 512 MB
Console port	BLE console
Maximum power consumption [W]	12.6 W
Maximum heat dissipation [BTU/hour]	43 BTU/hour
Power supply mode	DC adapter
Number of power modules	1
Rated input voltage [V]	12 V mining explosion-proof and intrinsically safe DC regulated power supply (overcurrent protection value ≥ 1.8 A)
Input voltage range [V]	12 V ± 10%
Maximum PoE output power [W]	Not supported
Redundant power supply	Not supported
Types of fans	None
Number of fan modules	0
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing GE optical (SFP) x 2
Long-term operating temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)]	–40°C to +85°C (–40°F to +185°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
Antenna port surge protection [kA]	N/A
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface	MCX
Antenna gain	Built-in BLE: 0 dBi
Maximum transmit power	2.4G: 15 dBm/chain 5G: 15 dBm/chain (Each radio of the AP has two spatial streams, which correspond to four RF ports through the built-in power splitter. The preceding transmit power values are the transmit power of a single RF port after power splitting.) BLE: < 0 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 15 dBm/chain 5G: -10 dBm to 15 dBm/chain The preceding power ranges are the power values after power splitting by the built-in power splitter. Each radio corresponds to four ports.
MTBF [year]	152 year
MTTR [hour]	2 hour
Frequency stability [ppm]	+/-20
DC power supply description	In coal mine scenarios, it must be used with the specified mining explosion-proof and intrinsically safe power supply.
Dimensions without packaging (H x W x D) [mm(in.)]	45 mm x 200 mm x 200 mm (1.77 in. x 7.87 in. x 7.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 285 mm x 250 mm (3.54 in. x 11.22 in. x 9.84 in.)
Weight without packaging [kg(lb)]	1.19 kg (2.62 lb)
Weight with packaging [kg(lb)]	1.56 kg (3.44 lb)

Brand	Huawei

Item	AirEngine 5761-11EI
Storage	NAND Flash 512 MB
Console port	BLE console
Maximum power consumption [W]	12.6 W
Maximum heat dissipation [BTU/hour]	43 BTU/hour
Power supply mode	DC adapter
Number of power modules	1
Rated input voltage [V]	12 V mining explosion-proof and intrinsically safe DC regulated power supply (overcurrent protection value ≥ 1.8 A)
Input voltage range [V]	12 V ± 10%
Maximum PoE output power [W]	Not supported
Redundant power supply	Not supported
Types of fans	None
Number of fan modules	0
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing GE optical (SFP) x 2
Long-term operating temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)]	–40°C to +85°C (–40°F to +185°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
Antenna port surge protection [kA]	N/A
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface	MCX
Antenna gain	Built-in BLE: 0 dBi
Maximum transmit power	2.4G: 15 dBm/chain 5G: 15 dBm/chain (Each radio of the AP has two spatial streams, which correspond to four RF ports through the built-in power splitter. The preceding transmit power values are the transmit power of a single RF port after power splitting.) BLE: < 0 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 15 dBm/chain 5G: -10 dBm to 15 dBm/chain The preceding power ranges are the power values after power splitting by the built-in power splitter. Each radio corresponds to four ports.
MTBF [year]	152 year
MTTR [hour]	2 hour
Frequency stability [ppm]	+/-20
DC power supply description	In coal mine scenarios, it must be used with the specified mining explosion-proof and intrinsically safe power supply.
Dimensions without packaging (H x W x D) [mm(in.)]	45 mm x 200 mm x 200 mm (1.77 in. x 7.87 in. x 7.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 285 mm x 250 mm (3.54 in. x 11.22 in. x 9.84 in.)
Weight without packaging [kg(lb)]	1.19 kg (2.62 lb)
Weight with packaging [kg(lb)]	1.56 kg (3.44 lb)
