Huawei AirEngine 5760-51 access point (AP) with 11ax indoor, 2+4 dual bands, smart antenna, USB, IoT Slot, BLE, Optional RTU upgrade to 4+4/2+2+4/2+4+Scan

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 5760-51 overview

Huawei AirEngine 5760-51 is an access point (AP) in compliance with the Wi-Fi 6 standard. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experiences. It is ideal for small- and medium-sized enterprises, airports, stations, stadiums, cafes, and recreation centers.

  • Working simultaneously on the 2.4 GHz and 5 GHz frequency bands
    By default, the AP can work in the following radio modes:

    • Dual-radio mode: 2.4 GHz (2×2:2 MIMO) + 5 GHz (4×4:4 MIMO)
    • Triple-radio mode: 2.4 GHz (2×2:2 MIMO) + 5 GHz (2×2:2 MIMO) + 5 GHz (2×2:2 MIMO)
    After an RTU license is loaded, more radio modes are supported.

    • Dual-radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (4×4:4 MIMO)
    • Triple-radio mode: 2.4 GHz (2×2:2 MIMO) + 5 GHz (2×2:2 MIMO) + 5 GHz (4×4:4 MIMO)
    • Dual-radio + independent scanning radio mode: 2.4 GHz (2×2:2 MIMO) + 5 GHz (4×4:4 MIMO)
  • 1 x 5GE electrical port + 1 x GE electrical port
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion
  • Built-in IoT slots, supporting IoT expansion such as BLE 5.0, ZigBee, RFID, and Thread
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

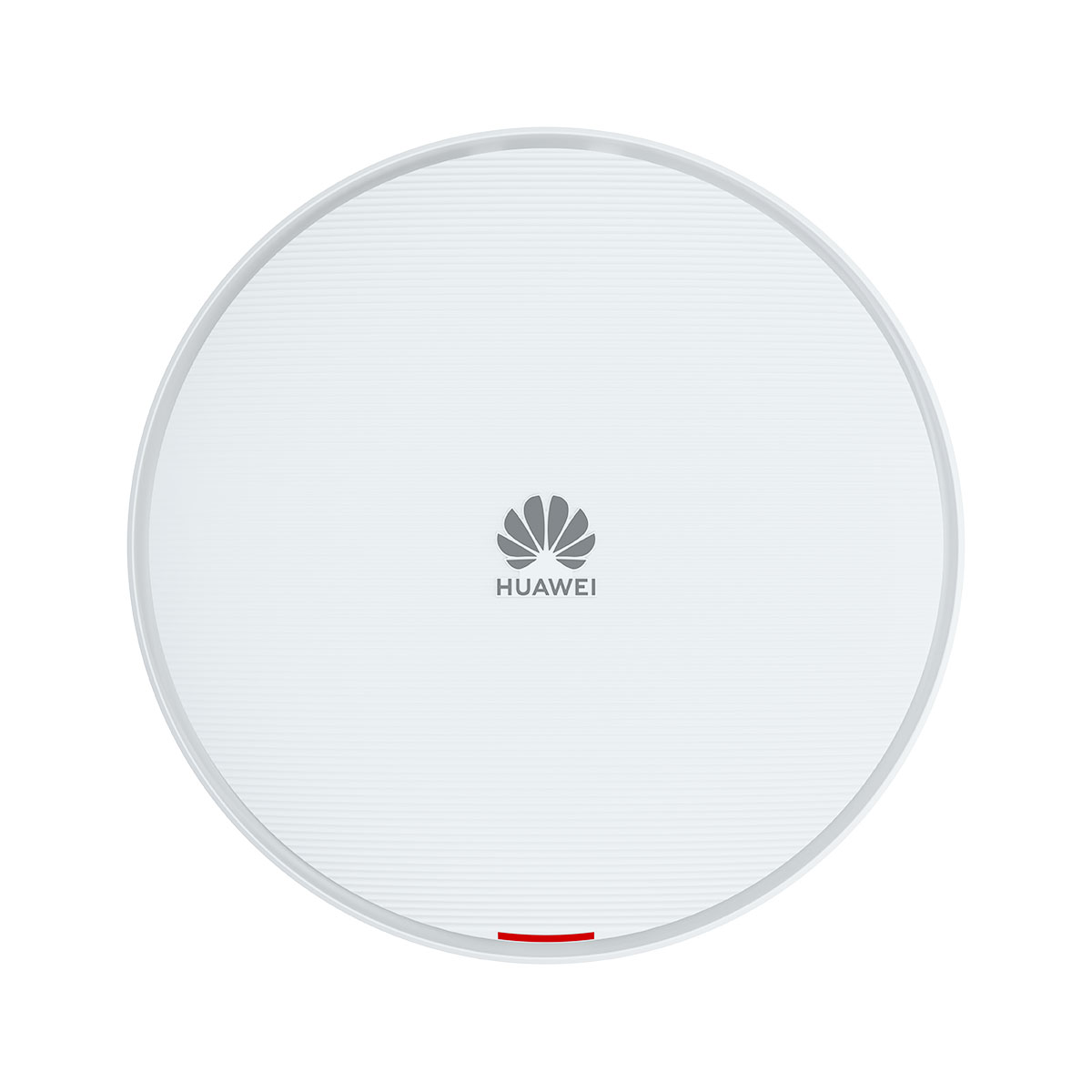

Front panel of the AirEngine 5760-51

AirEngine 5760 51



Front panel of the AirEngine 5760-51

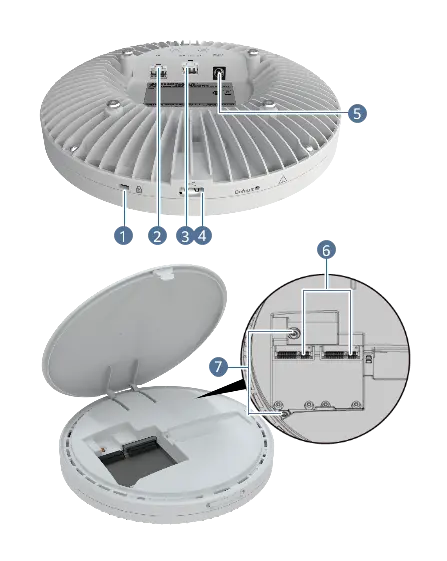

Ports on the AirEngine 5760-51

1

Security slot

2

GE

3

5GE/PoE_IN

4

USB

5

DC 48V

6

IoT slot

7

Built-in radio port connecting to an IoT card

–

–



Item AirEngine 5760-51
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 28.8 (excluding USB and IoT cards)
Maximum heat dissipation [BTU/hour] 98.3 (without USB or IoT card)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
IoT slot IoT card
BLE BLE5.2
Radio number 2/3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Triple-radio mode:

  • Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 2x2 (high frequency band), maximum bandwidth of 80 MHz
  • Radio 2 (5 GHz): 4x4 (low frequency band), maximum bandwidth of 80 MHz

Dual-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 4x4, maximum bandwidth 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4.5 dBi

5 GHz: 5.5 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 69.7 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

For 802.3bt class 6/class 8 power supply:

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
802.3at power supply description

With an RTU license loaded:

Wi-Fi:

If the USB and IoT card slots are not used, the radio transmit power is not affected.

  • Dual-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (4x4, low band)
  • Dual-radio + independent radio scanning mode: 2.4 GHz (2x2) + 5 GHz (4x4) + 5 GHz independent radio scanning

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Without an RTU license loaded:

Wi-Fi:

If no USB or IoT card slot is used, the radio transmit power is not affected.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.
DC power supply description

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.)
Weight without packaging [kg(lb)] 1.15 kg (2.53 lb)

Additional information

Brand

Huawei
Item AirEngine 5760-51
