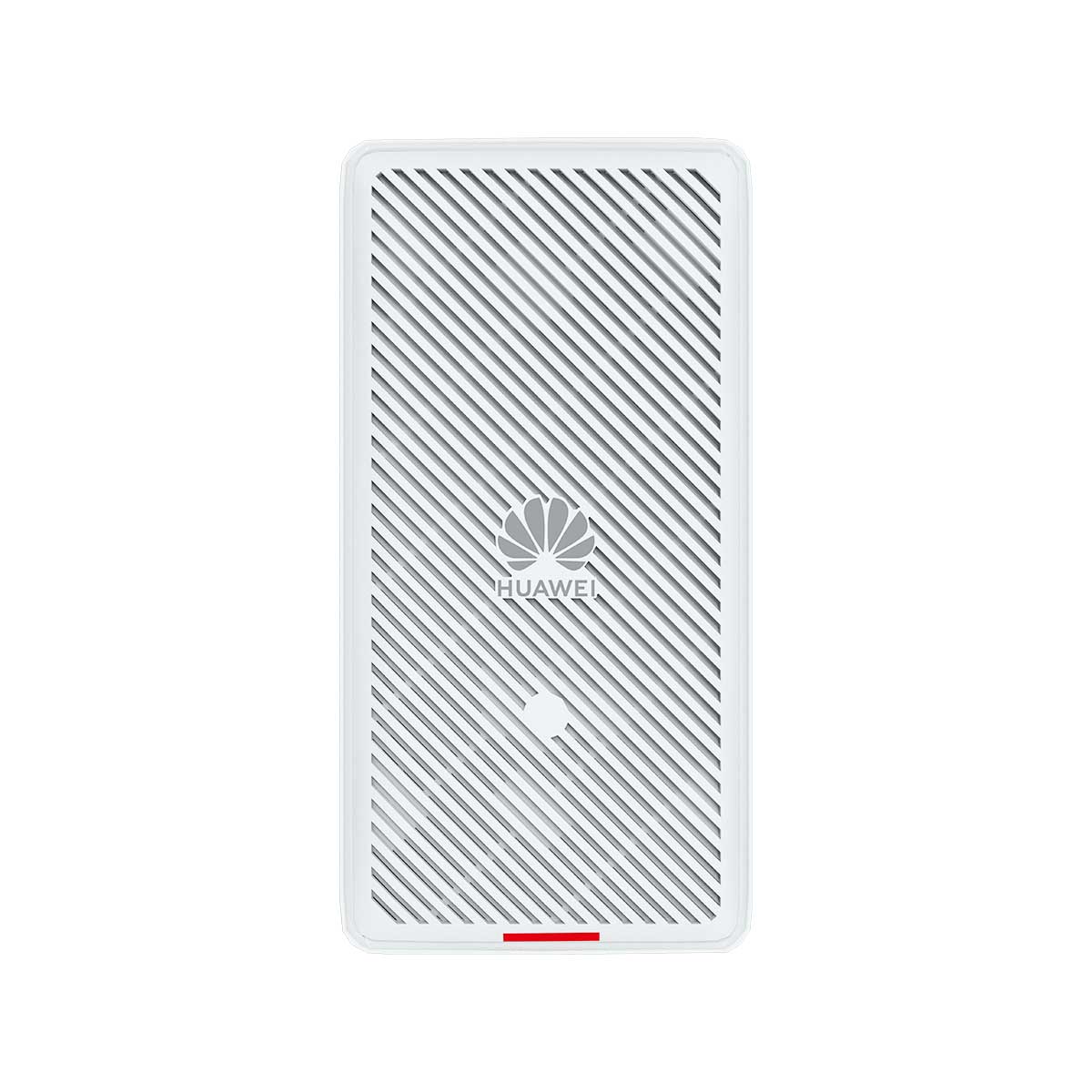

AirEngine 5760-22WD

1 Review Write a review
PN02353KDQ
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 5760-22WD with 11ax indoor, 2+4 dual bands, smart antenna, USB, BLE, PSE

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

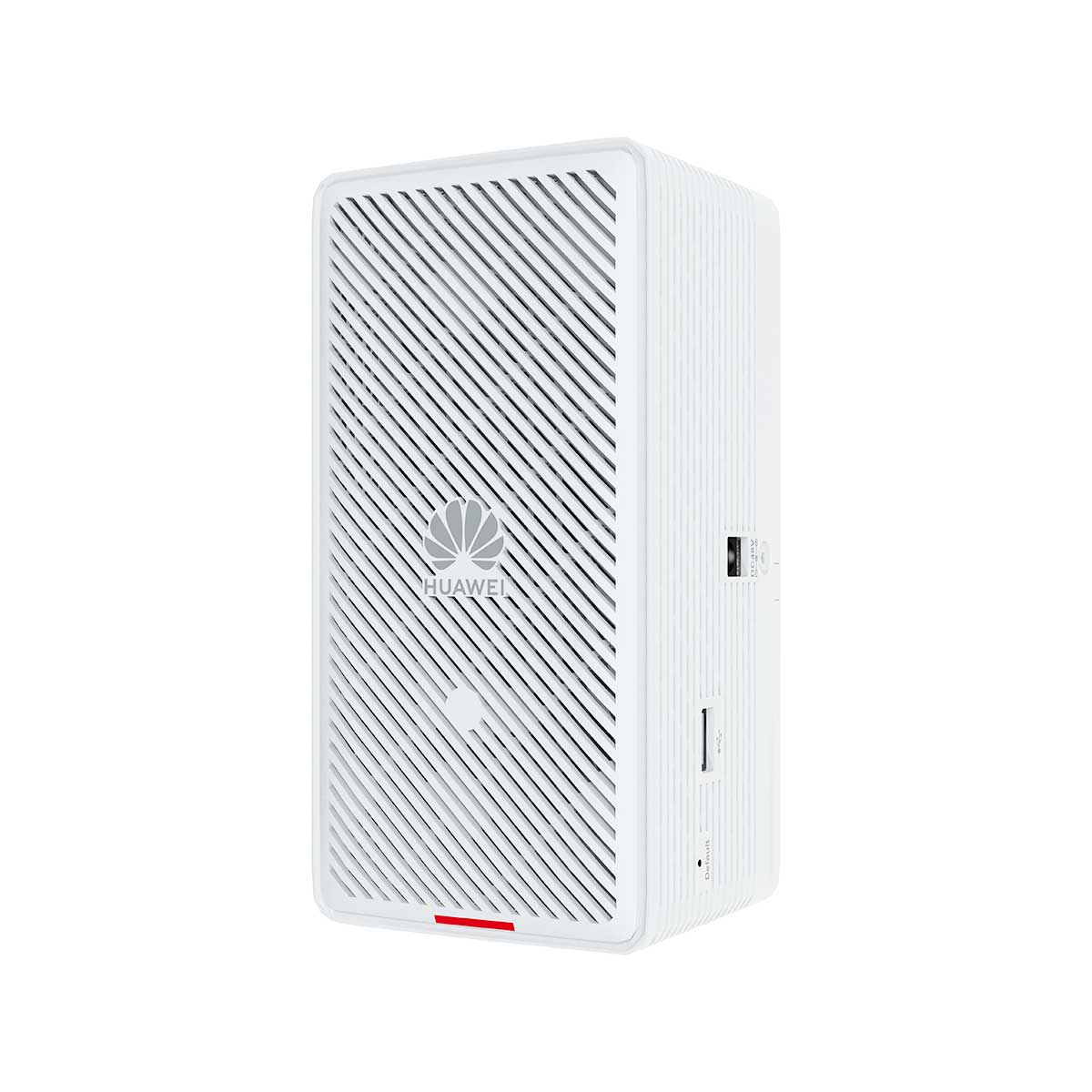

AirEngine 5760-22WD overview

Huawei AirEngine 5760-22WD is a remote unit (RU) in compliance with the Wi-Fi 6 standard. With mounting brackets, the RU can be easily adapted to junction boxes (86/118/120 mm) and wall-mounting scenarios. The RU uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, student dormitory rooms, and hospital wards.

  • The dual-radio mode is supported with 2×2:2 MIMO on 2.4 GHz and 4×4:4 MIMO on 5 GHz
  • Uplink: 1 x 2.5GE electrical port + 1 x 10GE SFP + optical port; downlink: 4 x GE electrical ports + 2 x RJ45 passthrough ports
  • Mounting on a junction box or wall, facilitating deployment
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • PoE OUT, supplying power to terminals such as IP phones and external IoT modules

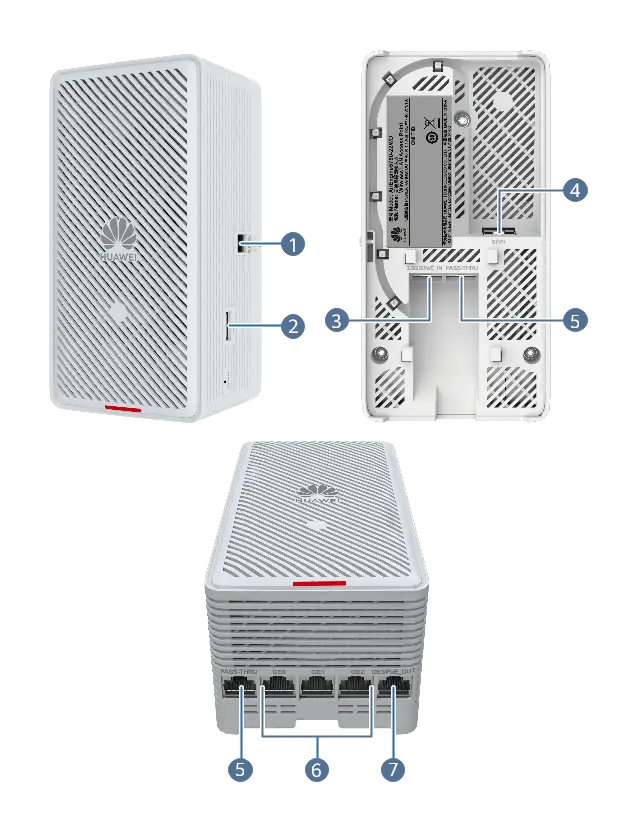

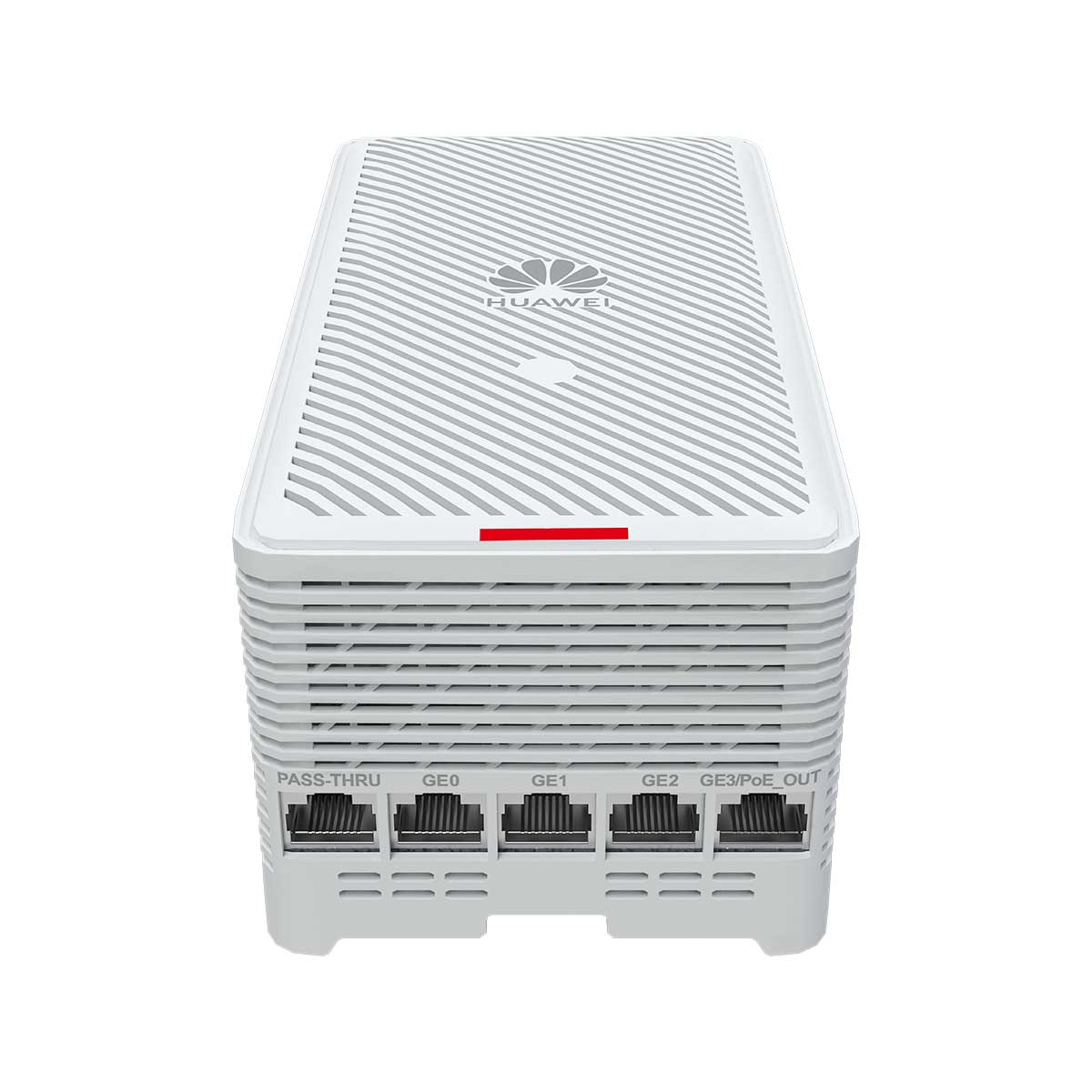

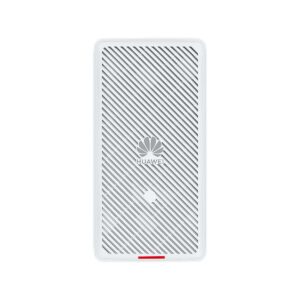

Front panel of the AirEngine 5760-22WD

AirEngine 5760 22WD

Front panel of the AirEngine 5760-22WD



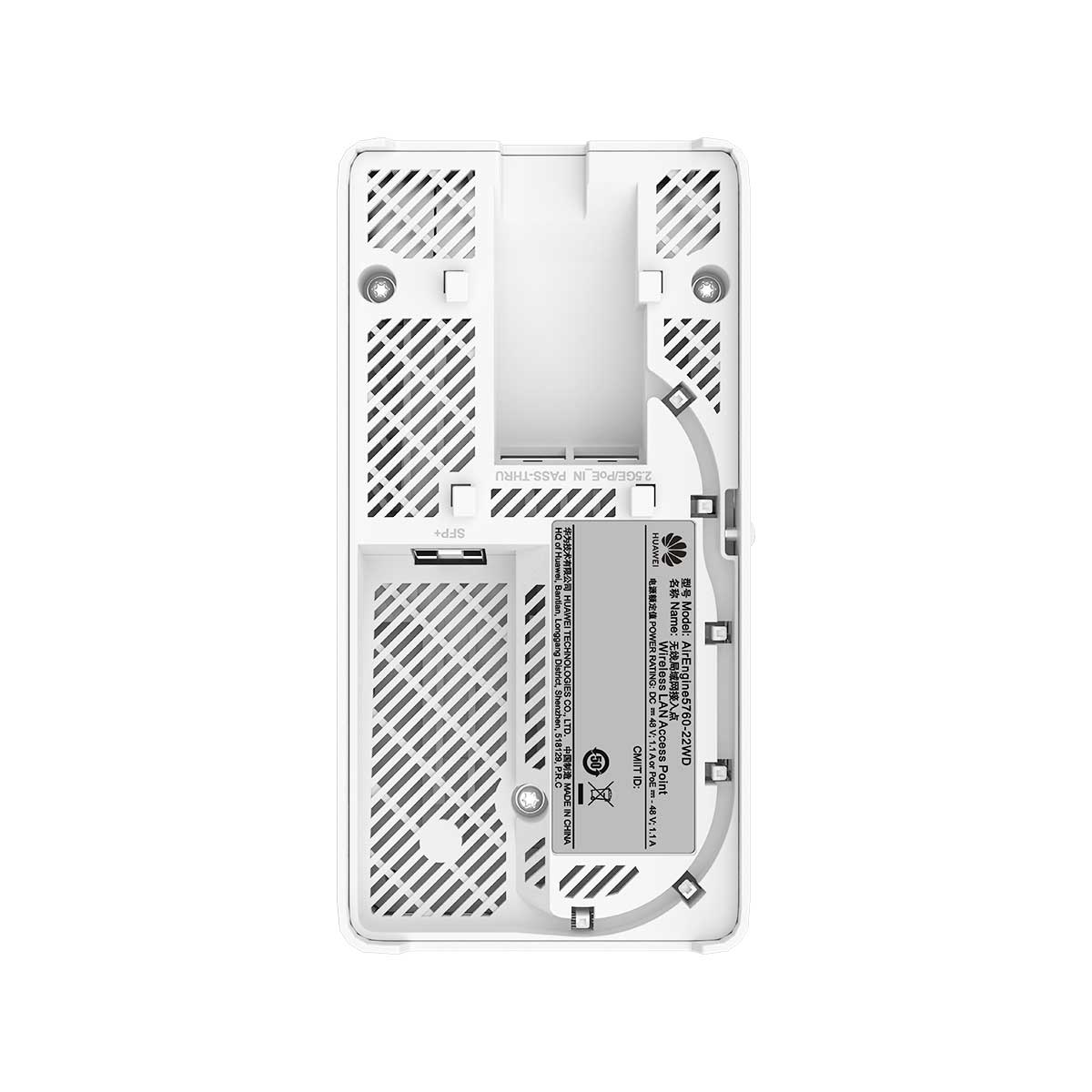

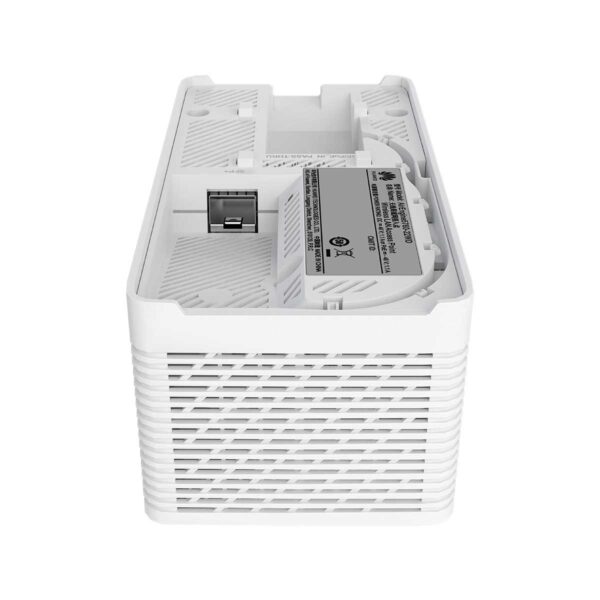

Ports on the AirEngine 5760-22WD

1

DC 48V

2

USB

3

2.5GE/PoE_IN

4

SFP+

5

PASS-THRU

6

GE0 to GE2

7

GE3/PoE_OUT

–

–



Item AirEngine 5760-22WD
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 25.29 (excluding USB and PoE OUT ports)
Maximum heat dissipation [BTU/hour] 86.3 (without USB and PoE OUT)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
PoE Supported
Maximum PoE output power [W] 13.6 W (When the maximum transmission distance through a CAT5E Ethernet cable is 40 m, the port can connect to an 802.3af-compliant PD requiring power of less than 12.95 W.)
Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 10M/100M/1000M/2.5GE auto-sensing

GE (RJ45) x 4, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
IoT slot IoT extension by USB
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz

Radio 1 (5 GHz): 4x4, maximum bandwidth 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 23 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 37 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

Wi-Fi:

  • If no optical port is used, Wi-Fi is not restricted.
  • If optical ports are used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available.

Other ports: not restricted
802.3at power supply description

Wi-Fi:

  • If the USB and PoE out ports are not used and only the 2.5GE electrical port is used as the uplink port, Wi-Fi supports the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (4x4, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.
  • If an optical port or the 2.5 W USB port is used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available.

Other ports: Only the 2.5 W USB port is supported. The 5 W USB port and PoE OUT port are unavailable.
802.3af power supply description The 802.3af power supply is not supported.
DC power supply description

Wi-Fi:

  • If no optical port is used, Wi-Fi is not restricted.
  • If optical ports are used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: not restricted

Other ports: not restricted
Installation Type
  • Wall
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 170 mm x 86 mm x 74 mm (6.69 in. x 3.39 in. x 2.91 in.)
Weight without packaging [kg(lb)] 0.70 kg (1.54 lb)

Additional information

Brand

Huawei
Item AirEngine 5760-22WD
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 25.29 (excluding USB and PoE OUT ports)
Maximum heat dissipation [BTU/hour] 86.3 (without USB and PoE OUT)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
PoE Supported
Maximum PoE output power [W] 13.6 W (When the maximum transmission distance through a CAT5E Ethernet cable is 40 m, the port can connect to an 802.3af-compliant PD requiring power of less than 12.95 W.)
Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 10M/100M/1000M/2.5GE auto-sensing

GE (RJ45) x 4, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
IoT slot IoT extension by USB
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz

Radio 1 (5 GHz): 4x4, maximum bandwidth 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 23 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 37 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

Wi-Fi:

  • If no optical port is used, Wi-Fi is not restricted.
  • If optical ports are used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available.

Other ports: not restricted
802.3at power supply description

Wi-Fi:

  • If the USB and PoE out ports are not used and only the 2.5GE electrical port is used as the uplink port, Wi-Fi supports the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (4x4, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.
  • If an optical port or the 2.5 W USB port is used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available.

Other ports: Only the 2.5 W USB port is supported. The 5 W USB port and PoE OUT port are unavailable.
802.3af power supply description The 802.3af power supply is not supported.
DC power supply description

Wi-Fi:

  • If no optical port is used, Wi-Fi is not restricted.
  • If optical ports are used, Wi-Fi supports only the 2.4 GHz (2x2, 20 MHz bandwidth) + 5 GHz (2x2, 80 MHz bandwidth) working mode, and the radio transmit power is not affected.

Wired network port: not restricted

Other ports: not restricted
Installation Type
  • Wall
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 170 mm x 86 mm x 74 mm (6.69 in. x 3.39 in. x 2.91 in.)
Weight without packaging [kg(lb)] 0.70 kg (1.54 lb)
