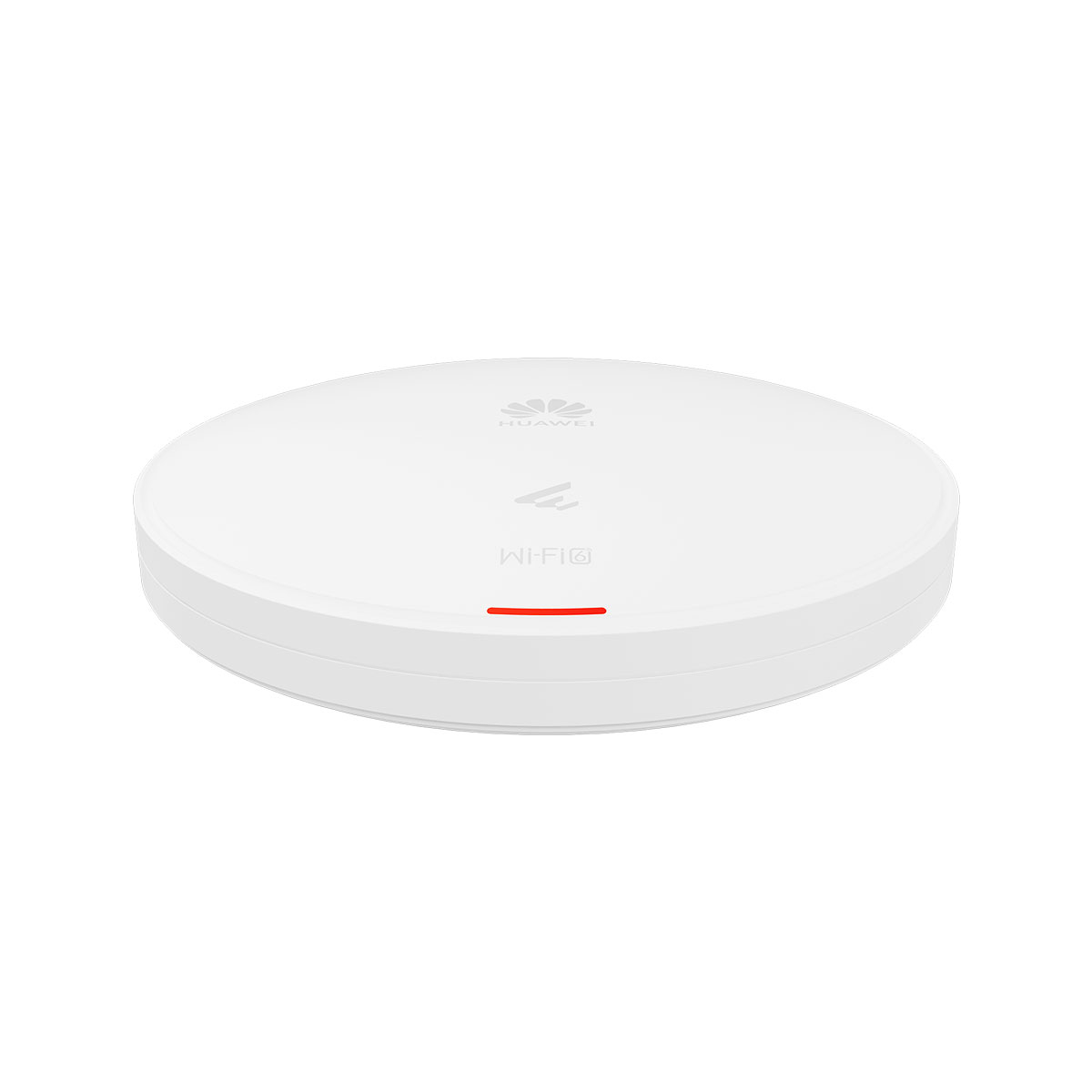

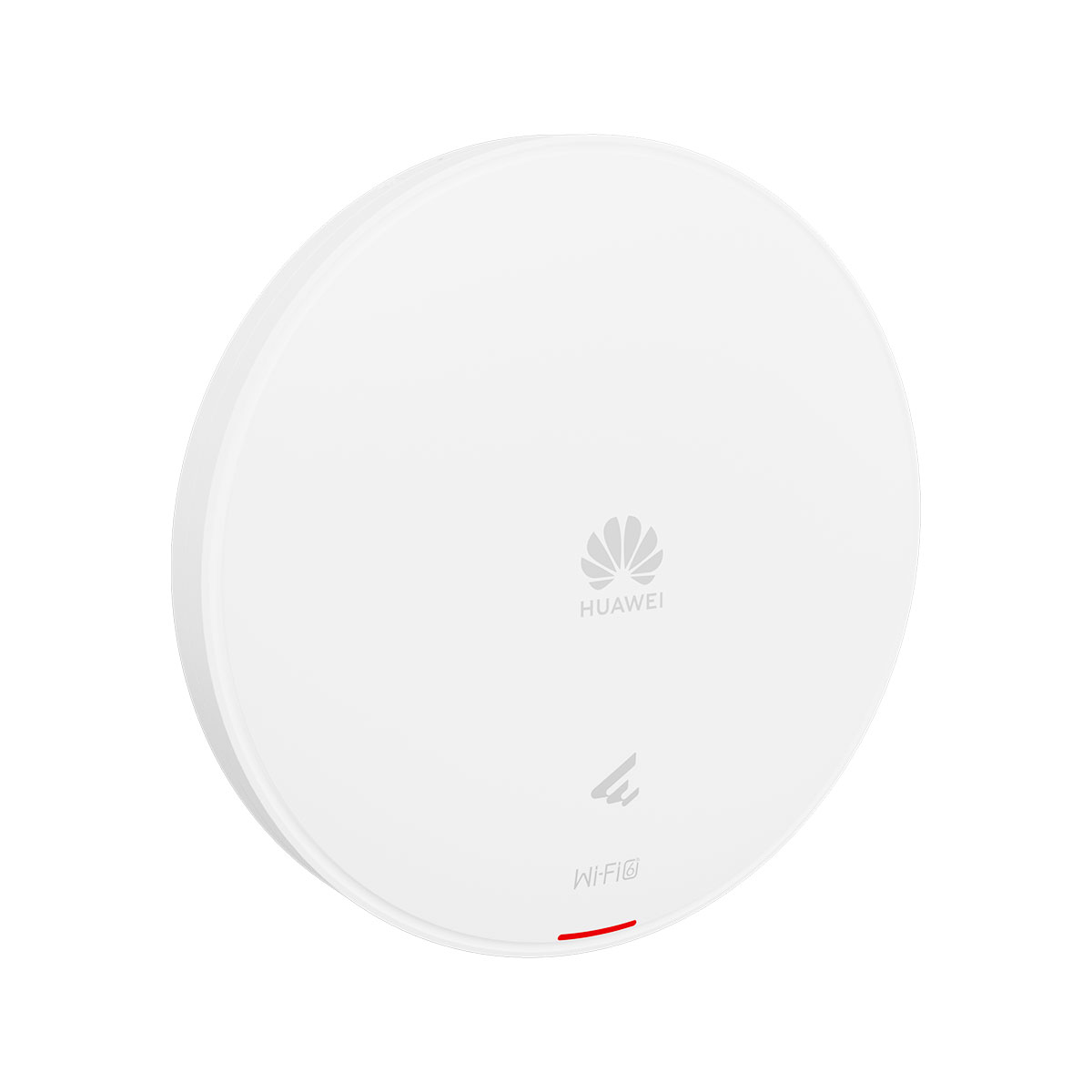

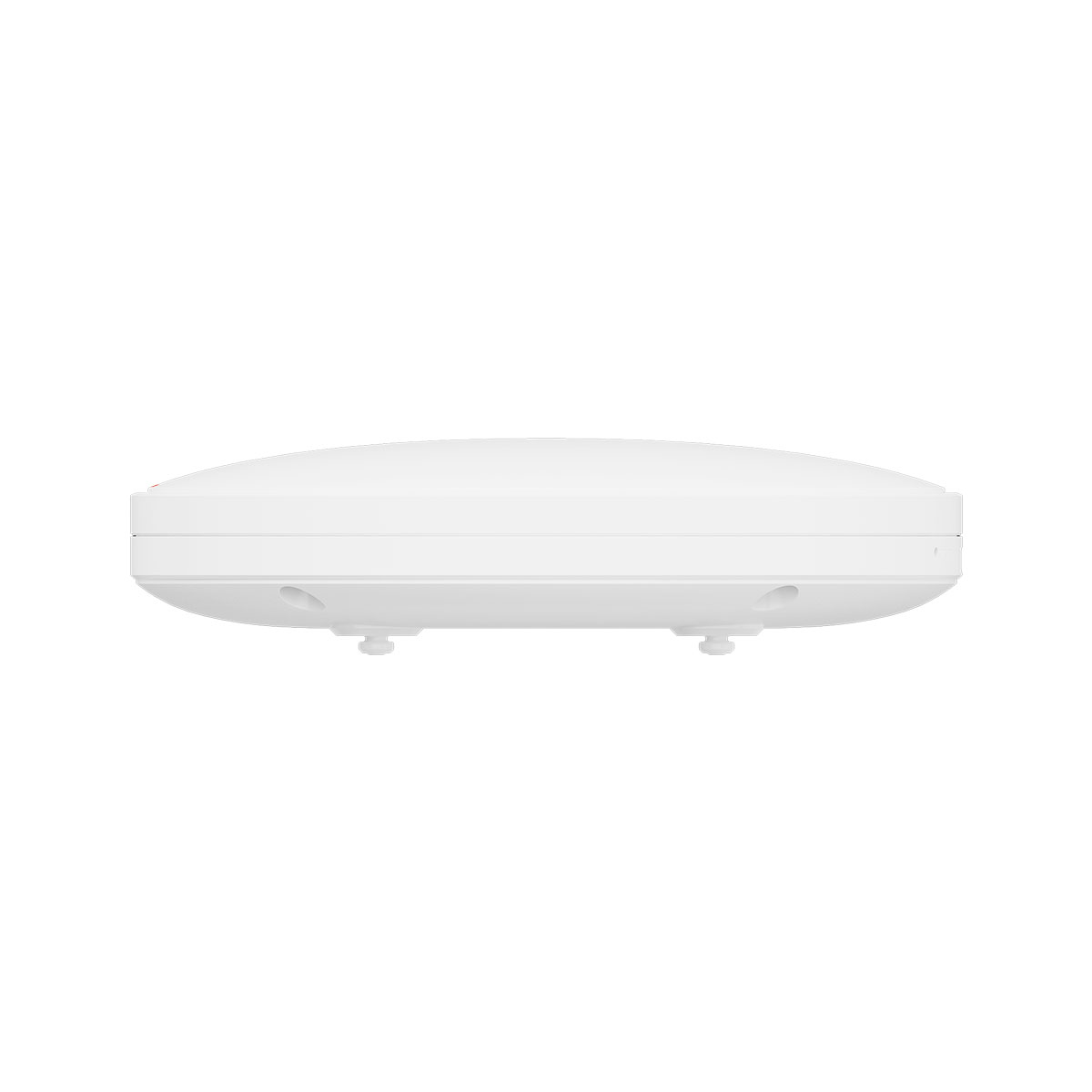

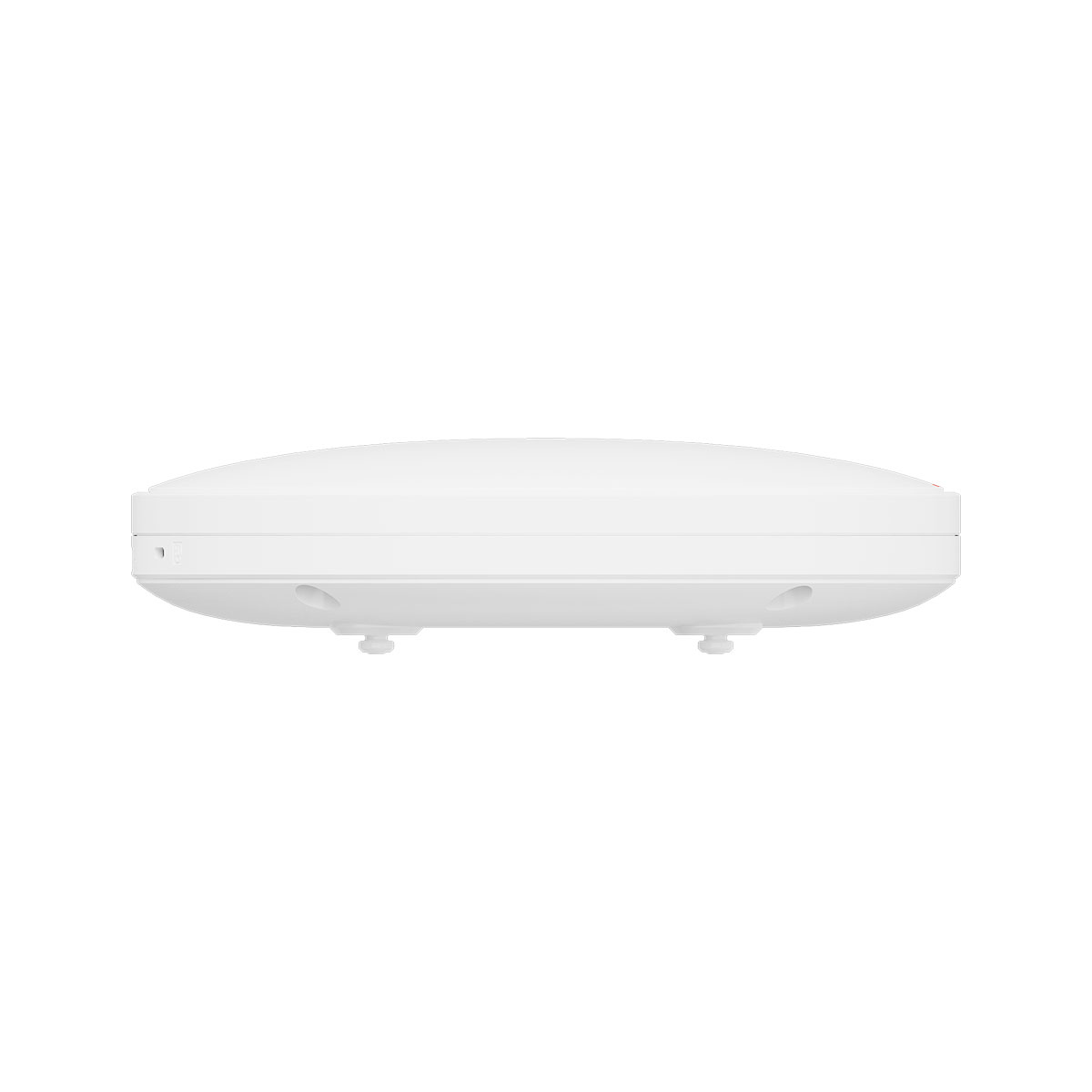

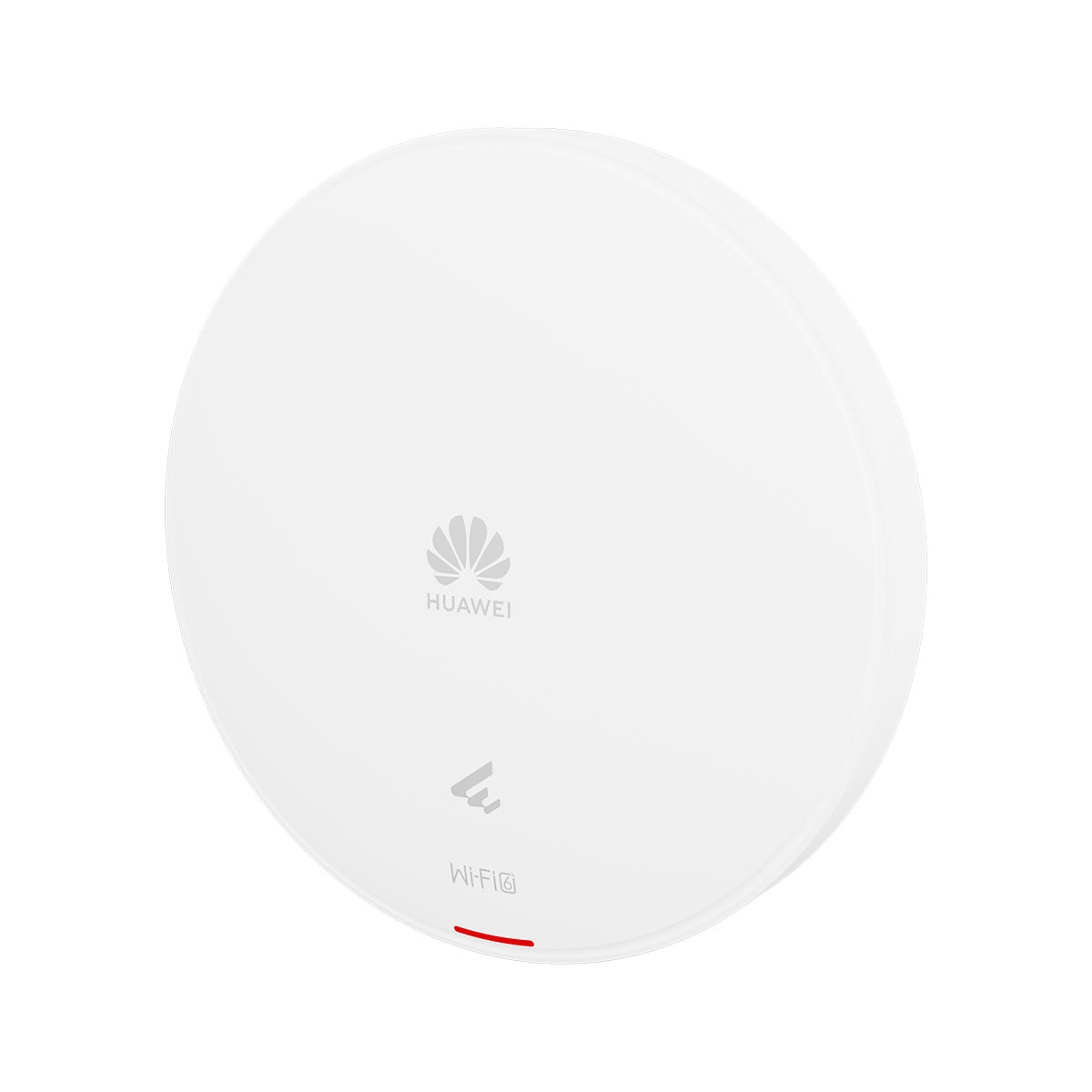

AirEngine 5761-12

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02354MXJ

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AirEngine 5761-12 indoor access point (AP) with 11ax indoor, 2+2 dual bands, smart antenna, USB, IoT Slot, BLE

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

AirEngine 5761-12 overview

Huawei AirEngine 5761-12 is a next-generation indoor access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It supports high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is applicable to indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, education, and cafes.

Front panel of the AirEngine 5761-12

Ports on the AirEngine 5761-12

1	Security slot	2	GE
3	GE/PoE_IN	4	USB
5	DC 12V	6	IoT slot
7	Built-in radio port connecting to an IoT card	–	–

Item	AirEngine 5761-12
Storage	NAND Flash 512 MB
Console port	Bluetooth console
Maximum power consumption [W]	12.63 (excluding USB)
Maximum heat dissipation [BTU/hour]	43.1 BTU/hour
Power supply mode	PoE DC power adapter
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
USB	USB 2.0
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	147 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	No function is limited.
802.3at power supply description	No function is limited.
802.3af power supply description	Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz) and 22 dBm (5 GHz). Wired network port: The GE/PoE_IN port is available, but the GE port is unavailable. Other ports: The USB port is unavailable.
DC power supply description	No function is limited.
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.)
Weight without packaging [kg(lb)]	1.09 kg (2.40 lb)
Weight with packaging [kg(lb)]	1.55 kg (3.42 lb)

Item	AirEngine 5761-12
Storage	NAND Flash 512 MB
Console port	Bluetooth console
Maximum power consumption [W]	12.63 (excluding USB)
Maximum heat dissipation [BTU/hour]	43.1 BTU/hour
Power supply mode	PoE DC power adapter
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
USB	USB 2.0
BLE	BLE5.2
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	147 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	No function is limited.
802.3at power supply description	No function is limited.
802.3af power supply description	Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz) and 22 dBm (5 GHz). Wired network port: The GE/PoE_IN port is available, but the GE port is unavailable. Other ports: The USB port is unavailable.
DC power supply description	No function is limited.
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.)
Weight without packaging [kg(lb)]	1.09 kg (2.40 lb)
Weight with packaging [kg(lb)]	1.55 kg (3.42 lb)
