AirEngine 5562-10

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN50086387

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AirEngine 5562-10 Wi-Fi 6 (802.11ax) indoor access point (AP). It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

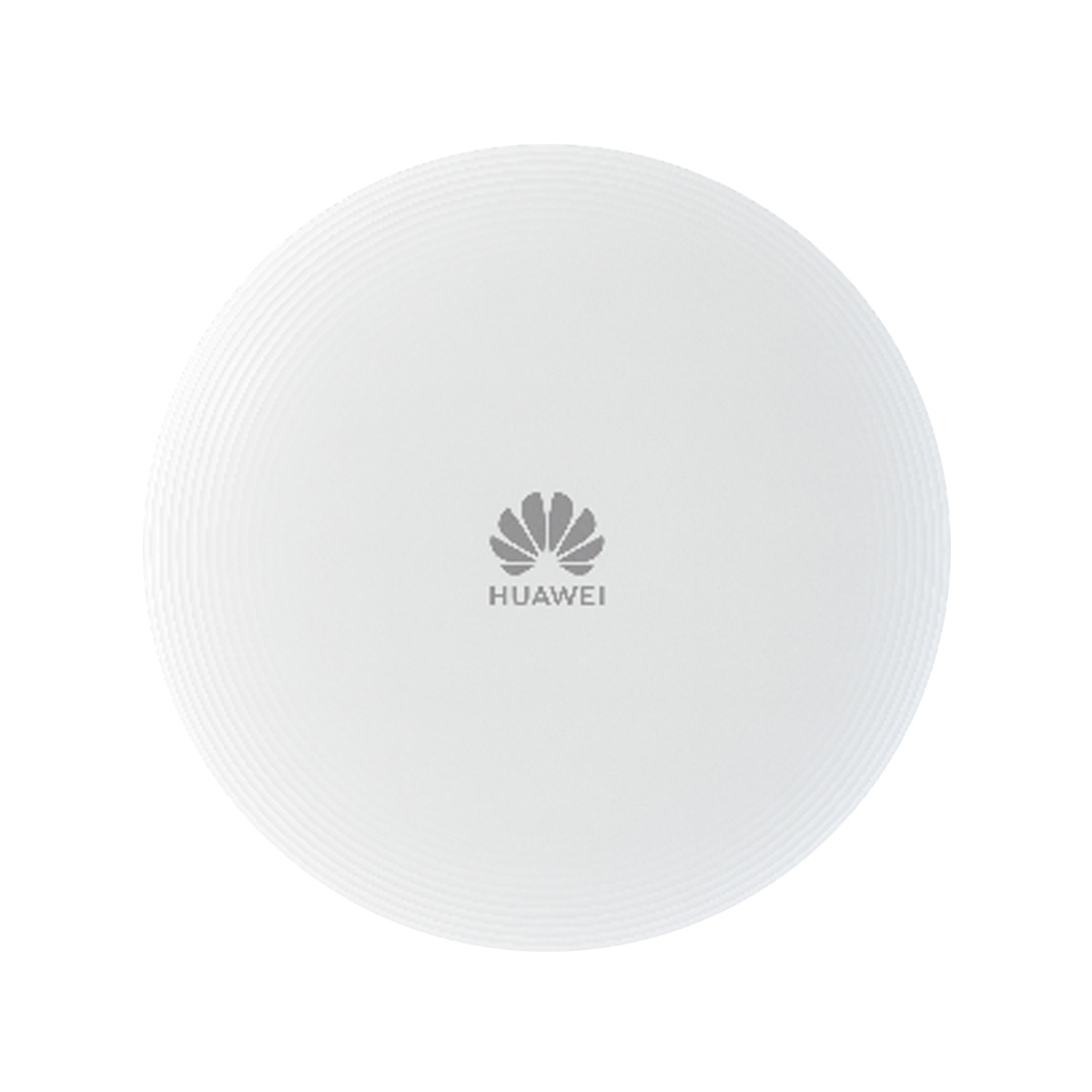

AirEngine 5562-10 overview

Huawei AirEngine 5562-10 is a Wi-Fi 6 (802.11ax) indoor access point (AP). It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.

This AP features highbandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers’ investment. These strengths make the APs apply to indoor scenarios such as SOHO enterprise offices, small- and medium-sized hospitals,commercial real estate, economic chain hotels, and schools.

Provides services simultaneously on both the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.
1 x GE electrical port.
Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
Supports the Fit, Fat, and Cloud three working modes.

Front panel of the AirEngine 5562-10 board

Front panel of the AirEngine 5562-10 board

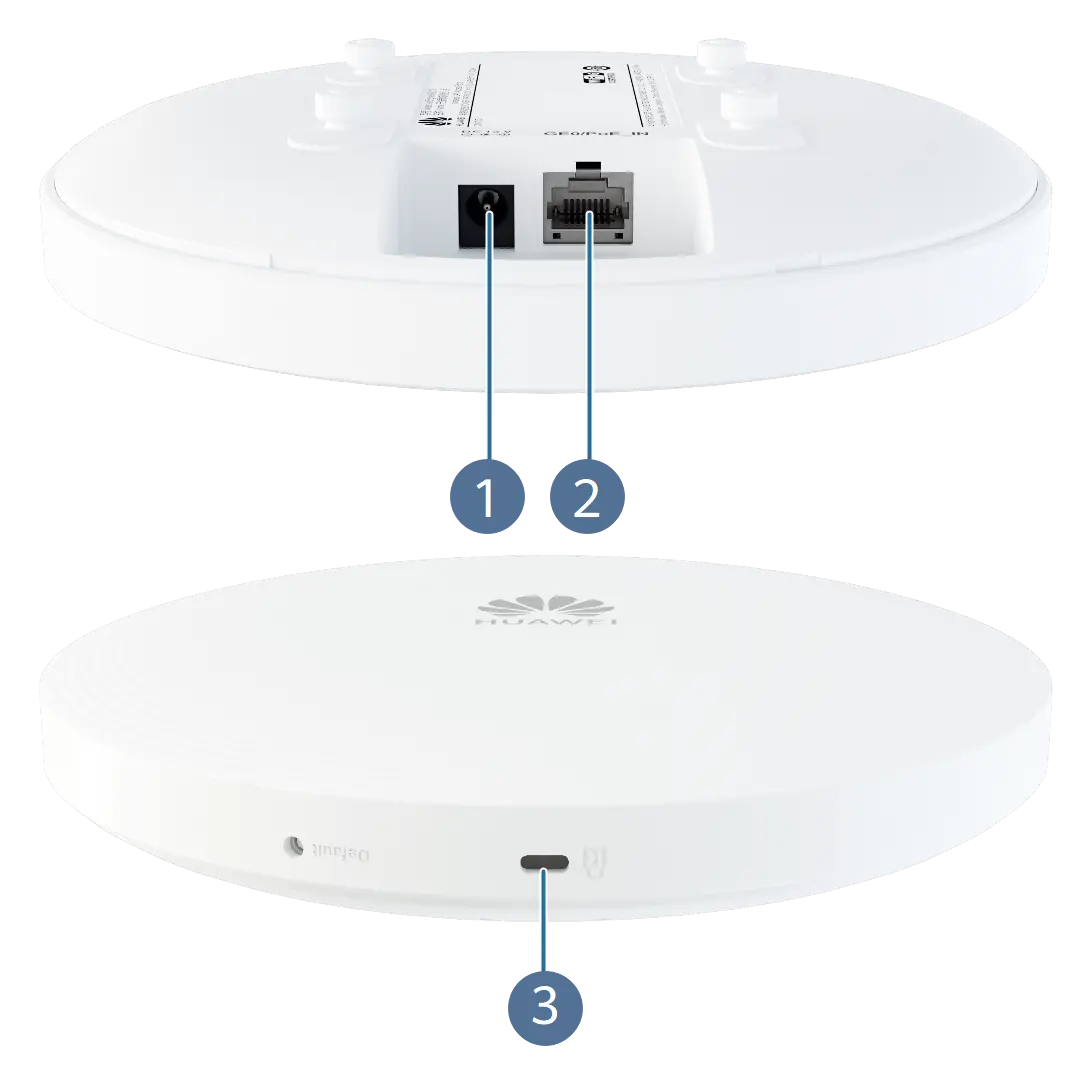

Ports on the AirEngine 5562-10

1	DC12V	2	GE0/PoE_IN
3	Security slot	–	–

Item	AirEngine 5562-10
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	231mm x 200mm x 52mm
Weight without packaging [kg(lb)]	0.46 kg (1.01 lb)
Weight with packaging [kg(lb)]	0.80 kg (1.76 lb)
Storage	NAND Flash 256 MB
Console port	None
Maximum power consumption [W]	11.2 W
Maximum heat dissipation [BTU/hour]	36.3 BTU/hour
Power supply mode	DC adapter PoE
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3af
Service port surge protection	PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
BLE	Not supported
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	205.07 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	No function is limited.
802.3at power supply description	No function is limited.
802.3af power supply description	No function is limited.
DC power supply description	No function is limited.

Item	AirEngine 5562-10
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	231mm x 200mm x 52mm
Weight without packaging [kg(lb)]	0.46 kg (1.01 lb)
Weight with packaging [kg(lb)]	0.80 kg (1.76 lb)
Storage	NAND Flash 256 MB
Console port	None
Maximum power consumption [W]	11.2 W
Maximum heat dissipation [BTU/hour]	36.3 BTU/hour
Power supply mode	DC adapter PoE
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3af
Service port surge protection	PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	floating ground
BLE	Not supported
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	205.07 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3bt power supply description	No function is limited.
802.3at power supply description	No function is limited.
802.3af power supply description	No function is limited.
DC power supply description	No function is limited.
