Description

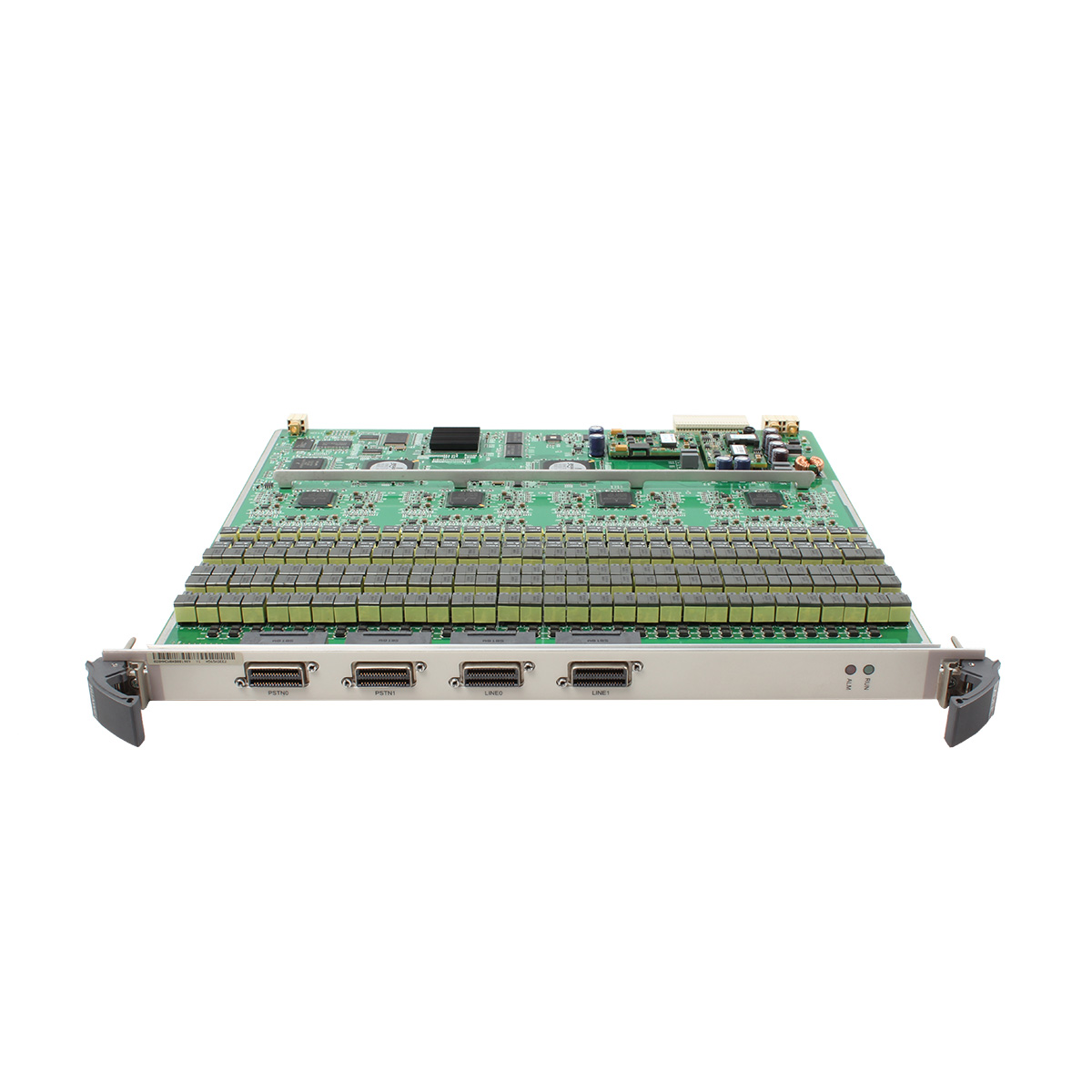

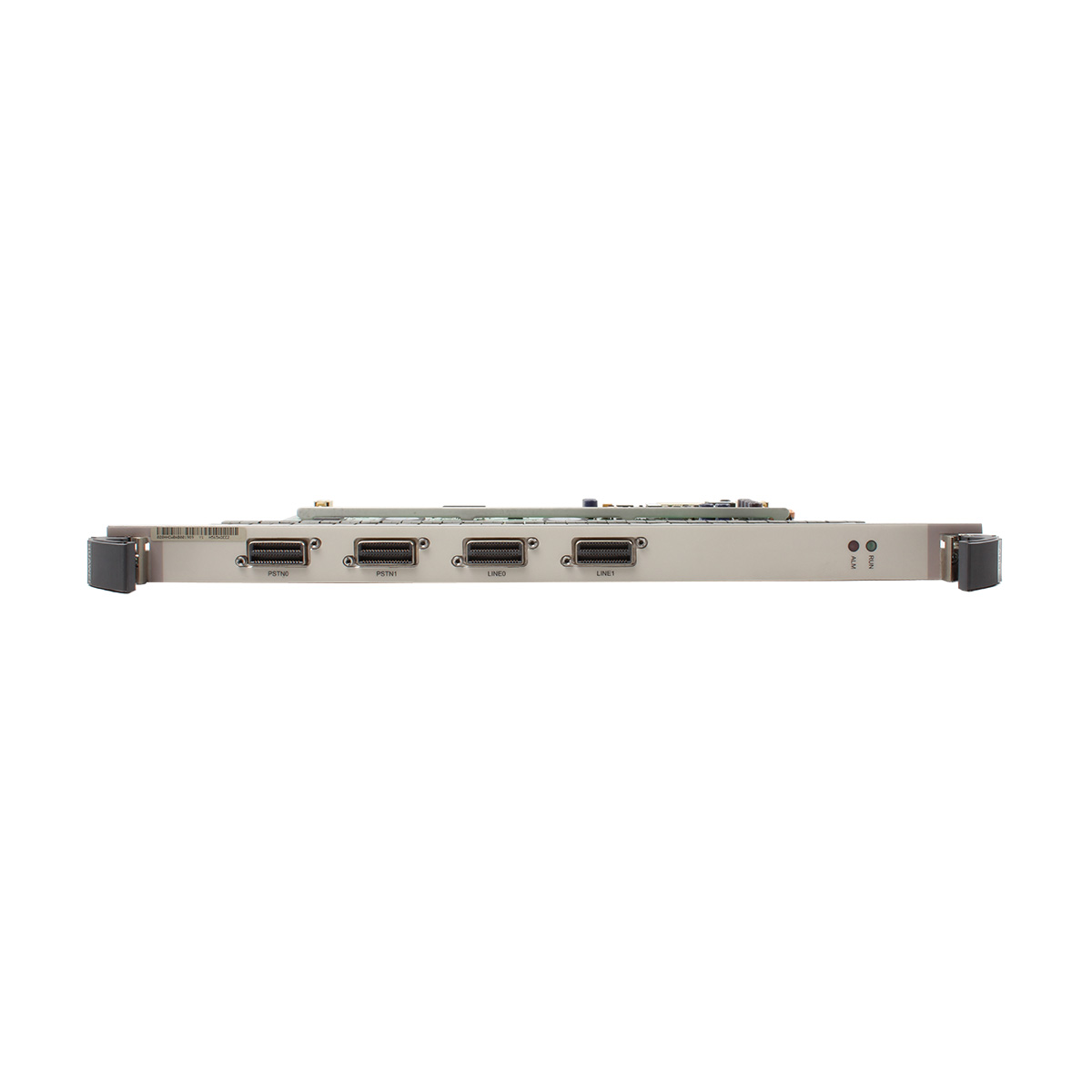

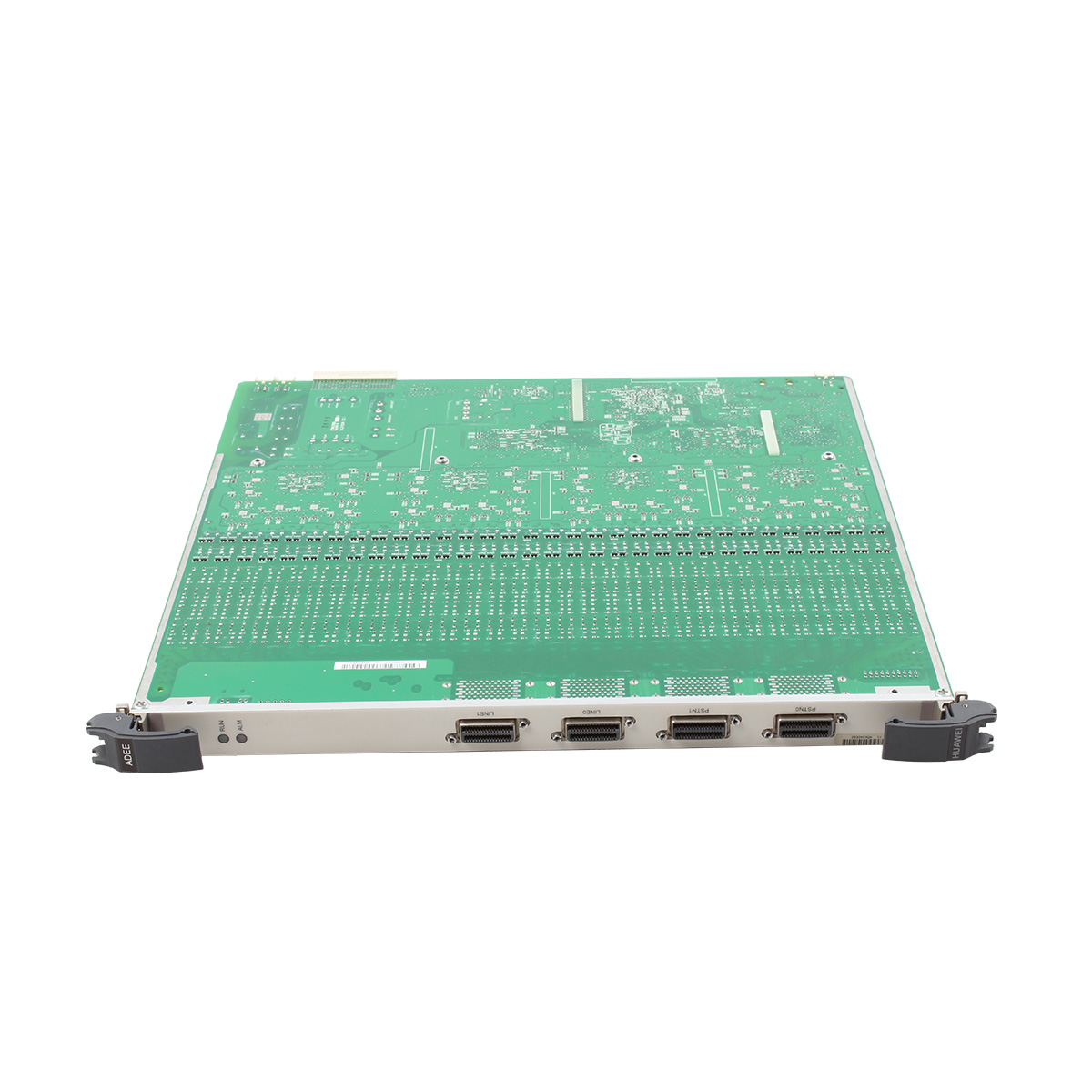

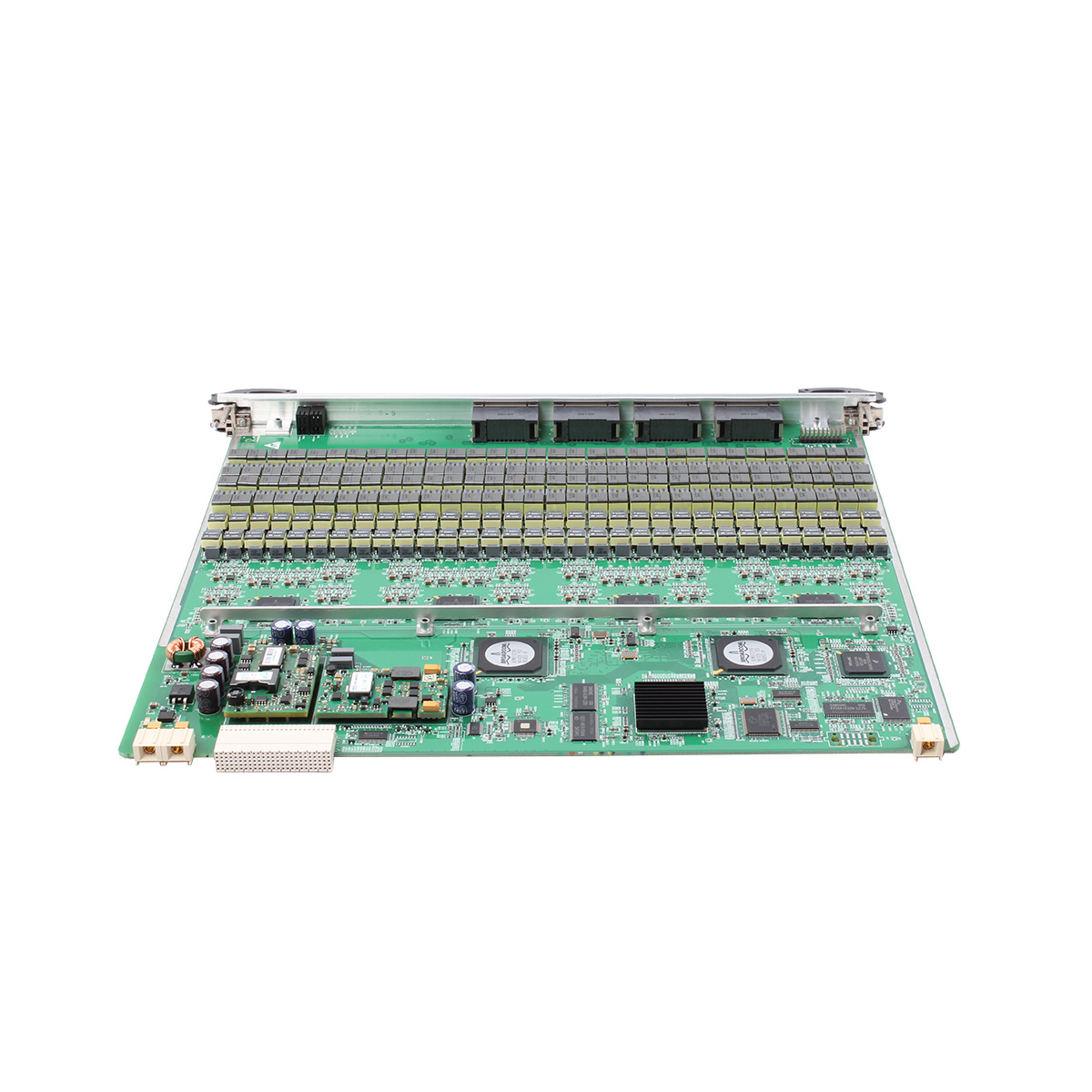

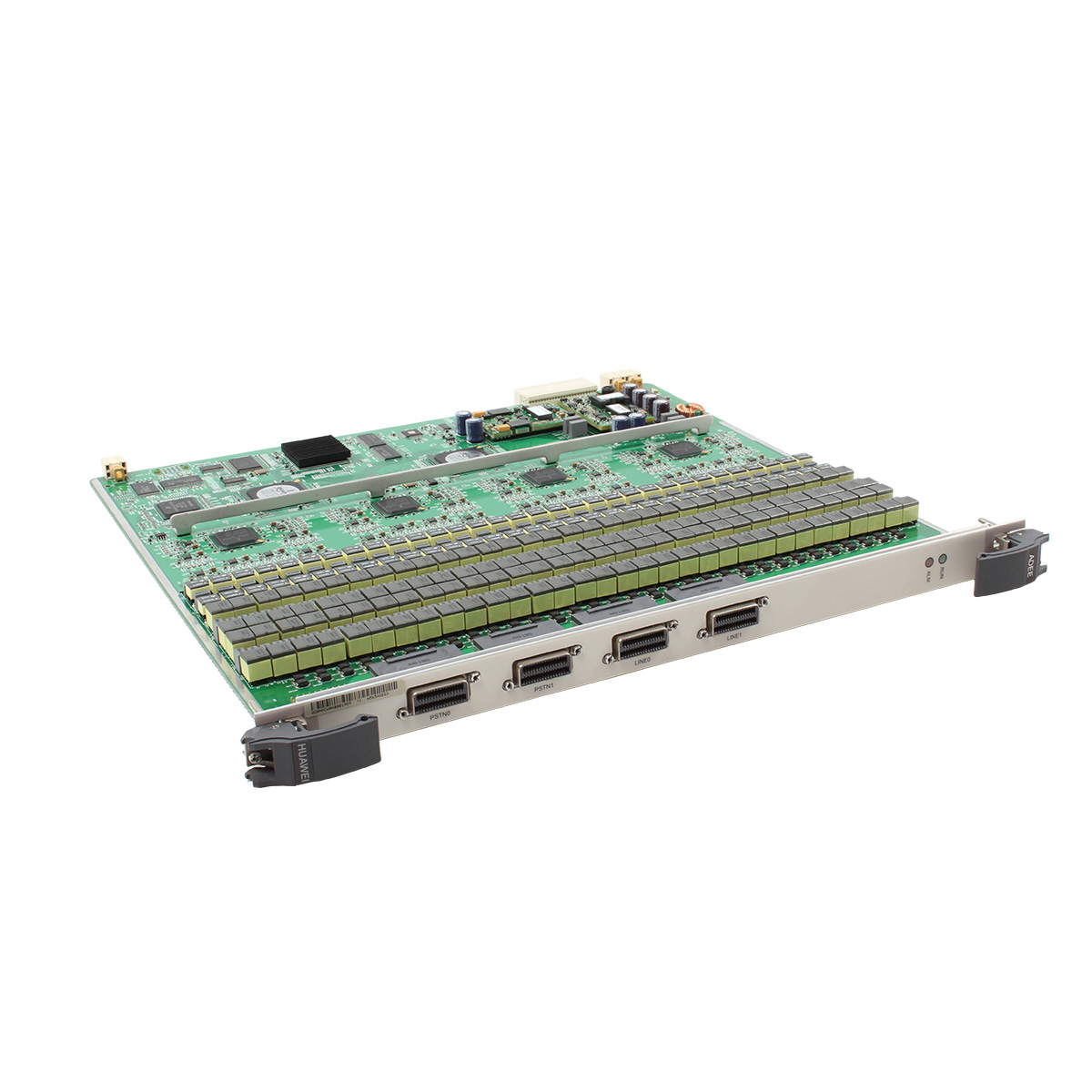

Huawei MA5600 64 Channels of ADSL2+ over POTS service board
| Specification | |
| Support GPON uplink ports | GP1A:One GPON port and one GE optical port GE1A: Two GE optical ports |
| Supported Daughter Board | Upstream daughter board:GP1A/GE1A Voice daughter board:ADSA/ADSC/ADSM |
| Port on the Front Panel (on the Bottom Plate) | CONSOLE/ESC/ETH/ALARM/GE0 |
| Upstream Port (on the Daughter Board) | When the GP1A daughter board is configured: GE0 (SFP port)/PON (SFF port) When the GE1A daughter board is configured: GE0 (SFP port)/GE1 (SFP port) |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Power supply | AC: 220 V/110 V, DC: -48 V |
| Clock features | Network time synchronization Line clocks recovered on upstream ports |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
Aaron –
I’ve been using it for a while now, and this highly configured product is exactly what I expected it to be, as described, so I think I should give telecomate.com a thumbs up.
Austin –
What is the difference between ADEE and ADEF? Are they all 64adsl2 +? I don’t get it.
TMAdmin –
Hello, ADEE needs to be configured with four subscriber lines, while ADEF only needs to be configured with two.
Kael –
This is much more cost -effective than buying locally.
