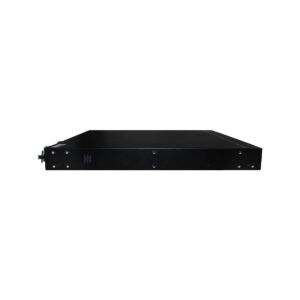

AC6805

0 Reviews Write a review

PN02354FRM

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei AC6805 with 12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

AC6805 overview

The AC6805 is a high-performance wireless access controller (AC) for large- and medium-sized enterprise campuses, enterprise branches, and school campuses. When used with Huawei’s access points (APs), the AC6805 can be used to construct large- and medium-sized campus networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot coverage.

The AC6805 has the following features:

Large capacity and high performance: The AC6805 provides 12 x GE ports, 12 x 10GE ports, and 2 x 40GE ports with 120 Gbit/s forwarding capability. The AC6805 can manage 6144 APs. From V200R023C00SPC100, the AC6805 can manage a maximum of 10240 APs.
High flexibility: flexible data forwarding modes, including direct forwarding and tunnel forwarding, and fine-grained user rights management with user- and role-based access control.
Abundant O&M methods: various network O&M methods, including eSight, web system, and Command Line Interface (CLI).

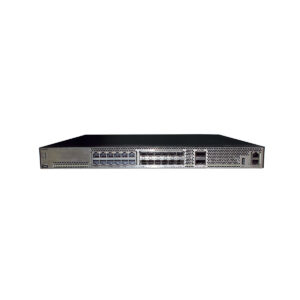

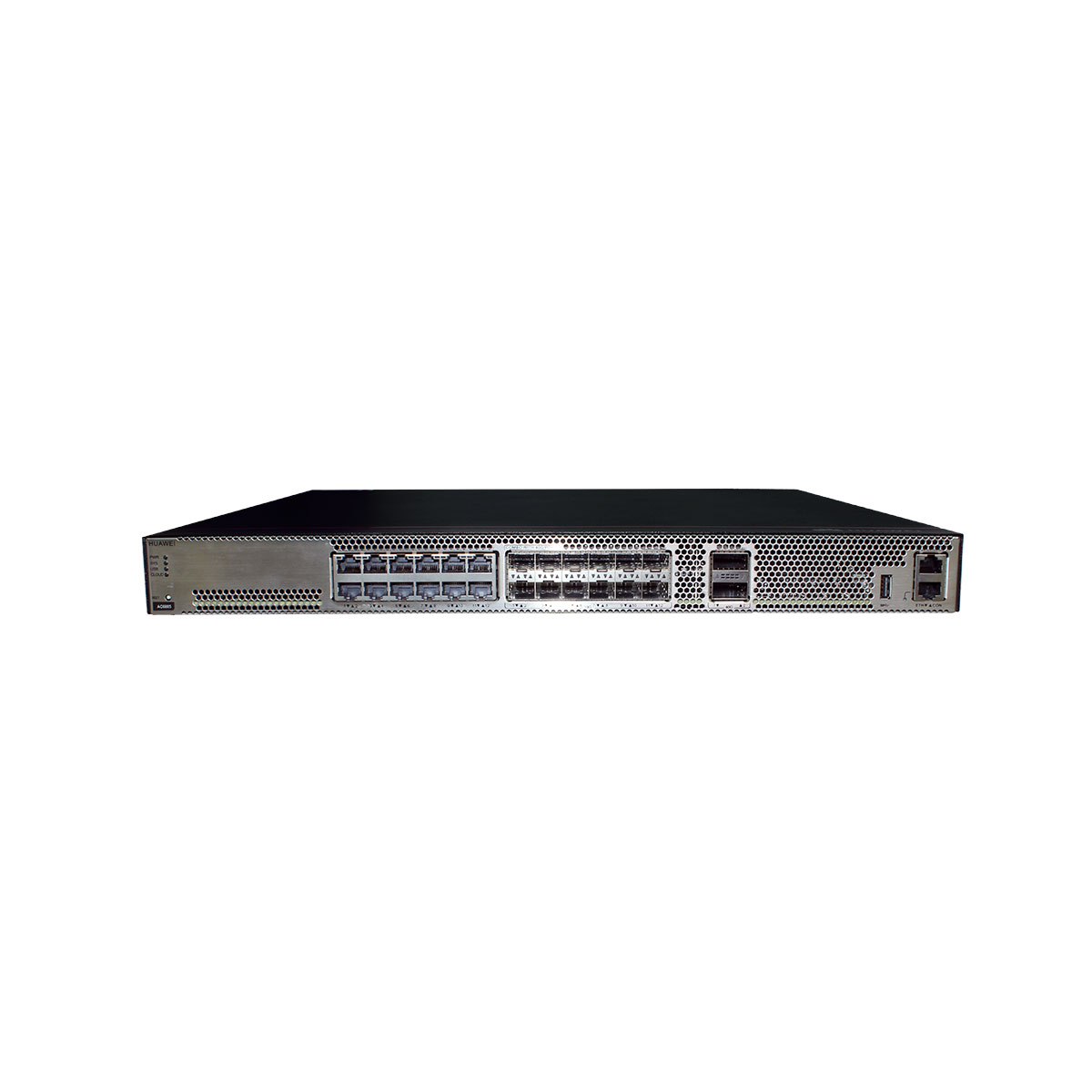

Front panel of the AC6805

AC6805

Front panel of the AC6805

Ports on the AC6805

1	GE	2	SFP+
3	QSFP+	4	USB
5	CON	6	ETH

Item	AC6805
Storage	M.2 memory card 32 GB
Console port	RJ45
Eth Management port	RJ45
Maximum power consumption [W]	202.5 W
Maximum heat dissipation [BTU/hour]	690.89 BTU/hour
Power supply mode	Pluggable power supply
Service port surge protection	6 kV in common mode
Types of fans	Pluggable
Number of fan modules	4
Maximum number of physical ports on the entire device	240G (QSFP+)+1210GE (SFP+)+12*GE One 40G interface and four 10G interfaces are mutually exclusive.
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)]	≤ 55 dBA
Ground	Ground
USB	Standard USB 3.0 port (host type A) x 1
MTBF [year]	50 year
MTTR [hour]	2 hour
Installation Type	Rack
Dimensions without packaging (H x W x D) [mm(in.)]	Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.)
Weight without packaging [kg(lb)]	6.39 kg (14.09 lb)
