Home/GPON Network/Huawei GPON/Huawei WLAN/AC6800V
AC6800V 1

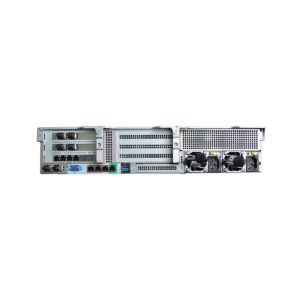

AC6800V 2
Categories:

AC6800V

0 Reviews Write a review
PN02312DUF
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AC6800V with 6*GE RJ45, 6*10GE SFP+, Dual Slots of power, With Power Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AC6800V overview

Huawei AC6800V is an X86-based access controller (AC). The AC6800V has a large capacity and high performance. It can manage up to 10240 access points (APs). It is highly reliable, easy to install and maintain, and features such advantages as flexible networking and energy conservation.

The AC6800V has the following features:

  • Has various user policy management and authority control capabilities.
  • Can be managed using the eSight, web system, or command line interface (CLI).
Item AC6800V
Storage SSD 150 GB x 2 ; RAID x 1
Console port RJ45
Maximum power consumption [W] 350 W
Maximum heat dissipation [BTU/hour] 1194.1 BTU/hour
Power supply mode Pluggable power supply
Input voltage range [V] 90 V to 264 V
Service port surge protection 2 kV in common mode
Types of fans Built-in
Maximum number of physical ports on the entire device 6 x 10GE (SFP+) + 6 x GE
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 3048 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 220 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 8% RH to 90% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +3048 m (–196.85 ft to +10000.00 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)] ≤ 55 dBA
Ground Ground
MTBF [year] 26.3 year
MTTR [hour] 2 hour
Installation Type Rack
Dimensions without packaging (H x W x D) [mm(in.)] 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
Weight without packaging [kg(lb)] 21 kg (46.30 lb)

Additional information

Brand

Huawei
Item AC6800V
Storage SSD 150 GB x 2 ; RAID x 1
Console port RJ45
Maximum power consumption [W] 350 W
Maximum heat dissipation [BTU/hour] 1194.1 BTU/hour
Power supply mode Pluggable power supply
Input voltage range [V] 90 V to 264 V
Service port surge protection 2 kV in common mode
Types of fans Built-in
Maximum number of physical ports on the entire device 6 x 10GE (SFP+) + 6 x GE
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 3048 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 220 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 8% RH to 90% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +3048 m (–196.85 ft to +10000.00 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)] ≤ 55 dBA
Ground Ground
MTBF [year] 26.3 year
MTTR [hour] 2 hour
Installation Type Rack
Dimensions without packaging (H x W x D) [mm(in.)] 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
Weight without packaging [kg(lb)] 21 kg (46.30 lb)
