Huawei AirEngine 5762-12SW is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

 AirEngine 5762-12SW overview

Huawei AirEngine 5762-12SW is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard.

It supports high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is applicable to indoor coverage scenarios, such as small- and medium-sized offices, houses, and hotels.

  • Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
  • Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
  • Built-in smart antennas
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
  • Working modes: Fit, Fat, and cloud management

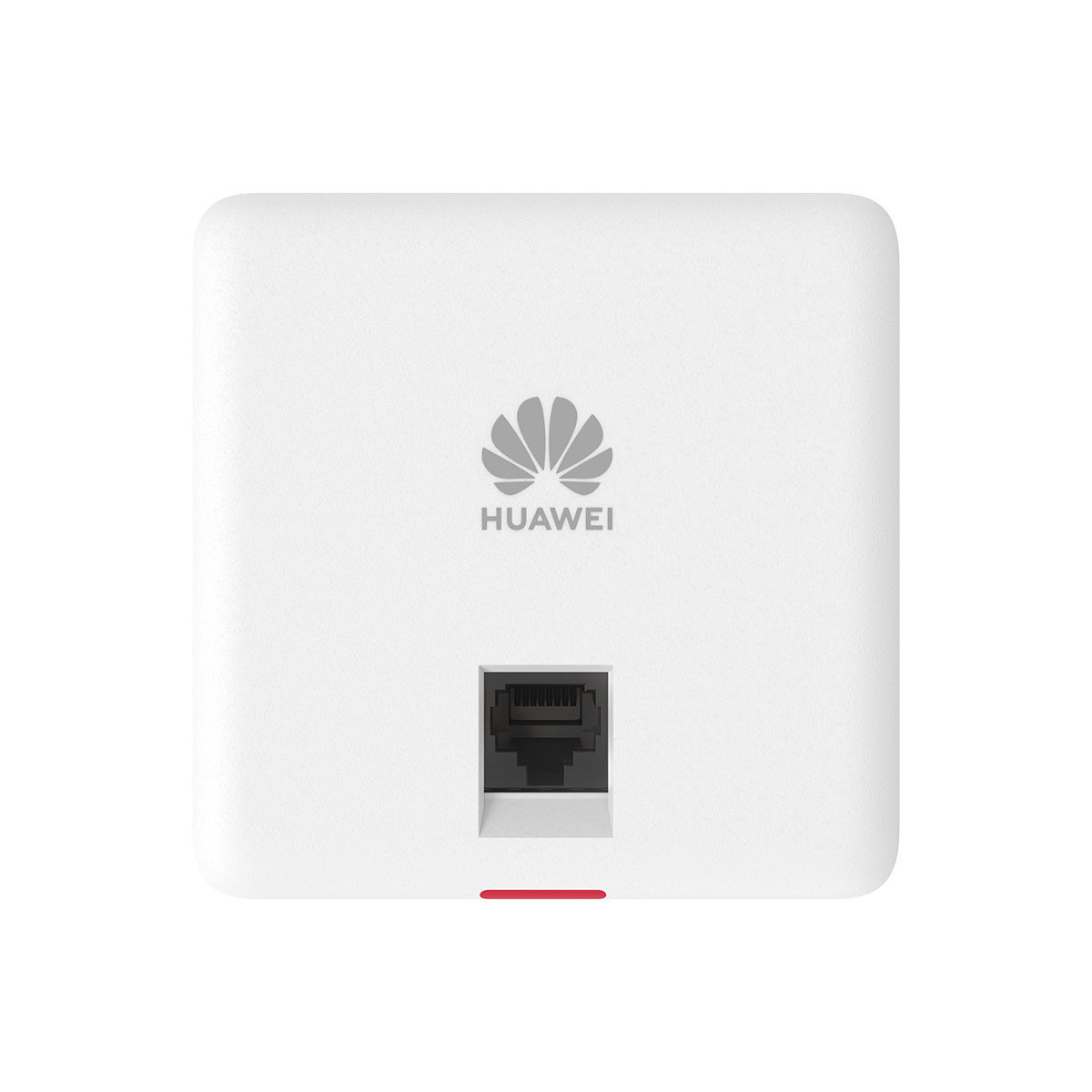

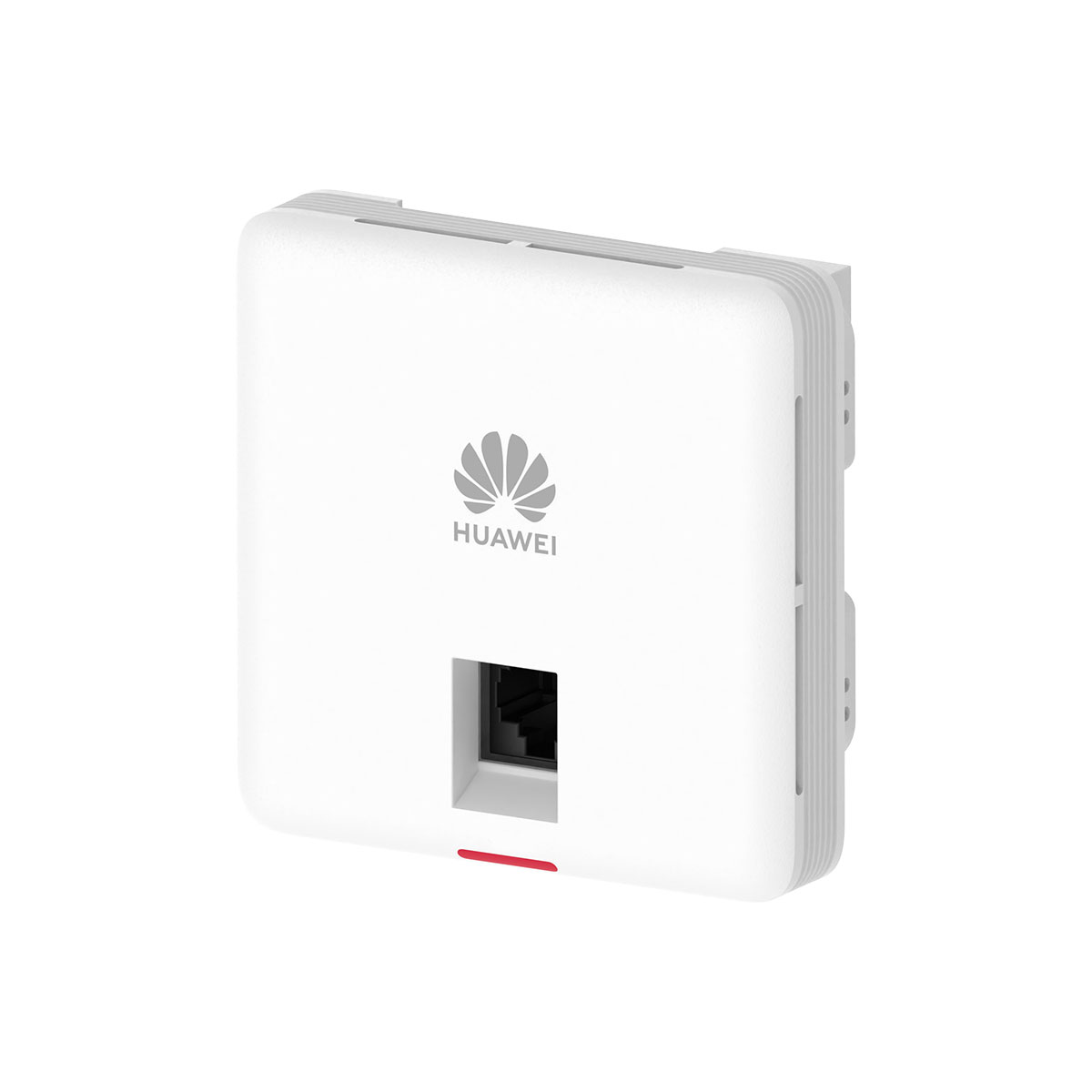

Front panel of the AirEngine 5762-12SW board

AirEngine 5762-12SW

Front panel of the AirEngine 5762-12SW board

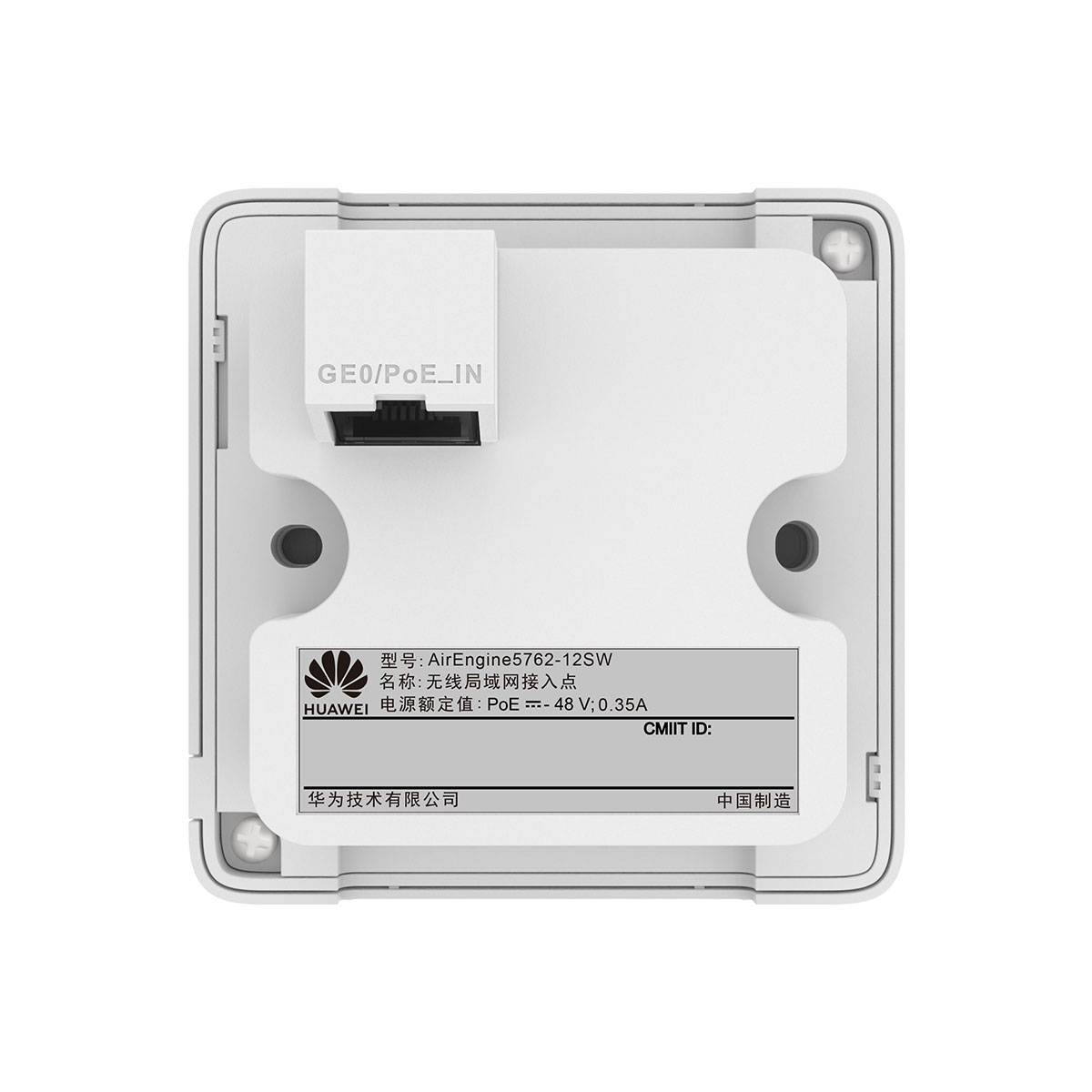

Ports on the AirEngine 5762-12SW

1

GE0/PoE_IN

2

GE1



Item AirEngine 5762-12SW
Installation Type Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 86 mm x 86 mm x 46 mm (3.39 in. x 3.39 in. x 1.81 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 115 mm x 100 mm (2.95 in. x 4.53 in. x 3.94 in.)
Weight without packaging [kg(lb)] 0.185 kg (0.408 lb)
Weight with packaging [kg(lb)] 0.255 kg (0.562 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

17 dBm/chain

20 dBm (combined power)

5G:

17 dBm/chain

20 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4 GHz: -10 dBm to +17 dBm/chain

5 GHz: -10 dBm to +17 dBm/chain
MTBF [year] 242 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3af power supply description No function is limited.

Additional information

Brand

Huawei
Item AirEngine 5762-12SW
Installation Type Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 86 mm x 86 mm x 46 mm (3.39 in. x 3.39 in. x 1.81 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 115 mm x 100 mm (2.95 in. x 4.53 in. x 3.94 in.)
Weight without packaging [kg(lb)] 0.185 kg (0.408 lb)
Weight with packaging [kg(lb)] 0.255 kg (0.562 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

17 dBm/chain

20 dBm (combined power)

5G:

17 dBm/chain

20 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4 GHz: -10 dBm to +17 dBm/chain

5 GHz: -10 dBm to +17 dBm/chain
MTBF [year] 242 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3af power supply description No function is limited.
