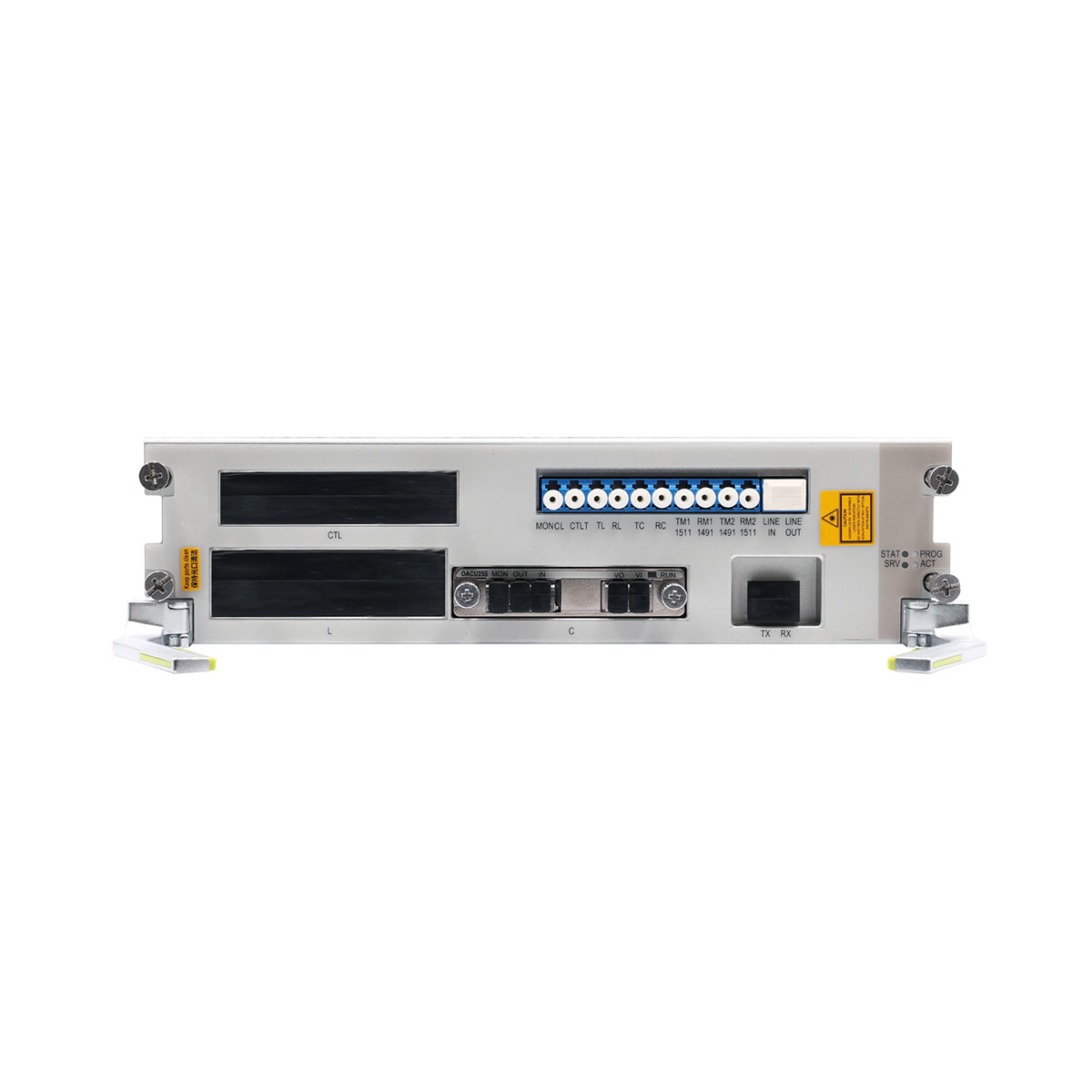

Huawei OSN 9800 M05/M12/M24 OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2WDAPXF overview

TNG2WDAPXF OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU.

Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24, it supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control.

TNG2WDAPXF supports Optical-layer ASON  in single-fiber bidirectional (dual-OSC configuration) OSC scenario and two-fiber bidirectional (single-OSC configuration) OSC scenario.

TNG2WDAPXF supports Alarms and performance events monitoring and Gain locking functions.

The WDAPXF board provides the optical amplification function, the WXFIU unit function (main channel and OSC channel multiplexing and demultiplexing). The WDAPXF board supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control.

Valid slots
Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
OptiX OSN 9800 M12 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU6, IU7) IU6
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU12, IU13) IU12
OptiX OSN 9800 M24 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU13, IU14) IU13
(IU14, IU15) IU14
(IU15, IU16) IU15
(IU16, IU17) IU16
(IU17, IU18) IU17
(IU19, IU20) IU19
(IU20, IU21) IU20
(IU21, IU22) IU21
(IU22, IU23) IU22
(IU23, IU24) IU23
Item
TNG2WDAPXF
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module One-channel pluggable optical amplifier module that operates in C band: Supports 120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H The L band optical amplifier module is reserved, and is not supported by the current version.
NOTE:
The default Channel Number Mode of the board is C120 Mode. Set the correct number of system wavelengths for the OA module based on specific parameters.
Working mode
  • Supports the gain locking, power locking and APC modes.
  • In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default.
  • The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present.
  • Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Basic EDFA function
  • Amplifies the power of the received optical signals in the Super C-band. This board supports wavelengths within the range of 1524.3 nm to 1572.5 nm.
  • Reserves the capability of amplifying optical signals in the L band.
  • Supports service transmission with varying fiber spans without using electrical regeneration.
Gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power
  • TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power
  • TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power.
  • TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power.
  • TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
Transient control The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Operating wavelength of the OSC
  • TM1/RM2: 1504.5nm to 1520nm
  • TM2/RM1: 1478nm to 1497.5nm
Line fiber quality monitoring
  • Working with the TNG2AST2 board, the line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported.
  • The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
NOTE:
This board can be applied to the single-fiber bidirectional OSC scenario or the two-fiber bidirectional OSC scenario, and FD single-fiber bidirectional detection is supported in the single-fiber bidirectional OSC scenario.
Optical Doctor Supported
Optical-layer ASON
  • Supported in single-fiber bidirectional (dual-OSC configuration) OSC scenario and two-fiber bidirectional (single-OSC configuration) OSC scenario
  • Not supported in single-fiber bidirectional (single-OSC configuration) OSC scenario
FIU function
  • Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process.
  • In single-fiber bidirectional (single-OSC configuration) OSC scenario and single-fiber bidirectional (dual-OSC configuration) OSC scenario, neither commissioning nor delay compensation is required for IEEE 1588V2 clocks.
Alarm and performance event monitoring
  • Detects and reports optical power levels.
  • Monitors the temperature of the pump laser.
  • Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item
TNG2WDAPXF
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module One-channel pluggable optical amplifier module that operates in C band: Supports 120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H The L band optical amplifier module is reserved, and is not supported by the current version.
NOTE:
The default Channel Number Mode of the board is C120 Mode. Set the correct number of system wavelengths for the OA module based on specific parameters.
Working mode
  • Supports the gain locking, power locking and APC modes.
  • In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default.
  • The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present.
  • Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Basic EDFA function
  • Amplifies the power of the received optical signals in the Super C-band. This board supports wavelengths within the range of 1524.3 nm to 1572.5 nm.
  • Reserves the capability of amplifying optical signals in the L band.
  • Supports service transmission with varying fiber spans without using electrical regeneration.
Gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power
  • TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power
  • TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power.
  • TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power.
  • TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
Transient control The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Operating wavelength of the OSC
  • TM1/RM2: 1504.5nm to 1520nm
  • TM2/RM1: 1478nm to 1497.5nm
Line fiber quality monitoring
  • Working with the TNG2AST2 board, the line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported.
  • The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
NOTE:
This board can be applied to the single-fiber bidirectional OSC scenario or the two-fiber bidirectional OSC scenario, and FD single-fiber bidirectional detection is supported in the single-fiber bidirectional OSC scenario.
Optical Doctor Supported
Optical-layer ASON
  • Supported in single-fiber bidirectional (dual-OSC configuration) OSC scenario and two-fiber bidirectional (single-OSC configuration) OSC scenario
  • Not supported in single-fiber bidirectional (single-OSC configuration) OSC scenario
FIU function
  • Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process.
  • In single-fiber bidirectional (single-OSC configuration) OSC scenario and single-fiber bidirectional (dual-OSC configuration) OSC scenario, neither commissioning nor delay compensation is required for IEEE 1588V2 clocks.
Alarm and performance event monitoring
  • Detects and reports optical power levels.
  • Monitors the temperature of the pump laser.
  • Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
