TNF8SL16Q

TNF8SL16Q overview

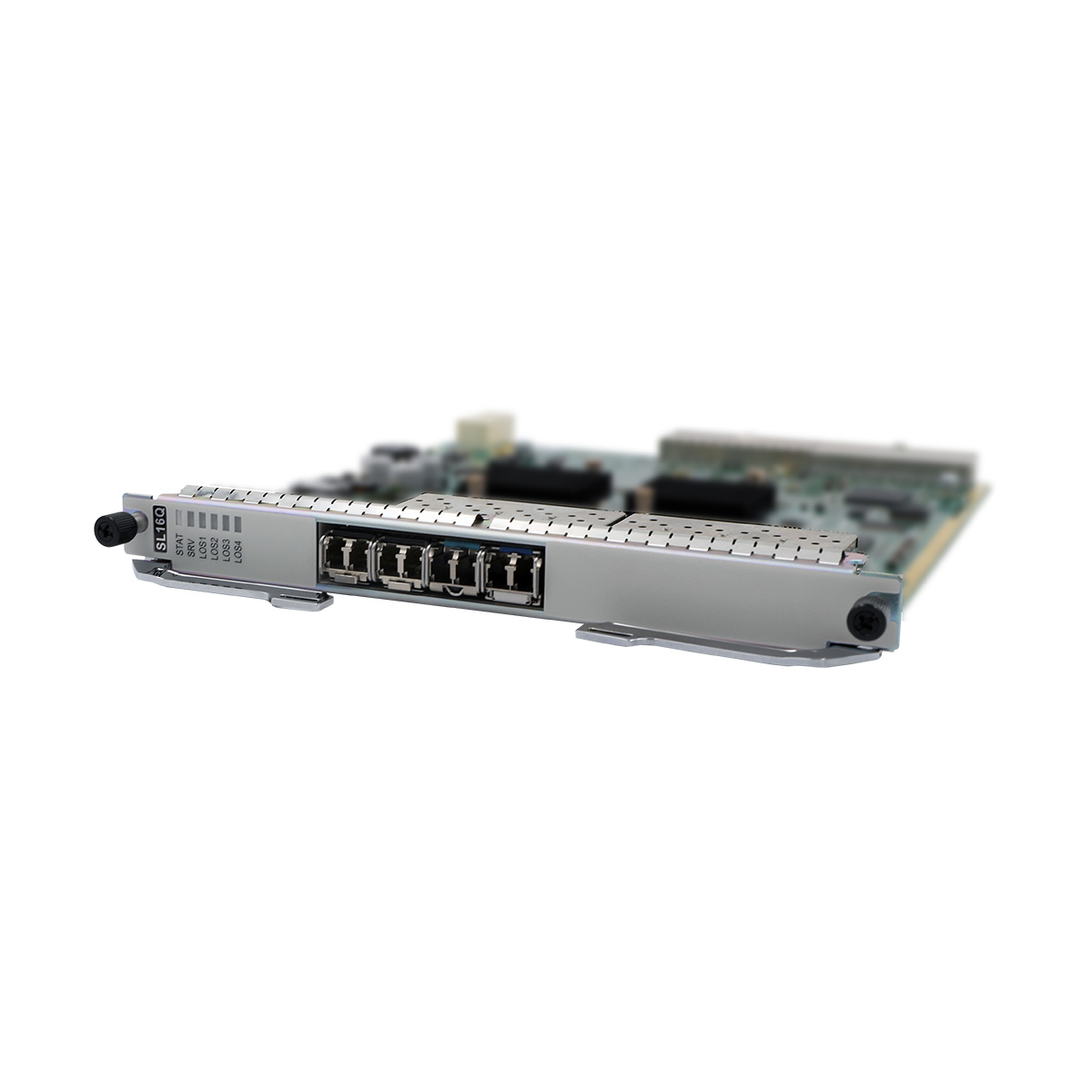

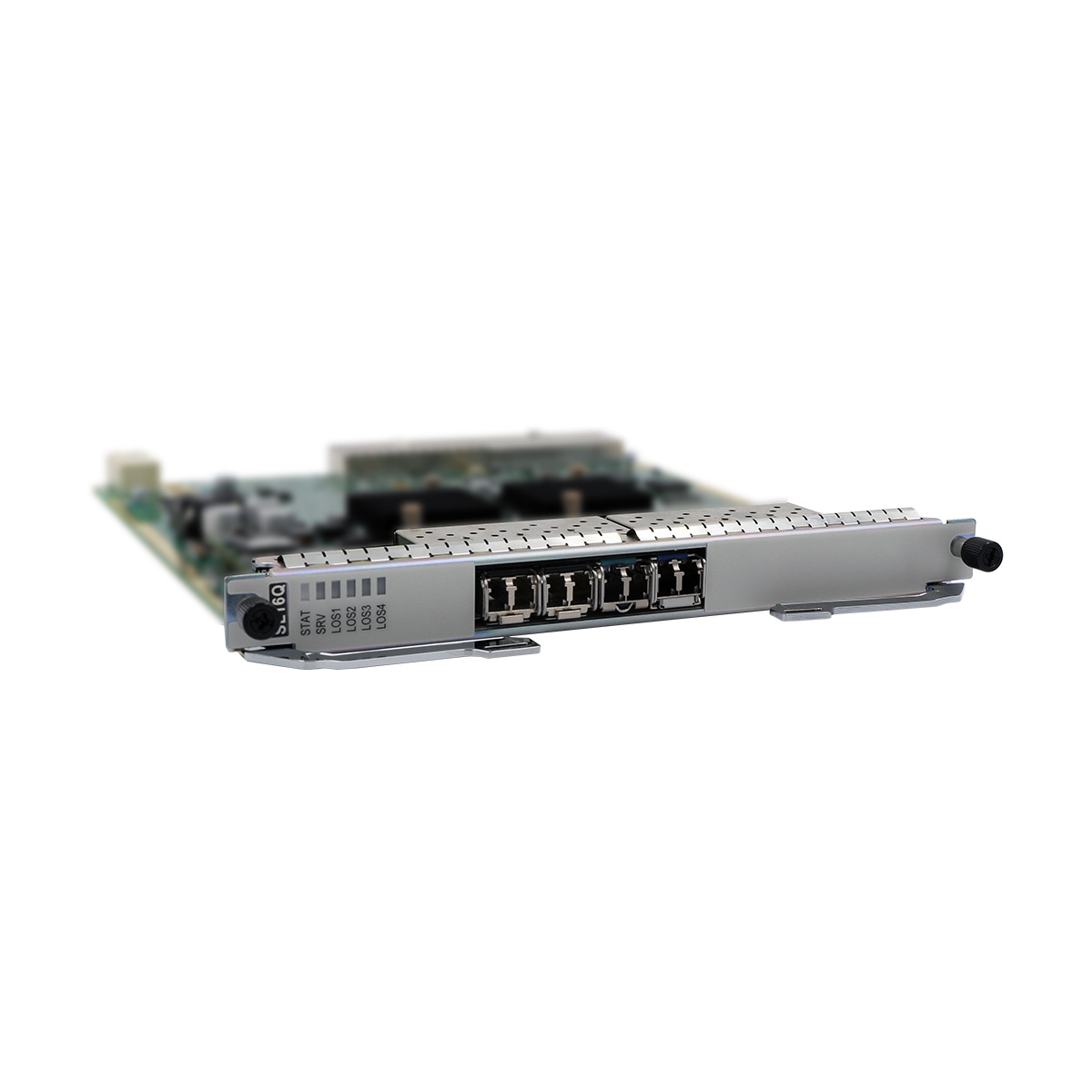

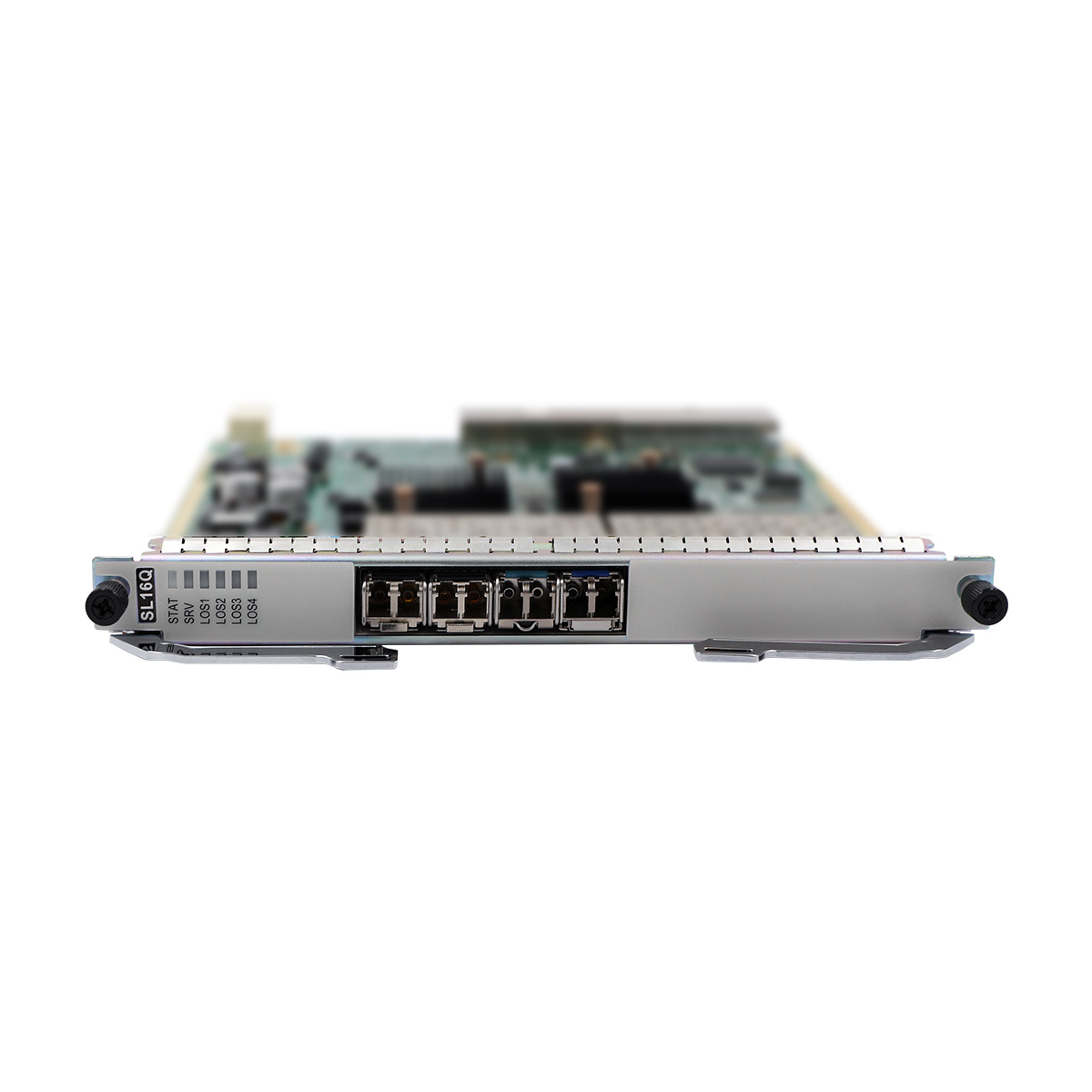

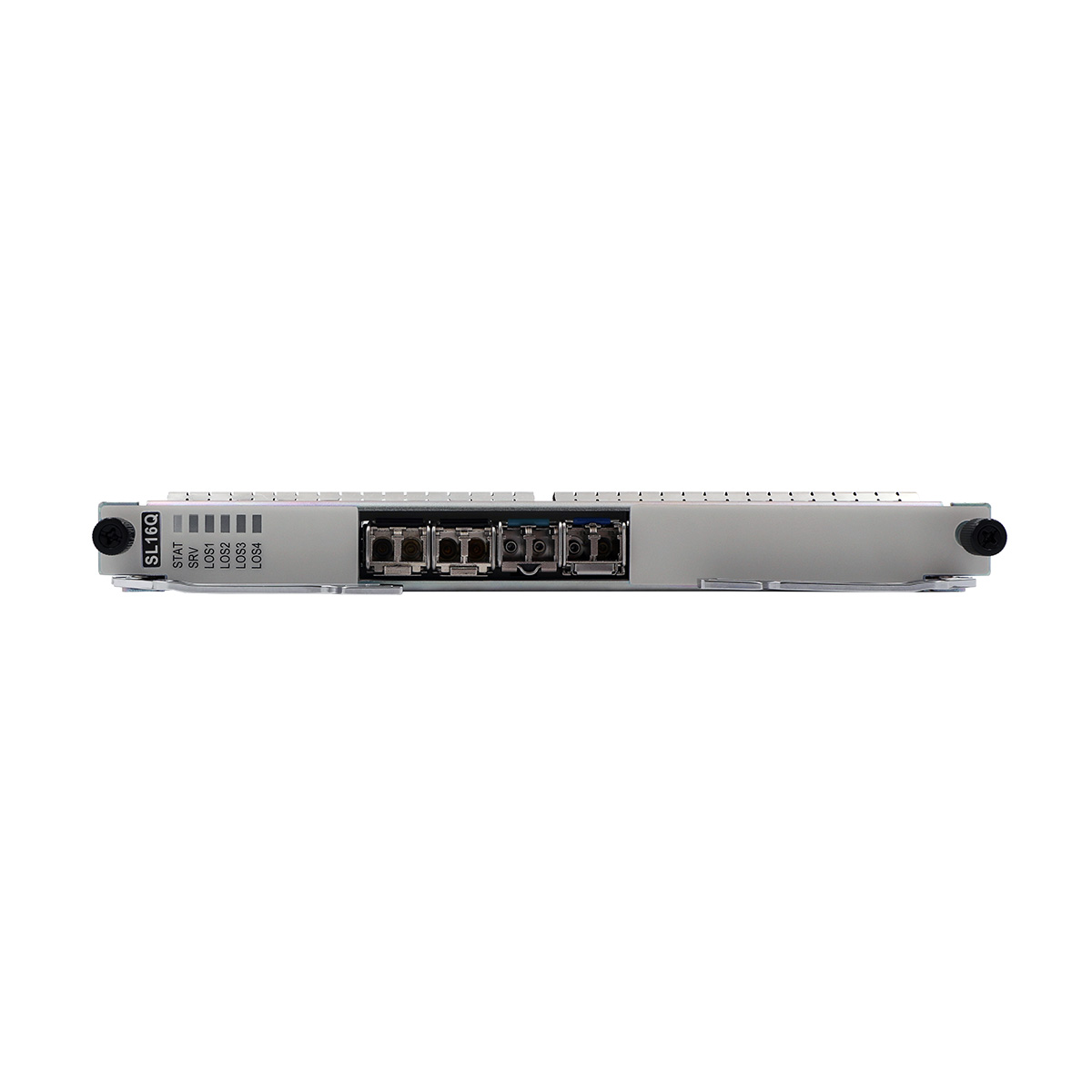

TNF8SL16Q 4*STM-16 processing board applied to Huawei OSN 1800V.

The SL16Q can be used to receive and transmit four STM-16 optical signals. The SL16Q converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SL16Q converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

One SL16Q board receives and transmits four channels of STM-16 optical signals, performs O/E conversion for STM-16 signals, extracts and inserts overhead bytes, and reports alarms generated on the line.
