M450

M450 overview

M450 GPON Terminal with 1*GE+3*FE+CATV+2*USB+2.4G&5G WIFI 5dBi, CATV controllable, which is based on ZXIC chip.

The high forwarding performance ensures the user experience of voice and data services and provides customers with an ideal all-optical access solution and future-oriented service support capability.

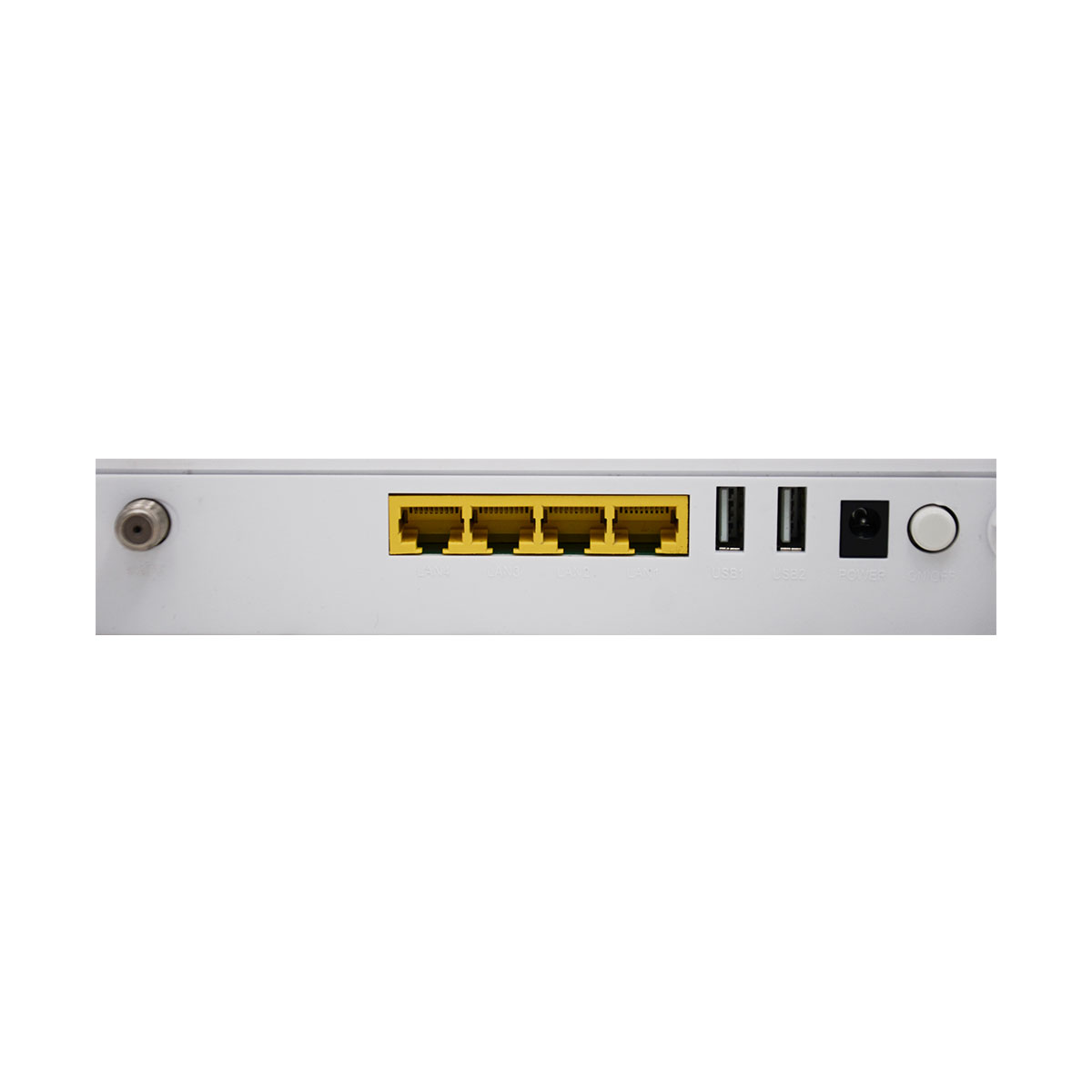

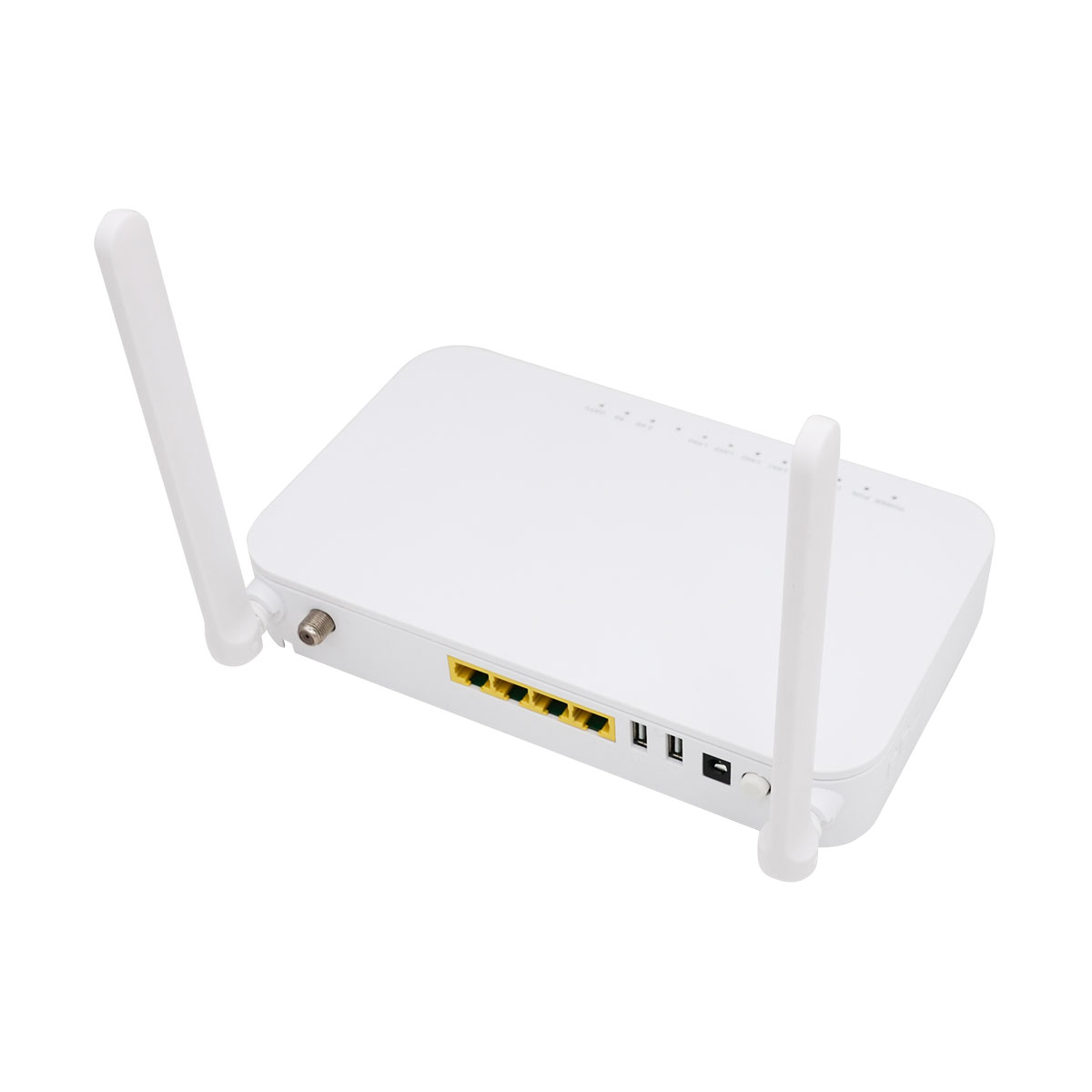

• Interface: 1*GE+3*FE+CATV+2*USB+WIFI
• 5dBi High-Gain Antenna
• TR069/TMS/Web UI Supported
• ENG firmware, ENG interface, ENG indicator
• Connector type: SC/APC
• GPON/EPON Supported

Optical port:

• 1xGPON interface (SC/APC)
• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310nm, DS 1490nm
• Transmission Distance: 0 ~ 20km
• Transmit rate: 2.488Gbps
• downstream; 1.244Gbps upstream

WLAN:

• IEEE 802.11 b/g/n(2.4G)
• IEEE 802.11 a/n/ac(5G)
• 8xSSIDs(2.4/5G)
• 2×2 MIMO(2.4G&5G)
• Rate：300 Mbit/s(2.4G)867 Mbit/s(5G)
• Antenna gain: 5 dBi
• WPS
