S5735-L24T4S-QA1

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN98011585

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5735-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

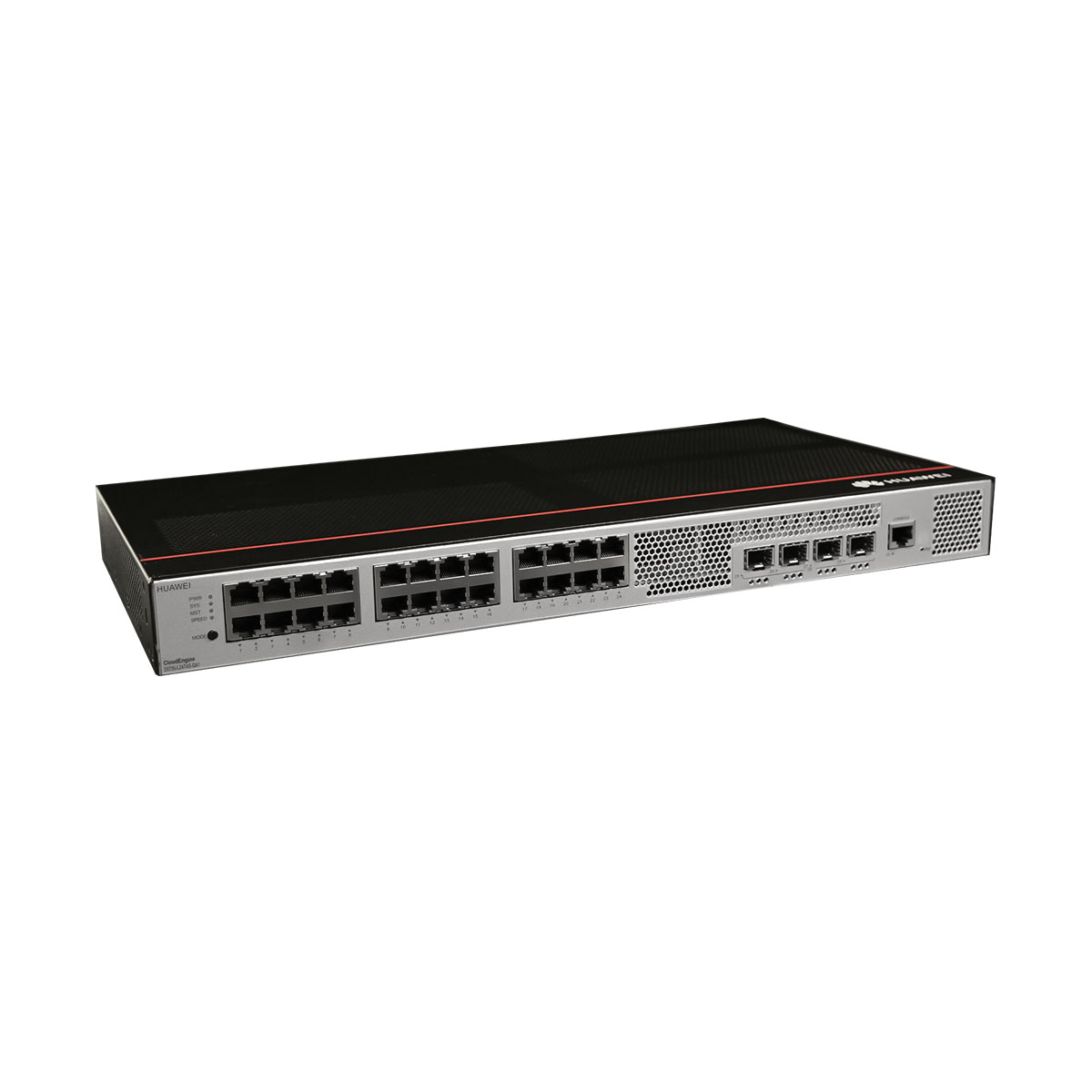

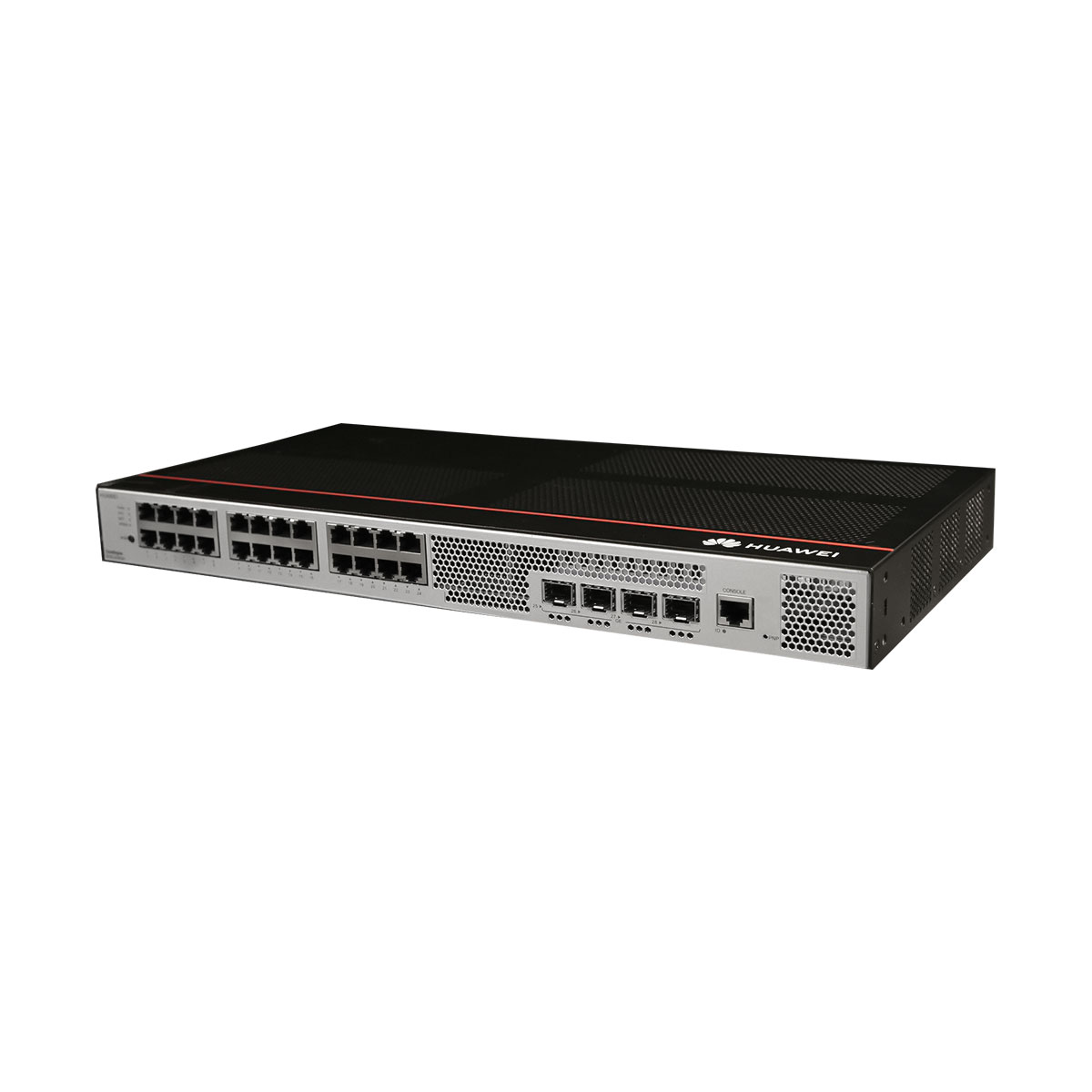

Huawei S5735-L24T4S-QA1 switch supports 24 10/100/1000BASE-T ports, 4 1000BASE-X ports, AC power supply

24 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735-L24T4S-QA1 overview

This Huawei S5735-L24T4S-QA1 switch comes with 24 10/100/1000Base-T ports, 4 1000BASE-X ports, AC power supply, which is one model of the Huawei S5735-L series switch.

Huawei CloudEngine S5735-L series are simplified Gigabit Ethernet switches that provide allGE downlink ports and GE or 10GE uplink ports.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngineS5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and
diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5735-L8P4S-QA1 quick spec

24 10/100/1000Base-T ports

4 1000BASE-X ports

AC power supply

Forwarding performance: 42 Mpps

Switching capacity: 56 Gbps/336 Gbps

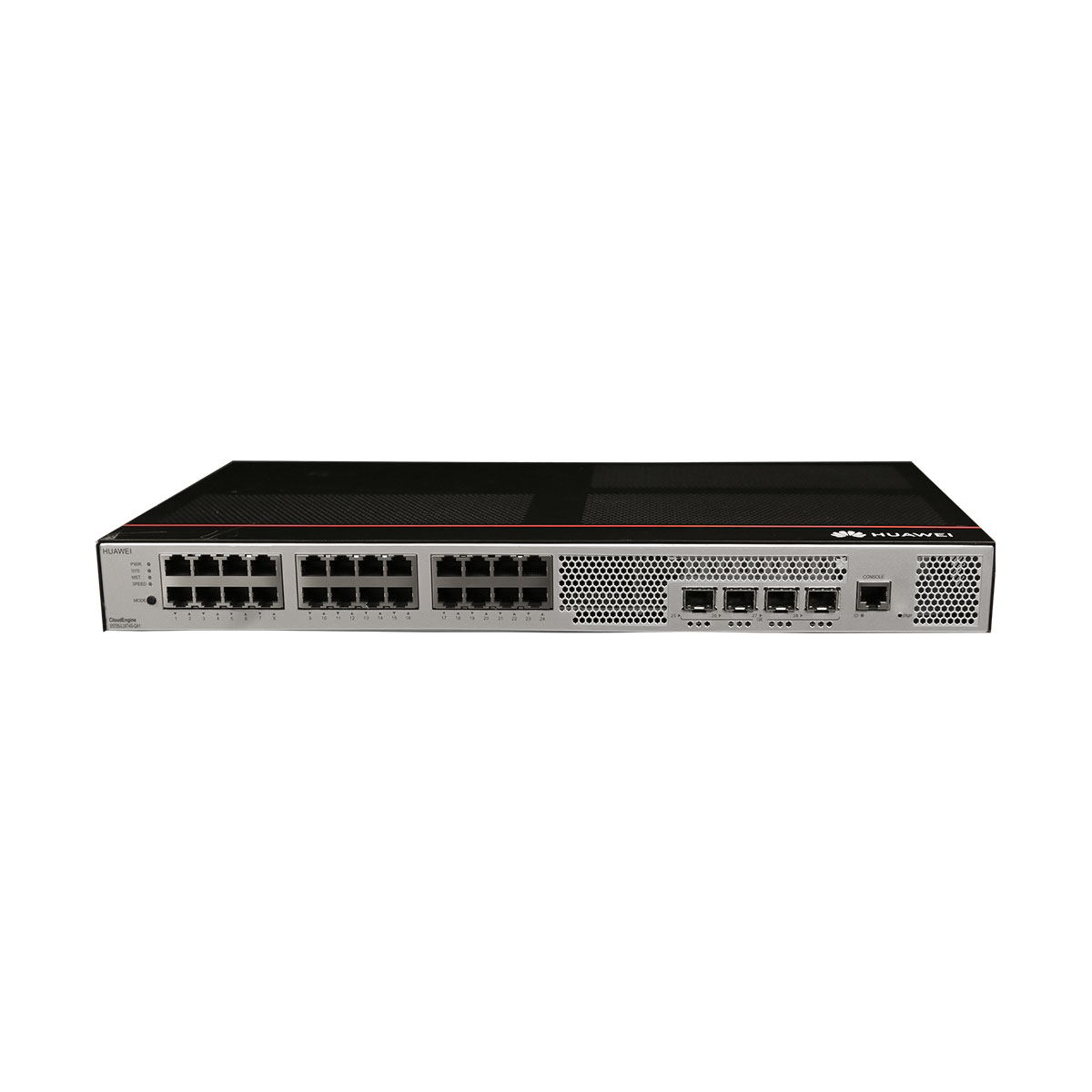

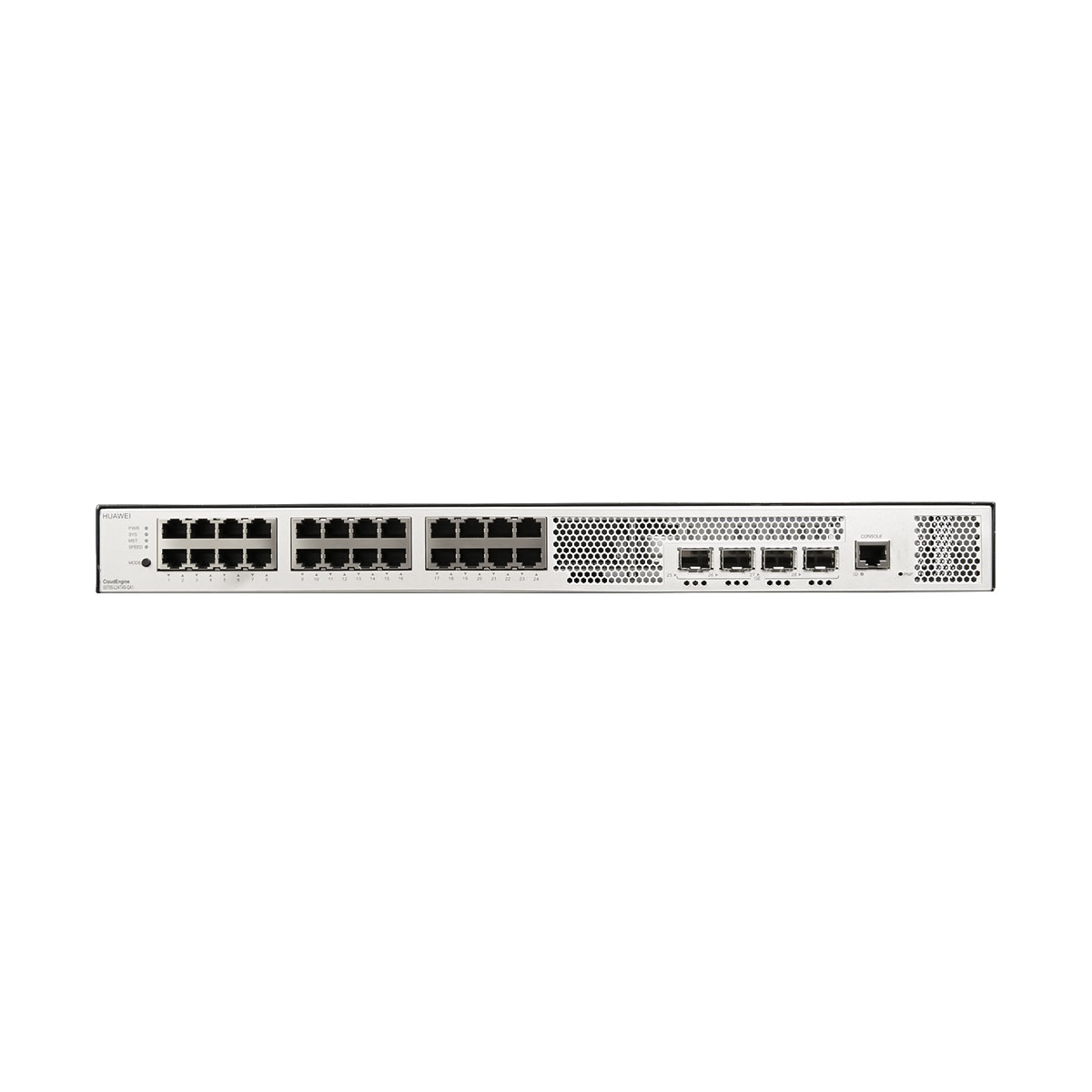

S5735-L24T4S-QA1 appearance and structure

1	24 10/100/1000BASE-T ports
2	4 1000BASE-X ports
3	One console port
4	One PNP button
5	Ground screw
6	Jack for AC power cable locking strap
7	AC socket
8	–

Item	S5735-L24T4S-QA1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.69 kg (8.14 lb)
Weight with packaging [kg(lb)]	4.45 kg (9.81 lb)
Typical power consumption [W]	29.8 W
Typical heat dissipation [BTU/hour]	101.68 BTU/hour
Maximum power consumption [W]	33 W
Maximum heat dissipation [BTU/hour]	112.60 BTU/hour
MTBF [year]	66.16 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A]	2 A

Item	S5735-L24T4S-QA1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.69 kg (8.14 lb)
Weight with packaging [kg(lb)]	4.45 kg (9.81 lb)
Typical power consumption [W]	29.8 W
Typical heat dissipation [BTU/hour]	101.68 BTU/hour
Maximum power consumption [W]	33 W
Maximum heat dissipation [BTU/hour]	112.60 BTU/hour
MTBF [year]	66.16 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A]	2 A

Brand	Huawei
Campus Switch	S5735-L
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
