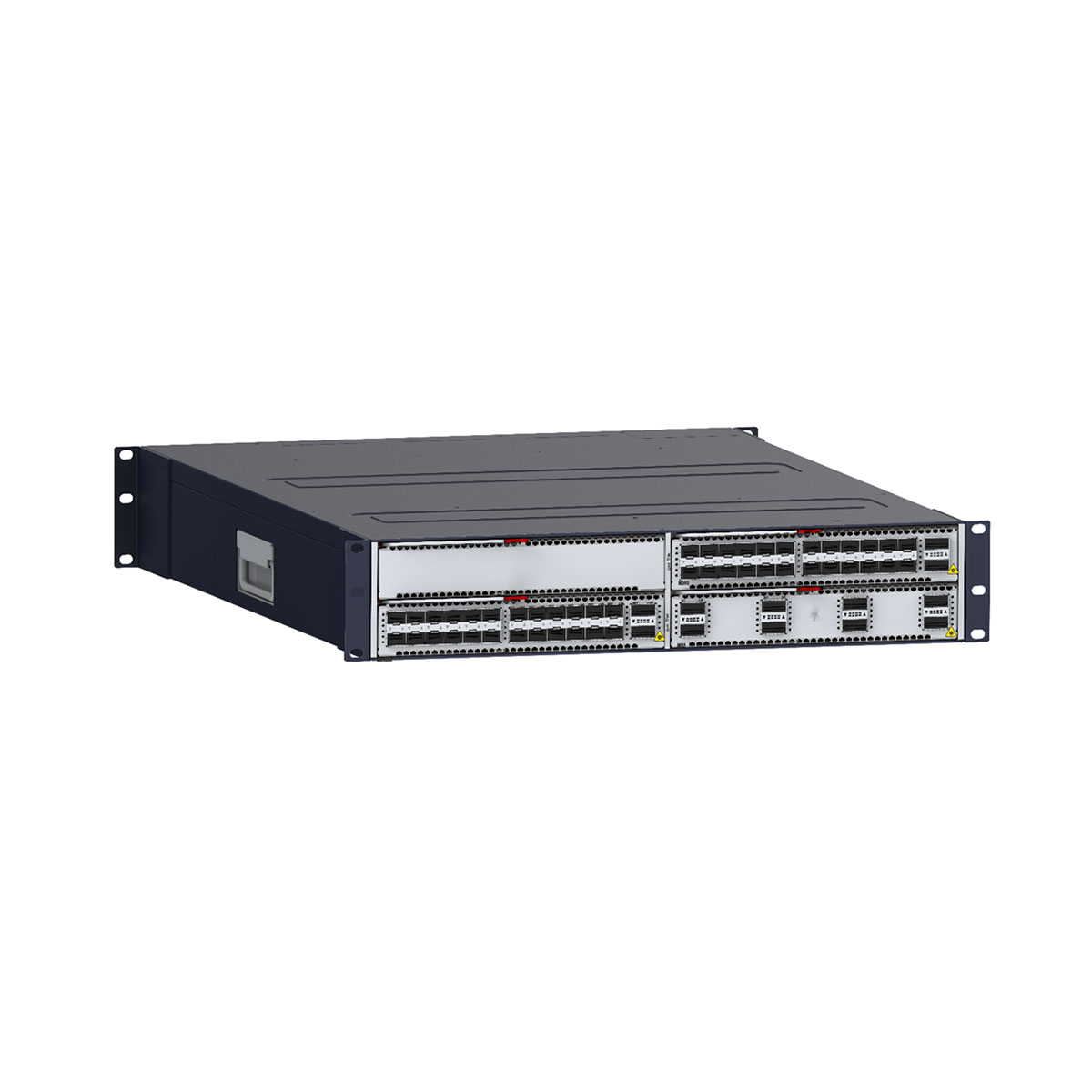

ZXR10 5960-4M-S provides 4 daughter card slots, each of which supports the following four daughter cards.
M24Q2U daughter card provides 24 25 Gbps optical ports and 2 100 Gbps optical ports.
M24Q daughter card, providing 24 25 Gbps optical interfaces.
M8U daughter card, providing eight 100 Gbps optical ports.
M24N2U daughter card provides 24 10Gbps electrical ports and 2 100 Gbps optical ports.
| Item | ZXR10 5960-4M-S | ZXR10 5960- 72DL-H | ZXR10 5960- 64DL-H |
| Dimensions (H×W×D) | 88.1 mm×444 mm×600 mm | 43.6 mm×442 mm×440 mm | |
| Weight | ≤ 21 kg | ≤ 9 kg | ≤ 9 kg |
| Power Module | AC power supply: 100 V～127 V/200 V～240 V, 50 Hz～60 Hz, support 240 V/336 V high voltage DC input | AC power supply: 100 V to 127 V/200 V to 240 V, 50 Hz～60 Hz, support 240 V high voltage DC input | |
| DC power supply: -40V to -72V | DC power supply: -38.4 V to -57.6 V | ||
| Power consumption | Fully configured with 4 M8U daughter cards: Typical power consumption 378 W Maximum power consumption < 542 WFully configured with 4 M24Q2U daughter cards: Typical power consumption 380 W Maximum power consumption < 638 W Fully configured with 4 M24Q daughter cards: Typical power consumption 332 W Maximum power consumption < 598 W Fully configured with 4 M24N2U daughter cards: Typical power consumption 620 W Maximum power consumption <660 W | Typical power consumption 158 W Maximum power consumption < 231 W | Typical power consumption 148 W Maximum power consumption < 221 W |
| Reliability |
MTBF：> 300000 hours
MTTR：< 30 minutes |
||
| EMC | ETSI EN 300 386 | ||
| Safety standard |
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC 60825-1
IEC 60825-2
|
||
| Ambient temperature |
The working temperature is -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|
Working temperature -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|
|
| Switch capacity |
6.4 Tbps
|
1440 Gbps
|
1280 Gbps
|
| Brand | ZTE |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | ZXR10 5960-4M-S | ZXR10 5960- 72DL-H | ZXR10 5960- 64DL-H |
| Dimensions (H×W×D) | 88.1 mm×444 mm×600 mm | 43.6 mm×442 mm×440 mm | |
| Weight | ≤ 21 kg | ≤ 9 kg | ≤ 9 kg |
| Power Module | AC power supply: 100 V～127 V/200 V～240 V, 50 Hz～60 Hz, support 240 V/336 V high voltage DC input | AC power supply: 100 V to 127 V/200 V to 240 V, 50 Hz～60 Hz, support 240 V high voltage DC input | |
| DC power supply: -40V to -72V | DC power supply: -38.4 V to -57.6 V | ||
| Power consumption | Fully configured with 4 M8U daughter cards: Typical power consumption 378 W Maximum power consumption < 542 WFully configured with 4 M24Q2U daughter cards: Typical power consumption 380 W Maximum power consumption < 638 W Fully configured with 4 M24Q daughter cards: Typical power consumption 332 W Maximum power consumption < 598 W Fully configured with 4 M24N2U daughter cards: Typical power consumption 620 W Maximum power consumption <660 W | Typical power consumption 158 W Maximum power consumption < 231 W | Typical power consumption 148 W Maximum power consumption < 221 W |
| Reliability |
MTBF：> 300000 hours
MTTR：< 30 minutes |
||
| EMC | ETSI EN 300 386 | ||
| Safety standard |
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC 60825-1
IEC 60825-2
|
||
| Ambient temperature |
The working temperature is -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|
Working temperature -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|
|
| Switch capacity |
6.4 Tbps
|
1440 Gbps
|
1280 Gbps
|
