5950-56TM-H

Name: 5950-56TM-H
SKU: 2009235
Rating: 4.00 (1 reviews)

Rated 4.00 out of 5 based on 1 customer rating

1 Review Write a review

SKU2009235

BrandsZTE

AvailabilityIn Stock

WarrantyUp to 36 months

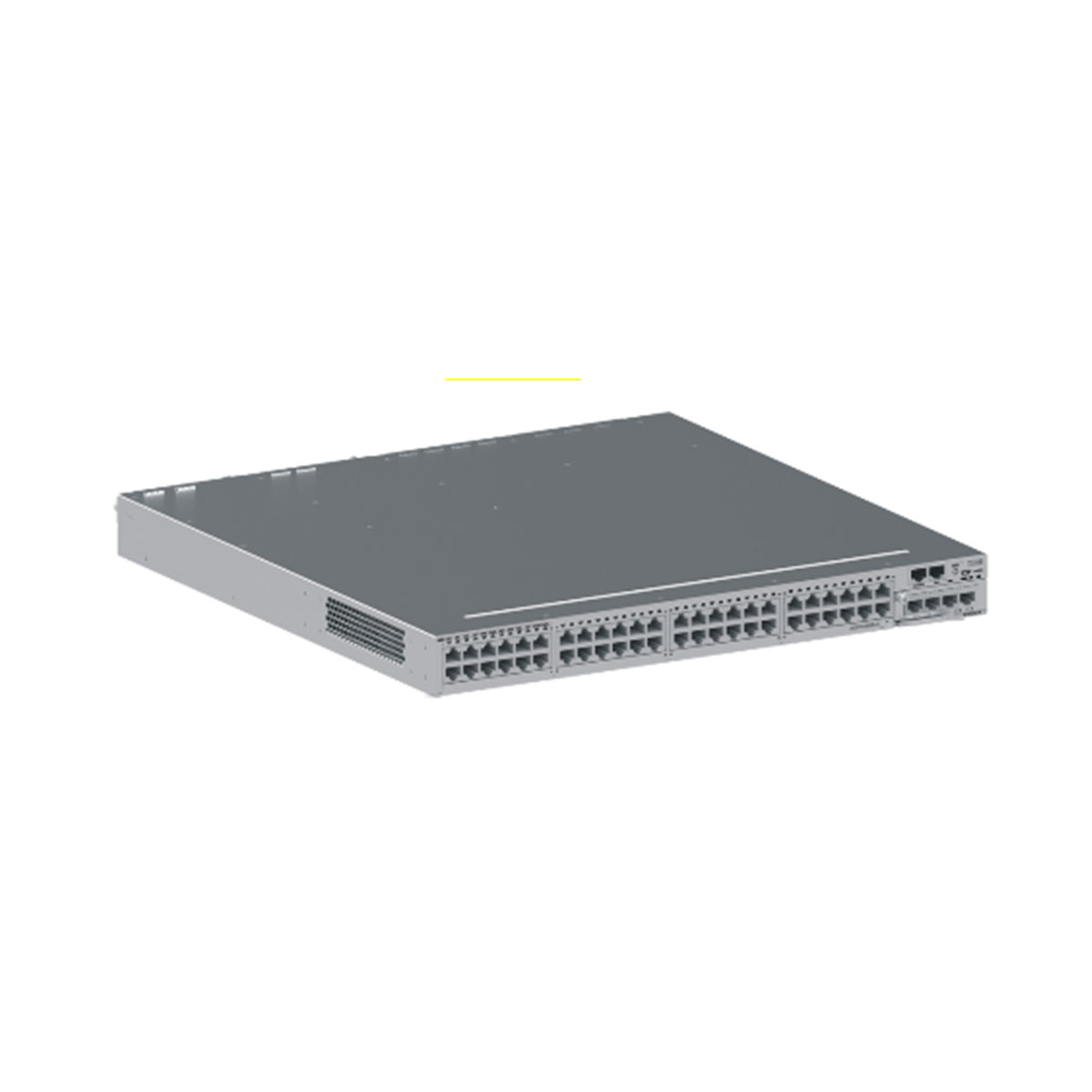

ZTE ZXR10 5950-56TM-H supports 48 GE electrical interfaces (RJ45)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ZXR10 5950-56TM-H supports 48 GE electrical interfaces (RJ45) that support CAT-5 or higher standard twisted pair cables.

Name	Quantity	Description
10/100/1000Base-T Ethernet port	48	These Ethernet ports are fixed.
Console port	2	One Mini USB and one RJ45 interface for service configuration and management. The two ports cannot be used at the same time.
10/100/1000Base-T management port	1	This interface can be used for downloading boot files or version files.
USB interface	1	Type-A USB interface. Implements data read and write in a USB flash drive.
Expansion daughter card slot at the front panel	1	Supports the following daughter cards: 59-4GE-SF 59-4GE-SF-M 59-4GE-RJ-M 59-4XG-SF-M
Expansion daughter card slot at the rear panel	1	Supports the following daughter cards: 59-4GE-SF 59-4GE-SF-M 59-4GE-RJ-M 59-4XG-SF-M 59-2L-SK

Item	ZXR10 5950-36TM-H	ZXR10 5950-56TM-H	ZXR10 5950-36PM-H	ZXR10 5950-56PM-H
Dimensions (H × W × D)	43.6 mm×442 mm×440 mm
Weight	≤8.3 kg	≤8.4 kg	≤9 kg	≤9.2 kg
Power supply	AC: 100 V to 240 V, 50 Hz to 60 Hz		AC: 100 V to 240 V, 50 Hz to 60 Hz
	DC : -38 V to -57 V
Power consumption	Typical power consumption: 60.5 W	Typical power consumption: 66.7 W	Typical power consumption: 64.5 W	Typical power consumption: 67.6 W
	Maximum power consumption: 87 W	Maximum power consumption: 92 W	Maximum power consumption: 929 W (Output voltage: 53.35 V, maximum output power of PoE: 840 W, and system power consumption: 89 W)	Maximum power consumption: 1036 W (Output voltage: 53.35 V, maximum output power of PoE: 940 W, and system power consumption: 96 W)
Ambient temperature	Operational ambient temperature:
	Long term: -5°C to +45°C
	Short term: -5°C to +55°C
	Storage temperature: -40°C to +70°C
Relative humidity	10% to 90% (non-condensing)
Switching capacity	296 Gbps	336 Gbps	296 Gbps	336 Gbps
Packet forwarding rate	222 Mpps	252 Mpps	222 Mpps	252 Mpps
Memory	2 GB
Environmental specification	Reduction of Hazardous Substances (RoHS)
Reliability	MTBF: > 400000 hours
	MTTR: < 30 minutes
	EMC:
	FCC Part 15 (CFR 47) Class A
	EN 55022 Class A ETSI
	EN 300 386
	EN55024 ICES-003 Class A
	IEC 61000-3-2
	IEC 61000-3-3
	CISPR22 Class A
	CISPR24 ICES-003
	Class A AS/NZS CISPR22
	Class A IEC61000-4-2
	ITU-T K 20
	ITU-T K 21
	ITU-T K 44
	Safety:
	UL 60950 3rd Edition
	CSA C22.2 No. 60950 3rd Edition
	IEC 60950
	EN 60950
	EN60825-1
	EN60825-2
	IEC60825-1
	IEC60825-2

Brand	ZTE
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
