Categories:ZXR10 5950 Series

5950-52PD-L

0 Reviews Write a review

SKU2009232

BrandsZTE

AvailabilityIn Stock

WarrantyUp to 36 months

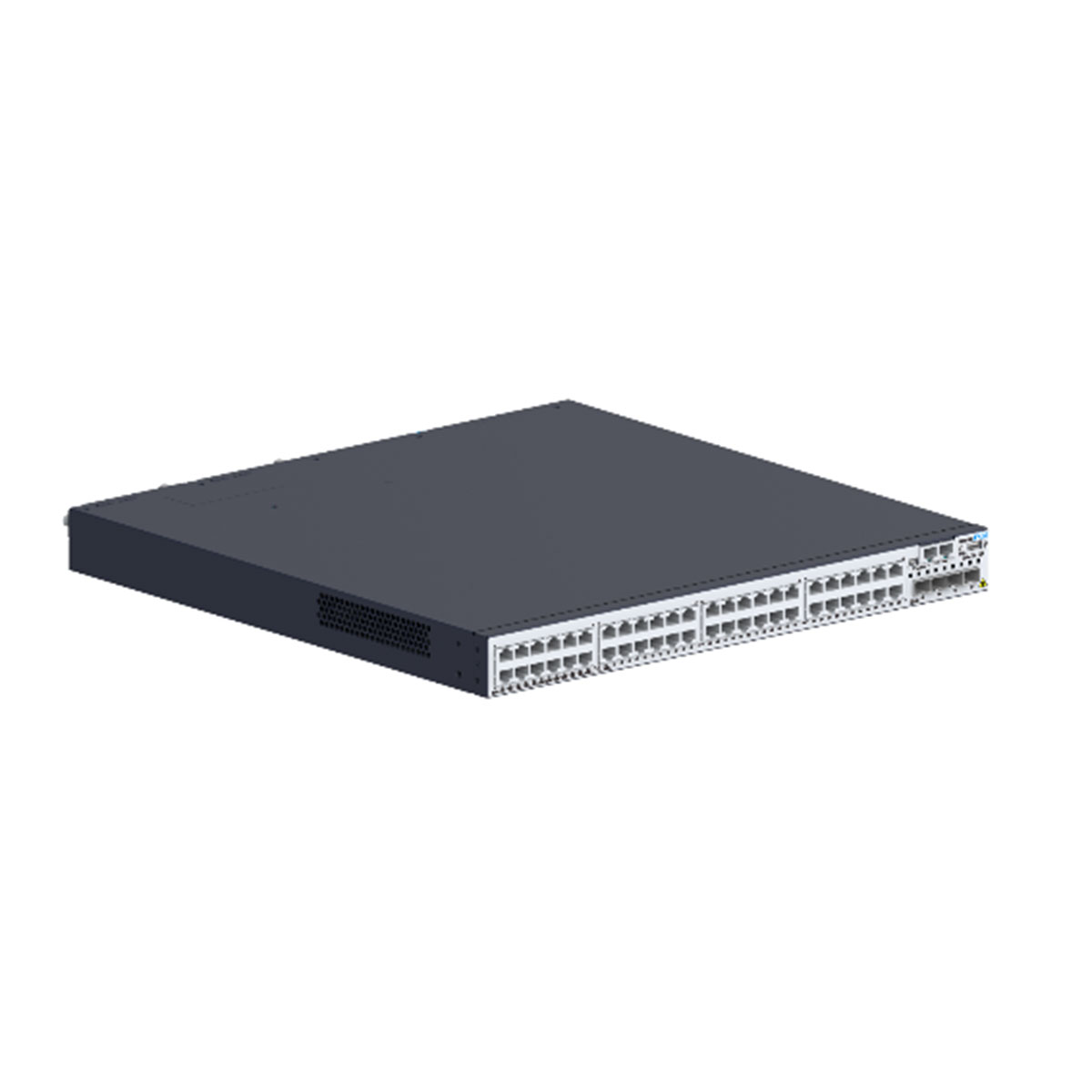

ZTE ZXR10 5950-52PD-L provides 48 GE RJ45 electrical interfaces, 4 10G interfaces, 2 power slots

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ZXR10 5950-52PD-L provides 48 GE RJ45 electrical interfaces that supports CAT 5 and enhanced CAT 5 twisted-pair cables, 4 10G interfaces, and supports optical modules with the 10G SFP+ interface and modules with the 1G SFP interface.

Name	Quantity	Description
10/100/1000 Base-T Ethernet interface	48	Fixed Ethernet electrical interface that supports POE+.
10G optical interface	4	Fixed Ethernet optical interface, supporting optical modules with the 10G SFP+ interface and modules with the 1G SFP interface. The 100M optical module is not supported.
Console interface	2	One MiniUSB interface or RJ45 interface for service configuration management. Only either of the two interfaces can be used.
10/100/1000 Base-T management interface.	1	It is used to boot devices and download version files.
USB interface	1	Type-A USB interface for reading and writing a USB disk.

Item	ZXR10 5950-28TD-L	ZXR10 5950-52TD-LC	ZXR10 5950-28TD-L	ZXR10 5950-52TD-L	ZXR10 5950-28SD-L	ZXR10 5950-28PD-L	ZXR10 5950-52PD-L
Dimensions (H × W × D)	43.6 mm×442 mm×440 mm
Weight	≤6.5 kg	≤6.9 kg	≤6.5 kg	≤6.9 kg	≤7.7 kg	≤7.8 kg	≤8.1 kg
Power Supply	AC: 100 V to 240 V, 50 Hz to 60 Hz					AC: 100 V to 240 V, 50 Hz to 60 Hz
	DC : -38 V to -57 V					DC : -52 V to -57 V
Power consumption	Typical power consumption: 30 W	Typical power consumption: 39 W	Typical power consumption: 30 W	Typical power consumption: 39 W	Typical power consumption: 38 W	Typical power consumption: 42 W	Typical power consumption: 49 W
	Maximum power consumption: 60 W	Maximum power consumption: 74 W	Maximum power consumption: 60 W	Maximum power consumption: 74 W	Maximum power consumption: 66 W	Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W)	Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature	Long term: -5°C to +50°C
	Storage temperature: -40°C to +70°C
Relative humidity	5% to 95% (non-condensing)
Switching capacity	128 Gbps	176 Gbps	128 Gbps	176 Gbps	128 Gbps	128 Gbps	176 Gbps
Packet forwarding rate	96 Mpps	132 Mpps	96 Mpps	132 Mpps	96 Mpps	96 Mpps	132 Mpps
Memory	2 GB
Environmental specification	Reduction of Hazardous Substances (RoHS)
Reliability	MTBF: > 400000 hours
	MTTR: < 30 minutes
	EMC:
	FCC Part 15 (CFR 47) Class A
	EN 55022 Class A
	ETSI EN 300 386
	EN55024
	ICES-003 Class A
	IEC 61000-3-2
	IEC 61000-3-3
	CISPR22 Class A
	CISPR24
	ICES-003 Class A
	AS/NZS CISPR22 Class A
	IEC61000-4-2
	ITU-T K 20
	ITU-T K 21
	ITU-T K 44
	Safety:
	UL 60950 3rd Edition
	CSA C22.2 No. 60950 3rd Edition
	IEC 60950
	EN 60950
	EN60825-1
	EN60825-2
	IEC60825-1
	IEC60825-2

Brand	ZTE
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	ZXR10 5950-28TD-L	ZXR10 5950-52TD-LC	ZXR10 5950-28TD-L	ZXR10 5950-52TD-L	ZXR10 5950-28SD-L	ZXR10 5950-28PD-L	ZXR10 5950-52PD-L
Dimensions (H × W × D)	43.6 mm×442 mm×440 mm
Weight	≤6.5 kg	≤6.9 kg	≤6.5 kg	≤6.9 kg	≤7.7 kg	≤7.8 kg	≤8.1 kg
Power Supply	AC: 100 V to 240 V, 50 Hz to 60 Hz					AC: 100 V to 240 V, 50 Hz to 60 Hz
	DC : -38 V to -57 V					DC : -52 V to -57 V
Power consumption	Typical power consumption: 30 W	Typical power consumption: 39 W	Typical power consumption: 30 W	Typical power consumption: 39 W	Typical power consumption: 38 W	Typical power consumption: 42 W	Typical power consumption: 49 W
	Maximum power consumption: 60 W	Maximum power consumption: 74 W	Maximum power consumption: 60 W	Maximum power consumption: 74 W	Maximum power consumption: 66 W	Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W)	Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature	Long term: -5°C to +50°C
	Storage temperature: -40°C to +70°C
Relative humidity	5% to 95% (non-condensing)
Switching capacity	128 Gbps	176 Gbps	128 Gbps	176 Gbps	128 Gbps	128 Gbps	176 Gbps
Packet forwarding rate	96 Mpps	132 Mpps	96 Mpps	132 Mpps	96 Mpps	96 Mpps	132 Mpps
Memory	2 GB
Environmental specification	Reduction of Hazardous Substances (RoHS)
Reliability	MTBF: > 400000 hours
	MTTR: < 30 minutes
	EMC:
	FCC Part 15 (CFR 47) Class A
	EN 55022 Class A
	ETSI EN 300 386
	EN55024
	ICES-003 Class A
	IEC 61000-3-2
	IEC 61000-3-3
	CISPR22 Class A
	CISPR24
	ICES-003 Class A
	AS/NZS CISPR22 Class A
	IEC61000-4-2
	ITU-T K 20
	ITU-T K 21
	ITU-T K 44
	Safety:
	UL 60950 3rd Edition
	CSA C22.2 No. 60950 3rd Edition
	IEC 60950
	EN 60950
	EN60825-1
	EN60825-2
	IEC60825-1
	IEC60825-2
