5950-28TD-LC
Categories:

5950-28TD-LC

1 Review Write a review
SKU2009227
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

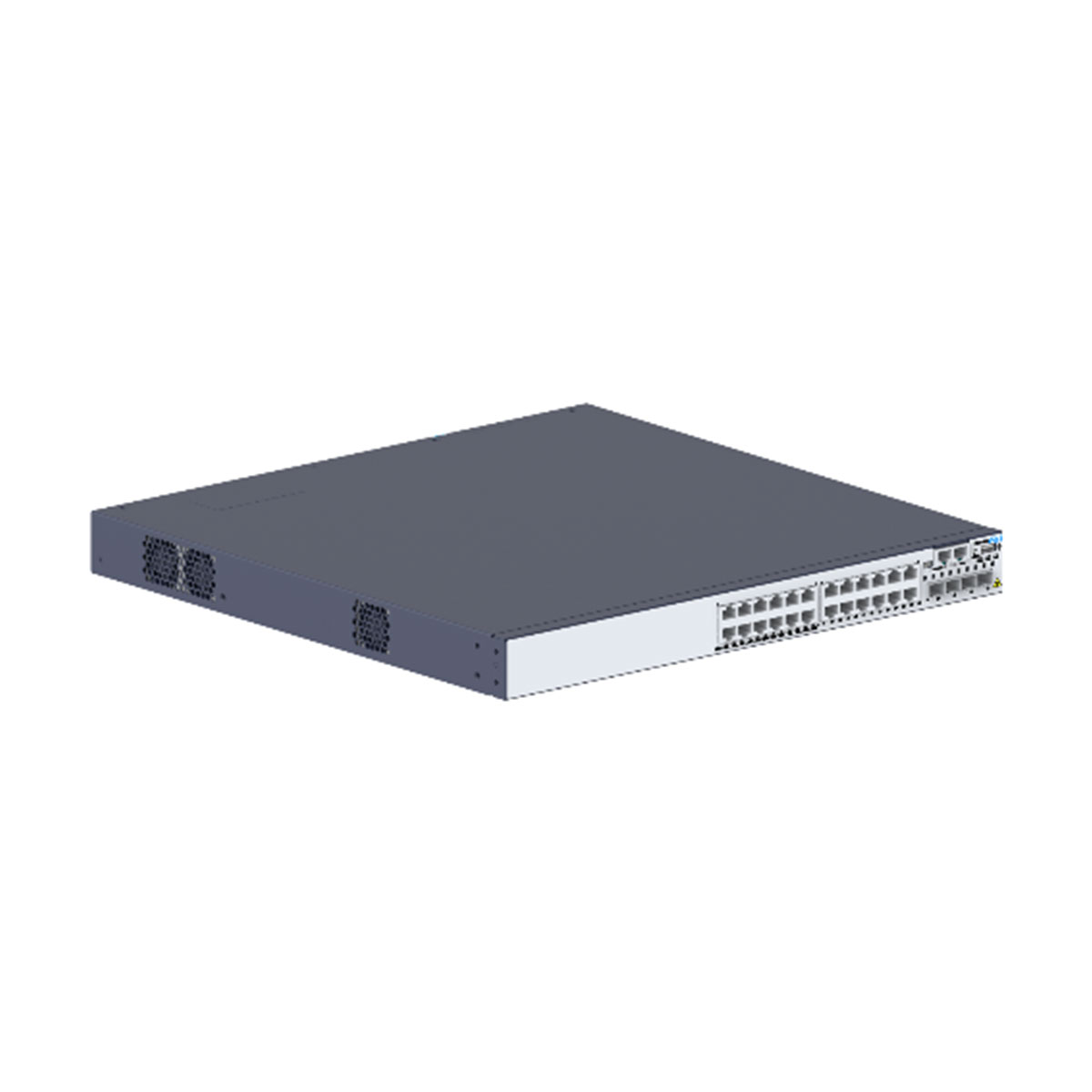

ZTE ZXR10 5950-28TD-LC provides 24 GE RJ45 electrical interfaces, 4 10G interfaces, 2 AC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ZXR10 5950-28TD-LC provides 24 GE RJ45 electrical interfaces that supports CAT 5 and enhanced CAT 5 twisted-pair cables, 4 10G interfaces, and supports optical modules with the 10G SFP+ interface and modules with the 1G SFP interface.



Name Quantity Description
10/100/1000 Base-T Ethernet interface 24 Fixed Ethernet electrical interface
10G optical interface 4 Fixed Ethernet optical interface, supporting optical modules with the 10G SFP+ interface and modules with the 1G SFP interface. The 100M optical module is not supported.
Console interface 2 One MiniUSB interface or RJ45 interface for service configuration management. Only either of the two interfaces can be used.
10/100/1000 Base-T management interface. 1 It is used to boot devices and download version files.
USB interface 1 Type-A USB interface for reading and writing a USB disk.



The ZXR10 5950-28TD-LC provides the following indicators:

One system status indicator (RUN/ALM) that indicates the device operation status, and one MNG indicator that indicates the operational status of debugging interfaces.

24 port indicators that indicate the status of 24 10/100/1000 Base-T ports. Each port corresponds to one indicator.

4 port indicators that indicate the status of 4 10G optical interfaces. Each port corresponds to one indicator.

The power supply indicator PWR indicates the operational status of power supply.

The fan indicator FAN indicates the operational status of the fan.

Item ZXR10 5950-28TD-L ZXR10 5950-52TD-LC ZXR10 5950-28TD-L ZXR10 5950-52TD-L ZXR10 5950-28SD-L ZXR10 5950-28PD-L ZXR10 5950-52PD-L
Dimensions (H × W × D) 43.6 mm×442 mm×440 mm
Weight ≤6.5 kg ≤6.9 kg ≤6.5 kg ≤6.9 kg ≤7.7 kg ≤7.8 kg ≤8.1 kg
Power Supply AC: 100 V to 240 V, 50 Hz to 60 Hz AC: 100 V to 240 V, 50 Hz to 60 Hz
DC : -38 V to -57 V DC : -52 V to -57 V
Power consumption Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 38 W Typical power consumption: 42 W Typical power consumption: 49 W
Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 66 W Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W) Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -5°C to +50°C
Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Switching capacity 128 Gbps 176 Gbps 128 Gbps 176 Gbps 128 Gbps 128 Gbps 176 Gbps
Packet forwarding rate 96 Mpps 132 Mpps 96 Mpps 132 Mpps 96 Mpps 96 Mpps 132 Mpps
Memory 2 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours
MTTR: < 30 minutes
EMC:
FCC Part 15 (CFR 47) Class A
EN 55022 Class A
ETSI EN 300 386
EN55024
ICES-003 Class A
IEC 61000-3-2
IEC 61000-3-3
CISPR22 Class A
CISPR24
ICES-003 Class A
AS/NZS CISPR22 Class A
IEC61000-4-2
ITU-T K 20
ITU-T K 21
ITU-T K 44
Safety:
UL 60950 3rd Edition
CSA C22.2 No. 60950 3rd Edition
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC60825-1
IEC60825-2


Additional information

Brand

ZTE
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ZXR10 5950-28TD-L ZXR10 5950-52TD-LC ZXR10 5950-28TD-L ZXR10 5950-52TD-L ZXR10 5950-28SD-L ZXR10 5950-28PD-L ZXR10 5950-52PD-L
Dimensions (H × W × D) 43.6 mm×442 mm×440 mm
Weight ≤6.5 kg ≤6.9 kg ≤6.5 kg ≤6.9 kg ≤7.7 kg ≤7.8 kg ≤8.1 kg
Power Supply AC: 100 V to 240 V, 50 Hz to 60 Hz AC: 100 V to 240 V, 50 Hz to 60 Hz
DC : -38 V to -57 V DC : -52 V to -57 V
Power consumption Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 38 W Typical power consumption: 42 W Typical power consumption: 49 W
Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 66 W Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W) Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -5°C to +50°C
Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Switching capacity 128 Gbps 176 Gbps 128 Gbps 176 Gbps 128 Gbps 128 Gbps 176 Gbps
Packet forwarding rate 96 Mpps 132 Mpps 96 Mpps 132 Mpps 96 Mpps 96 Mpps 132 Mpps
Memory 2 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours
MTTR: < 30 minutes
EMC:
FCC Part 15 (CFR 47) Class A
EN 55022 Class A
ETSI EN 300 386
EN55024
ICES-003 Class A
IEC 61000-3-2
IEC 61000-3-3
CISPR22 Class A
CISPR24
ICES-003 Class A
AS/NZS CISPR22 Class A
IEC61000-4-2
ITU-T K 20
ITU-T K 21
ITU-T K 44
Safety:
UL 60950 3rd Edition
CSA C22.2 No. 60950 3rd Edition
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC60825-1
IEC60825-2


Reviews

  1. Javier –

    5950-28TD-LC working fine until now.
