Home/Ethernet Switch/ZTE Switch/ZXR10 5260 Series/5260-52TD-H
5260-52TD-H
Categories:

5260-52TD-H

1 Review Write a review
SKU2009283
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

5260-52TD-H switch supports 48*Ethernet 10/100/1000M electrical ports (POE/POE+), 4*10GE SFP+ optical ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

overview

Introduction:

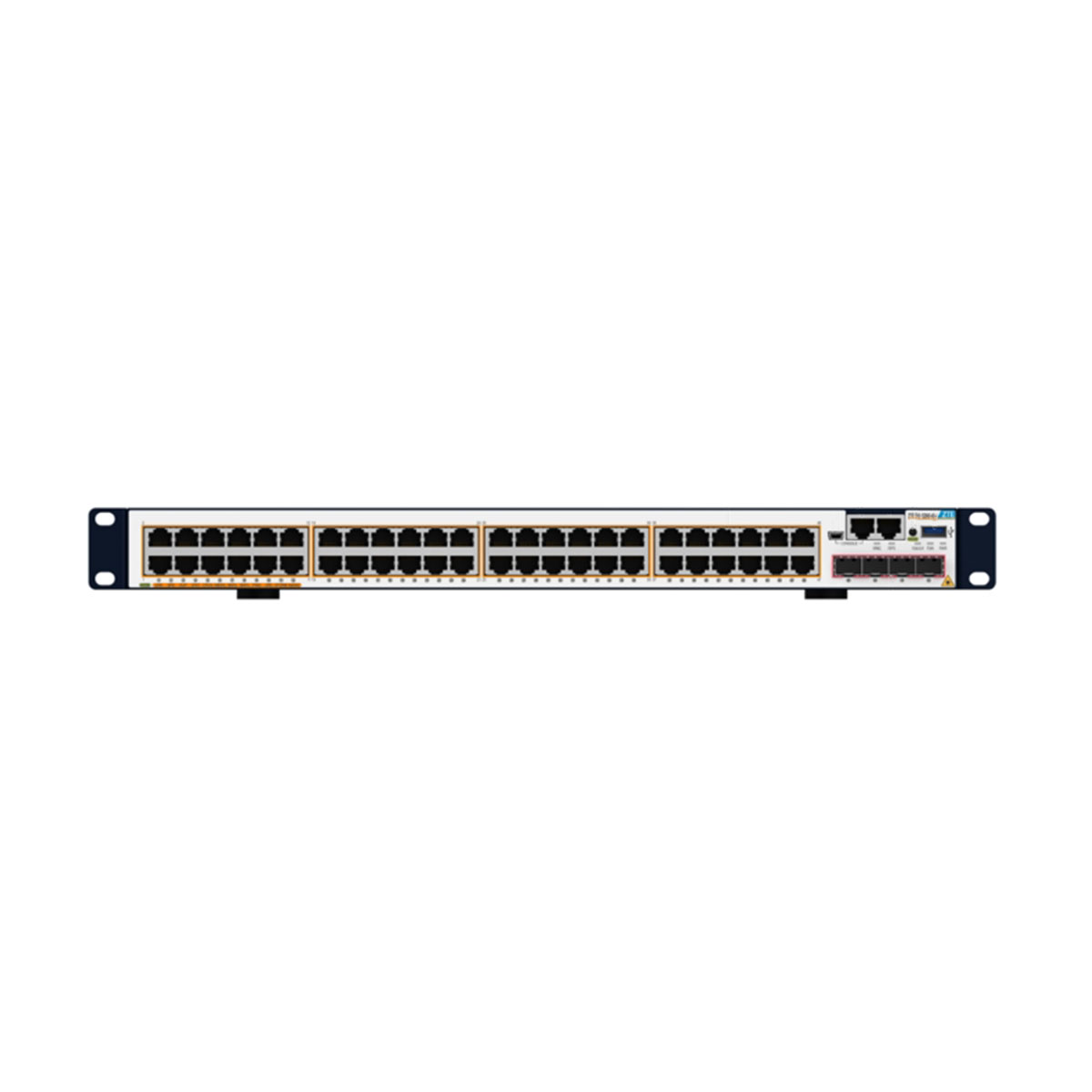

5260-52TD-H switch supports 48*Ethernet 10/100/1000M electrical ports (POE/POE+), 4*10GE SFP+ optical ports

The ZXR10 5260 Series switch is 1RU height all Gigabit L2 Stackable Switch for Enterprise campus network access and 1000Mbps to the desktop scenarios. It provides up to 52 interfaces (48 GE+ 4 10GE) and various interface combinations.  VSC2.0 (Virtual Switch Cluster), delivers improved resilience and flexibility. The ZXR10 5260 Series switch supports full IEEE 802.3af Power over Ethernet Plus (PoE) and IEEE 802.3at Power over Ethernet Plus (PoE+) to fulfill more enterprise access scenarios. Meanwhile, zero-touch provisioning, IEEE 802.3az Energy Efficient Ethernet (EEE) makes the network easy for maintenance and low consumption.

The ZXR10 5260-H series gigabit-port intelligent switches are layer-3 box-type switches developed for enterprises. The switches provide high-density gigabit access and 10G uplink interfaces that are capable of layer-2 switching and layer-3 routing. With various security and reliability mechanisms, the switches support Power over Ethernet (PoE). The ZXR10 5260-H switches are applicable to convergency access and IDC gigabit access to intranets, providing reliable high-speed bandwidth solutions for enterprise customers.
The ZXR10 5260-H switches are divided into the following types:
  • ZXR10 5260-28TD-H
  • ZXR10 5260-52TD-H
  • ZXR10 5260-28PD-H
  • ZXR10 5260-52PD-H
Features
The ZXR10 5260-H uses special advanced core chips, which ensures service expansion and value-adding, extends its service life, and ensures a high yield. Its compact structure needs a small space, and the dual power supply modules ensure high reliability and reduce the operation and maintenance costs. Besides, the ZXR10 5260-H provides the following features:
  • Large capacity and high service performance, ensuring high network upgrade and deployment efficiency
  • Improving user experience in high-quality videos
  • Integrated service platform
  • Carrier-class reliability, improving the disaster recovery ability
  • Considerable operation and maintenance design, reducing the operation and maintenance costs
  • Environmentally-friendly design
Item ZXR10 5260-28TD-H ZXR10 5260-52TD-H ZXR10 5260-28PD-H ZXR10 5260-52PD-H
Dimensions (H × W × D) 43.6mm×482mm×220mm 43.6mm×482mm×440mm
Weight ≤2.6 kg ≤2.92 kg ≤7.8 kg ≤8.1 kg
Power supply AC: 100 V to 240 V, 50/60 Hz AC: 100 V to 240 V, 50/60 Hz DC : -38.4 V to -72 V
Power consumption Typical power consumption: 30 W Maximum power consumption: 60 W Typical power consumption: 39 W Maximum power consumption: 74 W Typical power consumption: 42 W Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W) Typical power consumption: 49 W Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -10℃~55℃ Short term: -15℃~60℃ Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Memory 1 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours MTtr: < 30 minutes EMC: *FCC Part 15 (CFR 47) Class A *EN 55022 Class A *ETSI EN 300 386 *EN55024 *ICES-003 Class A *IEC 61000-3-2 *IEC 61000-3-3 *CISPR22 Class A *CISPR24 *ICES-003 Class A *AS/NZS CISPR22 Class A *IEC61000-4-2 *ITU-T K 20 *ITU-T K 21 *ITU-T K 44 Safety: *UL 60950 3rd Edition *CSA C22.2 No. 60950 3rd Edition *IEC 60950 *EN 60950 *EN60825-1 *EN60825-2 *IEC60825-1 *IEC60825-2

Additional information

Brand

ZTE
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ZXR10 5260-28TD-H ZXR10 5260-52TD-H ZXR10 5260-28PD-H ZXR10 5260-52PD-H
Dimensions (H × W × D) 43.6mm×482mm×220mm 43.6mm×482mm×440mm
Weight ≤2.6 kg ≤2.92 kg ≤7.8 kg ≤8.1 kg
Power supply AC: 100 V to 240 V, 50/60 Hz AC: 100 V to 240 V, 50/60 Hz DC : -38.4 V to -72 V
Power consumption Typical power consumption: 30 W Maximum power consumption: 60 W Typical power consumption: 39 W Maximum power consumption: 74 W Typical power consumption: 42 W Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W) Typical power consumption: 49 W Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -10℃~55℃ Short term: -15℃~60℃ Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Memory 1 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours MTtr: < 30 minutes EMC: *FCC Part 15 (CFR 47) Class A *EN 55022 Class A *ETSI EN 300 386 *EN55024 *ICES-003 Class A *IEC 61000-3-2 *IEC 61000-3-3 *CISPR22 Class A *CISPR24 *ICES-003 Class A *AS/NZS CISPR22 Class A *IEC61000-4-2 *ITU-T K 20 *ITU-T K 21 *ITU-T K 44 Safety: *UL 60950 3rd Edition *CSA C22.2 No. 60950 3rd Edition *IEC 60950 *EN 60950 *EN60825-1 *EN60825-2 *IEC60825-1 *IEC60825-2
