Description

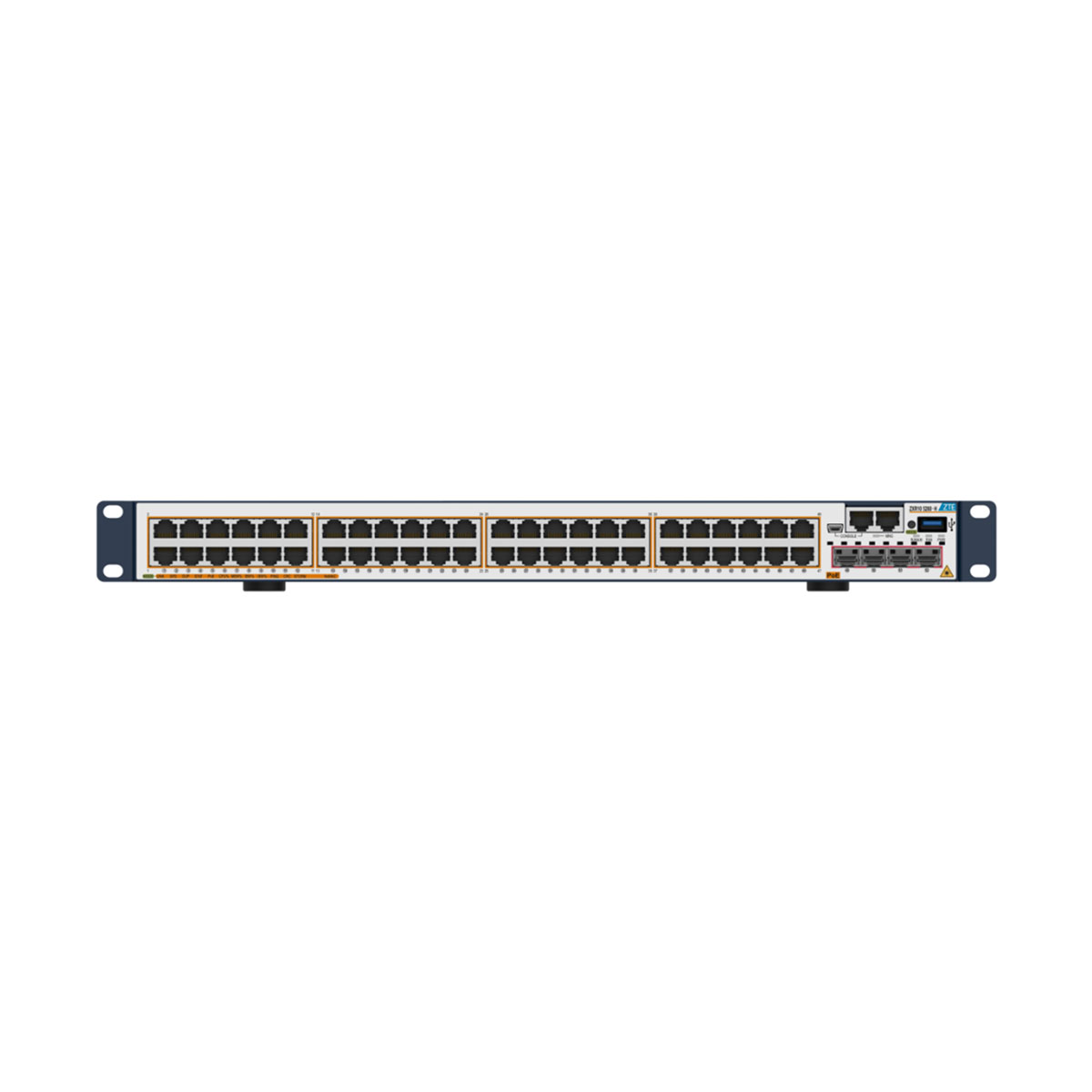

ZXR10 5260-52PD-H, the front panel provides 48 GE RJ45 electrical interfaces that supports CAT 5 and enhanced CAT 5 twisted-pair cables, the front panel provides 4 10G interfaces, and supports optical modules with the 10G SFP+ interface and modules with the1G SFP interface.
ZXR10 5260-52PD-H Interface Descriptions
| Name | Quantity | Description |
|---|---|---|
| 10/100/1000 Base-T Ethernet interface | 48 | Fixed Ethernet electrical interface that supports POE+. |
| 10G optical interface | 4 | Fixed Ethernet optical interface, supporting optical modules with the 10G SFP+ interface and modules with the 1G SFP interface. The 100M optical module is not supported. |
| Console interface | 2 | One MiniUSB interface or RJ45 interface for service configuration management. Only either of the two interfaces can be used. |
| 10/100/1000 Base-T management interface. | 1 | It is used to boot devices and download version files. |
| USB interface | 1 | Type-A USB interface for reading and writing a USB disk. |
The ZXR10 5260-52PD-H provides the following indicators:
- The ZXR10 5260-52PD-H provides the following indicators: One system status indicator (RUN/ALM) that indicates the device operation status, and one MNG indicator that indicates theoperational status of debugging interfaces.
- 48 port indicators that indicate the status of 48 10/100/1000 Base-T ports. Each port corresponds to one indicator.
- 4 port indicators that indicate the status of 4 10G optical interfaces. Each port corresponds to one indicator.
- The power supply indicator PWR indicates the operational status of power supply. The fan indicator FAN indicates the operational status of the fan.
