Home/Ethernet Switch/ZTE Switch/ZXR10 5260 Series/5260-28PD-S
5260-28PD-S
Categories:

5260-28PD-S

1 Review Write a review
SKU2009245
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

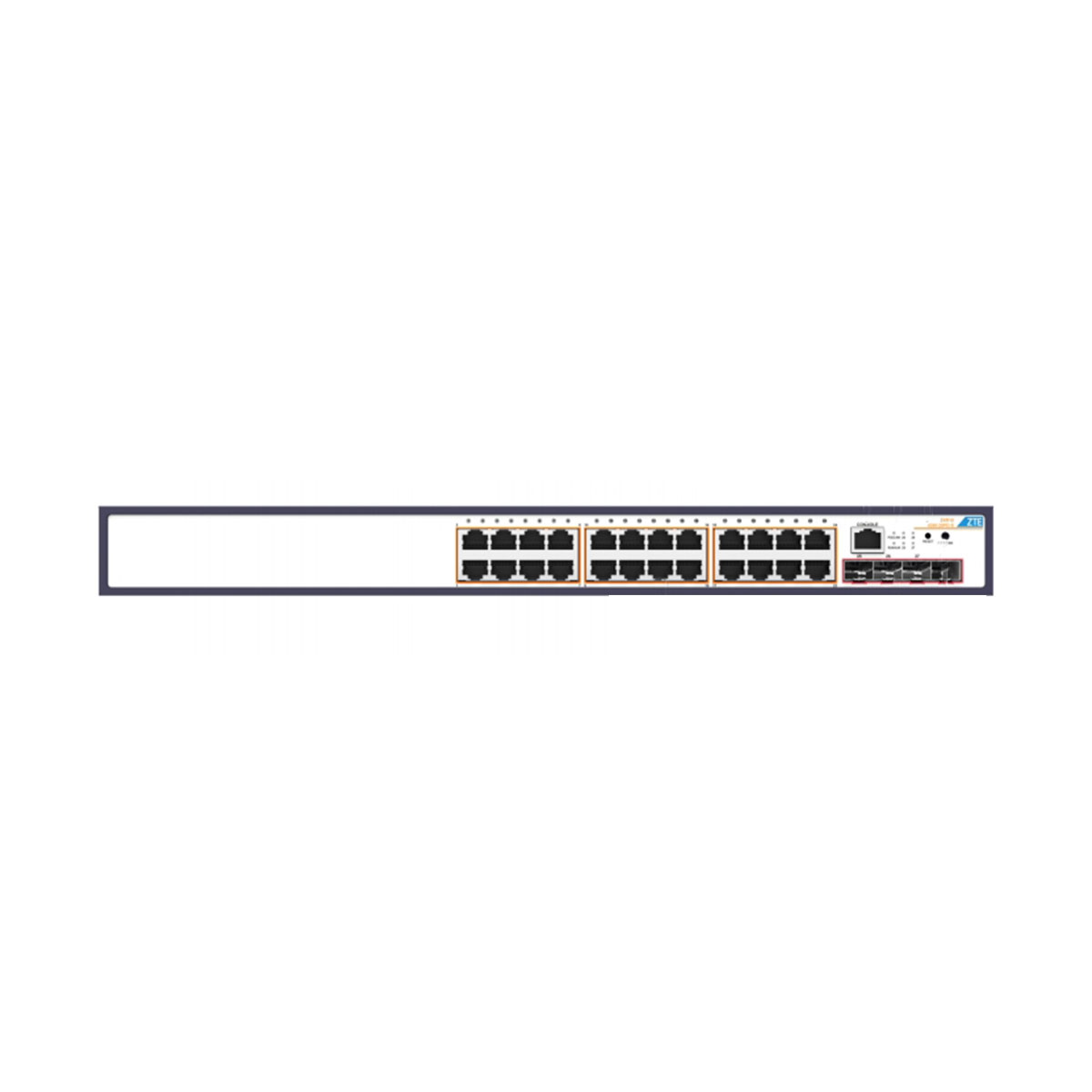

ZTE 5260-28PD-S switch supports 24*fixed Ethernet electrical ports, 4*10GE fixed Ethernet optical ports, 1*AC power fixed.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview

ZTE 5260-28PD-S switch supports 24*fixed Ethernet electrical ports, 4*10GE fixed Ethernet optical ports, 1*AC power fixed.

ZXR10 5260-S series provide high-density GE access and 10G uplink interfaces.

With various security and reliability mechanisms,and the switches are applicable to converged access and GE access to intranets, providing reliable high-speed bandwidth solutions for enterprise customers.

The ZXR10 5260-S series switches have the following models：

  • ZXR10 5260-28TS-S
  • ZXR10 5260-28TD-S
  • ZXR10 5260-28PD-S
  • ZXR10 5260-52TS-S
  • ZXR10 5260-52TD-S
  • ZXR10 5260-52PD-S
Item ZXR10 5260-28 TS-S ZXR10 5260-28 TD-S ZXR10 5260-28 PD-S ZXR10 5260-52 TS-S ZXR10 5260-52TD-S ZXR10 5260-52PD-S
Power supply AC input: 100 – 240 V, 50/60 Hz
Power consumption Maximum power consumption: < 28W Maximum power consumption: <400W Maximum output power consumption of PoE: < 370W Maximum power consumption: < 50W Maximum power consumption: <430W Maximum output power consumption of PoE: < 370W
Reliability MTBF: > 400000 hours MTTR: < 30 minutes EMC:
  • EN 55022 Class A
  • ETSI EN 300 386
  • EN55024
  • ICES-003 Class A
  • IEC 61000-3-2
  • IEC 61000-3-3
  • CISPR22 Class A
  • CISPR24
  • ICES-003 Class A
  • AS/NZS CISPR22 Class A
  • IEC61000-4-2
  • ITU-T K 20
  • ITU-T K 21
  • ITU-T K 44
Environment specification RoHS-6 compliant (lead-free)
Ambient temperature   Long-term operating temperature: –5℃ to 45℃ Short-term operating temperature: –10℃ to 50℃ Storage temperature: –40℃ to 70℃
Relative humidity 5% to 90%, non-condensing
Dimensions (H x W x D, mm) 44 × 440 × 208 44 × 440 × 330
Weight ≤ 2.25 kg ≤ 2.95 kg ≤ 4.25 kg ≤ 5.46 kg

Additional information

Brand

ZTE
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ZXR10 5260-28 TS-S ZXR10 5260-28 TD-S ZXR10 5260-28 PD-S ZXR10 5260-52 TS-S ZXR10 5260-52TD-S ZXR10 5260-52PD-S
Power supply AC input: 100 – 240 V, 50/60 Hz
Power consumption Maximum power consumption: < 28W Maximum power consumption: <400W Maximum output power consumption of PoE: < 370W Maximum power consumption: < 50W Maximum power consumption: <430W Maximum output power consumption of PoE: < 370W
Reliability MTBF: > 400000 hours MTTR: < 30 minutes EMC:
  • EN 55022 Class A
  • ETSI EN 300 386
  • EN55024
  • ICES-003 Class A
  • IEC 61000-3-2
  • IEC 61000-3-3
  • CISPR22 Class A
  • CISPR24
  • ICES-003 Class A
  • AS/NZS CISPR22 Class A
  • IEC61000-4-2
  • ITU-T K 20
  • ITU-T K 21
  • ITU-T K 44
Environment specification RoHS-6 compliant (lead-free)
Ambient temperature   Long-term operating temperature: –5℃ to 45℃ Short-term operating temperature: –10℃ to 50℃ Storage temperature: –40℃ to 70℃
Relative humidity 5% to 90%, non-condensing
Dimensions (H x W x D, mm) 44 × 440 × 208 44 × 440 × 330
Weight ≤ 2.25 kg ≤ 2.95 kg ≤ 4.25 kg ≤ 5.46 kg
