ZTE 5250-52PM-H switch supports 48*10/100/1000Base-T Ethernet port

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview

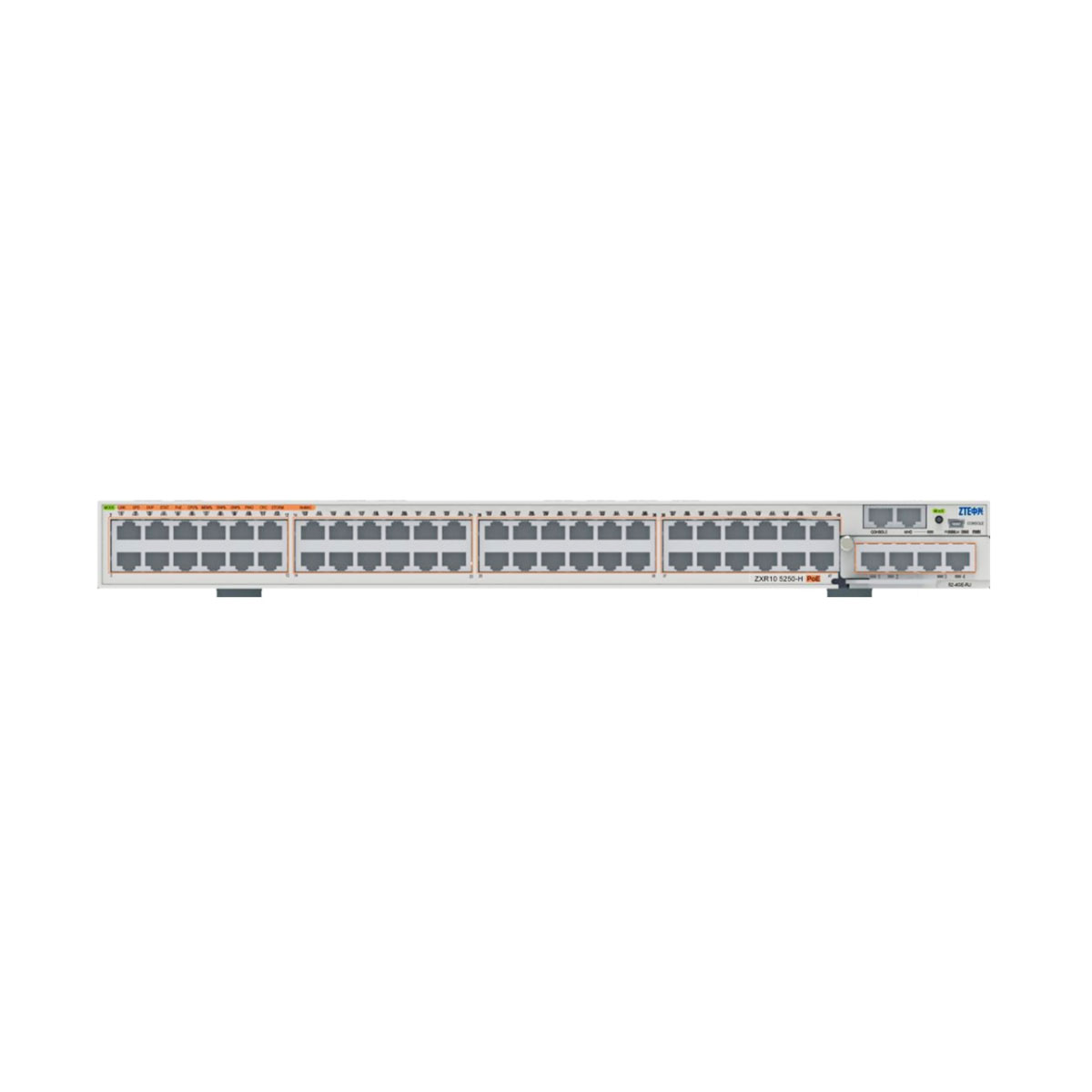

ZTE 5250-52PM-H switch supports 48*10/100/1000Base-T Ethernet port.

The ZXR10 5250-H series switches are all-gigabit intelligent switch developed by ZTE Corporation.

It provides gigabit access and support the Access Control List (ACL) function for ingress and egress. The ZXR10 5250-H series switches are used in the access layers of educational networks, enterprise networks, political

service networks, and carrier networks.

Depending on the slot quantity and capacity, the ZXR10 5250-H series switches are divided into the following types:

  • ZXR10 5250-28TC-H
  • ZXR10 5250-52TC-H
  • ZXR10 5250-28PM-H
  • ZXR10 5250-52PM-H
  • ZXR10 5250-28TM-H
  • ZXR10 5250-52TM-H
Features

The ZXR10 5250-H series switches are environment-friendly and highly-reliable products, which are easy to maintain and bring satisfactory experience to customers.

  • Environment-friendly and energy-saving design
  • Advanced lightning-protection technology
  • Intelligent PoE supply
  • Powerful security platform
  • Abundant maintenance methods
Item ZXR10 5250-28TC-H ZXR10 5250-52TC-H ZXR10 5250-28PM-H ZXR10 5250- 52PM-H ZXR10 5250- 28TM-H ZXR10 5250- 52TM-H
Power supply Support AC, DC, and DC RPS power supply. Supports AC power supply Support AC and DC power supply
Power consumption < 27 W < 53 W < 111 W < 1020W < 51 W < 70 W
Ambient temperature Ambient temperature For long-term operations: -5 ℃ to +50 ℃ For short-term operations: -5 ℃ to +55 ℃ Storage temperature: -40 ℃ to +70 ℃
Humidity Relative humidity: 5%–95%, non-condensation
Port switch capacity 56 Gbps 104 Gbps 128 Gbps 176 Gbps 128 Gbps 176 Gb
Packet forwarding rate 42 Mpps 78 Mpps 96 Mpps 132 Mpps 96 Mpps 132 Mpps
Capacity of MAC address table 16 K
Dimensions (Height × Width × Depth) 1.72 in. ×17.41 in. ×8.67 in. (43.6 mm×442 mm×220mm) 1.72 in. × 17.41 in. × 8.67 in. (43.6 mm×442 mm×220 mm) 1.72 in. × 17.41 in. × 17.34 in. (43.6 mm×442 mm×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm)
Weight < 6.39 lb (< 2.9 kg) < 6.61 lb (< 3 kg) < 16.53 lb (< 7.5 kg) < 16.53 lb (< 7.5 kg) < 14.11 lb (< 6.4 kg) < 14.11 lb (< 6.4 kg)

Additional information

Brand

ZTE
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ZXR10 5250-28TC-H ZXR10 5250-52TC-H ZXR10 5250-28PM-H ZXR10 5250- 52PM-H ZXR10 5250- 28TM-H ZXR10 5250- 52TM-H
Power supply Support AC, DC, and DC RPS power supply. Supports AC power supply Support AC and DC power supply
Power consumption < 27 W < 53 W < 111 W < 1020W < 51 W < 70 W
Ambient temperature Ambient temperature For long-term operations: -5 ℃ to +50 ℃ For short-term operations: -5 ℃ to +55 ℃ Storage temperature: -40 ℃ to +70 ℃
Humidity Relative humidity: 5%–95%, non-condensation
Port switch capacity 56 Gbps 104 Gbps 128 Gbps 176 Gbps 128 Gbps 176 Gb
Packet forwarding rate 42 Mpps 78 Mpps 96 Mpps 132 Mpps 96 Mpps 132 Mpps
Capacity of MAC address table 16 K
Dimensions (Height × Width × Depth) 1.72 in. ×17.41 in. ×8.67 in. (43.6 mm×442 mm×220mm) 1.72 in. × 17.41 in. × 8.67 in. (43.6 mm×442 mm×220 mm) 1.72 in. × 17.41 in. × 17.34 in. (43.6 mm×442 mm×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm) 1.72 in. × 17.41 in.× 17.34 in. (43.6 mm ×442 mm ×440 mm)
Weight < 6.39 lb (< 2.9 kg) < 6.61 lb (< 3 kg) < 16.53 lb (< 7.5 kg) < 16.53 lb (< 7.5 kg) < 14.11 lb (< 6.4 kg) < 14.11 lb (< 6.4 kg)
