Huawei OptiX OSN 8800 series of TN19LSC 100G wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN19LSC overview



TN19LSC 100Gbit/s wavelength conversion board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

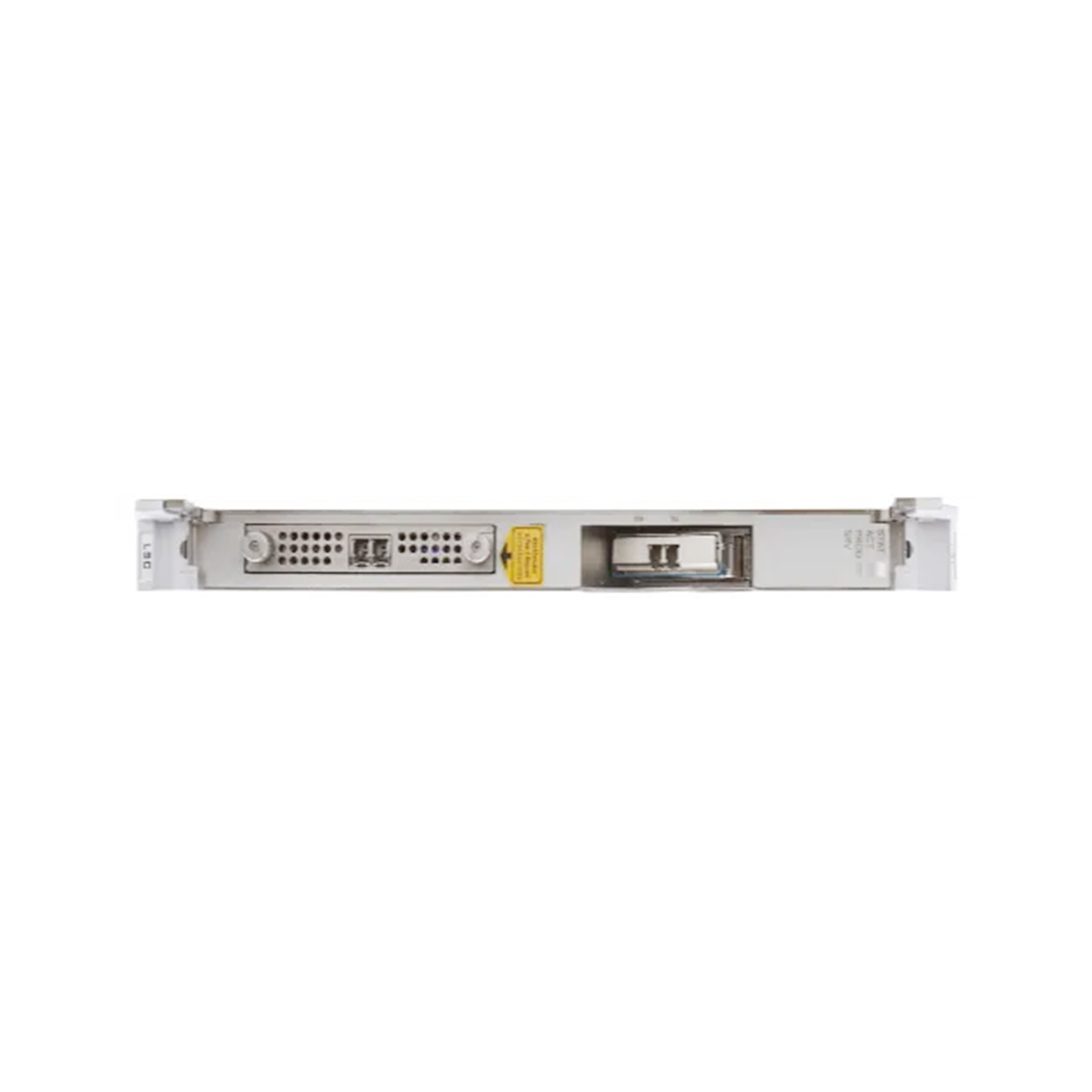

Front panel of the TN19LSC board

TN19LSC-3

Front panel of the TN19LSC board



Valid slots for the TN19LSC board in a OptiX OSN 8800 T64/T32/T16 subrack

Product

Valid Slots

OptiX OSN 8800 T64 subrack

IU1-IU8, IU11-IU18, IU19-IU26, IU27-IU34, IU35-IU42, IU45-IU52, IU53-IU60, IU61-IU68

OptiX OSN 8800 T32 subrack

IU1-IU8, IU12-IU19, IU20-IU27, IU29-IU36

OptiX OSN 8800 T16 subrack

IU1-IU18

OptiX OSN 8800 universal platform subrack

IU1-IU16

OptiX OSN 6800 subrack

IU1-IU17
Item TN19LSC
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Provides the OTU4 interface on WDM-side.
  • Supports the OTN frame format and overhead processing compliant with ITU-T G.709.
  • supports the PM and TCM functions, PM and TCM non-intrusive monitoring functions.
  • Supports SM functions for OTU4.
WDM specification Supports DWDM specifications.
Tunable wavelength function The TN18LSC/TN19LSC board can tune the optical signal output on the WDM side within the range of 96 wavelengths in extended C-band with the channel spacing of 50 GHz . The TN17LSC board can tune the optical signal output on the WDM side within the range of 80 wavelengths in the C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS test function Not supported
LPT function Not supported
FEC encoding The TN18LSC board supports SDFEC2 and HFEC PLUS. The TN19LSC board supports SDFEC2. The TN17LSC board supports SDFEC2.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the monitoring of CD and PMD performance.
ALS function Not supported
Test frame Not supported
Electrical-layer ASON Not supported
Optical-layer ASON Supported
Protection scheme Not supported
Loopback Not supported
